Engine, Exhaust replacement parts for 2019 Polaris Sportsman XP 1000 HIGH LIFTER (R06)

OEM Parts Polaris 2019 Polaris Sportsman XP 1000 HIGH LIFTER (R06) Engine, Exhaust

ENGINE, EXHAUST Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT Part #: 7512666 Required per assembly: 1 Currently Not Available
1	WASHER, CLEAN, OUT Part #: 7556230 Required per assembly: 1 Note: Washer ~~$1.99~~ $1.15 - + Add to cart

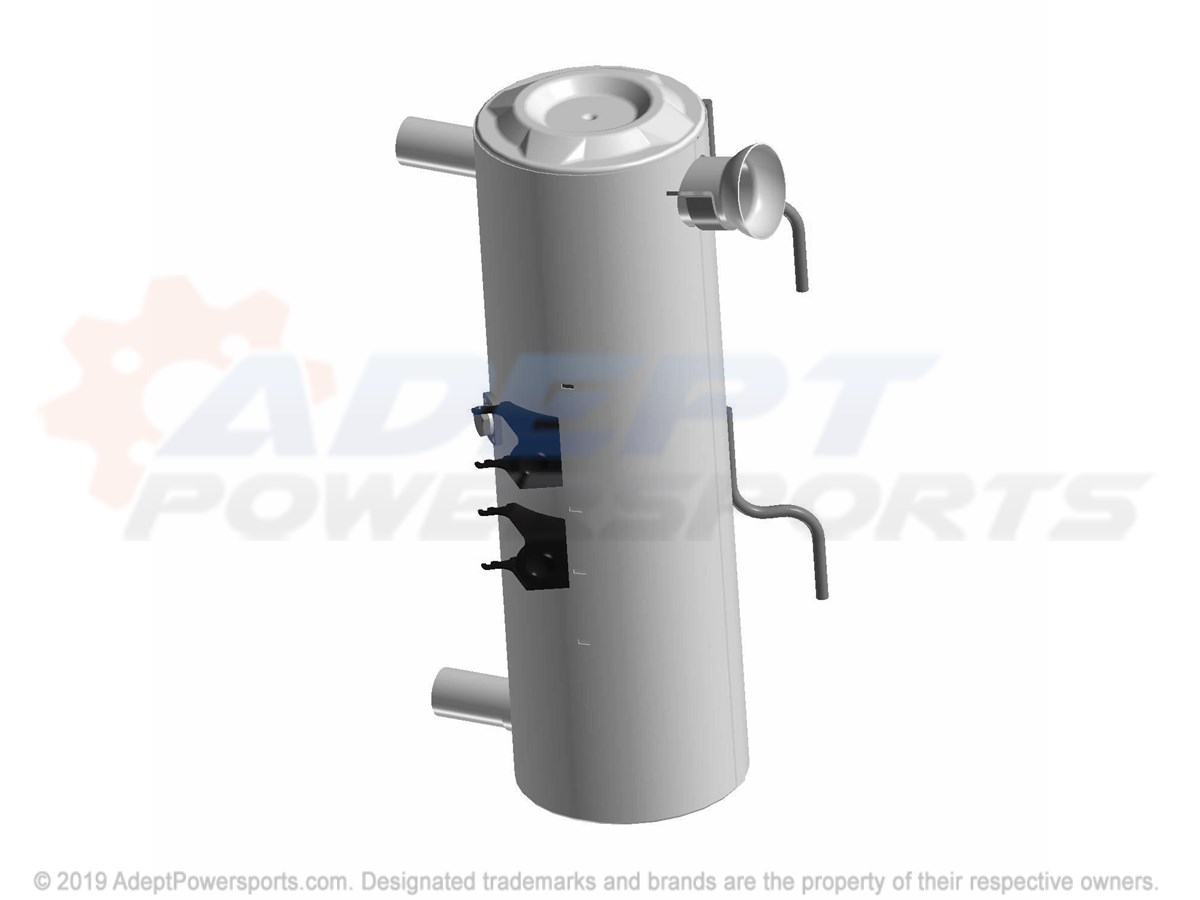

1	WELD-EXHAUST, SILENCER, BLK Part #: 1262970-489 Required per assembly: 1 Note: INCLUDES CLEAN OUT BOLT, WASHER Currently Not Available

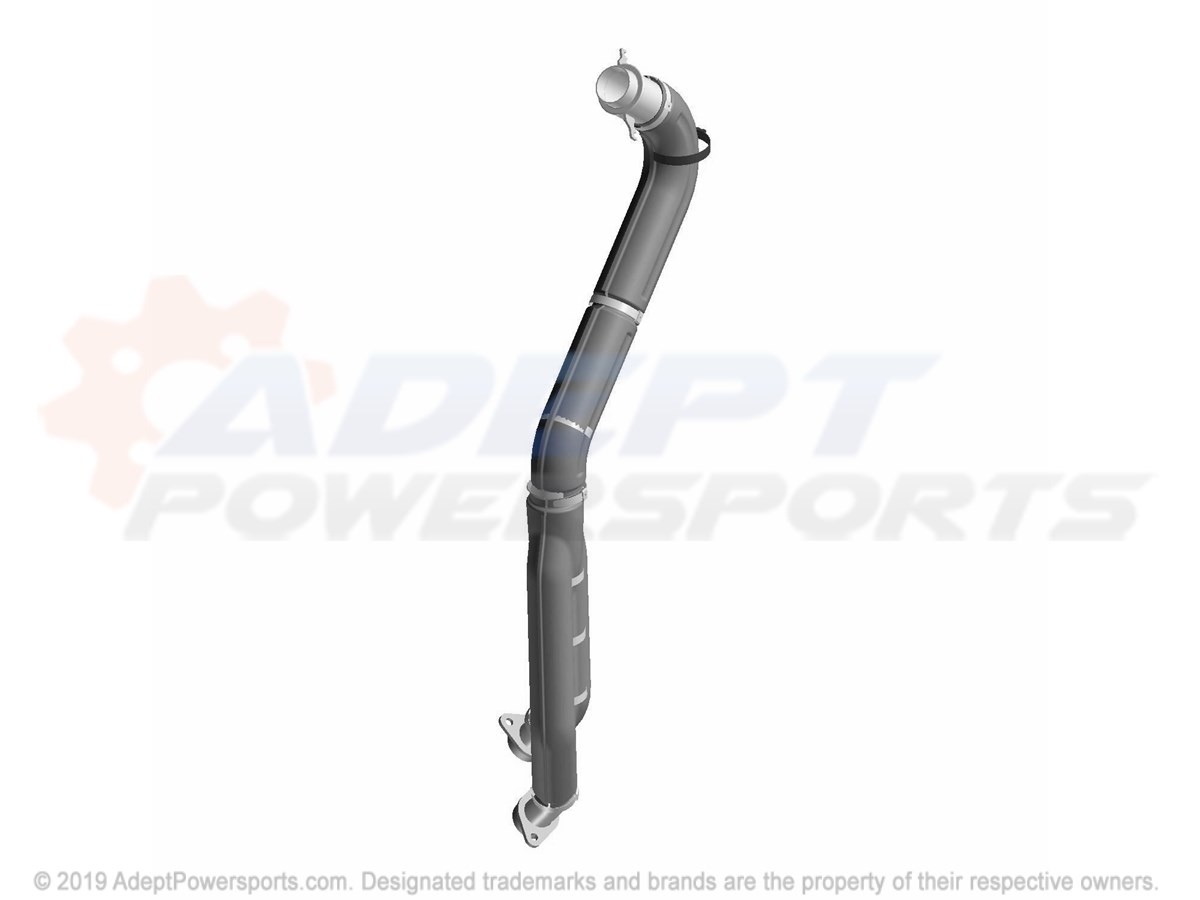

2	ASM-EXHAUST, PIPE, TWIN Part #: 1263072 Required per assembly: 1 Note: INCLUDES SHIELDS, 3 Currently Not Available
3	CLAMP Part #: 7080809 Required per assembly: 1 Currently Not Available
4	SEAL-EXHAUST Part #: 3610179 Required per assembly: 1 Currently Not Available
5	SHIELD, BOX, STORAGE Part #: 5252266 Required per assembly: 1 Currently Not Available

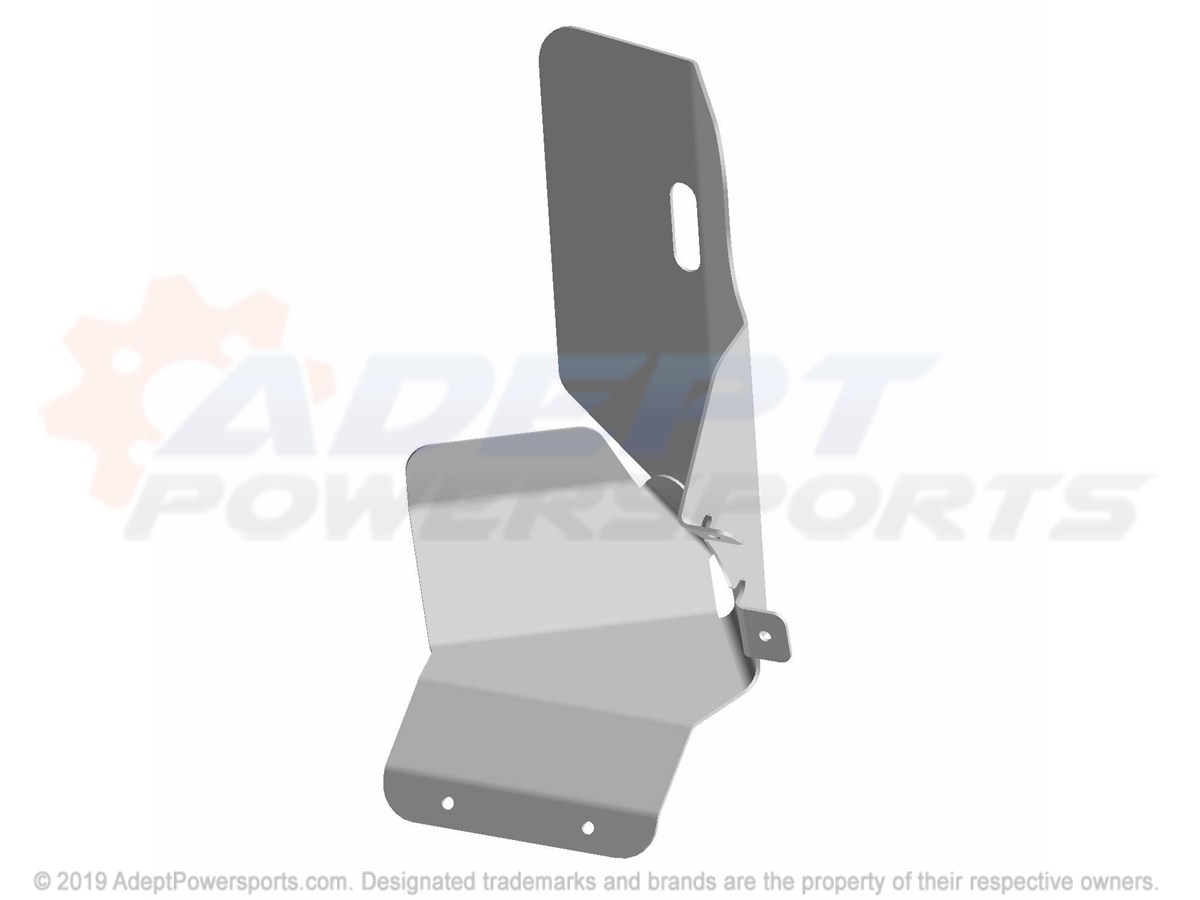

6	SHIELD-EXHAUST Part #: 5258649 Required per assembly: 1 Currently Not Available
7	SHIELD, EXHAUST, SPRING Part #: 5253865 Required per assembly: 1 Currently Not Available
8	GASKET, EXHAUST, SEALING Part #: 5257995 Required per assembly: 2 Currently Not Available
9	SPACER, EXHAUST, SPRING, SHIELD Part #: 5336190 Required per assembly: 2 Currently Not Available
10	GROMMET, SILENCER, MOUNT Part #: 5413383 Required per assembly: 2 Currently Not Available
11	SPRING-EXHAUST Part #: 7041789 Required per assembly: 4 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
12	SCREW Part #: 7518513 Required per assembly: 3 Currently Not Available
13	SCREW Part #: 7519090 Required per assembly: 2 Currently Not Available
14	NUT Part #: 7547076 Required per assembly: 4 Currently Not Available
15	WASHER, LOCK Part #: 7556111 Required per assembly: 4 Currently Not Available
16	RIVET, INTERLOCK, Z Part #: 7661637 Required per assembly: 5 Note: Sold in multiples of 50 only Currently Not Available
17	RETAINER, BOLT Part #: 7670154 Required per assembly: 2 Currently Not Available
