Front A-Arms replacement parts for 2019 Polaris Sportsman Touring Tractor 1000 (R04)

OEM Parts Polaris 2019 Polaris Sportsman Touring Tractor 1000 (R04) Front A-Arms

FRONT A-ARMS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

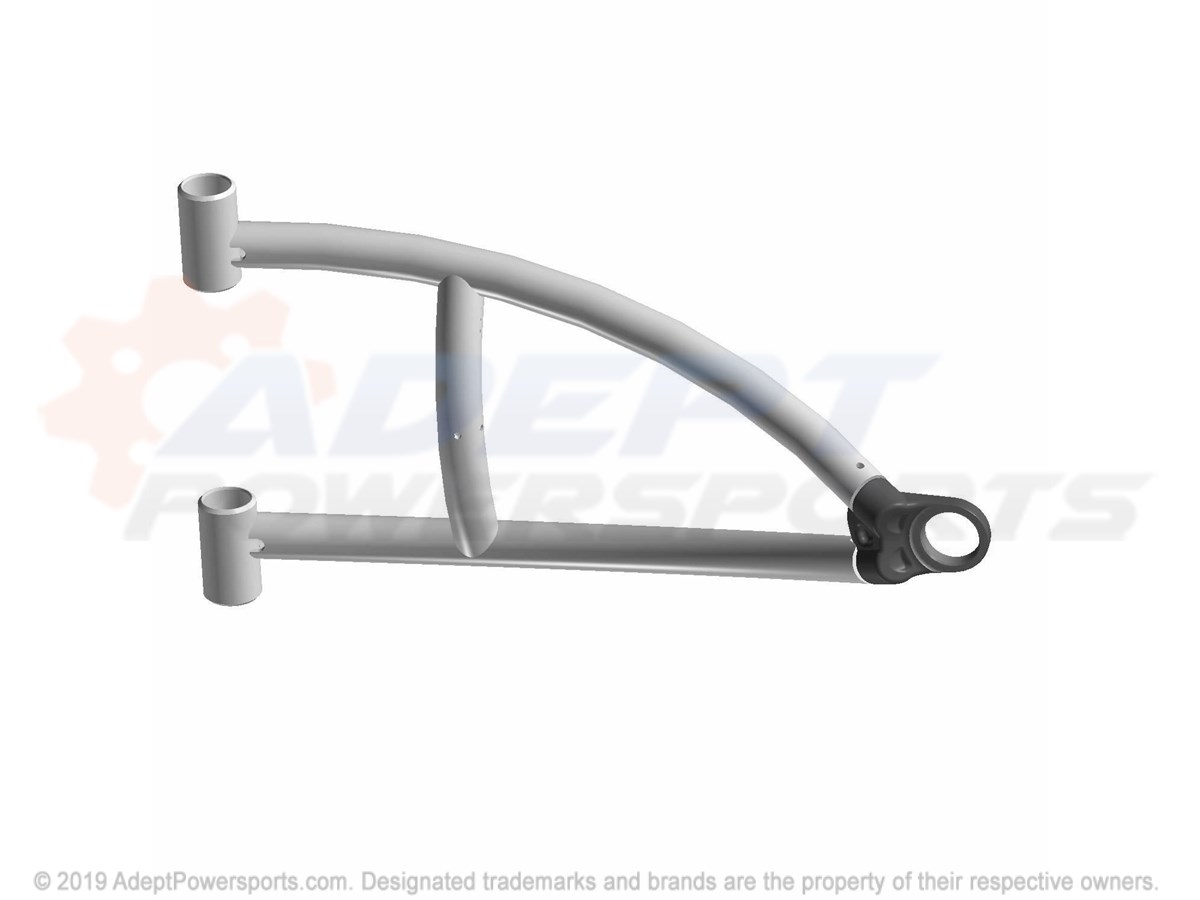

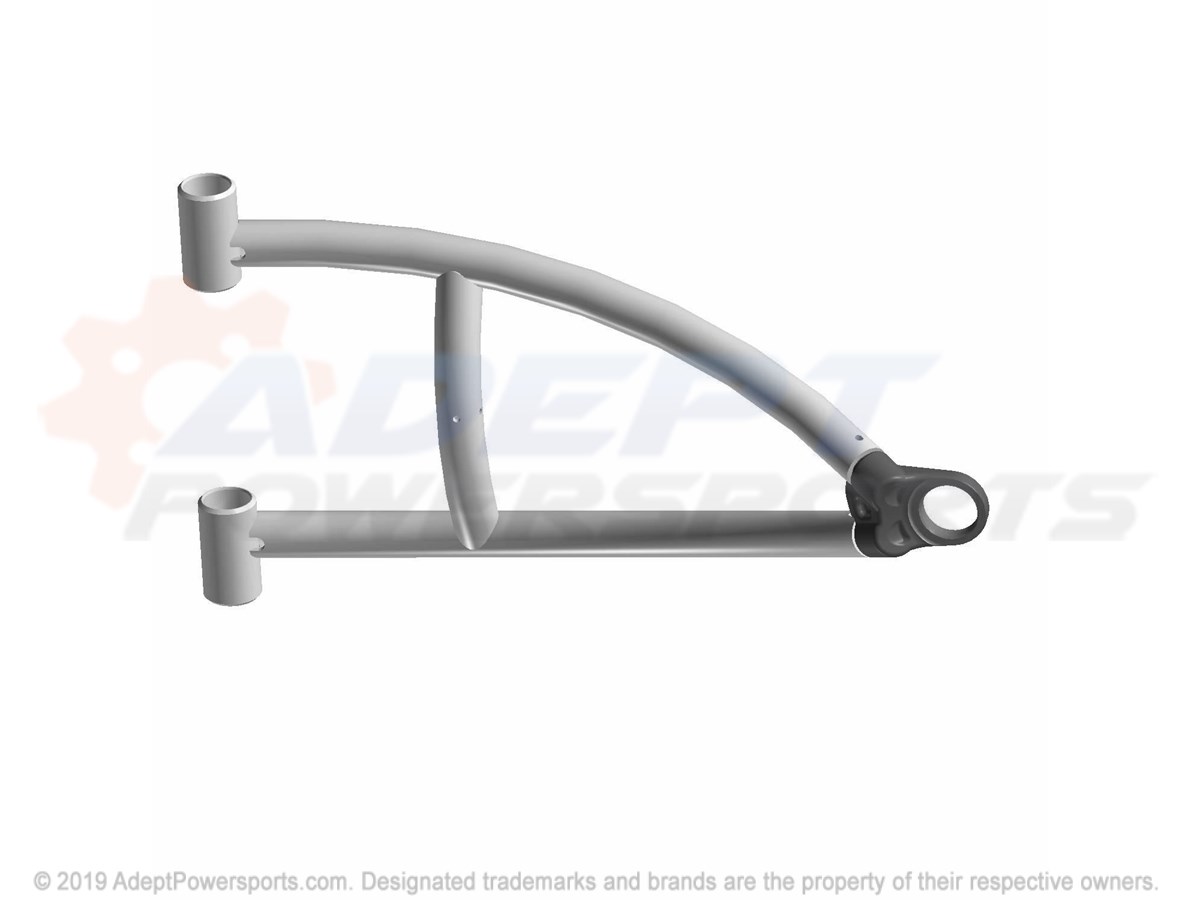

1	WELD-UCA, SEAL, FRONT, LH, M.BLK Part #: 1023455-458 Required per assembly: 1 Currently Not Available
1	WELD-UCA, SEAL, FRONT, RH, M.BLK Part #: 1023456-458 Required per assembly: 1 Currently Not Available
2	WELD-LCA, FRONT, LH, M.BLK Part #: 1023371-458 Required per assembly: 1 Currently Not Available
2	WELD-LCA, FRONT, RH, M.BLK Part #: 1023372-458 Required per assembly: 1 Currently Not Available
3	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
4	BALL-JOINT, 8MM, 5140 Part #: 7061220 Required per assembly: 4 Currently Not Available
5	NUT, NYLOK Part #: 7547405 Required per assembly: 4 Currently Not Available
6	SCR-M8X1.25X65-HX/FL-Y CL 10.9 Part #: 7519212 Required per assembly: 4 Currently Not Available
7	ASM-PIVOT, CAP, SEALED, M10 Part #: 1543611 Required per assembly: 16 Currently Not Available
8	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 8 Currently Not Available
9	SHAFT-PIVOT, SHORT, M10, 43MM Part #: 5141292 Required per assembly: 8 Currently Not Available
10	SCREW Part #: 7518466 Required per assembly: 8 Note: Bolt Currently Not Available
11	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
12	WASHER-M8 FW STL THRU-HRD Part #: 7556557 Required per assembly: 4 Currently Not Available
