OEM Parts Polaris 2019 Polaris Pro XD Crew (R04) Parking Brake, Cable

2019 Polaris Pro XD Crew (R04) D19BEPD4B4 - Parking Brake, Cable

PARKING BRAKE, CABLE Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

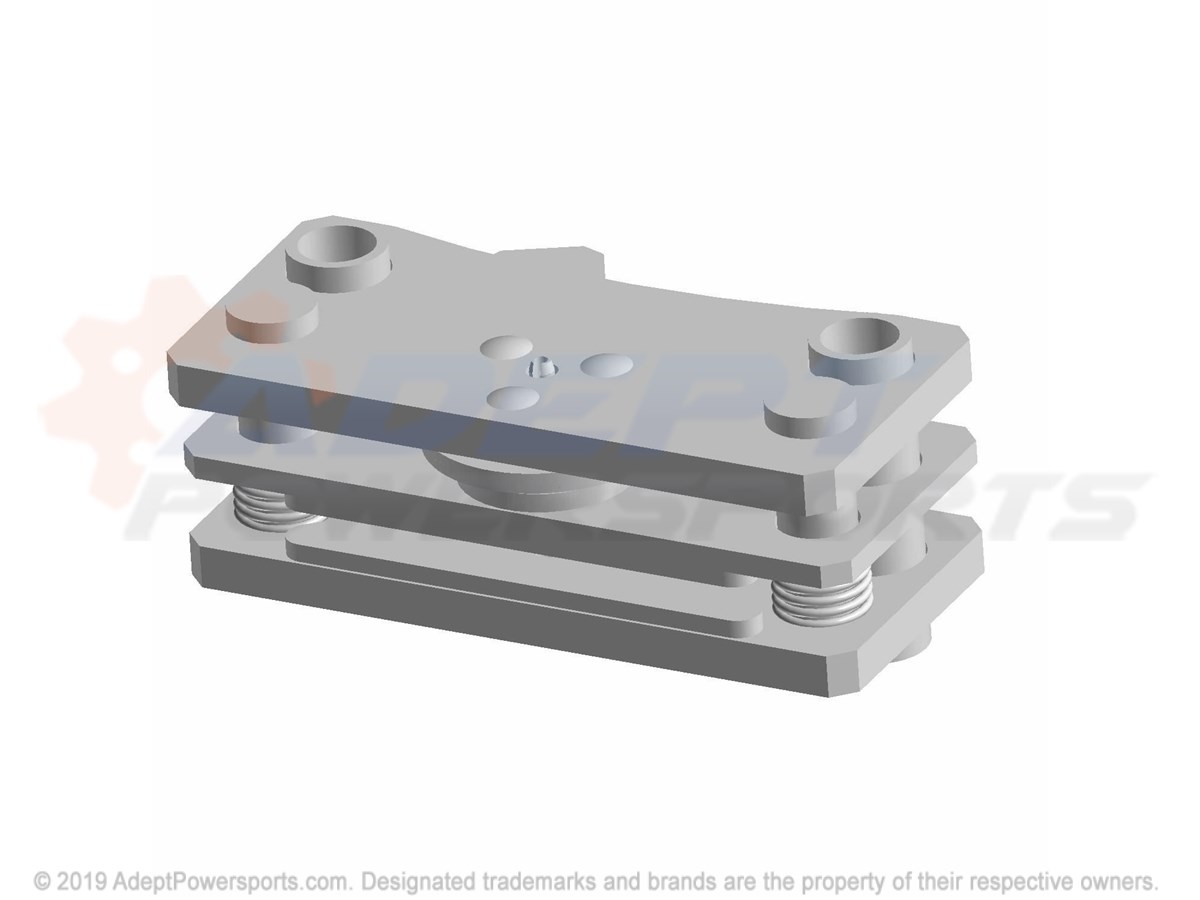

Polaris 1913062 Asm-Clpr, Pb, Aft-Sb230c, Rvt, Mni

ASM-CLPR, PB, AFT-SB230C, RVT, MNI

Part #: 1913062 Required per assembly: 1
Currently Not Available
2
Polaris 5340644 Spacer, Parking, Brake, 46.8

SPACER, PARKING, BRAKE, 46.8

Part #: 5340644 Required per assembly: 2
Currently Not Available
3
Polaris 7661843 Clevis (Us Only)

CLEVIS (US ONLY)

Part #: 7661843 Required per assembly: 1 Note: Pin, Clevis
Currently Not Available
4
Polaris 7661140 Pin, Clip

PIN, CLIP

Part #: 7661140 Required per assembly: 1
Currently Not Available
5
Polaris 1023581-458 Weld-Brkt-Shift, Pb, Cable, Blk

WELD-BRKT-SHIFT, PB, CABLE, BLK

Part #: 1023581-458 Required per assembly: 1
Currently Not Available
6

BOLT, FLANGE

Part #: 7518561 Required per assembly: 2
Currently Not Available
7

CABLE-BRAKE, PARK, CREW, DSL

Part #: 7082521 Required per assembly: 1
Currently Not Available
8
Polaris 7519181 Scr-Hxfl-M8x1.25X16 8.8 Zod

SCR-HXFL-M8X1.25X16 8.8 ZOD

Part #: 7519181 Required per assembly: 2
Currently Not Available
9
Polaris 7661037 Pin, Clevis

PIN, CLEVIS

Part #: 7661037 Required per assembly: 1 Note: Pin, Clevis
Currently Not Available
10
Polaris 7556216 Washer

WASHER

Part #: 7556216 Required per assembly: 1
Currently Not Available
11
Polaris 7661067 Clip-Hitchpin .148X3 1/16

CLIP-HITCHPIN .148X3 1/16

Part #: 7661067 Required per assembly: 1 Note: Clip
Currently Not Available
