Lines And Master Cylinder replacement parts for 2019 Polaris Ranger Crew 570 FS (R05)

OEM Parts Polaris 2019 Polaris Ranger Crew 570 FS (R05) Lines And Master Cylinder

LINES and MASTER CYLINDER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KIT, NUT Part #: 2203457 Required per assembly: 1 Note: Kit, Nut [Incl. 2 Jam Nuts] Currently Not Available
1	KIT, CLEVIS Part #: 2203456 Required per assembly: 1 Currently Not Available
1	KIT, SERVICE., CAP, ASM. Part #: 2204993 Required per assembly: 1 Note: INCL. GASKET, PLATE, COVER Currently Not Available
1	ASSEMBLY, MASTER, CYLINDER Part #: 1912463 Required per assembly: 1 Note: INCL. KITS Currently Not Available
2	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
3	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available

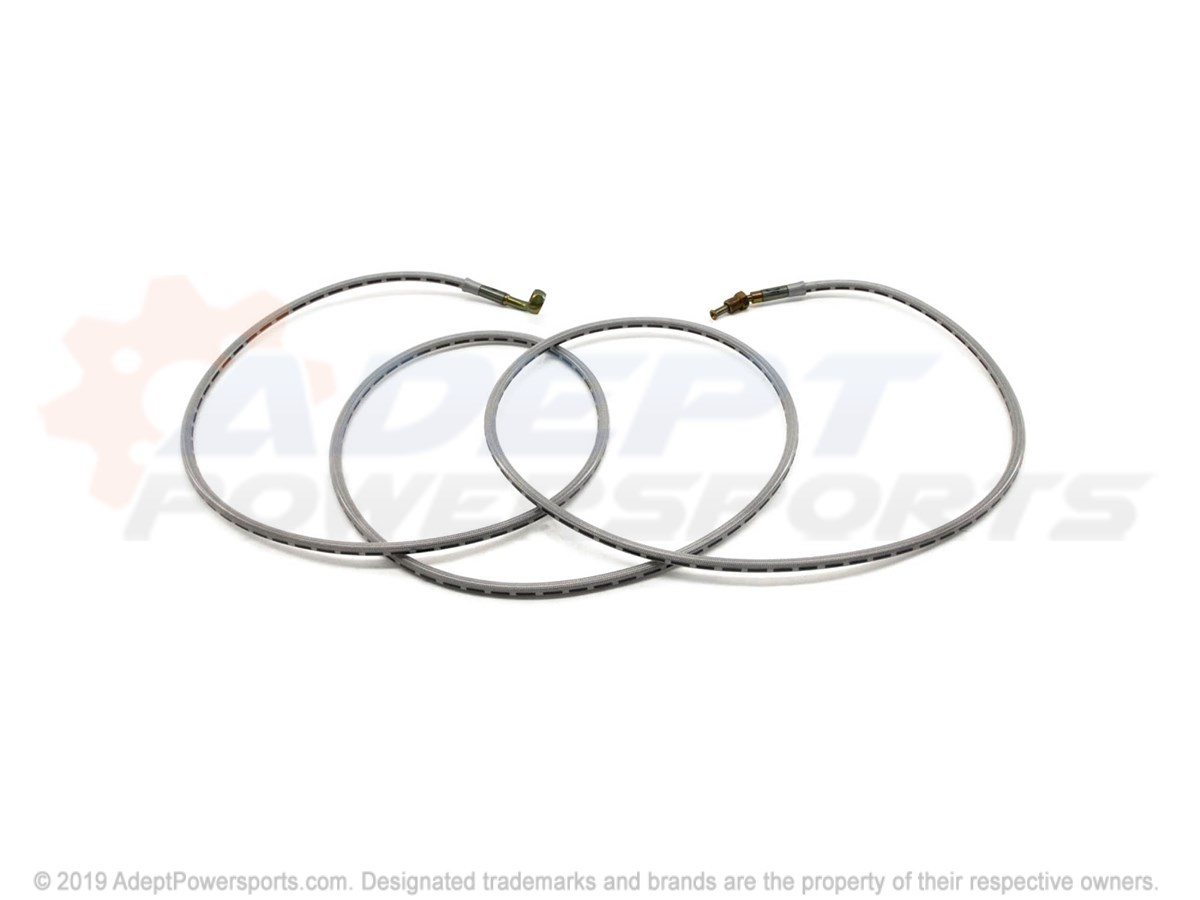

4	LINE, BRAKE, REAR, RIGHT, 52, INCH Part #: 1912104 Required per assembly: 1 Currently Not Available
5	LINE-BRK, FL, 19.5, 70B, 30B, 135 Part #: 1912589 Required per assembly: 1 Currently Not Available
6	LINE-BRK, FR, 43.3, 90B, 30B, 85? Part #: 1912590 Required per assembly: 1 Currently Not Available
7	LINE-BRK, MCT, 93.9, 70B, 20F, 30G Part #: 1912636 Required per assembly: 1 Currently Not Available
8	LINE, BRAKE, REAR, LEFT, 39, INCH Part #: 1912105 Required per assembly: 1 Currently Not Available
9	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
10	SWITCH-BRK, M10X1.25, DBL Part #: 4081117 Required per assembly: 1 Currently Not Available
11	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
12	SCREW, FLANGE Part #: 7517281 Required per assembly: 2 Note: Screw Currently Not Available
13	SHIELD, MASTER, CYLINDER Part #: 5258202 Required per assembly: 1 Currently Not Available
14	NUT, FLANGE Part #: 7547317 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7518558 Required per assembly: 8 Note: Bolt, Flange Currently Not Available
16	SCREW Part #: 7518552 Required per assembly: 2 Currently Not Available
17	CLAMP, CABLE, Part #: 7080367 Required per assembly: 2 Note: Clamp, Cable Currently Not Available
18	NUT, NYLOK, THIN Part #: 7542344 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
19	CLIP, SILENCER, Part #: 7670102 Required per assembly: 6 Note: Clip Currently Not Available
20	CLIP-ROUTING Part #: 7081496 Required per assembly: 3 Currently Not Available
21	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
22	CLAMP, HOSE Part #: 7080683 Required per assembly: 3 Currently Not Available
23	SCREW Part #: 7512084 Required per assembly: 3 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
24	CLAMP, CABLE Part #: 7080499 Required per assembly: 2 Currently Not Available
25	RIVET Part #: 7621323 Required per assembly: 2 ~~$1.99~~ $1.35 - + Add to cart
