OEM Parts Polaris 2019 Polaris POLARIS GEN 1000 EPS Front - R19rge99a2/Ear/Ebr/Uaf/Ubf/Uam/Ubm/Ua9/Ub9/Ual/Ubl/Kak/Kbk

2019 Polaris POLARIS GEN 1000 EPS R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK - Front - R19rge99a2/Ear/Ebr/Uaf/Ubf/Uam/Ubm/Ua9/Ub9/Ual/Ubl/Kak/Kbk

FRONT - R19RGE99A2/EAR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL/KAK/KBK Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

WELD-RIM, FRONT, 12X6, 10GA, BLK

Part #: 1525240-067 Required per assembly: 2 Note: E99A2
Currently Not Available
2
Polaris 1522494-458 Rim-Frnt, 14X6, Cast, 26.2Mm, Mblk

RIM-FRNT, 14X6, CAST, 26.2MM, MBLK

Part #: 1522494-458 Required per assembly: 2 Note: E99AR,BR
Currently Not Available
2
Polaris 1522494-768 Rim-Frnt, 14X6, Cast, 26.2Mm, Mbrz

RIM-FRNT, 14X6, CAST, 26.2MM, MBRZ

Part #: 1522494-768 Required per assembly: 2 Note: K99AK,BK
Currently Not Available

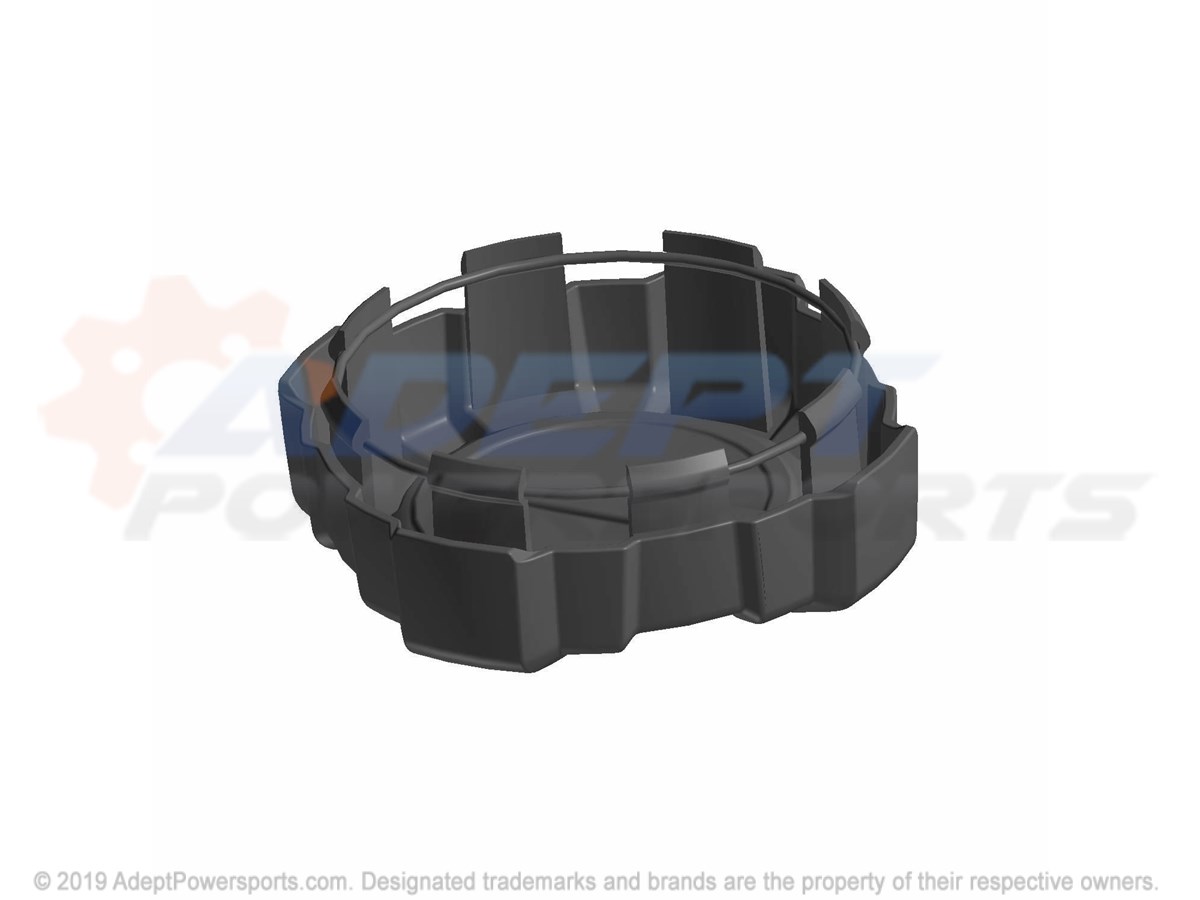

3
Polaris 1522498-768 Cap-Rim, M.Brz

CAP-RIM, M.BRZ

Part #: 1522498-768 Required per assembly: 2 Note: K99AK,BK
Currently Not Available
3
Polaris 1522498 Cap-Rim

CAP-RIM

Part #: 1522498 Required per assembly: 2 Note: E99AR,BR
Currently Not Available
4
Polaris 1525017 Valve, Rim

VALVE, RIM

Part #: 1525017 Required per assembly: 2
Currently Not Available
5
Polaris 5416040 Tire-Front.27X9r12nhs Clincher

TIRE-FRONT.27X9R12NHS CLINCHER

Part #: 5416040 Required per assembly: 2 Note: E99A2
Currently Not Available
6
Polaris 5416008 Tire-Front, 27X9, R14

TIRE-FRONT, 27X9, R14

Part #: 5416008 Required per assembly: 2 Note: E99AR,BR
Currently Not Available
7
Polaris 7547489 Nut, Wheel

NUT, WHEEL

Part #: 7547489 Required per assembly: 8 Note: E99AR,BR
Currently Not Available
8
Polaris 7547660 Nut, Lug

NUT, LUG

Part #: 7547660 Required per assembly: 8 Note: E99A2
Currently Not Available
