OEM Parts Polaris 2019 Polaris General 1000 4P PS RC (R10) Front Shock Mounting - R19rhe99ad/Bd/Ld/Kak/Bk

2019 Polaris General 1000 4P PS RC (R10) R19RHE99AD/BD/LD/K99AK/BK - Front Shock Mounting - R19rhe99ad/Bd/Ld/Kak/Bk

FRONT SHOCK MOUNTING - R19RHE99AD/BD/LD/KAK/BK Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1501329 Retainer-Spring

RETAINER-SPRING

Part #: 1501329 Required per assembly: 2 Note: FROM 1/7/2019
Currently Not Available
1
Polaris 1501329 Retainer-Spring

RETAINER-SPRING

Part #: 1501329 Required per assembly: 2 Note: TO 1/7/2019
Currently Not Available
2

SHOCK-FRONT, PIGGYBK, LH

Part #: 7045834 Required per assembly: 1
Currently Not Available
2
Polaris 7044688 Shock-Front, Piggybk, Rh

SHOCK-FRONT, PIGGYBK, RH

Part #: 7044688 Required per assembly: 1
Currently Not Available
3

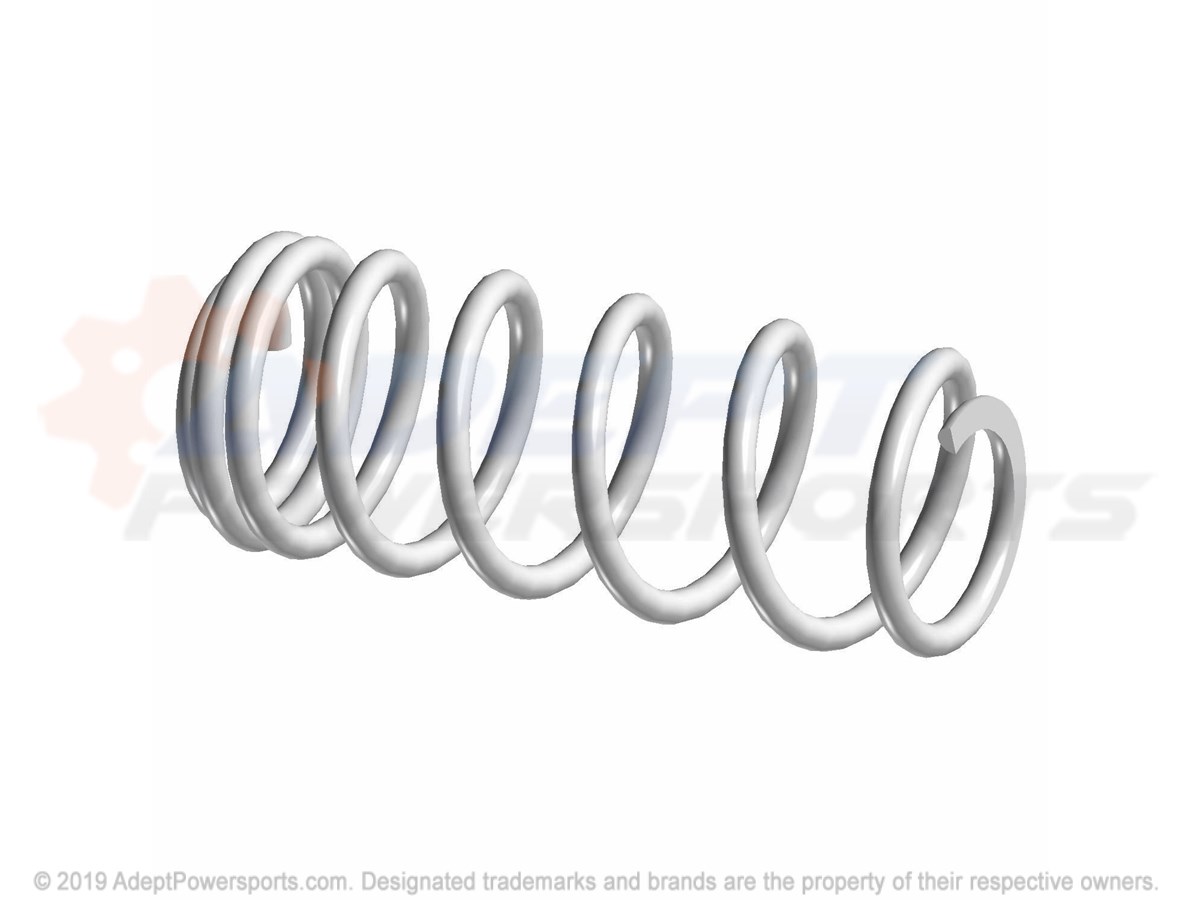

Polaris 7044691-133 Spr-190-250#12Fl, 2.3-2.3Id, B.W

SPR-190-250#12FL, 2.3-2.3ID, B.W

Part #: 7044691-133 Required per assembly: 2 Note: E99AD,BD,LD
Currently Not Available
3
Polaris 7044691-768 Spr-190-250#12Fl, 2.3-2.3Id, Brz

SPR-190-250#12FL, 2.3-2.3ID, BRZ

Part #: 7044691-768 Required per assembly: 2 Note: K99AK,BK
Currently Not Available
4
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
5
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
6
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
