OEM Parts Polaris 2019 Polaris General 1000 4P EPS EU (R01) Door Mounting, Front

2019 Polaris General 1000 4P EPS EU (R01) R19RHE99ND - Door Mounting, Front

DOOR MOUNTING, FRONT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

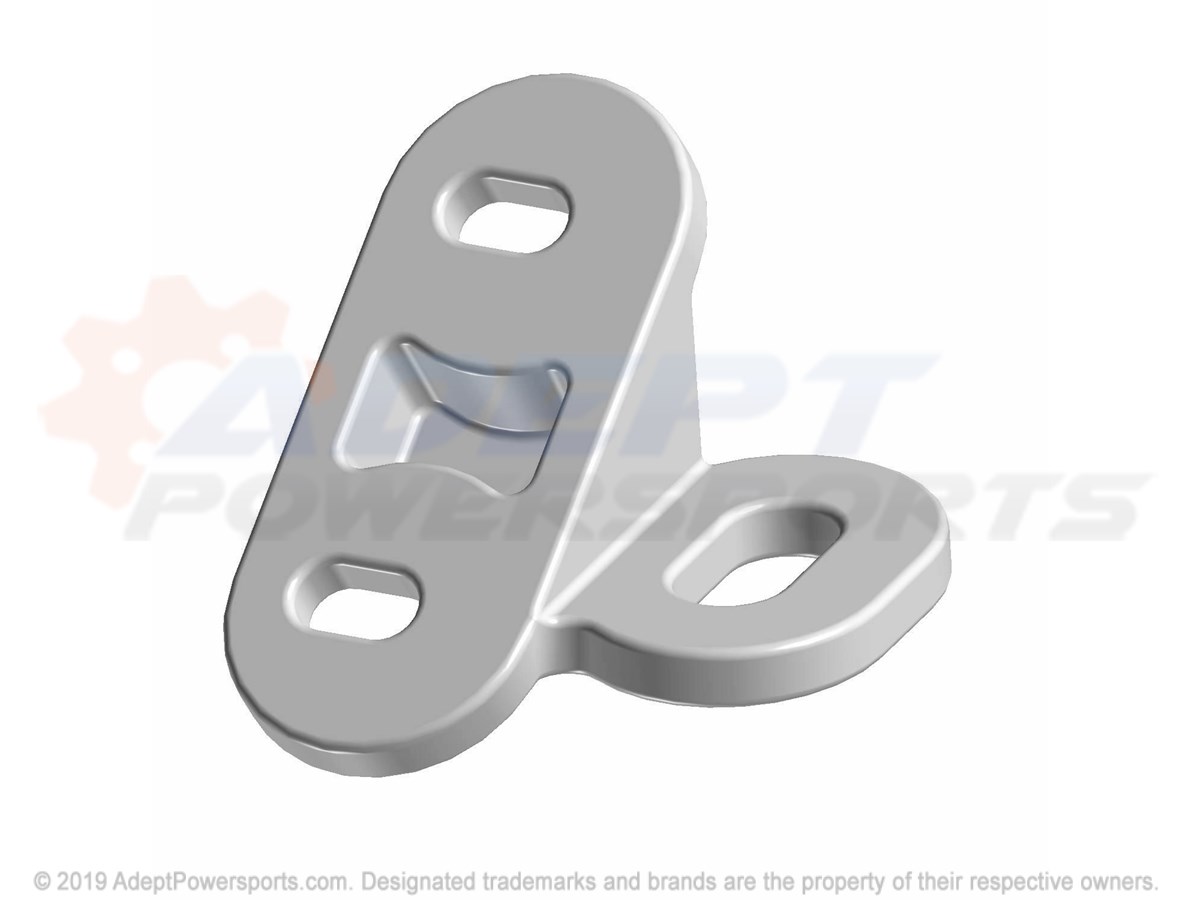

Polaris 5633940-458 Striker-Mnt, Frt, Lh, Blk

STRIKER-MNT, FRT, LH, BLK

Part #: 5633940-458 Required per assembly: 1
Currently Not Available
1
Polaris 5633941-458 Striker-Mnt, Frt, Rh, Blk

STRIKER-MNT, FRT, RH, BLK

Part #: 5633941-458 Required per assembly: 1
Currently Not Available
2
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 4
Currently Not Available
3
Polaris 7519781 Screw

SCREW

Part #: 7519781 Required per assembly: 4
Currently Not Available
4
Polaris 7547480 Nut-Hex-M8x1.25 8 Zod Nyl

NUT-HEX-M8X1.25 8 ZOD NYL

Part #: 7547480 Required per assembly: 4
Currently Not Available
5
Polaris 5450592 Bushing, Door, Pivot

BUSHING, DOOR, PIVOT

Part #: 5450592 Required per assembly: 8
Currently Not Available
6

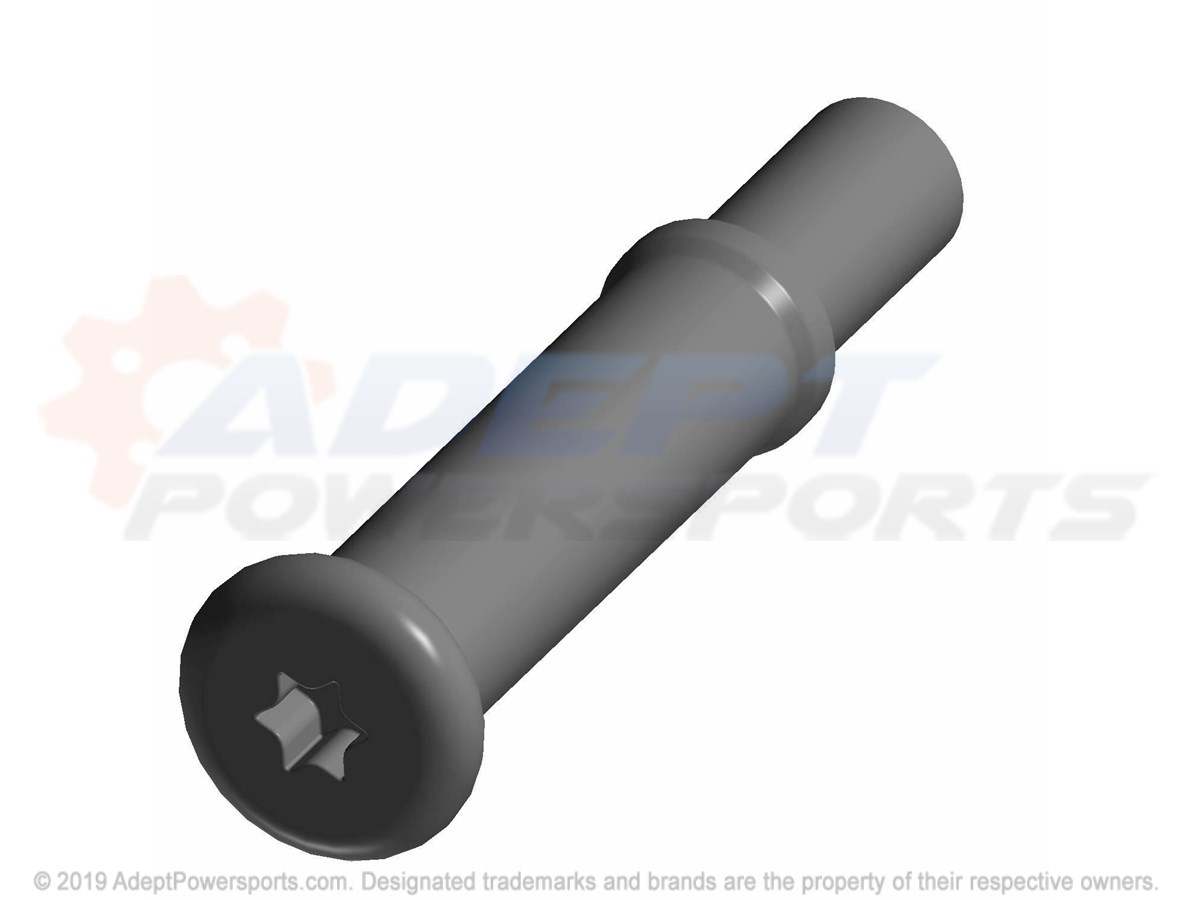

Polaris 7520793 Pin-Striker

PIN-STRIKER

Part #: 7520793 Required per assembly: 2
Currently Not Available
7

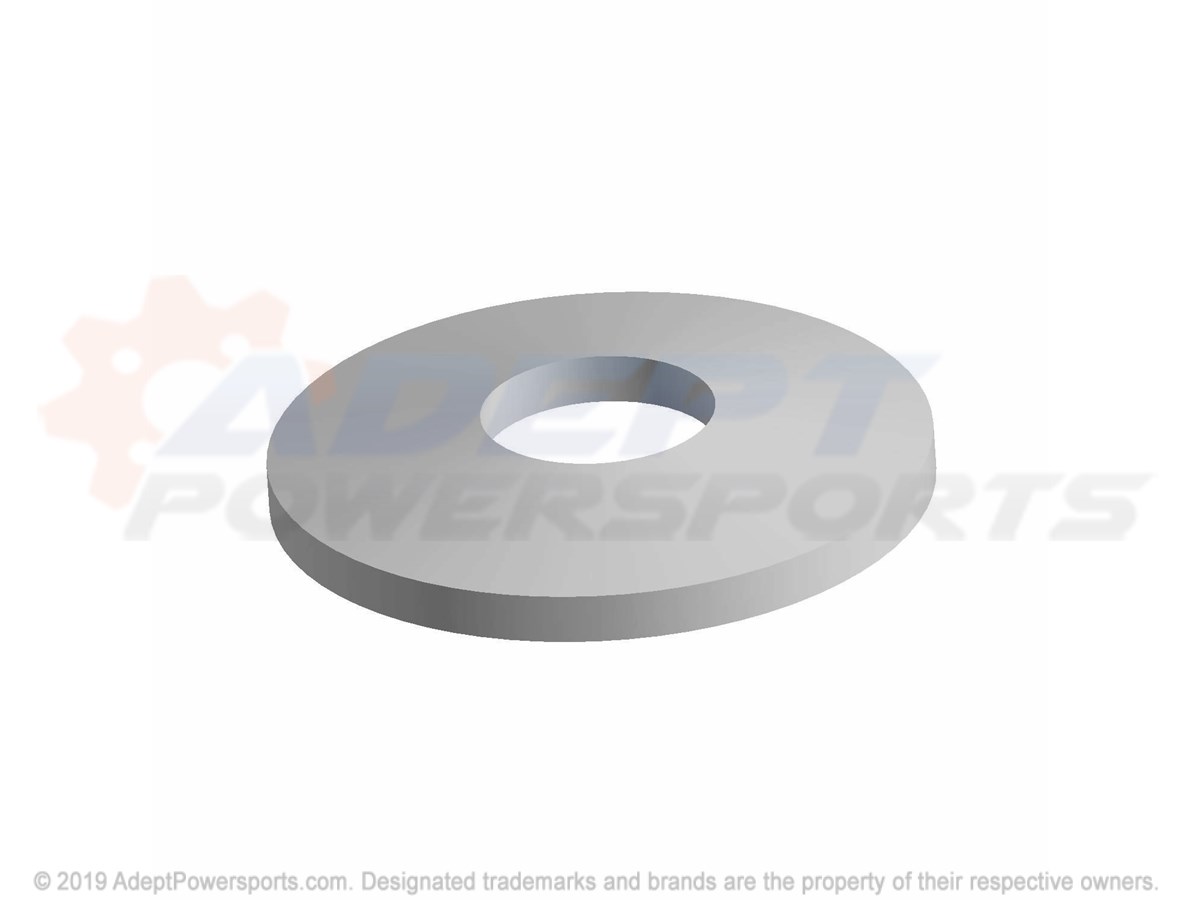

Polaris 7557117 Wshr-10.15X28.7, Bell, Spc.

WSHR-10.15X28.7, BELL, SPC.

Part #: 7557117 Required per assembly: 2
Currently Not Available
8

NUT-HEX-M10X1.5 10 ZB3 NYL

Part #: 7547746 Required per assembly: 2
Currently Not Available
