Rear Caliper replacement parts for 2019 Polaris Ranger EV (R02)

OEM Parts Polaris 2019 Polaris Ranger EV (R02) Rear Caliper

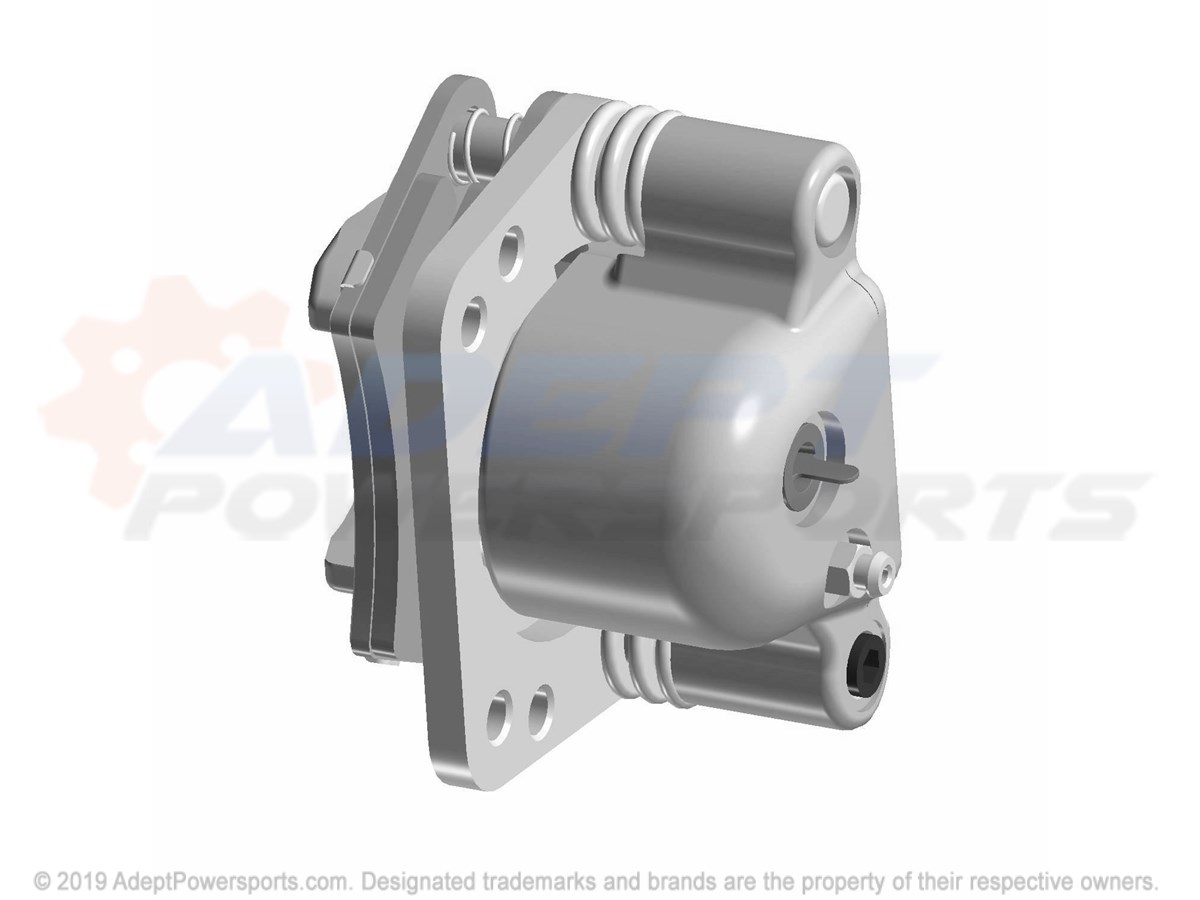

REAR CALIPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, CALIPER, BRAKE, REAR, RH Part #: 1912127 Required per assembly: 1 Note: INCL. 1-12 Currently Not Available
1	ASSEMBLY, CALIPER, BRAKE, REAR, LH Part #: 1912126 Required per assembly: 1 Note: INCL. 1-12 Currently Not Available
2	SCREW, SOCKET, SET Part #: 7518863 Required per assembly: 1 Currently Not Available
3	SCREW, BLEEDER Part #: 7081343 Required per assembly: 1 Currently Not Available
4	KIT, BOOT, F.BRAKE Part #: 1930642 Required per assembly: 1 Note: INCL. 5,6 Currently Not Available
5	BOOT, BUSHING Part #: 5412505 Required per assembly: 1 Currently Not Available
6	BOOT, PIN, SEAL Part #: 5412506 Required per assembly: 1 Currently Not Available
7	SEAL, CALIPER, INNER Part #: 5412010 Required per assembly: 1 Currently Not Available
8	SEAL, CALIPER, OUTER Part #: 5412011 Required per assembly: 1 Currently Not Available
9	PISTON, BRAKE Part #: 5132829 Required per assembly: 1 Currently Not Available
10	ASSEMBLY, MOUNT, CALIPER, REAR Part #: 1911375 Required per assembly: 1 Currently Not Available
11	K-ASM, PAD, BRAKE, DB, 1.375 Part #: 2205949 Required per assembly: 1 Note: Two pads Currently Not Available
11	K-ASM, HD, PAD, BRK, DB, 1.375 Part #: 2208933 Required per assembly: 1 Note: OPTIONAL Currently Not Available
12	SPRING-COMP SS .506X.546 Part #: 7043649 Required per assembly: 2 Currently Not Available
