Front replacement parts for 2019 Polaris Ranger 1000 BC 49S (R06)

OEM Parts Polaris 2019 Polaris Ranger 1000 BC 49S (R06) Front

FRONT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

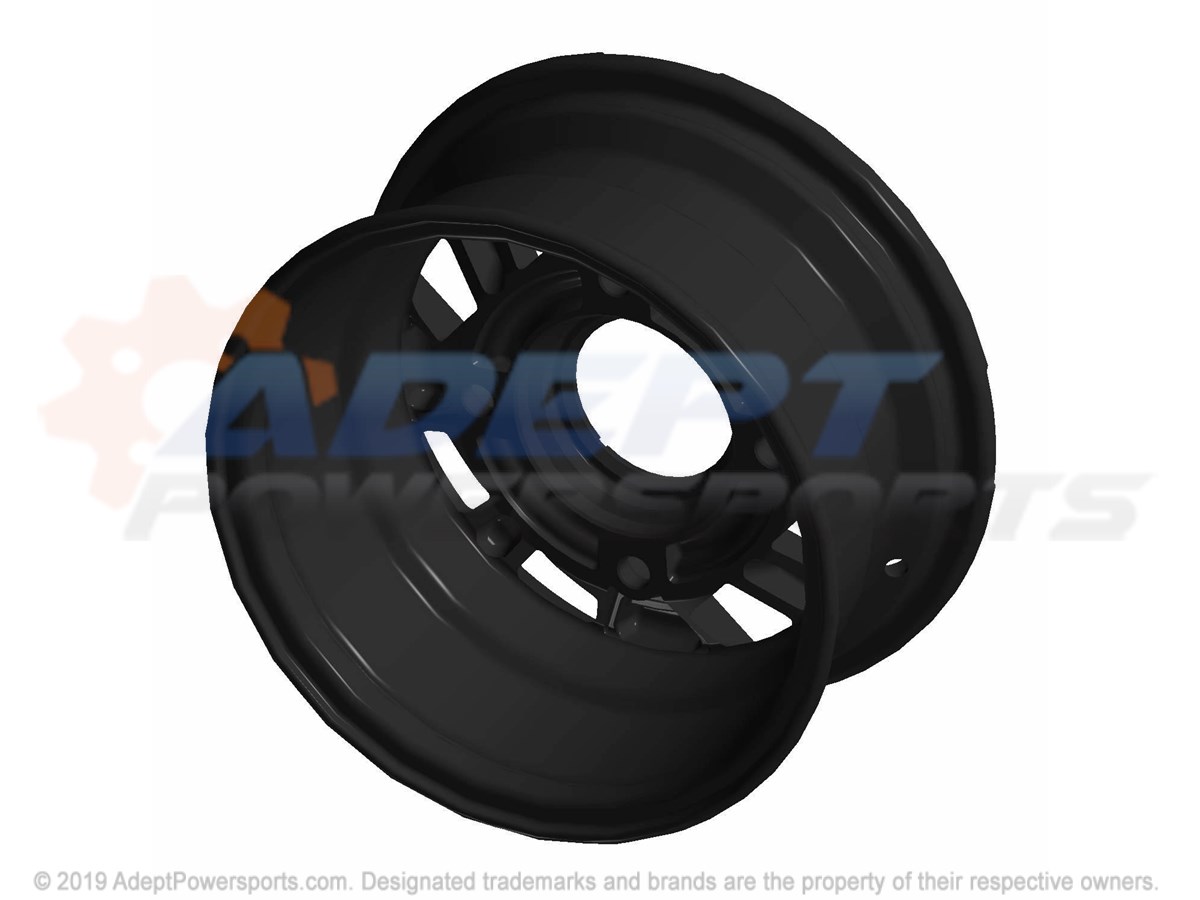

1	RIM-FRONT, 12X6, AL, 26.2OFST, BLK Part #: 1523292-266 Required per assembly: 2 Currently Not Available

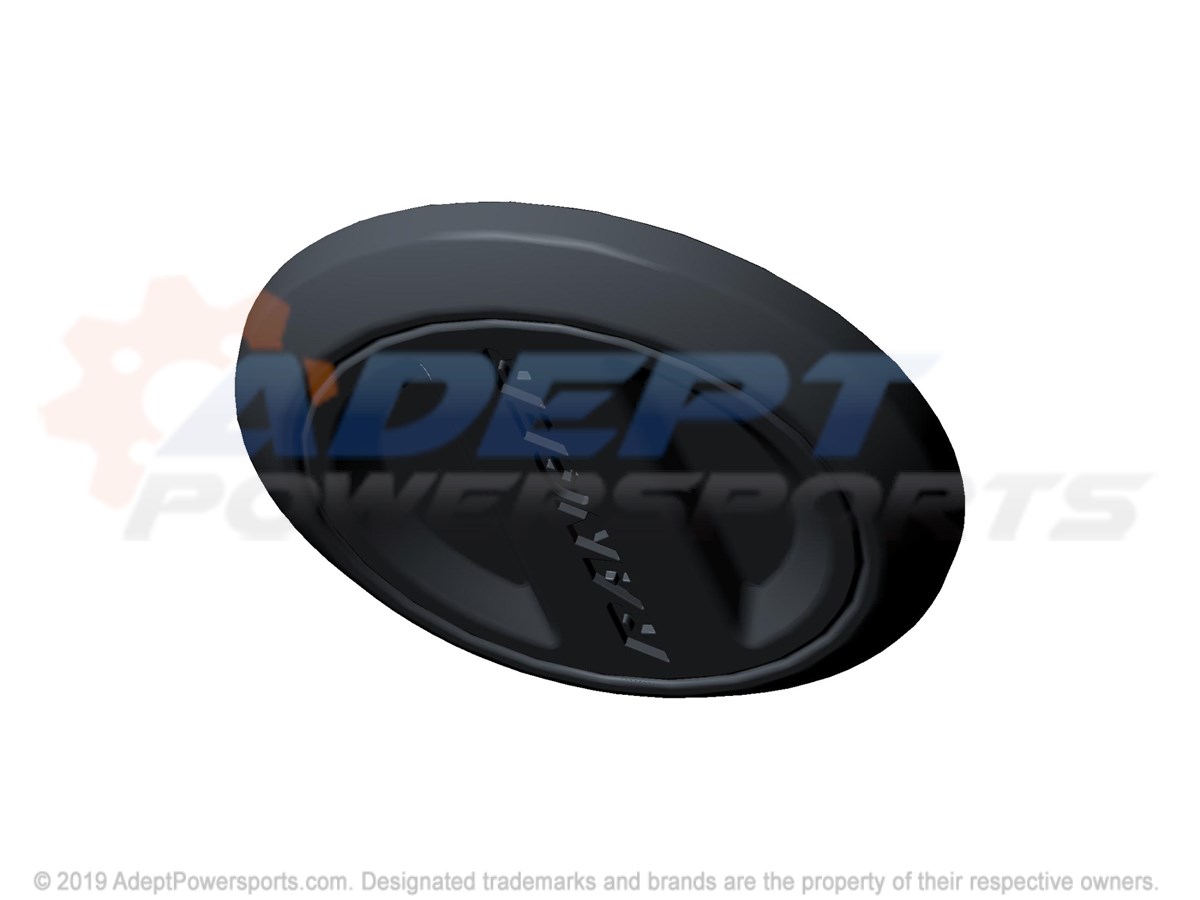

2	ASM-CAP, RIM Part #: 1524019 Required per assembly: 2 Currently Not Available
3	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
4	TIRE-FR, 27X9.00-12, NHS, MU51 Part #: 5416789 Required per assembly: 2 Currently Not Available
5	NUT, WHEEL Part #: 7547489 Required per assembly: 8 Currently Not Available
