OEM Parts Polaris 2019 Polaris Ranger 1000 PS (R14) Rear Shock Mounting

2019 Polaris Ranger 1000 PS (R14) R19RRE99AV/BV/A1/B1/A9/B9/AP/BP/AJ/BJ/AD/BD - Rear Shock Mounting

REAR SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
2
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
3
Polaris 7044728 Shock-Rear

SHOCK-REAR

Part #: 7044728 Required per assembly: 2
Currently Not Available
4

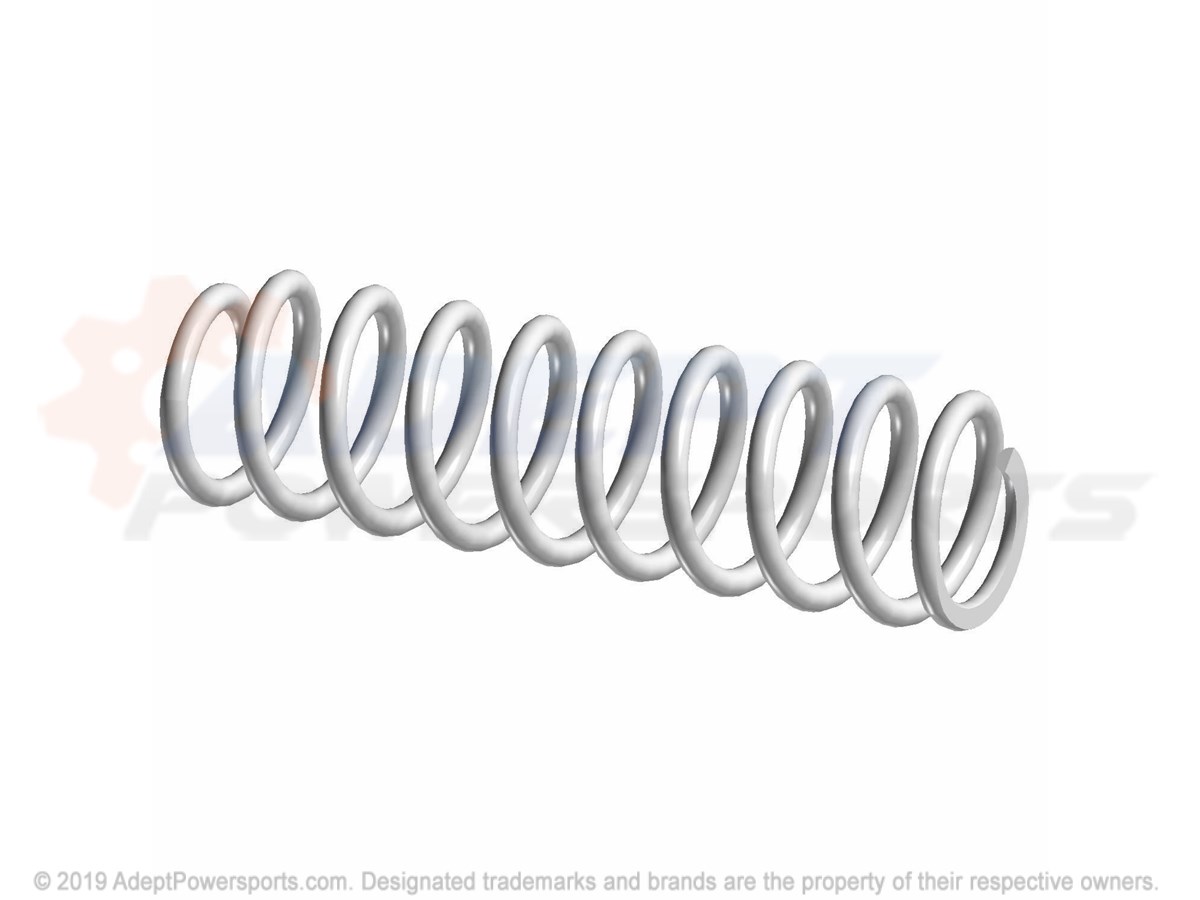

Polaris 7044793-458 Spr-204#, 15.4Fl, 2.0-2.0Id, Blk

SPR-204#, 15.4FL, 2.0-2.0ID, BLK

Part #: 7044793-458 Required per assembly: 2 Note: E99B9,BJ,BP,BD,B1
Currently Not Available
4
Polaris 7044793-632 Spr-204#, 15.4Fl, 2.0-2.0Id, Ttnm

SPR-204#, 15.4FL, 2.0-2.0ID, TTNM

Part #: 7044793-632 Required per assembly: 2 Note: E99BV
Currently Not Available
4
Polaris 7044727-632 Spr-240#, 15.3Fl, 2.0-2.0Id, Ttnm

SPR-240#, 15.3FL, 2.0-2.0ID, TTNM

Part #: 7044727-632 Required per assembly: 2 Note: E99AV
Currently Not Available
4

SPR-240#, 15.3FL, 2.0-2.0, BLK

Part #: 7045565-458 Required per assembly: 2 Note: E99A1,A9
Currently Not Available
4

SPR-240#, 15.3FL, 2.0-2.0, CSLV, (U99AP/BP)(U99AW/BW)

Part #: 7045565-385 Required per assembly: 2 Note: E99AP,AJ,AD
Currently Not Available
5
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
6
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
