2019 Polaris Ranger 1000XP PS MUD (R13) R19RRM99AL - Rear Half Shaft

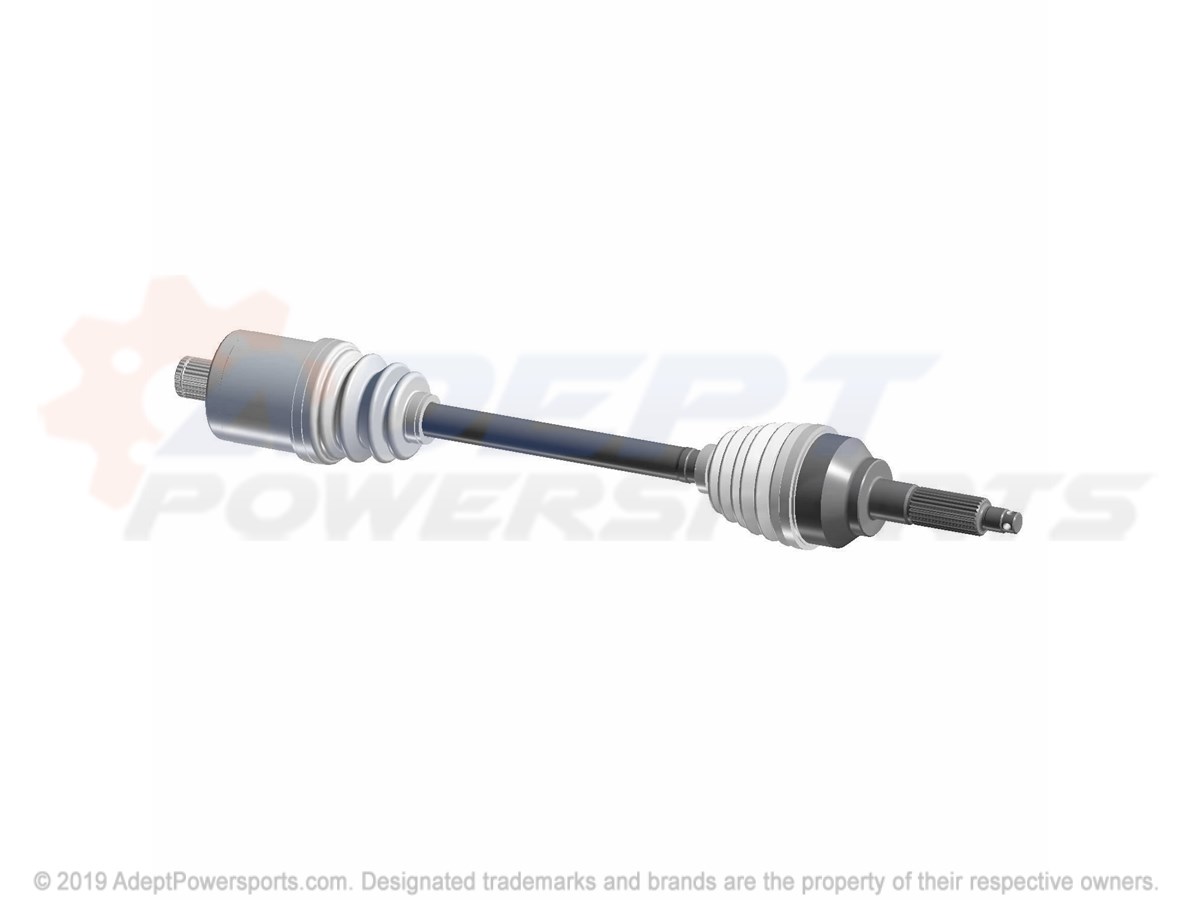

REAR HALF SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 1334131 Asm-Halfshaft, Rear, Hs

ASM-HALFSHAFT, REAR, HS

Part #: 1334131 Required per assembly: 1 Note: INCL ALL
Currently Not Available
1

OUTER JOINT

Part #: 2208046 Required per assembly: 1 Note: INCL, CAGE, BALL
Currently Not Available
2

OUTER BOOT KIT

Part #: 2208047 Required per assembly: 1 Note: INCL, LG & SM , and GREASE 80 G
Currently Not Available
3

BAR

Part #: 2208048 Required per assembly: 1 Note: INCL CIRCLIPS
Currently Not Available
4

K-BOOT, INBOARD, 28T

Part #: 3236452 Required per assembly: 1 Note: INCL, LG & SM , and GREASE 70 G
Currently Not Available
5

INNER JOINT

Part #: 2208049 Required per assembly: 1 Note: INCL, CAGE, BALL, and CIRCLIPS
Currently Not Available
6

SNAP RING

Part #: 2206525 Required per assembly: 1
Currently Not Available
7

CIRCLIP

Part #: 2208050 Required per assembly: 1
Currently Not Available
