Seat Asm. Rear replacement parts for 2019 Polaris Ranger 1000XP PS Crew (R20)

OEM Parts Polaris 2019 Polaris Ranger 1000XP PS Crew (R20) Seat Asm. Rear

SEAT ASM. REAR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

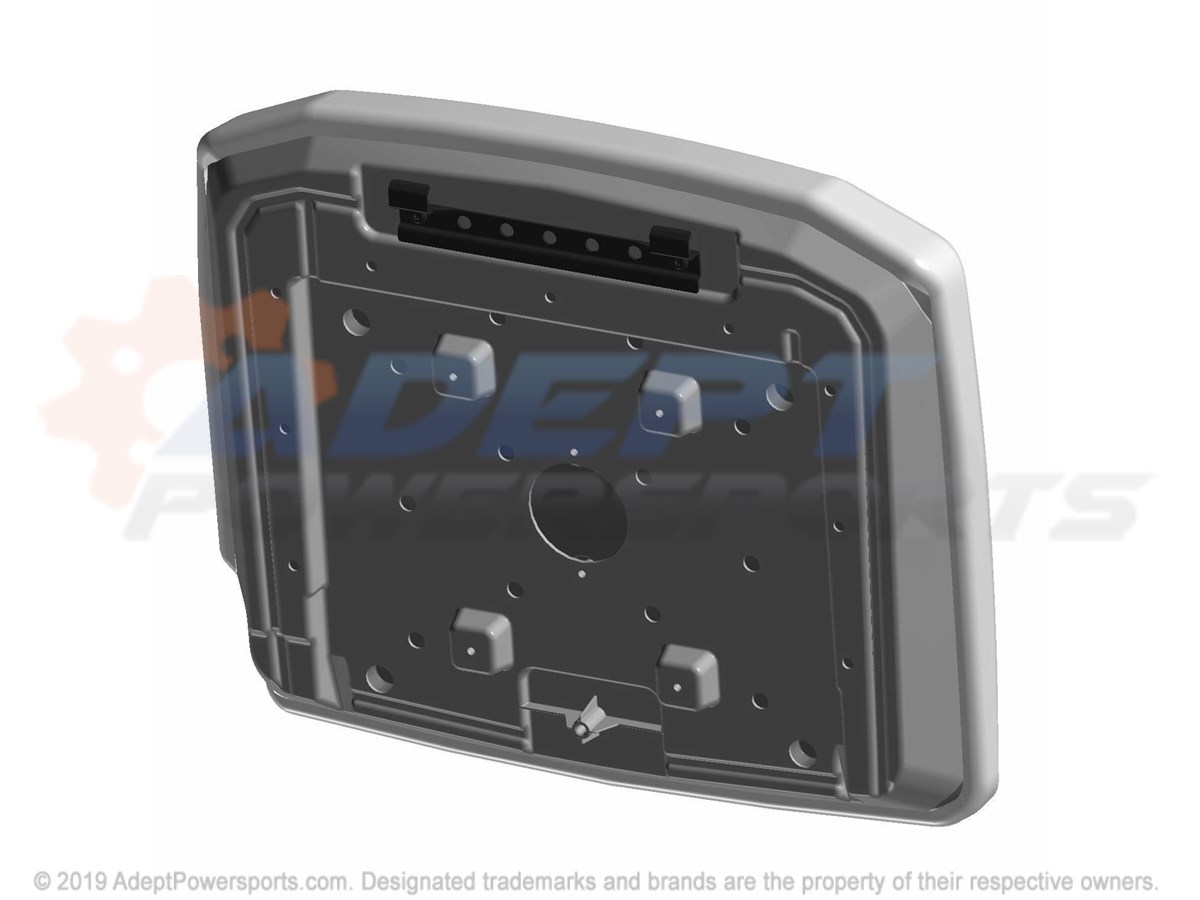

1	ASSEMBLY, SEAT, BACK, BLACK Part #: 2685653-070 Required per assembly: 2 Note: E99A1, B1 QTY 2, 1 FOR FRONTSEAT ALSO Currently Not Available
1	ASM-SEAT, BACK, FULL, BLK/GRY Part #: 2689028 Required per assembly: 1 Note: E99AS, BS, AD,BD Currently Not Available
1	ASM-SEAT, BACK, FULL, BLK/PPC Part #: 2689012 Required per assembly: 1 Note: E99A9, B9 Currently Not Available
1	ASM-SEAT, BACK, FULL, BK/BRN/EMBD Part #: 2689206 Required per assembly: 1 Note: E99AV,BV Currently Not Available

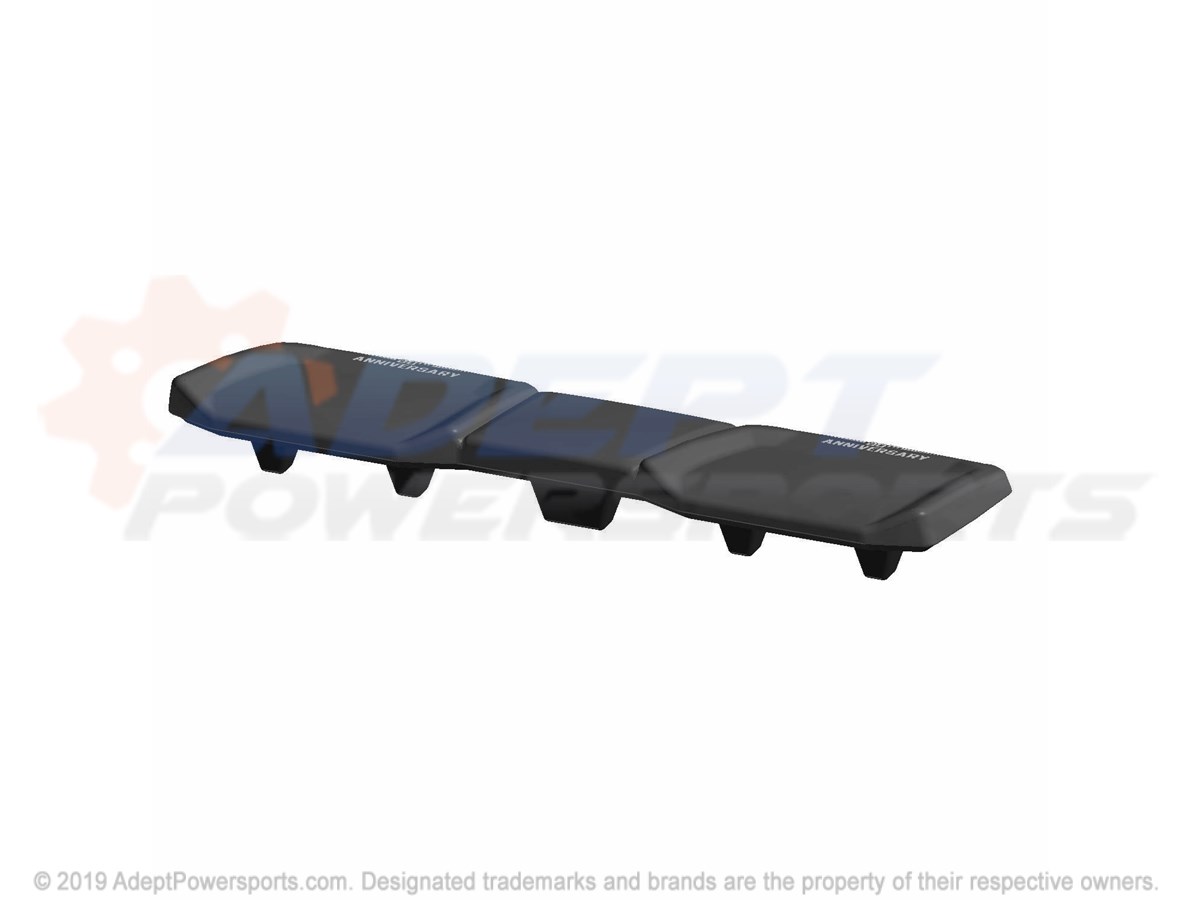

2	ASM-SEAT, BTM, 40, BLK/BRN Part #: 2688934 Required per assembly: 1 Note: E99AV,BV Currently Not Available
2	ASM-SEAT, BTM, 40, BLK/GRY Part #: 2689025 Required per assembly: 1 Note: E99AS, BS, AD,BD Currently Not Available
2	ASM-SEAT, BTM, 40, BLK/PPC Part #: 2689058 Required per assembly: 1 Note: E99A9, B9 Currently Not Available
2	ASM-SEAT, BTM, 40, VINYL, BLK Part #: 2688636-070 Required per assembly: 1 Note: E99A1, B1 Currently Not Available
3	ASM-SEAT, BTM, 60, BLK/BRN Part #: 2688931 Required per assembly: 1 Note: E99AV,BV Currently Not Available
3	ASM-SEAT, BTM, 60, BLK/PPC Part #: 2689005 Required per assembly: 1 Note: E99A9, B9 Currently Not Available
3	ASM-SEAT, BTM, 60, VINYL, BLK Part #: 2688635-070 Required per assembly: 1 Note: E99A1, B1 Currently Not Available
3	ASM-SEAT, BTM, 60, BLK/GRY Part #: 2689018 Required per assembly: 1 Note: E99AS. BS,AD,BD Currently Not Available
4	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
5	GROMMET Part #: 5439179 Required per assembly: 1 Currently Not Available
6	WELD-SEAT, BASE, PASS, M.BLK Part #: 1023099-458 Required per assembly: 1 Currently Not Available
7	BRKT-SEAT, PIVOT, BLK Part #: 5263494-458 Required per assembly: 1 Currently Not Available
8	BUMPER-RUBBER Part #: 5412067 Required per assembly: 1 Note: Bumper, Rubber Currently Not Available
9	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 4 Currently Not Available
9	BRKT-SEAT, HINGE, DOUBLE Part #: 5259065 Required per assembly: 1 Note: EA1/B1 Currently Not Available
10	SHOCK-GAS, 285MM Part #: 7044799 Required per assembly: 1 Currently Not Available
11	BALL-END Part #: 7082301 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7519045 Required per assembly: 14 Currently Not Available
13	SCREW Part #: 7519355 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7519780 Required per assembly: 2 Currently Not Available
15	NUT, NYLOK Part #: 7547442 Required per assembly: 2 Currently Not Available
16	PIN, SEAT, LATCH Part #: 5910404 Required per assembly: 1 Currently Not Available
17	BRKT-SEAT, PIVOT, FIXED, BLK Part #: 5265946-458 Required per assembly: 1 Note: E99A1, B1 Currently Not Available
17	BRKT-SEAT, HINGE, DOUBLE Part #: 5259065 Required per assembly: 1 Currently Not Available
