Nets replacement parts for 2019 Polaris Ranger 1000XP PS Crew EU (R04)

OEM Parts Polaris 2019 Polaris Ranger 1000XP PS Crew EU (R04) Nets

NETS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

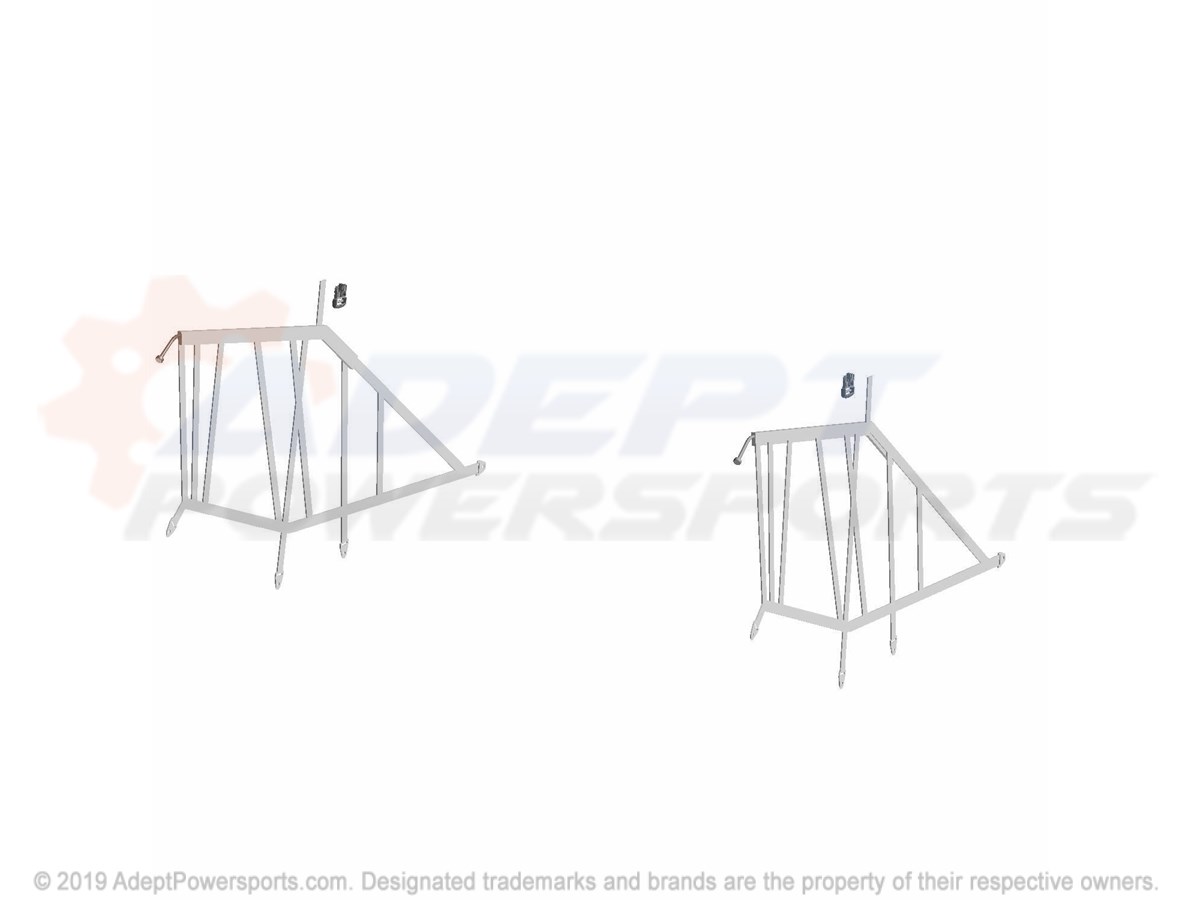

1	NETS-DOOR, FRT, RGR Part #: 2689580 Required per assembly: 1 Note: INCL 1-4 Currently Not Available

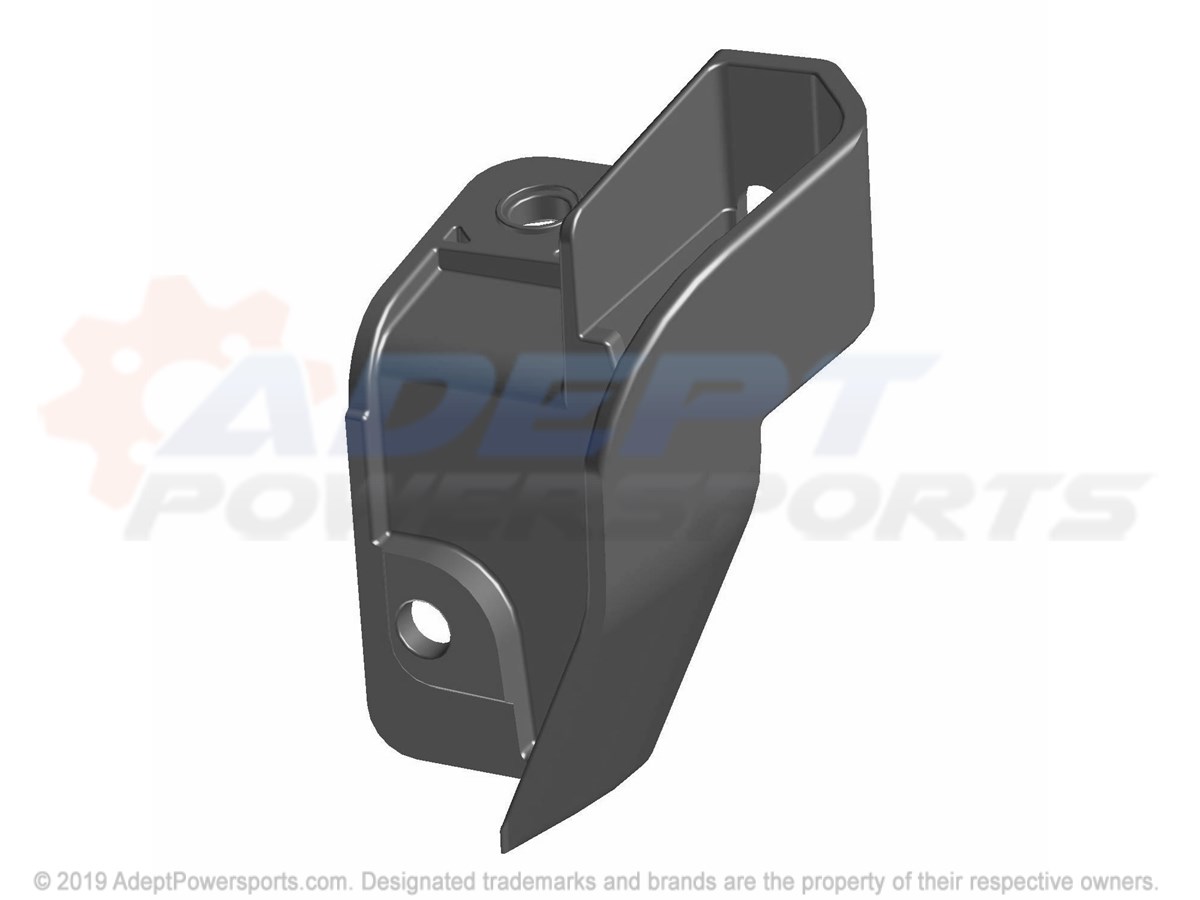

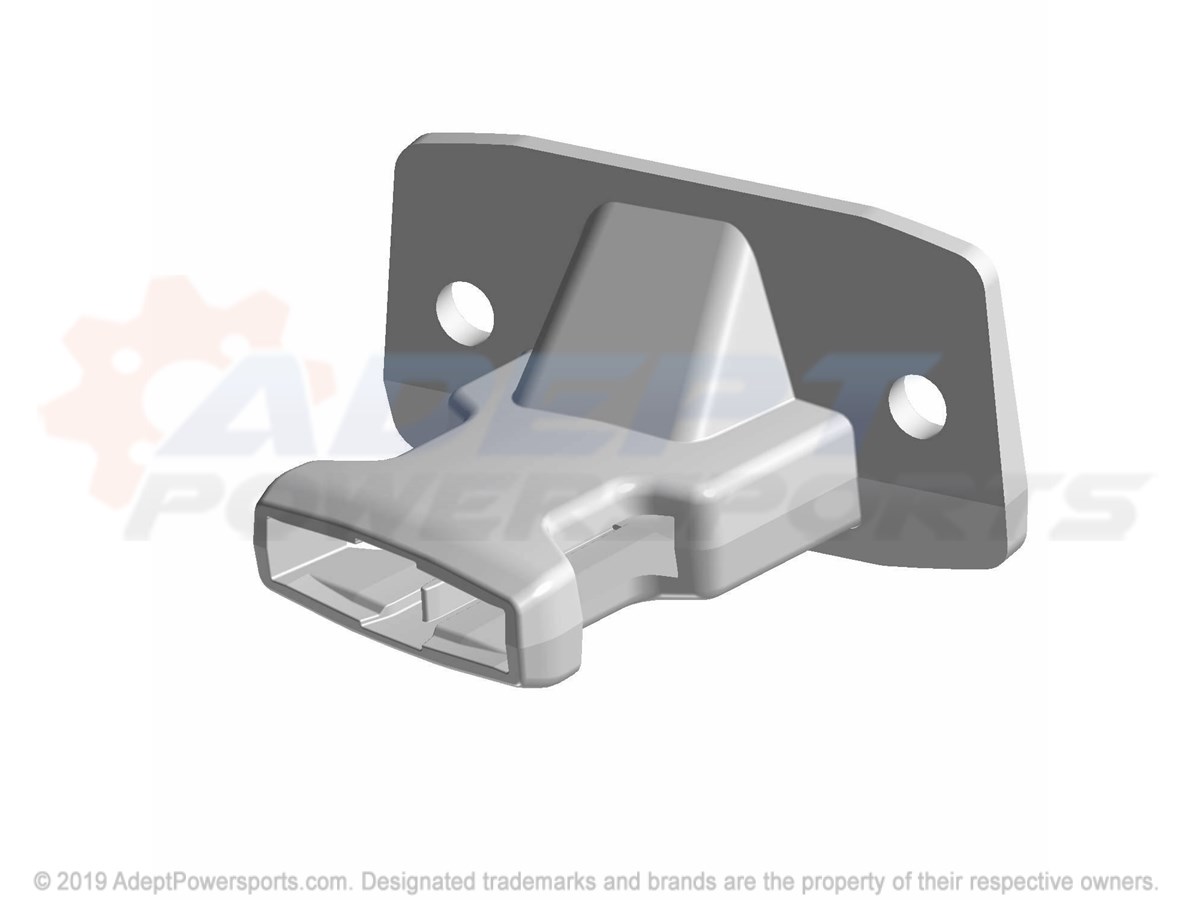

2	MOUNT-NET, LOWER, LH Part #: 5454156 Required per assembly: 1 Currently Not Available

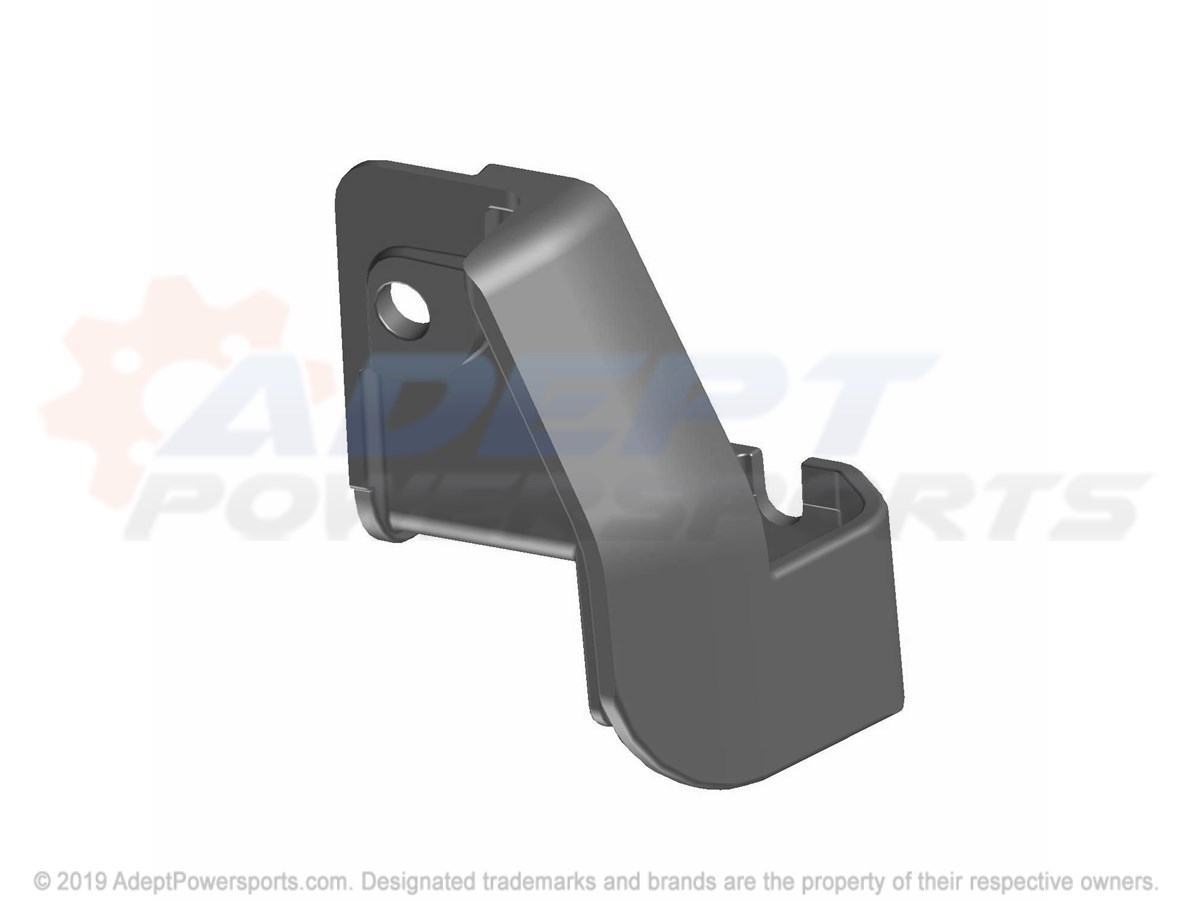

3	CLIP-UPPER, NET, LH Part #: 5455429 Required per assembly: 1 Currently Not Available
4	SCR-HXFL-M8X1.25X20 8.8 ZB Part #: 7519936 Required per assembly: 6 Currently Not Available

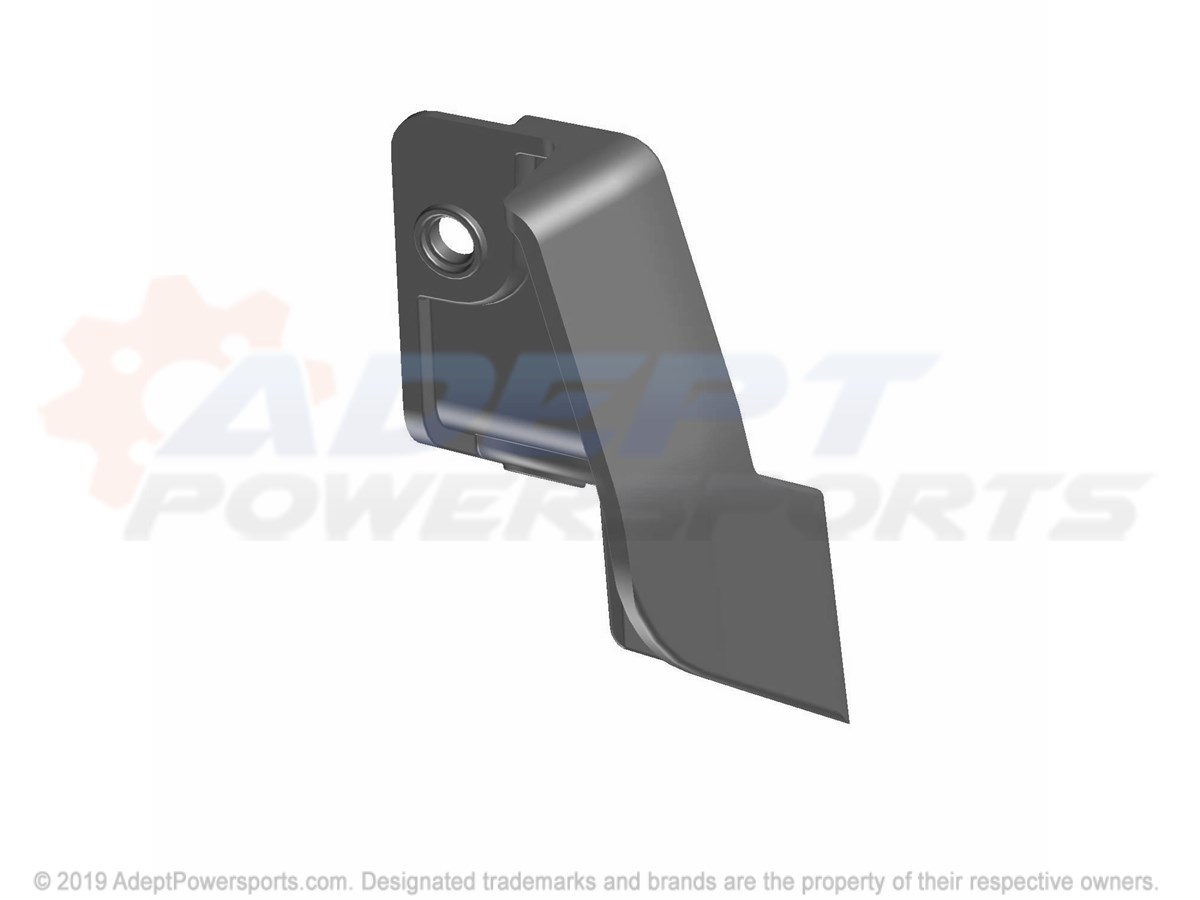

5	CLIP-UPPER, NET, RH Part #: 5455430 Required per assembly: 1 Currently Not Available
6	MOUNT-NET, LOWER, RH Part #: 5454307 Required per assembly: 1 Currently Not Available

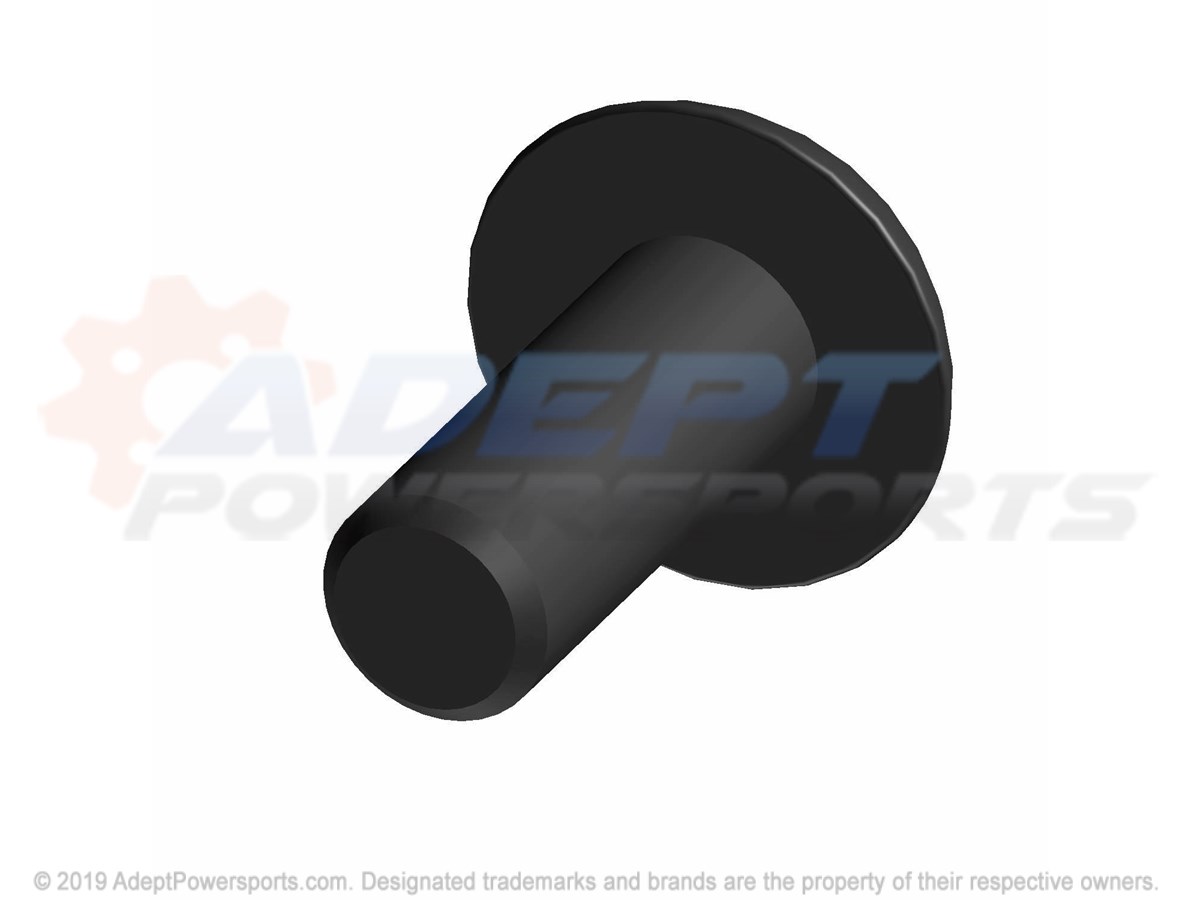

7	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
8	PLATE-HINGE, BLK Part #: 5256140-458 Required per assembly: 2 Currently Not Available

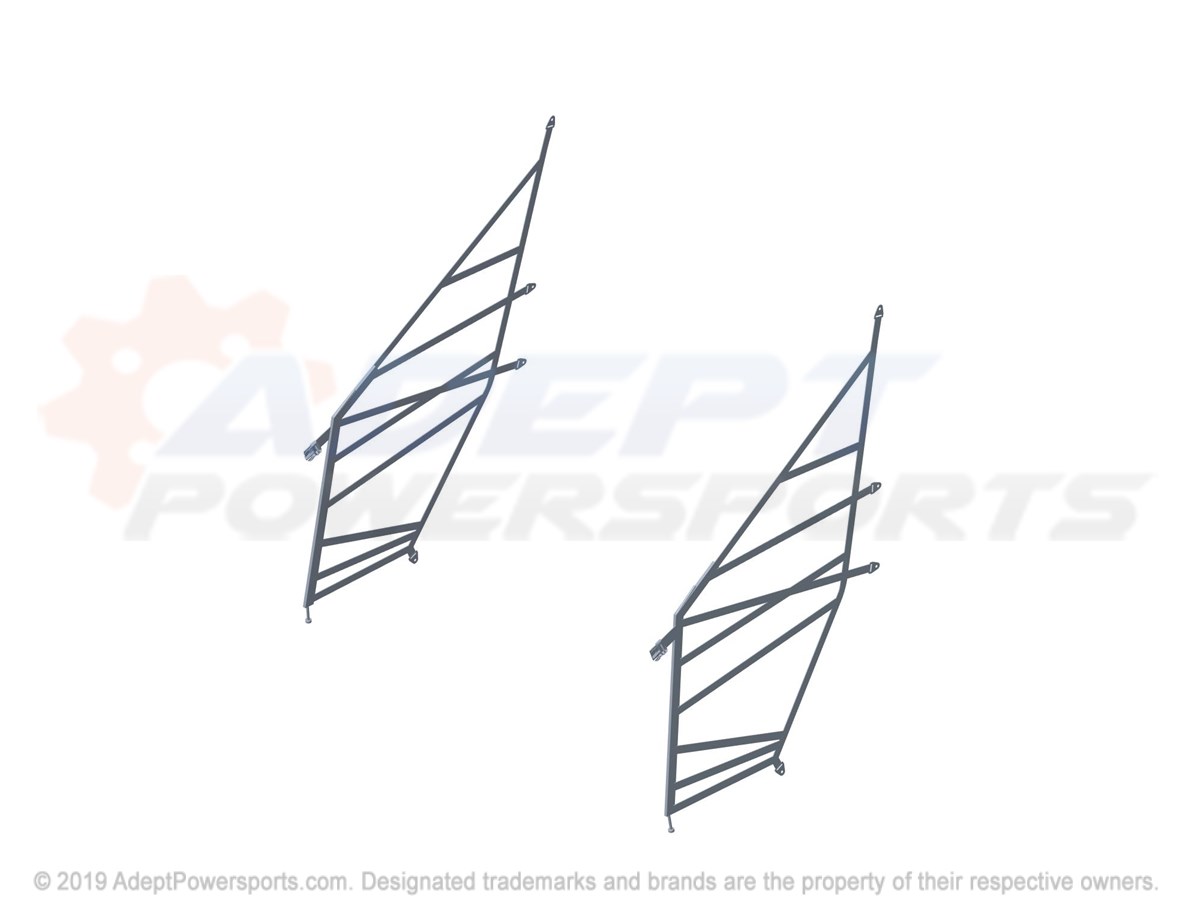

9	NETS-DOOR, REAR, RGR Part #: 2689581 Required per assembly: 1 Note: INCL 1-4 Currently Not Available

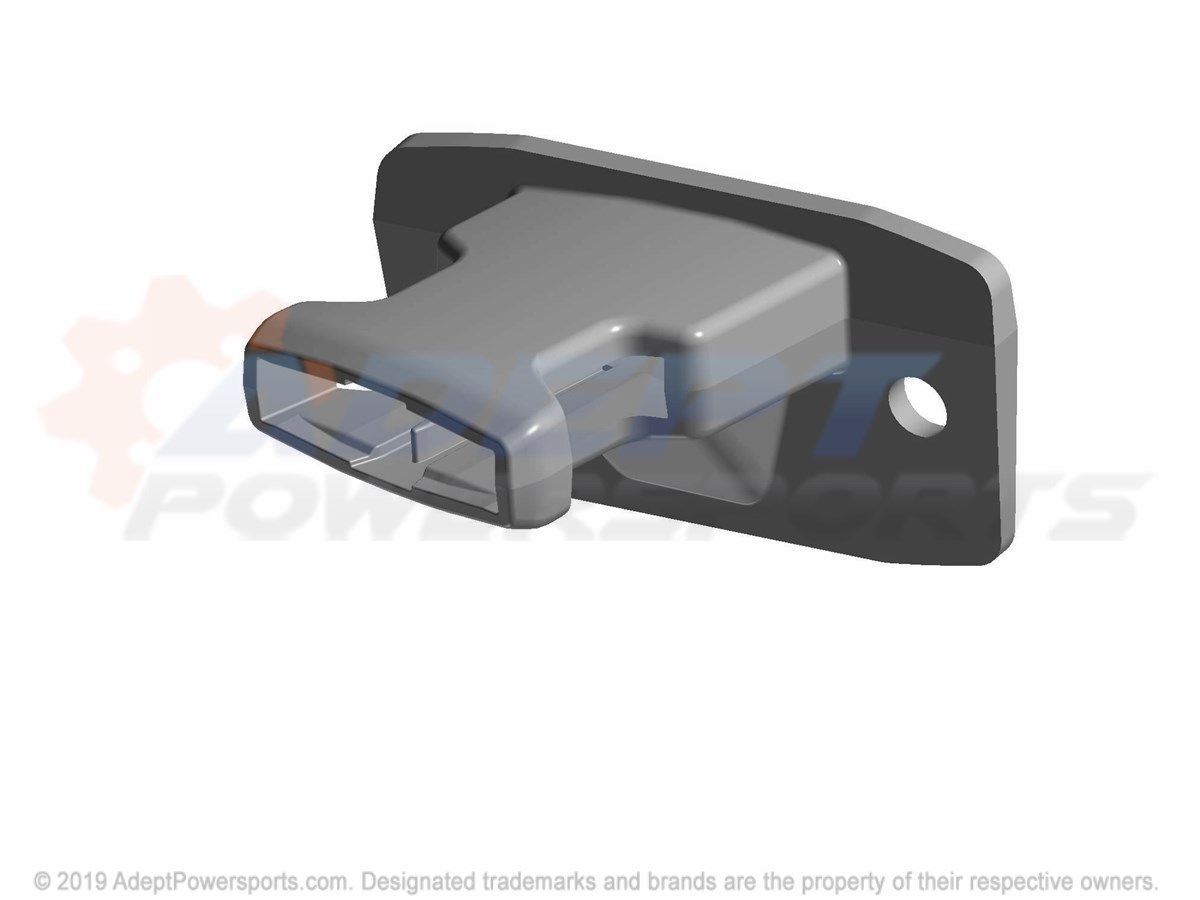

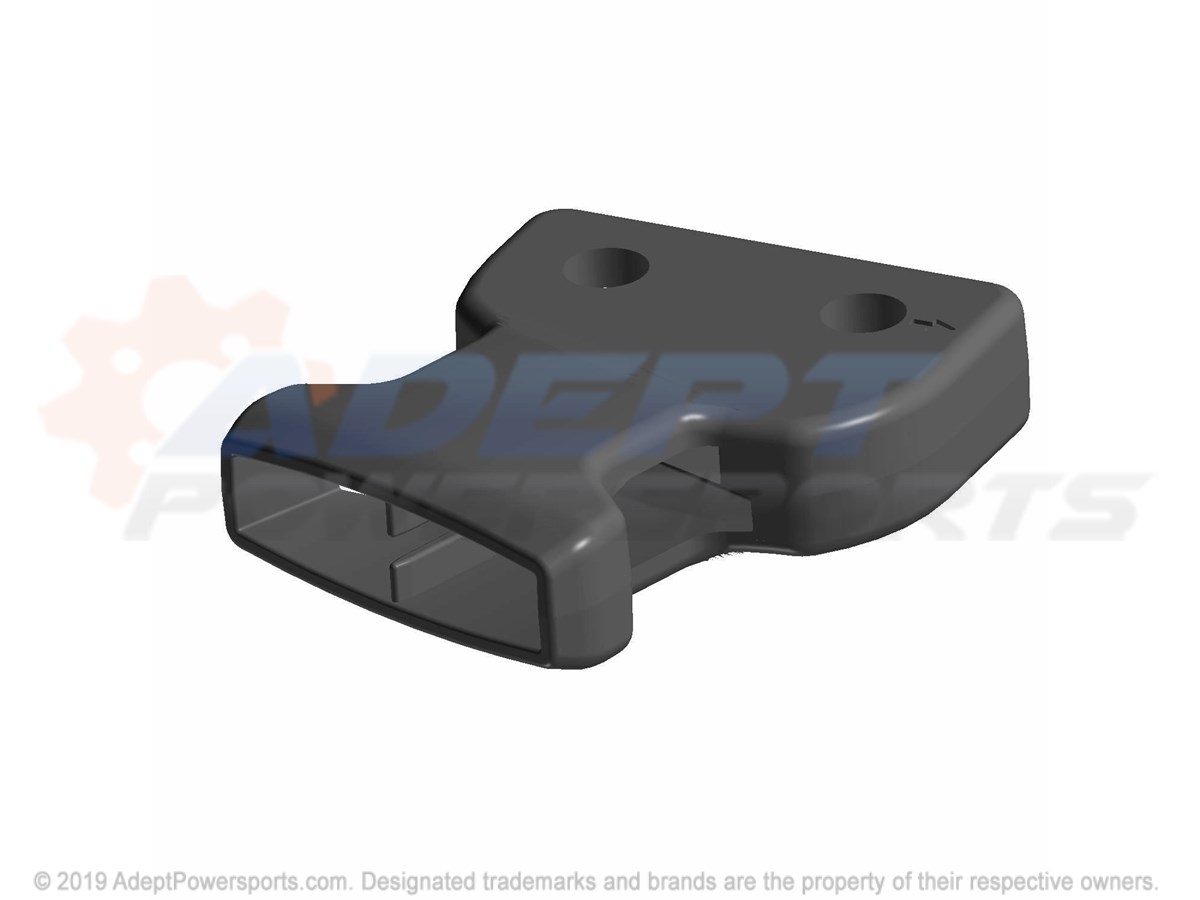

10	BUCKLE, 40MM, FEMALE Part #: 5452506 Required per assembly: 2 Currently Not Available
11	MOUNT-NET, LOWER, LH Part #: 5455945 Required per assembly: 1 Currently Not Available
12	MOUNT-NET, LOWER, RH Part #: 5455946 Required per assembly: 1 Currently Not Available
13	SCR-TXTH-M8X1.25X20 8.8ZPB Part #: 7520972 Required per assembly: 4 Currently Not Available

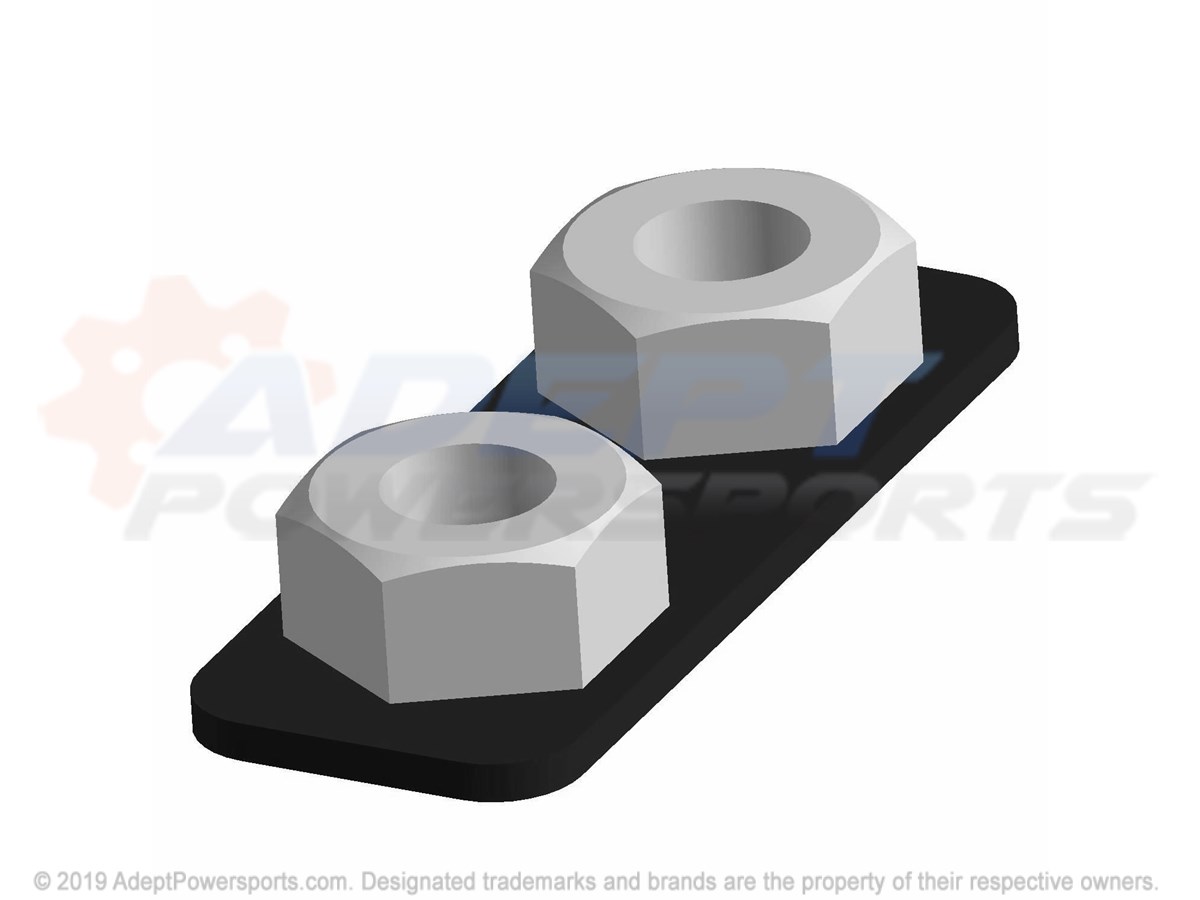

14	NUT, FLANGE Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok Currently Not Available
