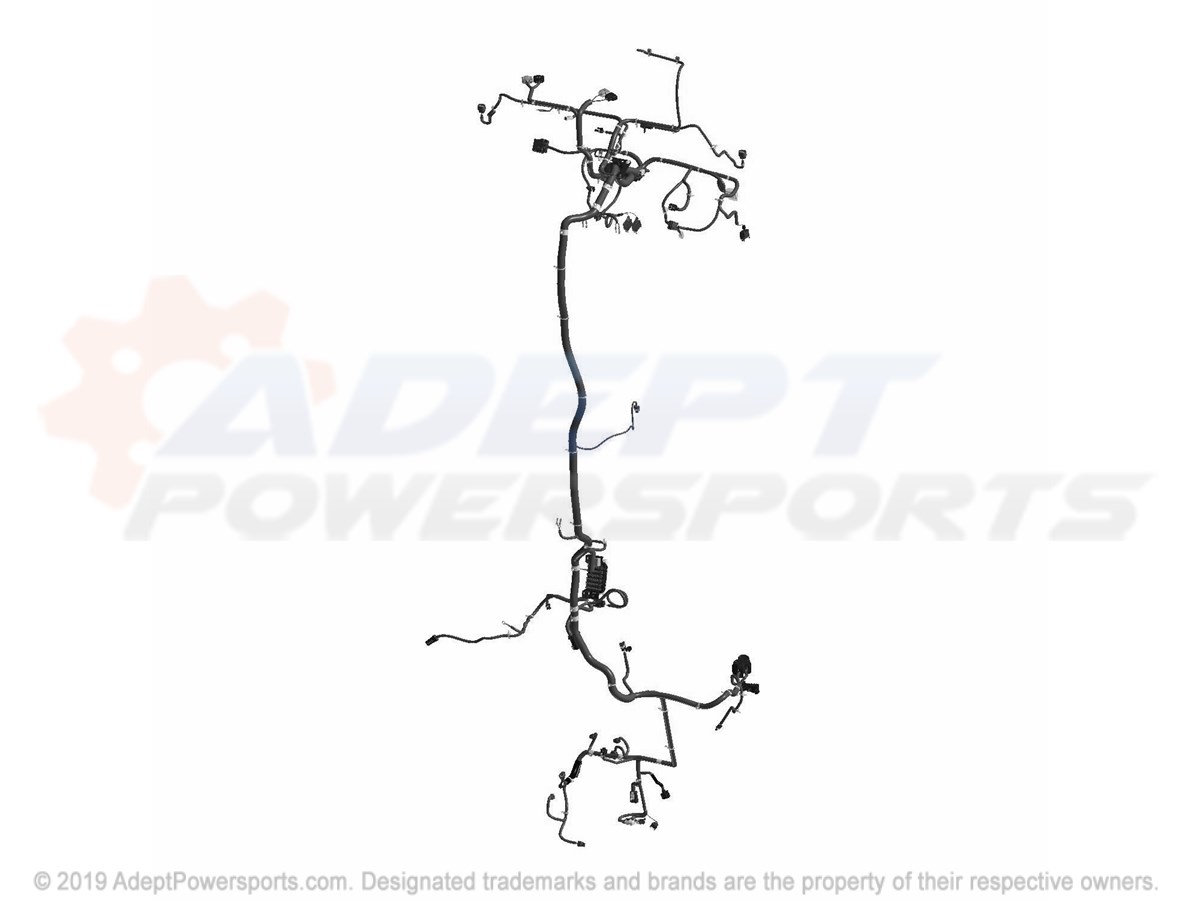

WIRE HARNESS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	CAP-REGULATOR, DC Part #: 5456378 Required per assembly: 2 Note: NOT ILLUSTRATED Currently Not Available
1	HARNESS-CHASSIS, STD, CREW Part #: 2414857 Required per assembly: 1 Note: INCL 2-15,39,40 Currently Not Available
2	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 5 Currently Not Available
3	LABEL, FUSE, BOX Part #: 7188652 Required per assembly: 1 Currently Not Available
4	CLIP-ROUTING Part #: 7081496 Currently Not Available
5	CLIP, PLASTIC, DART, NYLON Part #: 7670090 Required per assembly: 4 Note: Clip, Dart ~~$2.99~~ $1.73 - + Add to cart
6	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
7	CAP-VINYL, 125X375, BLACK Part #: 5438230 Required per assembly: 1 Currently Not Available
8	BREAKER, CIRCUIT, 20, AMP Part #: 2410881 Required per assembly: 1 Currently Not Available
9	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 8 Currently Not Available
10	GROMMET Part #: 5814560 Required per assembly: 1 Currently Not Available
11	FUSE, 10AMP Part #: 2434016 Required per assembly: 2 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
12	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
13	CLIP-EDGE, HARNESS Part #: 7081890 Currently Not Available
14	COVER-FUSEHOLDER Part #: 4012260 Required per assembly: 1 Currently Not Available
15	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
16	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Currently Not Available
17	SCR-TFHFL-M6X1.0X25, ZY3 Part #: 7520715 Required per assembly: 4 Currently Not Available
18	KIT, IGNITION, COIL Part #: 2876049 Required per assembly: 1 Note: Coil Currently Not Available
19	BOLT, FLANGE Part #: 7518612 Required per assembly: 1 Note: Bolt Currently Not Available
20	BRKT-COIL MOUNT Part #: 5263891 Required per assembly: 1 Currently Not Available
21	SPACER, COIL Part #: 5436577 Required per assembly: 1 Note: Spacer, Coil Mount Currently Not Available
22	SCREW Part #: 7518529 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
23	GROMMET-HOOD, LINER, SPLIT Part #: 5417082 Required per assembly: 1 Currently Not Available
24	SCREW Part #: 7518780 Required per assembly: 1 Currently Not Available
25	NUT Part #: 7547274 Required per assembly: 1 Note: Nut, Flange Currently Not Available
26	PLUG, ACCY, TB Part #: 5454283 Required per assembly: 6 Currently Not Available
26	COVER, TB, JCASE Part #: 5454284 Required per assembly: 1 Currently Not Available
26	FUSE-CARTRIDGE, 40A Part #: 4013891 Required per assembly: 1 Currently Not Available
26	BLOCK-TERMINAL, 6, POS Part #: 4016007 Required per assembly: 1 Note: INCL FUSE PLUG AND COVER Currently Not Available
27	BRKT-WIRE, GUIDE, BLK Part #: 5265908-458 Required per assembly: 1 Currently Not Available
28	BRKT-MOUNT, REG Part #: 5263643 Required per assembly: 1 Currently Not Available
29	SCREW Part #: 7518555 Required per assembly: 3 Note: Bolt, Flange Currently Not Available
30	ECM Part #: 4014125 Required per assembly: 1 Currently Not Available
31	SCREW Part #: 7519091 Required per assembly: 4 Currently Not Available
32	HARNESS, BOX, RANGER, RC Part #: 2414296 Required per assembly: 1 Currently Not Available
33	RELAY, SOLID, STATE, 9, AMP Part #: 4012829 Required per assembly: 1 Note: Relay, Solid State Currently Not Available
34	BRKT-HARNESS ROUTING Part #: 5264314 Required per assembly: 1 Currently Not Available
35	NUT, FLANGE Part #: 7547339 Required per assembly: 1 Currently Not Available
36	SENSOR, AIR, TEMP Part #: 2410443 Required per assembly: 1 Currently Not Available
37	BRKT-MOUNT, REG Part #: 5267612 Required per assembly: 1 Currently Not Available
38	BRKT-HARNESS ROUTING Part #: 5264314 Required per assembly: 1 Currently Not Available
39	CLIP-EDGE, 3-6MM, THICKNESS Part #: 7082404 Required per assembly: 1 Currently Not Available
40	CLIP-EDGE, 1-3MM, THICKNESS Part #: 7082403 Required per assembly: 4 Currently Not Available
41	HARNESS, USB, RC Part #: 2415498 Required per assembly: 1 Currently Not Available
42	RECEPTACLE, POD, MOUNT, 12V Part #: 4012393 Required per assembly: 1 Currently Not Available
43	CAMERA-FRONT, WIDE, ANGLE Part #: 4019855 Required per assembly: 1 Currently Not Available
44	ANTENNA, GPS, EXT Part #: 4017533 Required per assembly: 1 Currently Not Available
45	CAM-IR, ILLUMINATED, AMB, SENSE Part #: 4081064 Required per assembly: 1 Currently Not Available
46	BRKT-CAMERA, MNT, REAR, Z, BLK Part #: 5265002-329 Required per assembly: 1 Currently Not Available
47	SCREW Part #: 7519731 Required per assembly: 4 Currently Not Available
48	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
49	MOUNT, CAMERA, FRONT, BLK Part #: 5454705-070 Required per assembly: 1 Currently Not Available
50	HARNESS-RIDE COMMAND Part #: 2414861 Required per assembly: 1 Currently Not Available
51	BRKT-REGULATOR, MTNG, CAP, BLK Part #: 5268319-329 Required per assembly: 1 Currently Not Available
