Mag Cover Mount replacement parts for 2019 Polaris Ranger 1000XP PS Crew NSTR (R18)

OEM Parts Polaris 2019 Polaris Ranger 1000XP PS Crew NSTR (R18) Mag Cover Mount

MAG COVER MOUNT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

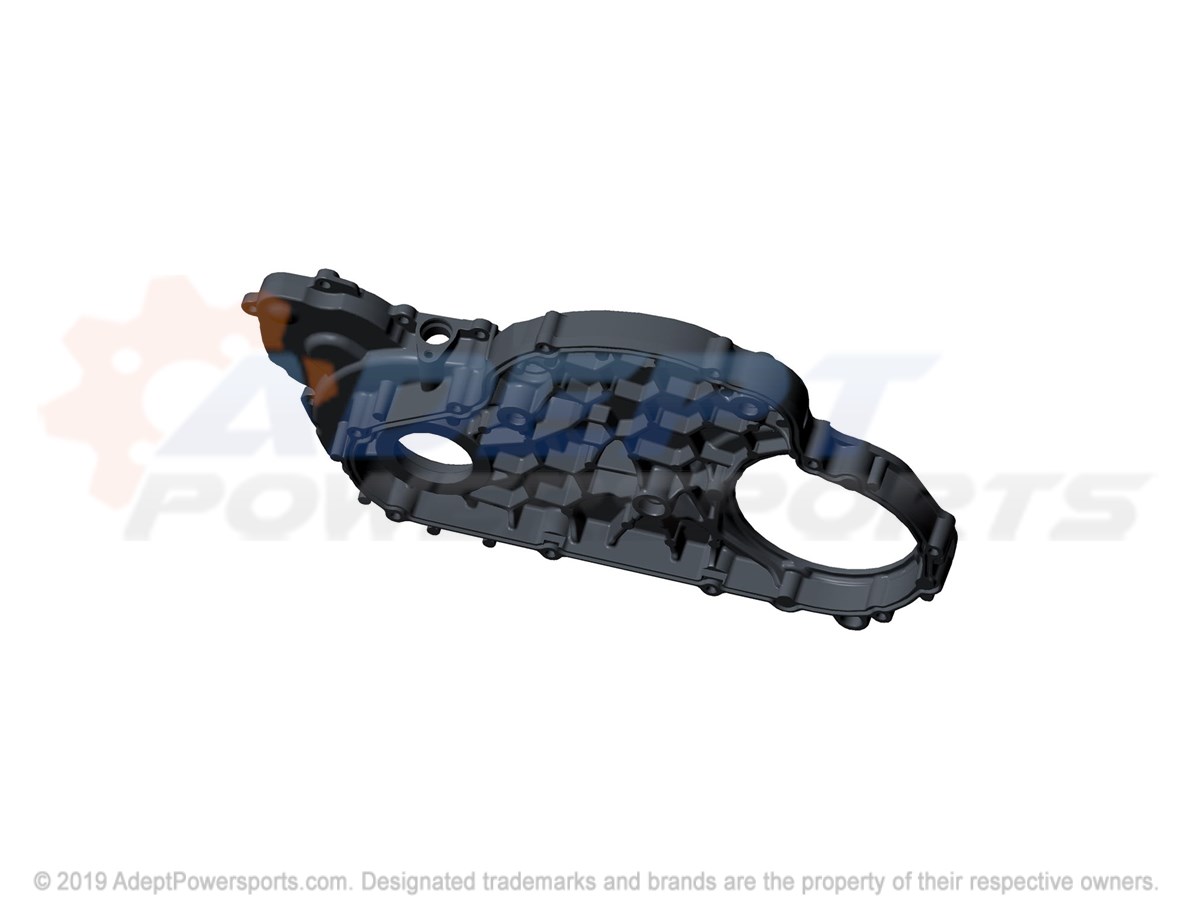

1	ASM-COVER, HVAC, MOUNT Part #: 3023966 Required per assembly: 1 Note: INCL. 2-4 Currently Not Available
2	BEARING-BALL 9X24X7 Part #: 3514717 Required per assembly: 1 Currently Not Available
3	ASM-COVER, HVAC, MOUNT Part #: 3023966 Required per assembly: 1 Currently Not Available
4	RING-SNAP DIN472 24X1.2MM Part #: 7710654 Required per assembly: 1 Currently Not Available

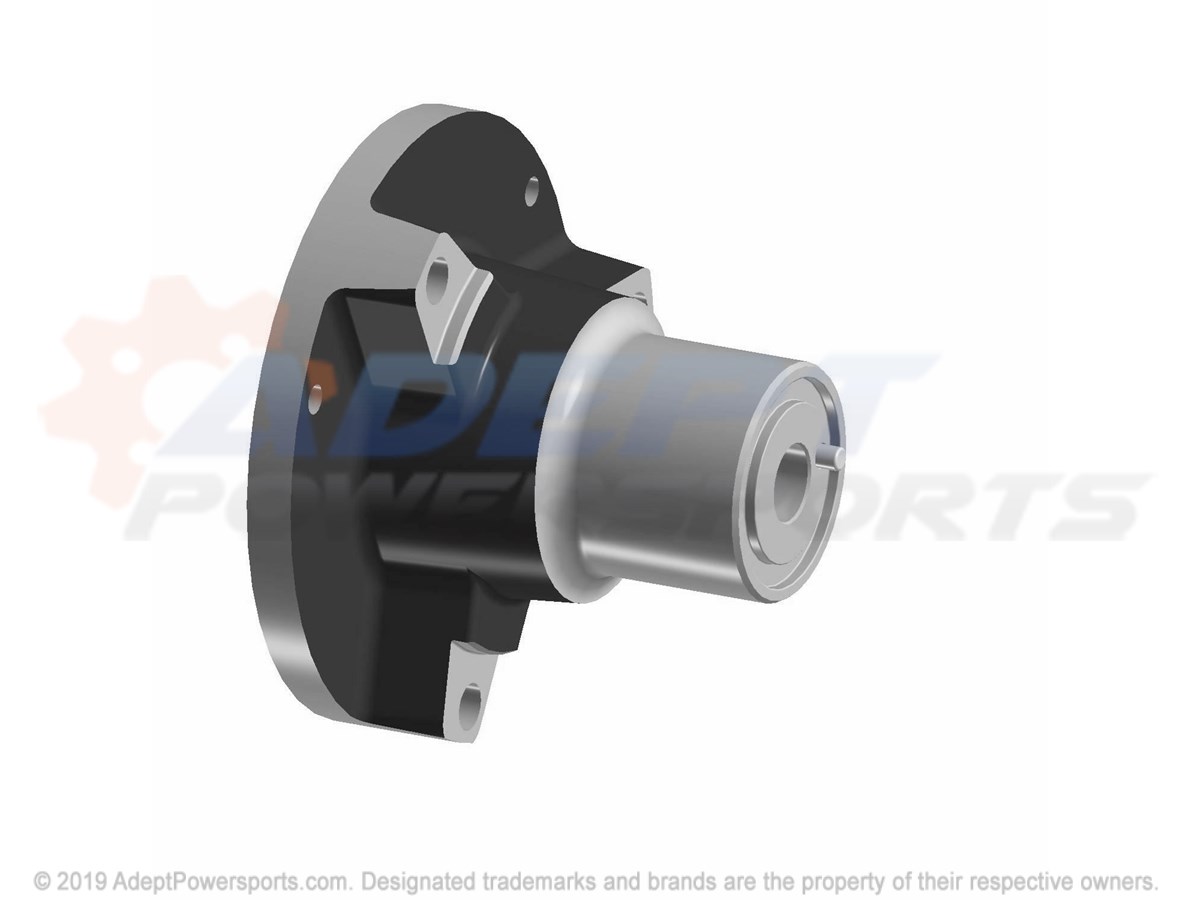

5	ADAPTER HUB Part #: 3022843 Required per assembly: 1 Note: INCL. 6 Currently Not Available
7	SENSOR-CRANK POSITION Part #: 2411719 Required per assembly: 1 Currently Not Available
8	SEAL-CRANKSHAFT Part #: 3610284 Required per assembly: 1 Currently Not Available

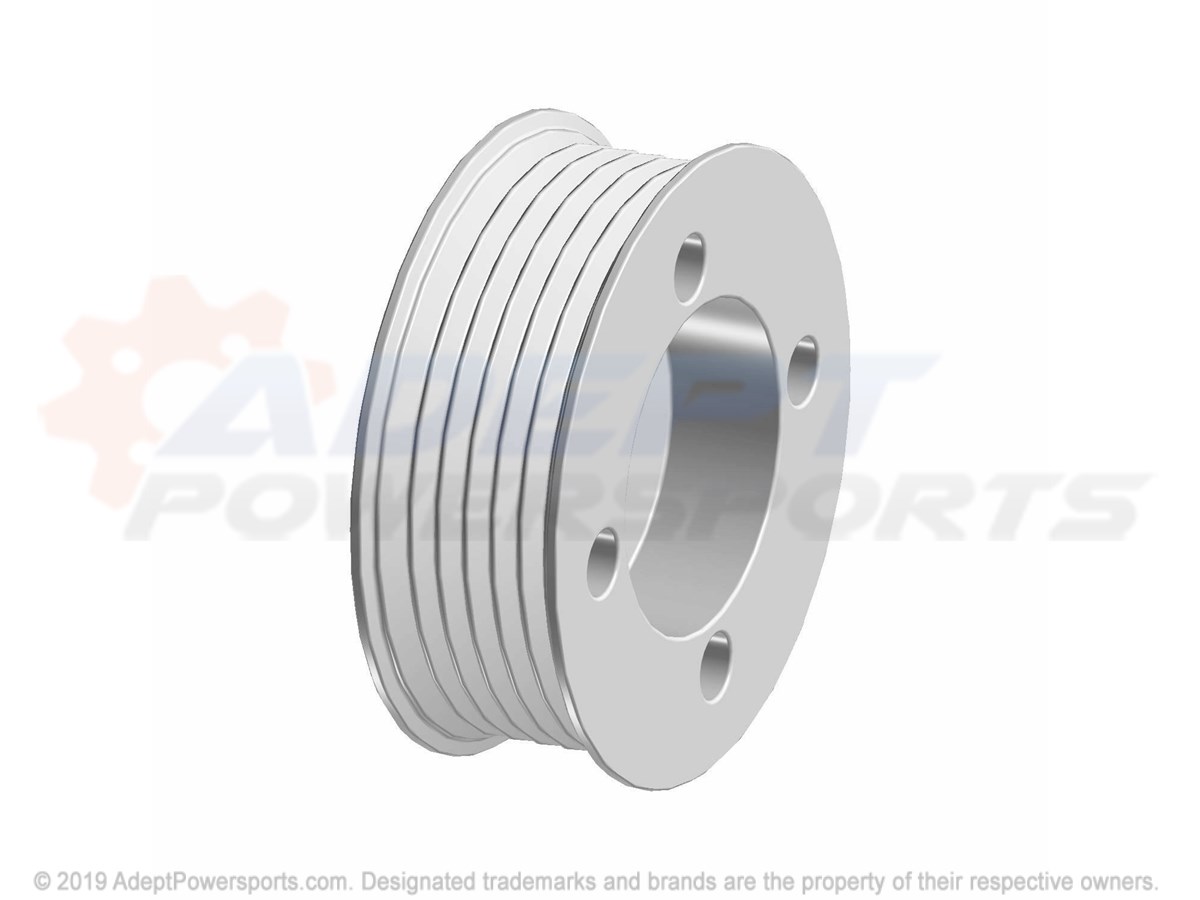

9	PULLEY-6, RIB, 72.0MM, DRIVE Part #: 5142907 Required per assembly: 1 Note: FROM 3/9/2019 Currently Not Available
9	PULLEY-6, RIB, 72.0MM, DRIVE Part #: 5142907 Required per assembly: 1 Note: TO 3/9/2019 Currently Not Available
10	O-RING, -123 Part #: 5415584 Required per assembly: 1 Currently Not Available
11	GAKSET-COVER, MAG Part #: 5814160 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518576 Required per assembly: 1 Currently Not Available

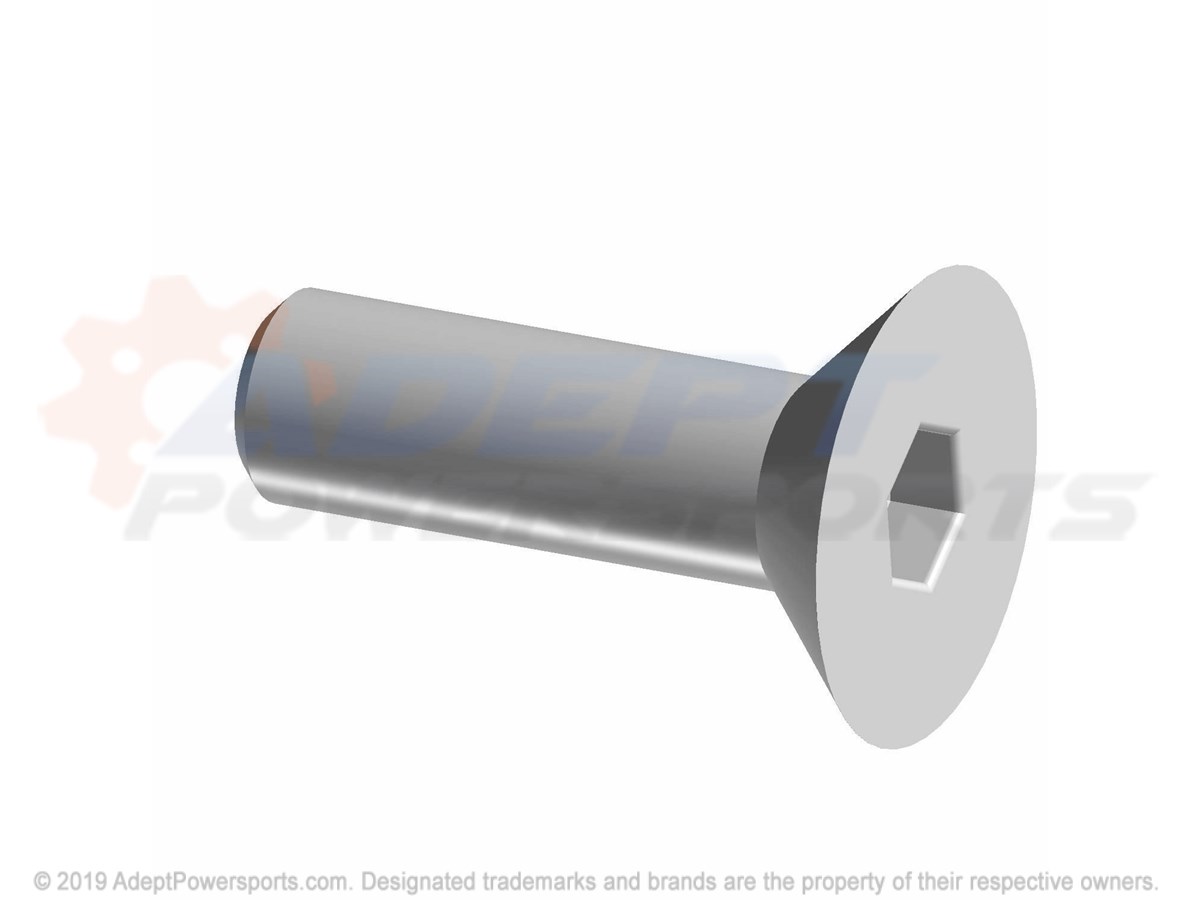

13	SCR-M6X20MM, HXSOC, FHCS Part #: 7518861 Required per assembly: 3 Currently Not Available
14	SCREW Part #: 7519297 Required per assembly: 13 Currently Not Available

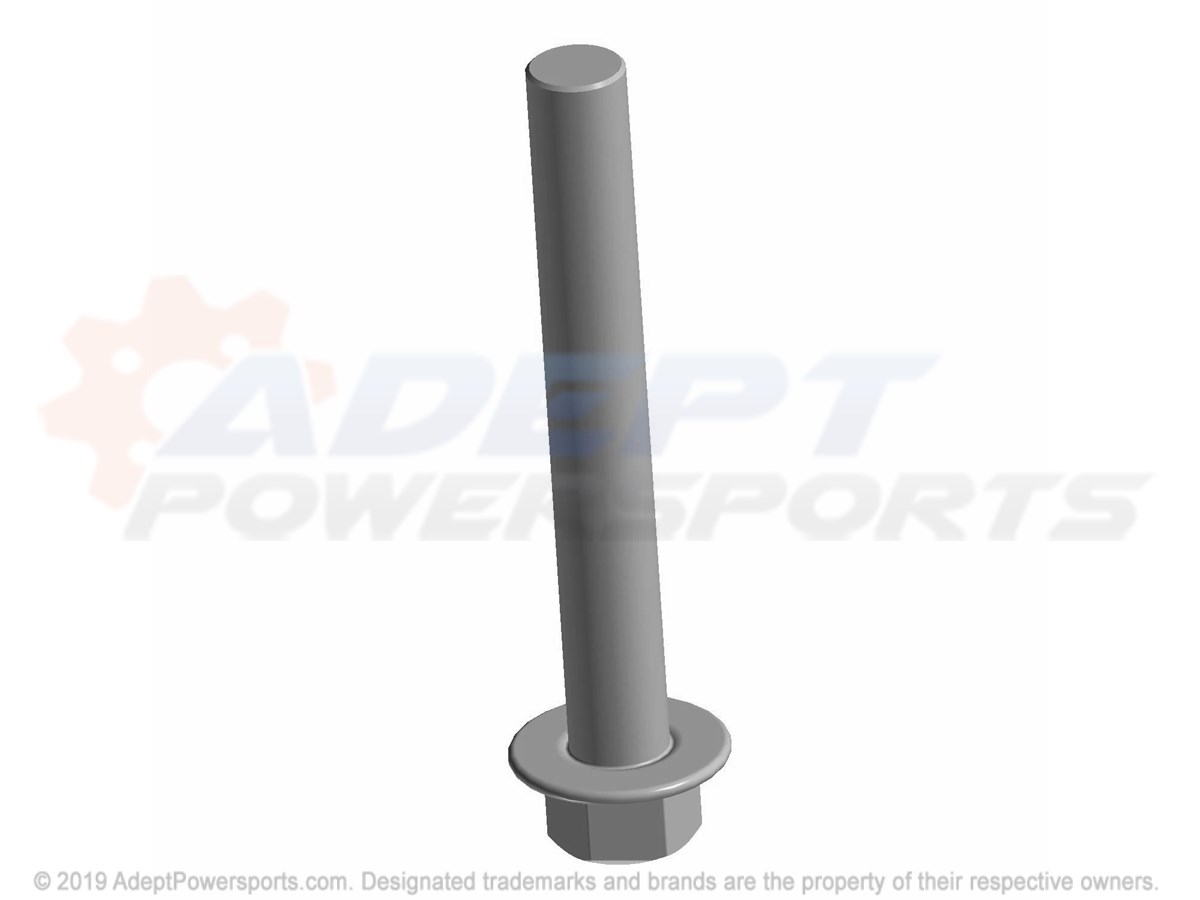

15	BOLT-HXFL, M12X1.25X90, 12.9 Part #: 7520605 Required per assembly: 1 Currently Not Available

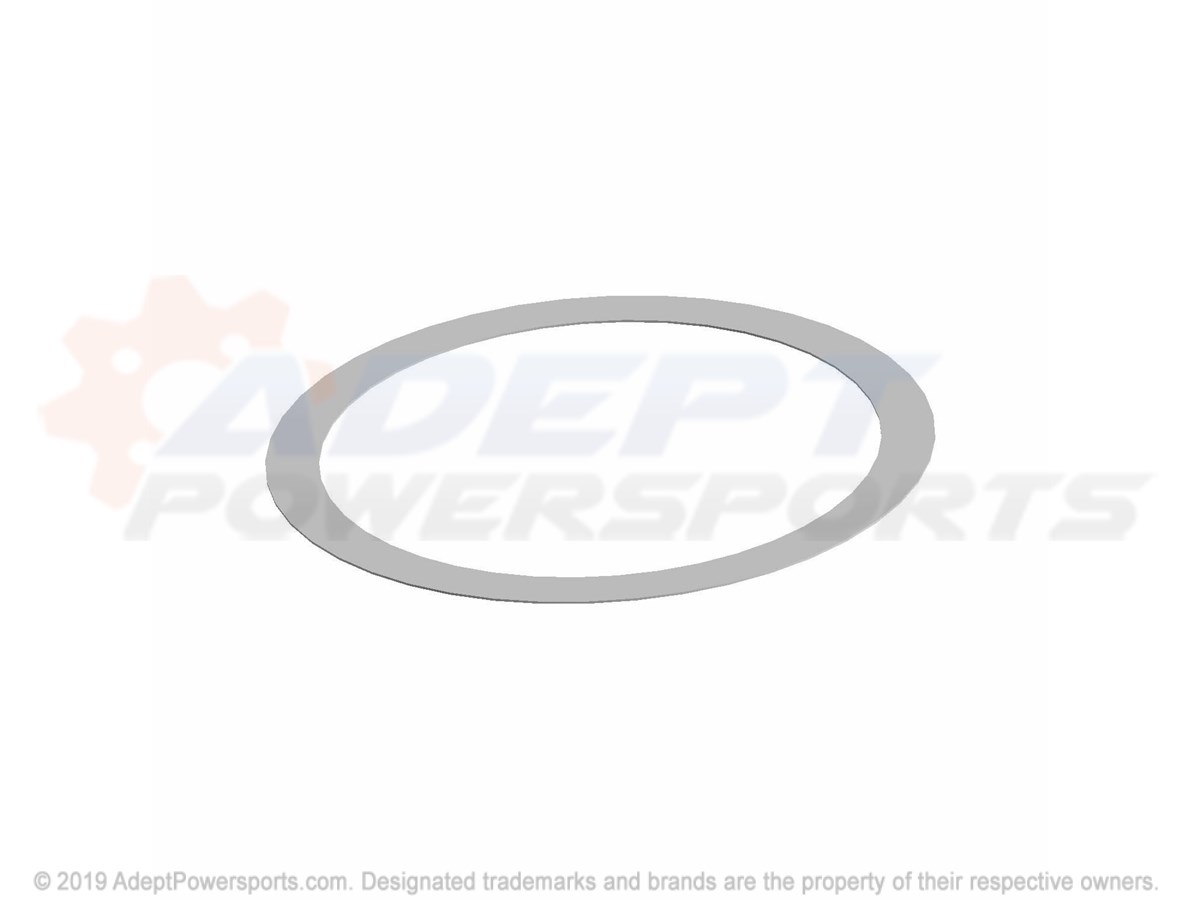

16	WASHER-FRICTION, 28.0MM Part #: 7556915 Required per assembly: 1 Currently Not Available

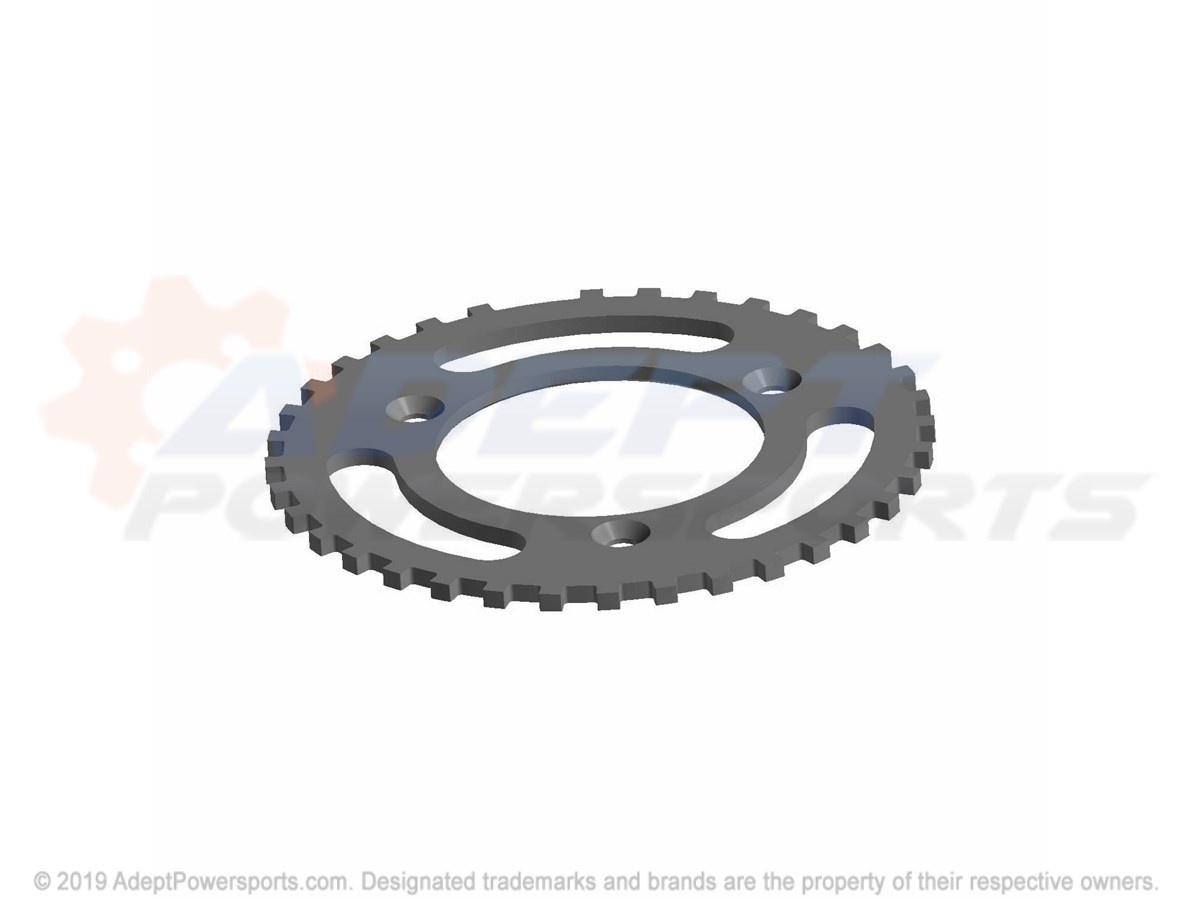

17	TIMING WHEEL Part #: 5142632 Required per assembly: 1 Note: FROM 4/26/2019 Currently Not Available
18	BRKT-HOSE, BYPASS Part #: 5263750 Required per assembly: 1 Currently Not Available
19	CLIP-WIRE, 6.35MM Part #: 7081477 Required per assembly: 1 Currently Not Available
