Rear Shock Mounting replacement parts for 2019 Polaris RZR 900 60 Inch All Options (R06)

OEM Parts Polaris 2019 Polaris RZR 900 60 Inch All Options (R06) Rear Shock Mounting

REAR SHOCK MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER-SPRING Part #: 1501096 Required per assembly: 2 Note: A2 Currently Not Available
2	SPACER-SPRING NYLON 2" Part #: 5438839 Required per assembly: 2 Note: A2 Currently Not Available

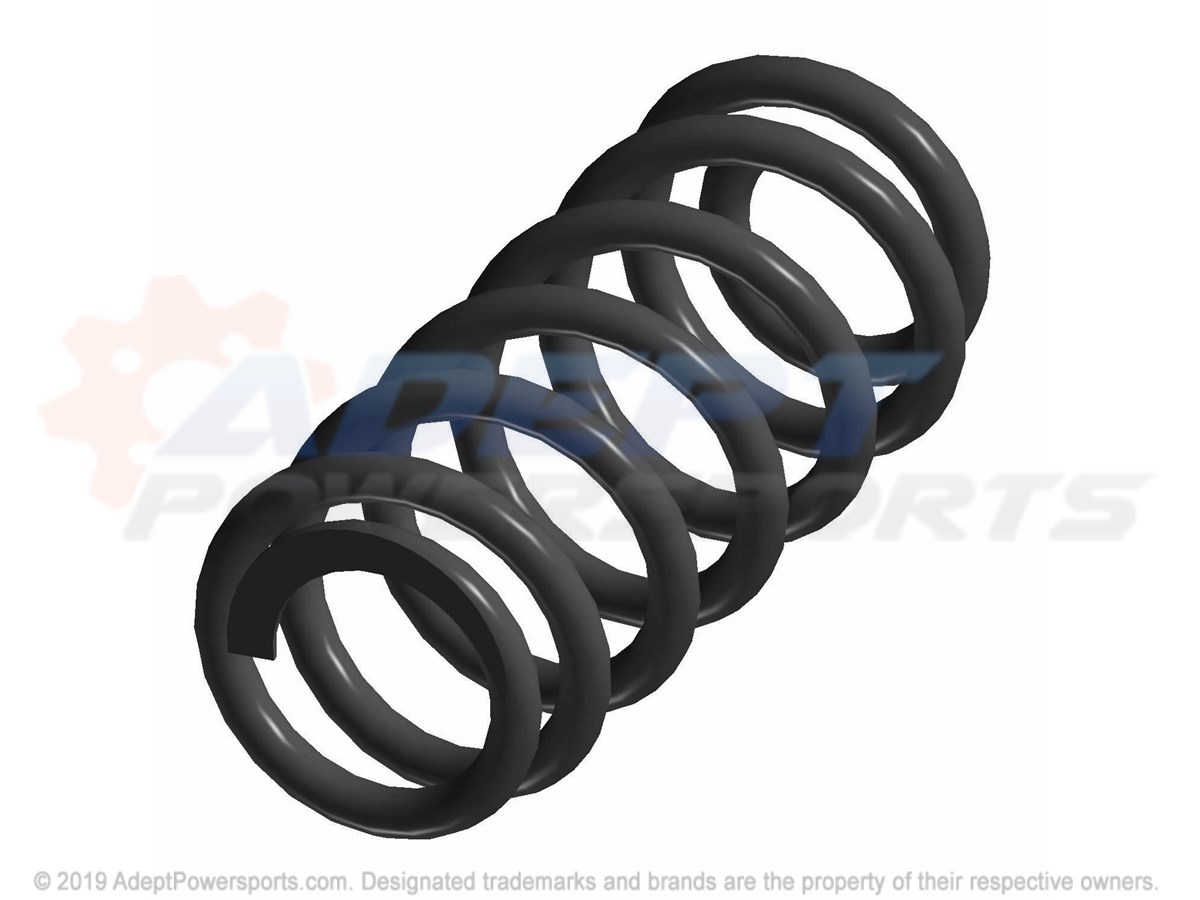

3	SPR-175#, 5.71FL, 2.3-2.31D, BLK Part #: 7044225-458 Required per assembly: 2 Note: A2 Currently Not Available
3	S-200-250#, 14.25FL, 2.30ID, ORG Part #: 7044651-446 Required per assembly: 2 Note: AG Currently Not Available

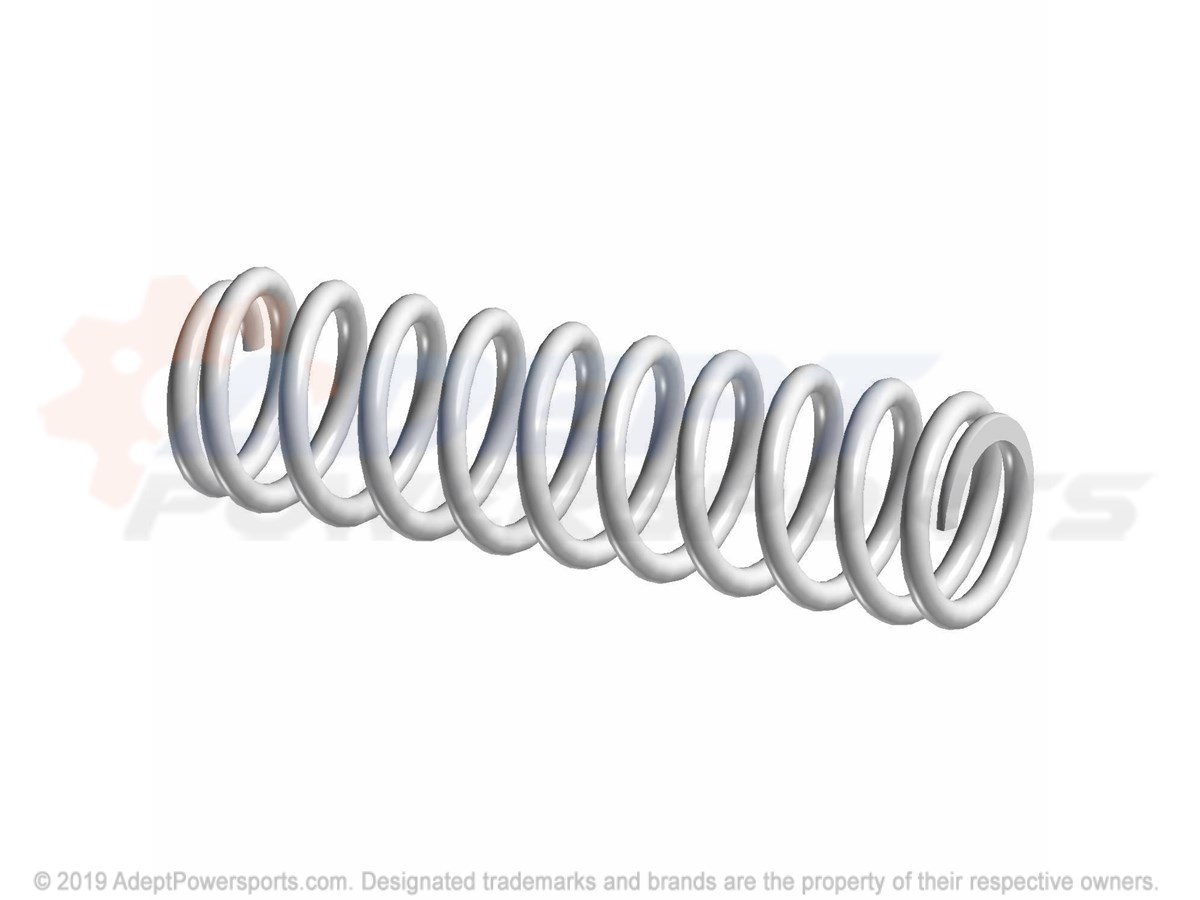

3	S-200-250#, 14.25FL, 2.30ID, SLV Part #: 7044651-385 Required per assembly: 2 Note: AK Currently Not Available
4	SHOCK-REAR, MONO Part #: 7045411 Required per assembly: 2 Note: A2 Currently Not Available
5	SPR-350#, 10.5FL, 2.3-2.3ID, CSO Part #: 7044210-446 Required per assembly: 2 Note: AG Currently Not Available
5	SPR-350#, 10.5FL, 2.3-2.3ID, SLV Part #: 7044210-385 Required per assembly: 2 Note: AK Currently Not Available
5	SPR-350#, 10.5FL, 2.3-2.31D, BLK Part #: 7044210-458 Required per assembly: 2 Note: A2 Currently Not Available
6	SHOCK-REAR, 2, RESVR, PIGGYBK, RH Part #: 7044906 Required per assembly: 1 Note: AG Currently Not Available
6	SHOCK-REAR, 2, RESVR, PIGGYBK, LH Part #: 7044905 Required per assembly: 1 Note: AG Currently Not Available
7	RETAINER-SPRING Part #: 1501194 Required per assembly: 2 Note: AG Currently Not Available
8	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
