Front Shock Mounting replacement parts for 2019 Polaris RZR XP 1000 MD (R04)

OEM Parts Polaris 2019 Polaris RZR XP 1000 MD (R04) Front Shock Mounting

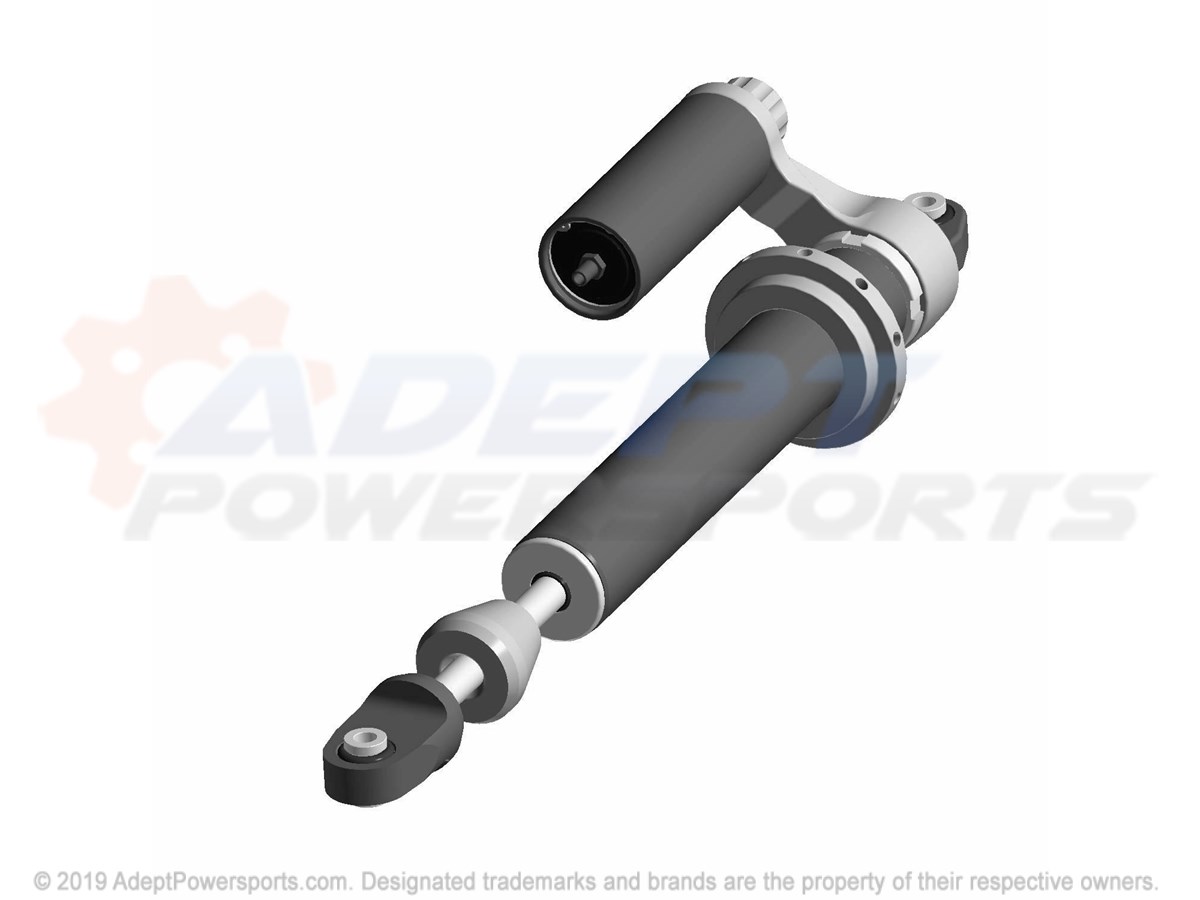

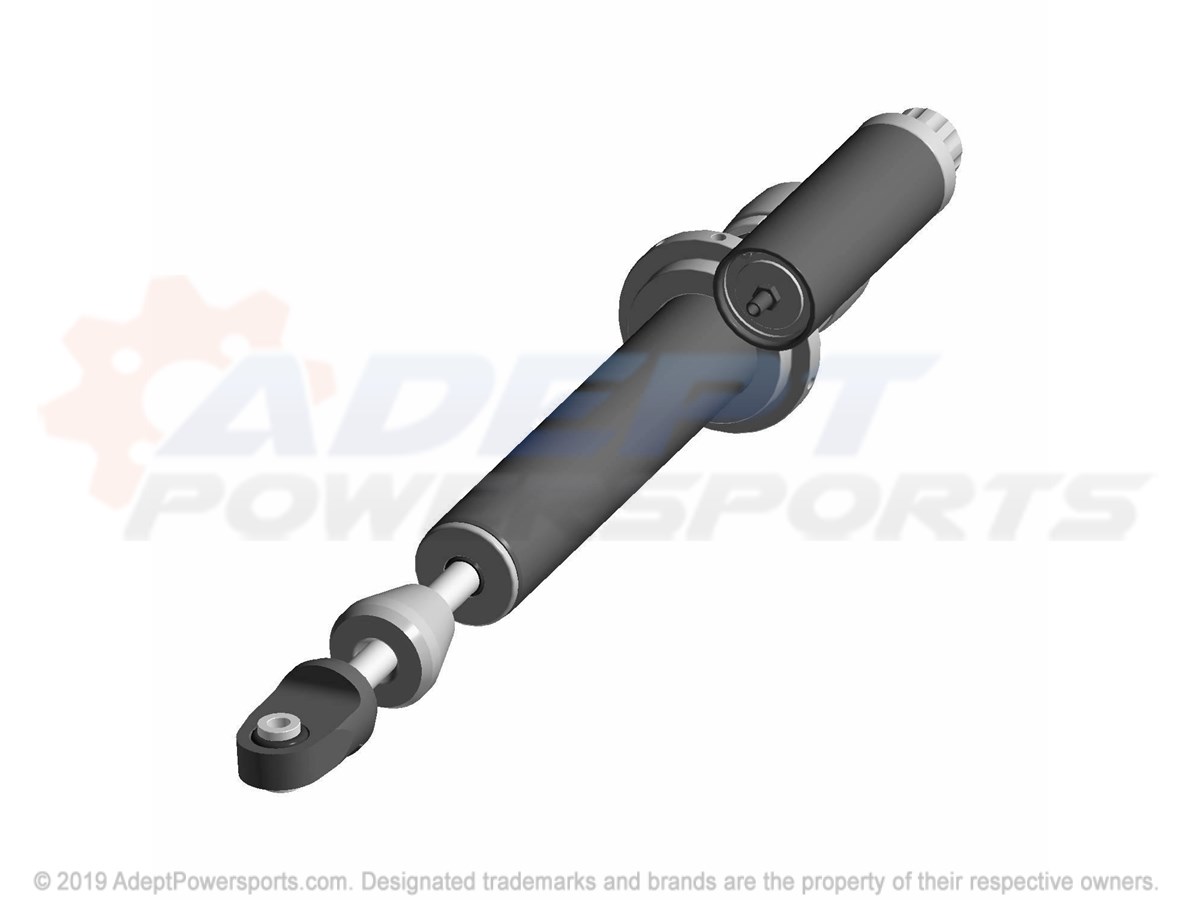

FRONT SHOCK MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SHOCK-FRONT, RZRXP, PIGGYBK, LH Part #: 7045256 Required per assembly: 1 Currently Not Available
1	SHOCK-FRONT, RZRXP, PIGGYBK, RH Part #: 7045257 Required per assembly: 1 Currently Not Available
2	SPR-260, 12.75FL, 3.04ID, RED Part #: 7045577-293 Required per assembly: 2 Currently Not Available
3	SPR-300-PRG, 3.75FL, 3.04ID, RED Part #: 7044425-293 Required per assembly: 2 Currently Not Available
4	SPACER-SPRING, 2.5" Part #: 5456620 Required per assembly: 2 Currently Not Available
4	SPACER, SPRING Part #: 5450644 Required per assembly: 2 Currently Not Available
5	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 2 Currently Not Available
6	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Currently Not Available
7	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
8	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
