OEM Parts Polaris 2019 Polaris RZR XP4 1000 (R04) Front Bumper - Z19vfe99ad/Bd/Ak/Bk/An/Bn/Ld/K99ad/Bd/Ak/Bk/An/Bn/Lk/Le/L99ac/Bc/M99al

2019 Polaris RZR XP4 1000 (R04) Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL - Front Bumper - Z19vfe99ad/Bd/Ak/Bk/An/Bn/Ld/K99ad/Bd/Ak/Bk/An/Bn/Lk/Le/L99ac/Bc/M99al

FRONT BUMPER - Z19VFE99AD/BD/AK/BK/AN/BN/LD/K99AD/BD/AK/BK/AN/BN/LK/LE/L99AC/BC/M99AL Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

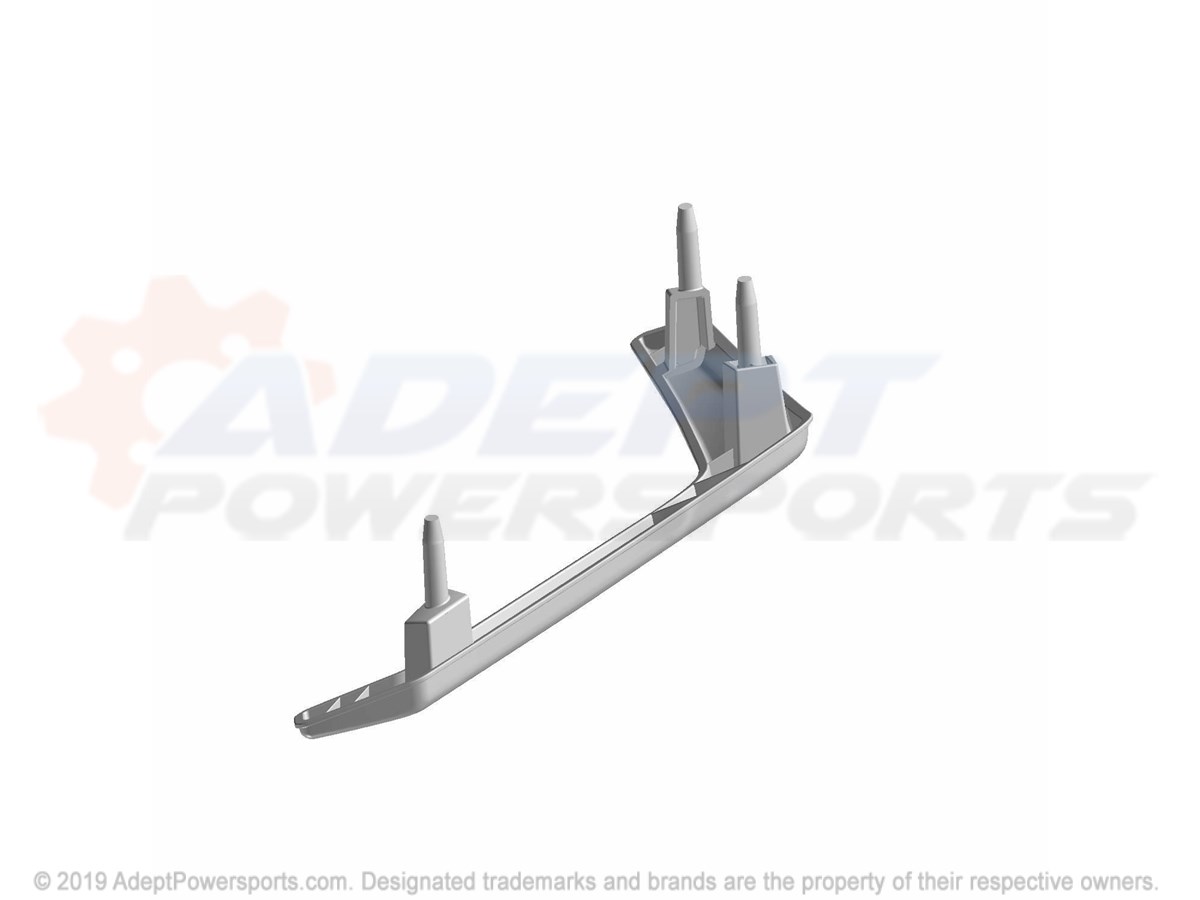

Polaris 5454587-070 Grille-Front, Fascia, Lh, Blk

GRILLE-FRONT, FASCIA, LH, BLK

Part #: 5454587-070 Required per assembly: 1
Currently Not Available
2
Polaris 5454588-070 Grille-Front, Fascia, Rh, Blk

GRILLE-FRONT, FASCIA, RH, BLK

Part #: 5454588-070 Required per assembly: 1
Currently Not Available
3

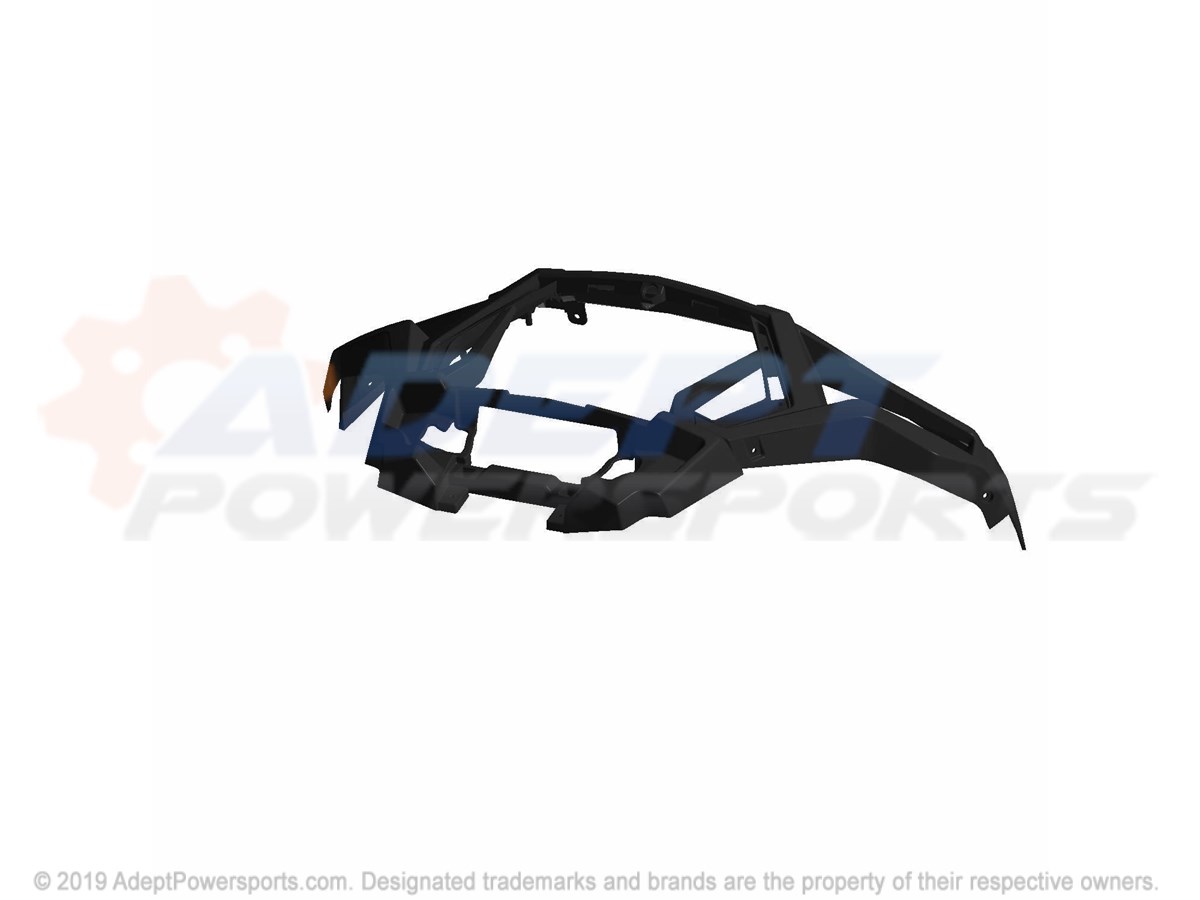

Polaris 5454743-666 Fascia-Front, Pntd, Blk, Prl

FASCIA-FRONT, PNTD, BLK, PRL

Part #: 5454743-666 Required per assembly: 1 Note: K99AK
Currently Not Available
3
Polaris 5454743-630 Fascia-Front, Pntd, Lime, Squ

FASCIA-FRONT, PNTD, LIME, SQU

Part #: 5454743-630 Required per assembly: 1 Note: K99LK
Currently Not Available
3
Polaris 5454743-647 Fascia-Front, Pntd, Orange, Burst

FASCIA-FRONT, PNTD, ORANGE, BURST

Part #: 5454743-647 Required per assembly: 1 Note: K99LE
Currently Not Available
3
Polaris 5455432-070 Fascia-Front, Txt, Blk

FASCIA-FRONT, TXT, BLK

Part #: 5455432-070 Required per assembly: 1
Currently Not Available
3
Polaris 5454743-737 Fascia-Front, Pntd, Is.Blue

FASCIA-FRONT, PNTD, IS.BLUE

Part #: 5454743-737 Required per assembly: 1 Note: K99AN
Currently Not Available
3
Polaris 5454743-653 Fascia-Front, Pntd, Ttmn

FASCIA-FRONT, PNTD, TTMN

Part #: 5454743-653 Required per assembly: 1 Note: K99AD
Currently Not Available
3
Polaris 5454743-599 Fascia-Front, Pntd, White

FASCIA-FRONT, PNTD, WHITE

Part #: 5454743-599 Required per assembly: 1 Note: L99AC
Currently Not Available
3
Polaris 5454743-464 Fascia-Front, Pntd, St.Blk

FASCIA-FRONT, PNTD, ST.BLK

Part #: 5454743-464 Required per assembly: 1 Note: M99AL
Currently Not Available
3
Polaris 5454743-266 Fascia-Front, Pntd, C.Blk

FASCIA-FRONT, PNTD, C.BLK

Part #: 5454743-266 Required per assembly: 1 Note: R99BK
Currently Not Available
4

GRILLE-FRONT, FASCIA, BLK

Part #: 5455433-070 Required per assembly: 1 Note: E99AC, E99AN, E99BC, E99BN, E99AL, E99BL, K99AF, K99AK, K99BF, K99BK
Currently Not Available
5
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 4
$3.79
$1.73
-
+
Add to cart
6
Polaris 5455436-070 Cover-Winch, Txt, Blk

COVER-WINCH, TXT, BLK

Part #: 5455436-070 Required per assembly: 1
Currently Not Available
6
Polaris 5455943 Cover-Winch, Router, Txt

COVER-WINCH, ROUTER, TXT

Part #: 5455943 Required per assembly: 1 Note: R99BK
Currently Not Available
7

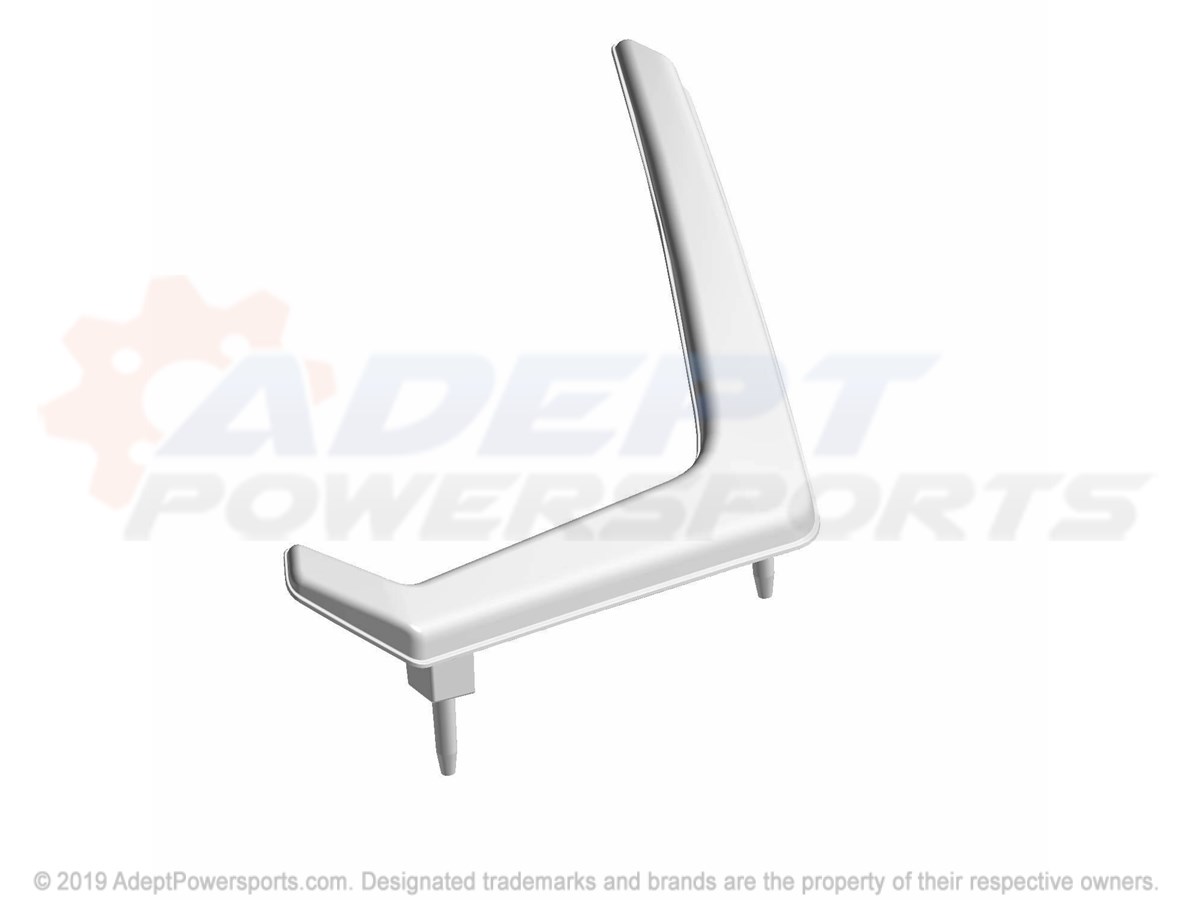

Polaris 5455695-566 Cover-Front, Lh, Filler, Pnt, Wprl

COVER-FRONT, LH, FILLER, PNT, WPRL

Part #: 5455695-566 Required per assembly: 1 Note: E99AD
Currently Not Available
7
Polaris 5455695-293 Cover-Front, Lh, Filler, Pnt, I.Rd

COVER-FRONT, LH, FILLER, PNT, I.RD

Part #: 5455695-293 Required per assembly: 1 Note: E99AK
Currently Not Available
7
Polaris 5455695-737 Cover-Front, Lh, Filler, Pnt, Blu

COVER-FRONT, LH, FILLER, PNT, BLU

Part #: 5455695-737 Required per assembly: 1 Note: E99AN
Currently Not Available
8
Polaris 5455696-737 Cover-Front, Rh, Filler, Pnt, Blu

COVER-FRONT, RH, FILLER, PNT, BLU

Part #: 5455696-737 Required per assembly: 1 Note: E99AN
Currently Not Available
8
Polaris 5455696-566 Cover-Front, Rh, Filler, Pnt, Wprl

COVER-FRONT, RH, FILLER, PNT, WPRL

Part #: 5455696-566 Required per assembly: 1 Note: E99AD
Currently Not Available
8
Polaris 5455696-293 Cover-Front, Rh, Filler, Pnt, I.Rd

COVER-FRONT, RH, FILLER, PNT, I.RD

Part #: 5455696-293 Required per assembly: 1 Note: E99AK
Currently Not Available
9
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 2
Currently Not Available
10
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 18
Currently Not Available
