OEM Parts Polaris 2019 Polaris RZR Turbo 4 (R08) Rear Shock Mounting - Z19vfe92ac/Bc/Ad/Bd/Am/Bm/Lag/Bg

2019 Polaris RZR Turbo 4 (R08) Z19VFE92AC/BC/AD/AM/BM/L92AG/BG - Rear Shock Mounting - Z19vfe92ac/Bc/Ad/Bd/Am/Bm/Lag/Bg

REAR SHOCK MOUNTING - Z19VFE92AC/BC/AD/BD/AM/BM/LAG/BG Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1501211 Retainer-Spring, 2.5"

RETAINER-SPRING, 2.5"

Part #: 1501211 Required per assembly: 2
Currently Not Available
2
Polaris 5264143 Mount-Shock Guard

MOUNT-SHOCK GUARD

Part #: 5264143 Required per assembly: 2 Note: AG
Currently Not Available
3
Polaris 5456620 Spacer-Spring, 2.5"

SPACER-SPRING, 2.5"

Part #: 5456620 Required per assembly: 2
Currently Not Available
4
Polaris 5452325 Adapter-Spring 3.5" Od

ADAPTER-SPRING 3.5" OD

Part #: 5452325 Required per assembly: 2
Currently Not Available
5
Polaris 5454105-070 Guard-Shock, Rod, Rr, Blk

GUARD-SHOCK, ROD, RR, BLK

Part #: 5454105-070 Required per assembly: 2 Note: AG
Currently Not Available
6
Polaris 7044395-133 Spr-Prog, 5.05Fl, 3.0-3.0, Id, Wht

SPR-PROG, 5.05FL, 3.0-3.0, ID, WHT

Part #: 7044395-133 Required per assembly: 2 Note: AC
Currently Not Available
6
Polaris 7044395-737 Spr-Prog, 5.05Fl, 3.0-3.0Id, Sblu

SPR-PROG, 5.05FL, 3.0-3.0ID, SBLU

Part #: 7044395-737 Required per assembly: 2 Note: AM
Currently Not Available
6
Polaris 7044395-728 Spr-Prog, 5.05Fl, 3.0Id, G.Gray

SPR-PROG, 5.05FL, 3.0ID, G.GRAY

Part #: 7044395-728 Required per assembly: 2 Note: AG
Currently Not Available
7

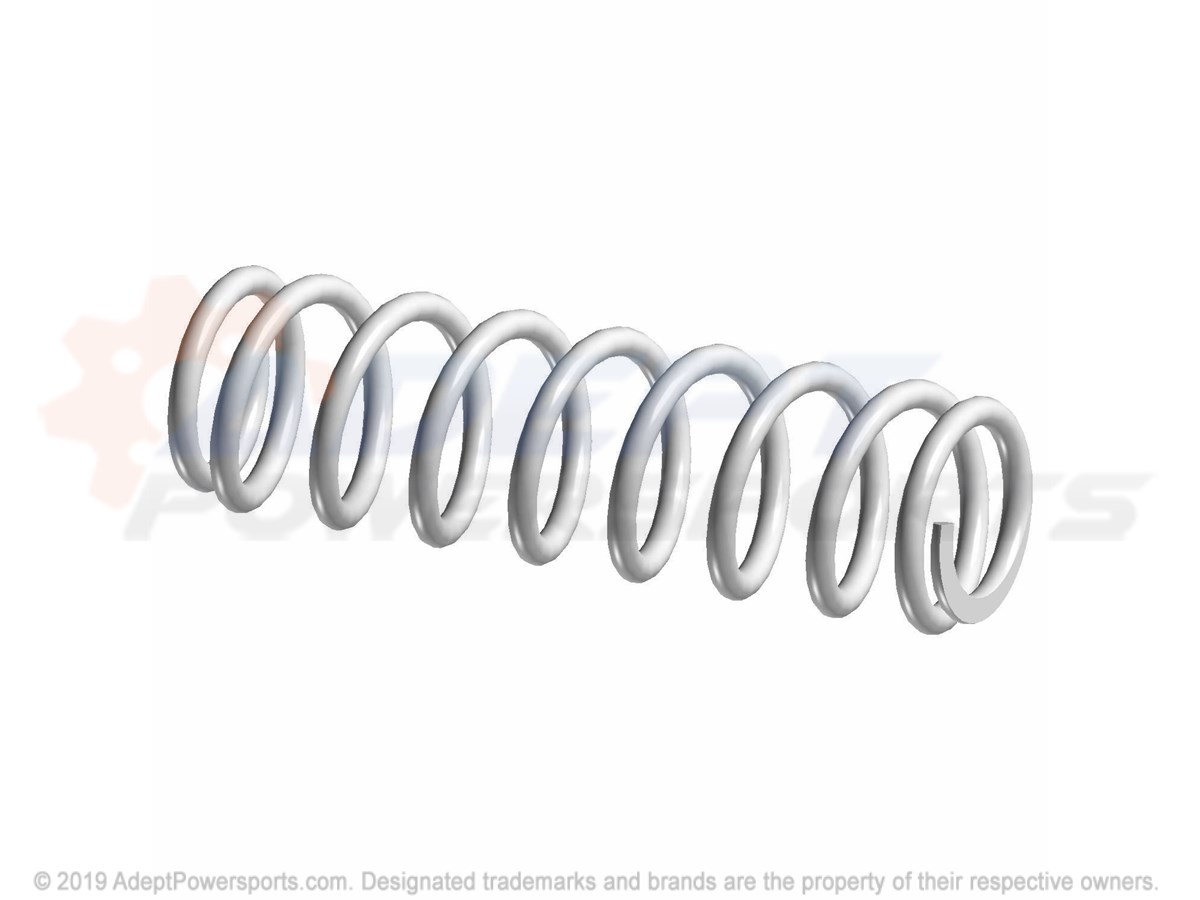

Polaris 7044885-728 Spr-285, 17.75Fl, 3.04Id, G.Gray

SPR-285, 17.75FL, 3.04ID, G.GRAY

Part #: 7044885-728 Required per assembly: 2 Note: AG
Currently Not Available
7
Polaris 7044885-133 Spr-285, 17.75Fl, 3.04-3.04Id, Wh

SPR-285, 17.75FL, 3.04-3.04ID, WH

Part #: 7044885-133 Required per assembly: 2 Note: AC
Currently Not Available
8

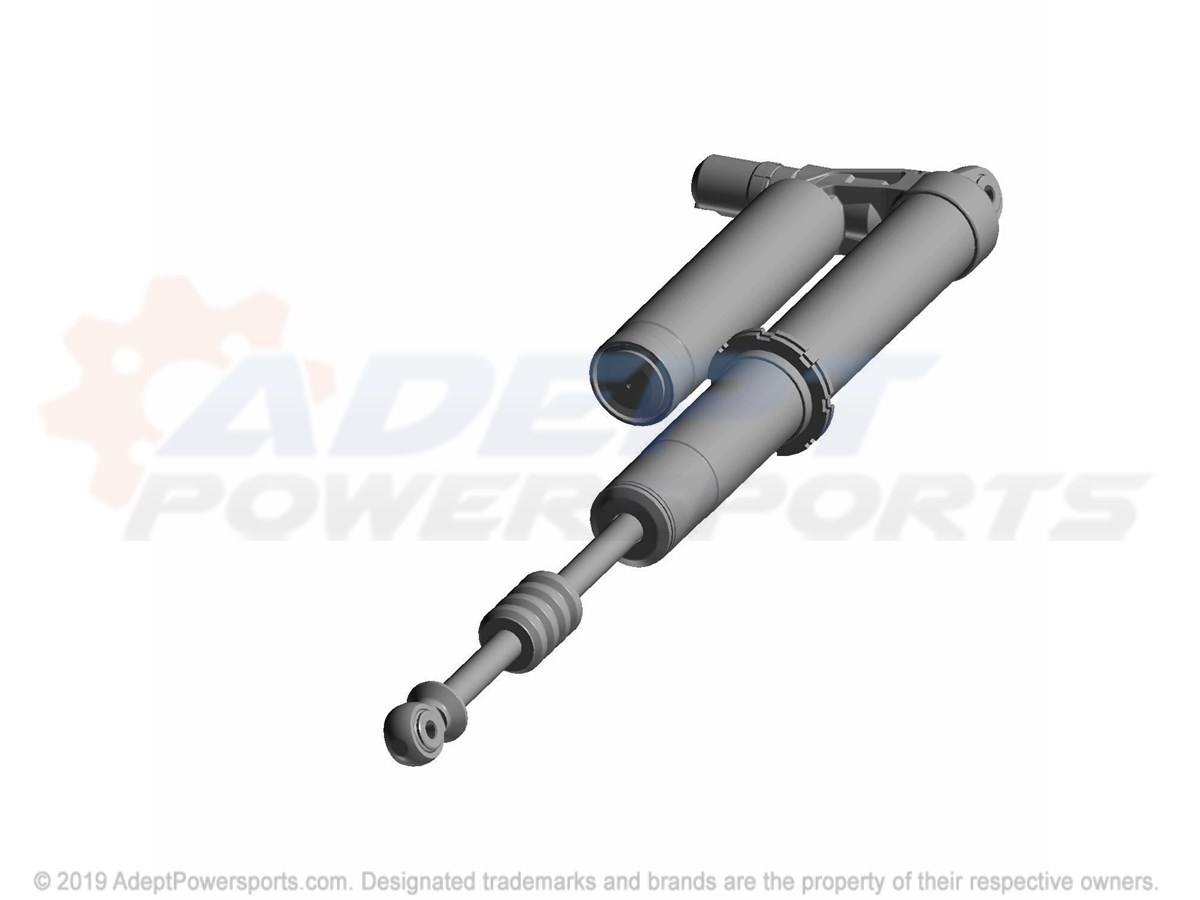

Polaris 7045152 Shock-Rear, Foxlive, Mp, Lh

SHOCK-REAR, FOXLIVE, MP, LH

Part #: 7045152 Required per assembly: 1 Note: AG
Currently Not Available
8
Polaris 7044854 Shock-Rear, Mp

SHOCK-REAR, MP

Part #: 7044854 Required per assembly: 2
Currently Not Available
8
Polaris 7045153 Shock-Rear, Foxlive, Mp, Rh

SHOCK-REAR, FOXLIVE, MP, RH

Part #: 7045153 Required per assembly: 1 Note: AG
Currently Not Available
9
Polaris 7512084 Screw

SCREW

Part #: 7512084 Required per assembly: 6 Note: Screw
$2.99
$1.73
-
+
Add to cart
10
Polaris 7519138 Scr-Hxfl-M12x1.5X60 10.9 Zod

SCR-HXFL-M12X1.5X60 10.9 ZOD

Part #: 7519138 Required per assembly: 4
Currently Not Available
11
Polaris 7547334 Nut, Nylok

NUT, NYLOK

Part #: 7547334 Required per assembly: 4
Currently Not Available
