OEM Parts Polaris 2019 Polaris RZR XP4 Turbo S (R09) Roof

2019 Polaris RZR XP4 Turbo S (R09) Z19VPL92AK/BK/AR/BR/AM/BM - Roof

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

PANEL-ROOF, FRT, AL, RZT4, BLK

Part #: 5267886-458 Required per assembly: 1
Currently Not Available
2

PANEL-ROOF, RR, AL, RZT4, BLK

Part #: 5267826-458 Required per assembly: 1
Currently Not Available
3

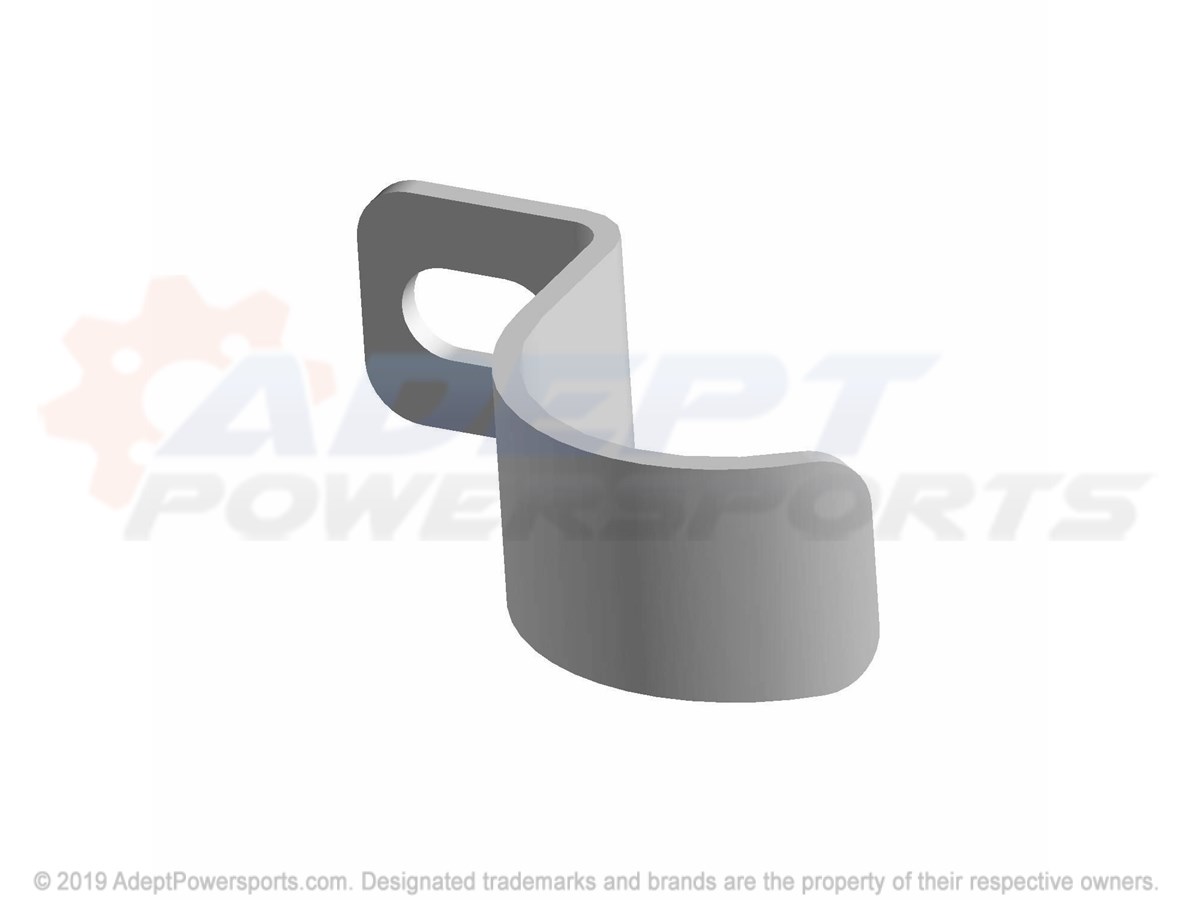

Polaris 5258479 Clamp-Roof, Rzn4, Blk

CLAMP-ROOF, RZN4, BLK

Part #: 5258479 Required per assembly: 9
Currently Not Available
4

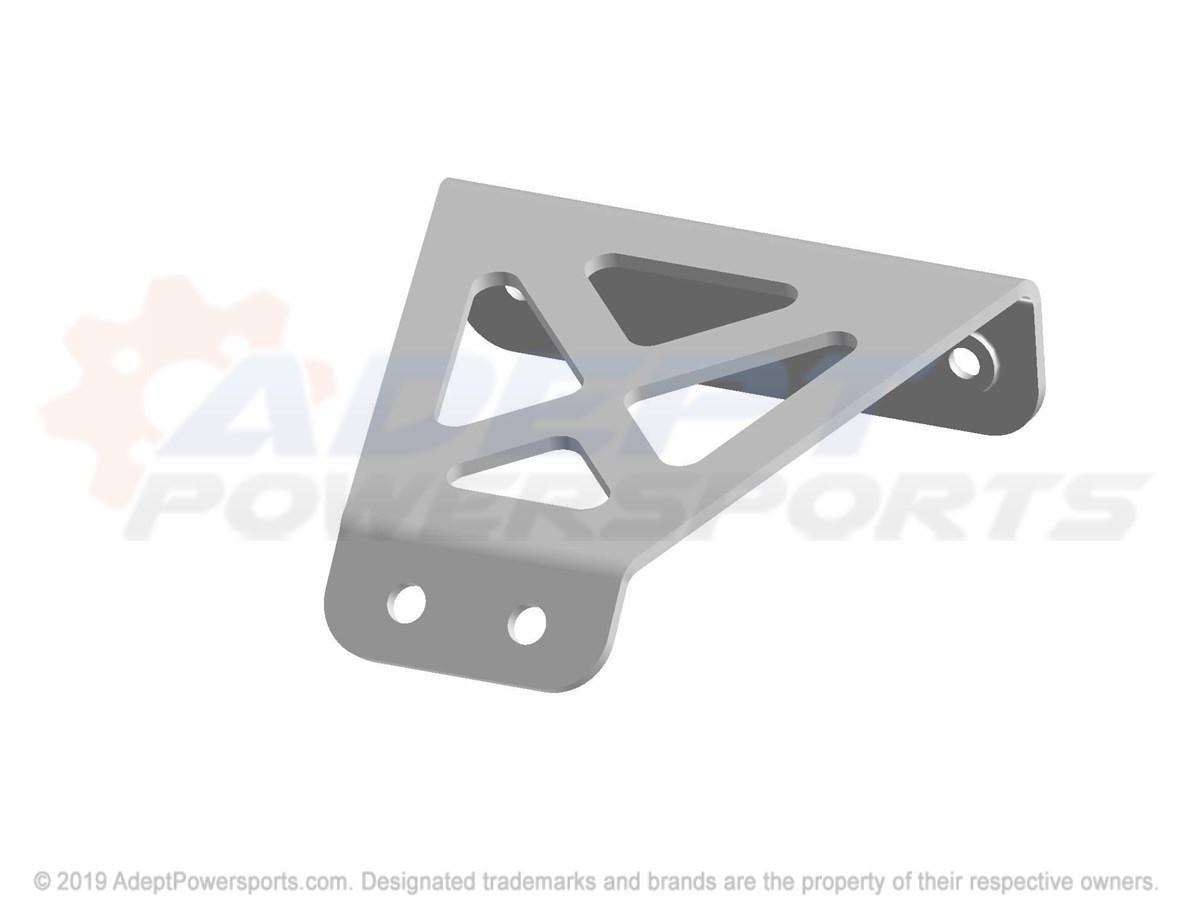

Polaris 5267751-458 Brkt-Mnt, Roof, Blk

BRKT-MNT, ROOF, BLK

Part #: 5267751-458 Required per assembly: 2
Currently Not Available
5

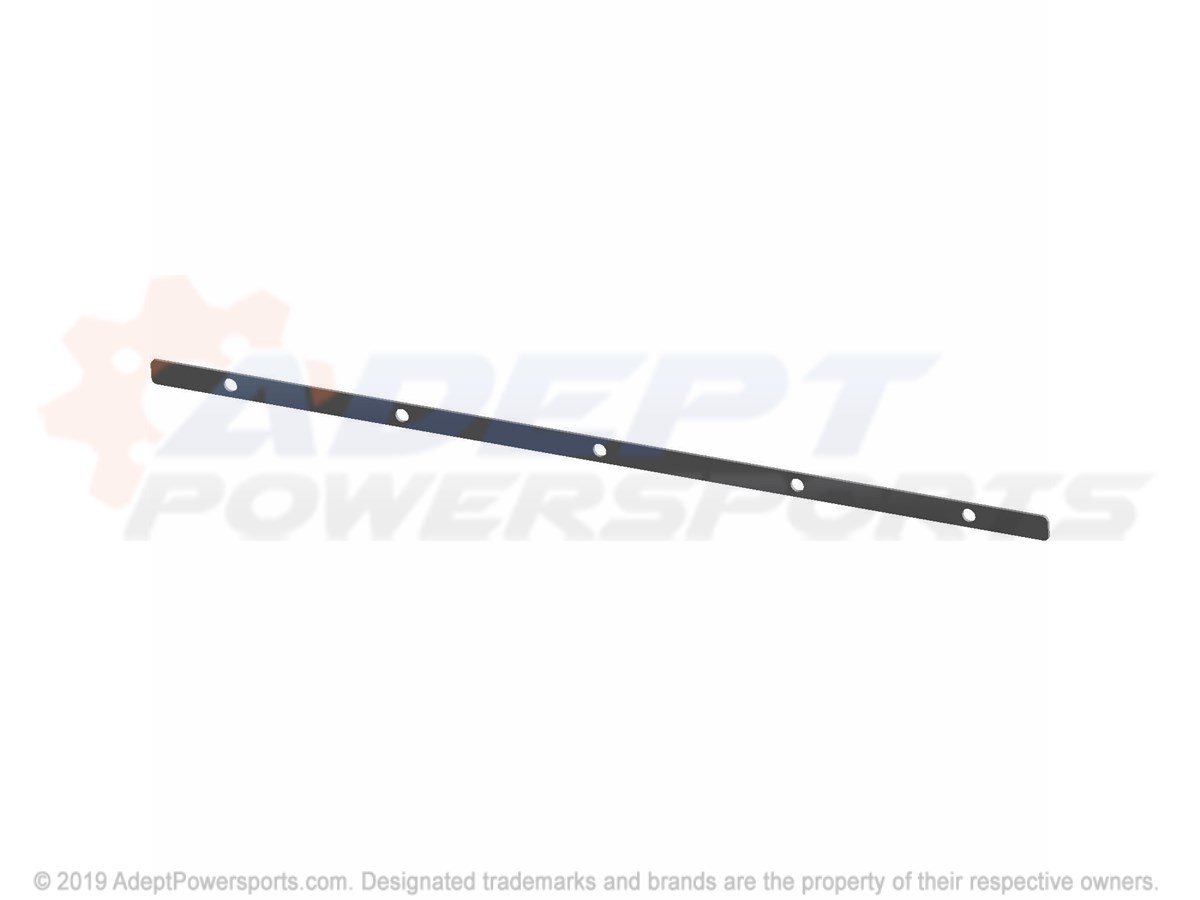

Polaris 5522277 Seal-Roof, Side, Rr, Rzt4

SEAL-ROOF, SIDE, RR, RZT4

Part #: 5522277 Required per assembly: 2
Currently Not Available
6

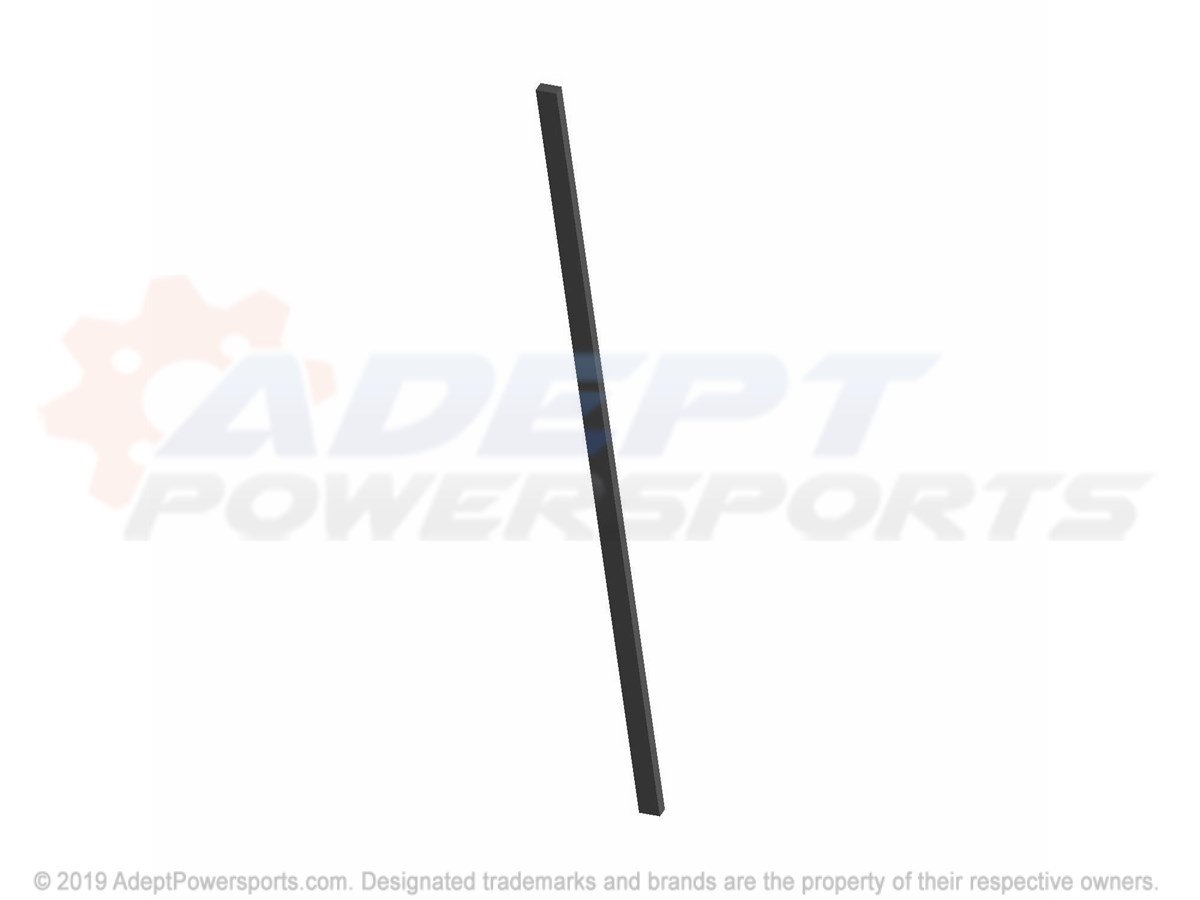

Polaris 5814786 20X862x3 Thick Foam Tape

20X862X3 THICK FOAM TAPE

Part #: 5814786 Required per assembly: 1
Currently Not Available
7

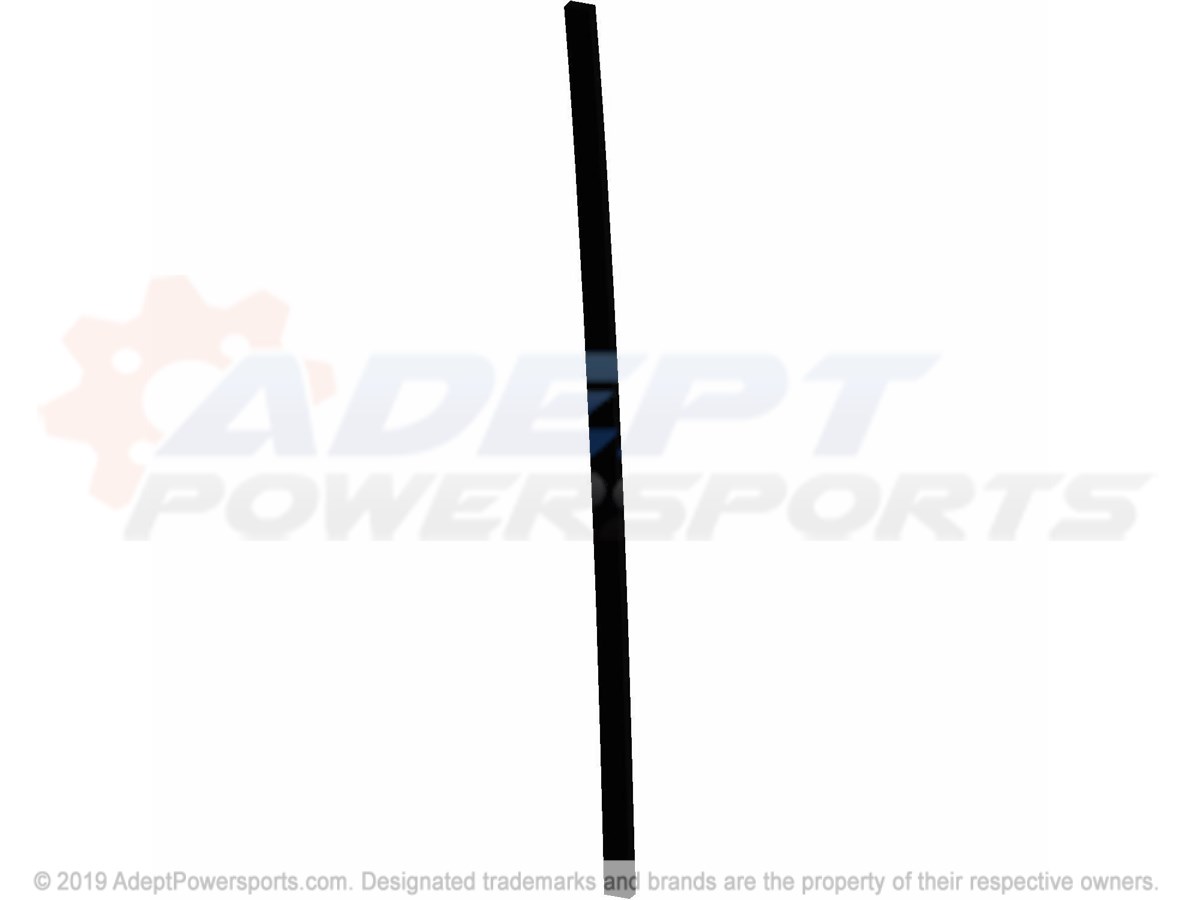

Polaris 5814787 20X790x10 Thick Foam Tape

20X790X10 THICK FOAM TAPE

Part #: 5814787 Required per assembly: 3
Currently Not Available
8

FOAM-ROOF, FRONT

Part #: 5814853 Required per assembly: 1
Currently Not Available
9

U-TYPE, SPEED, NUT

Part #: 7081305 Required per assembly: 11 Note: Clip, U Speed Nut [Built 12/07/09 and Before]
Currently Not Available
10
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 23
Currently Not Available
11

WASHER

Part #: 7556329 Required per assembly: 19
Currently Not Available
12

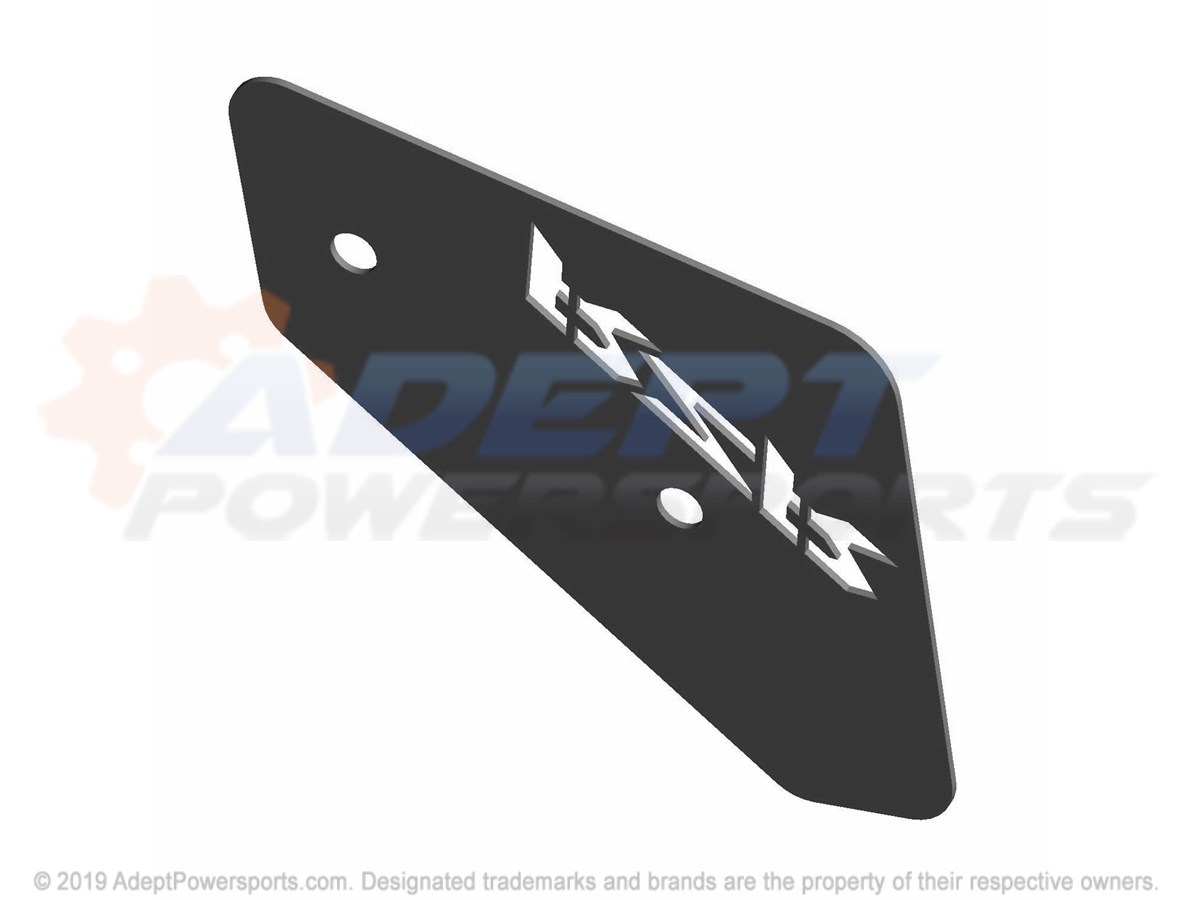

Polaris 5267873-458 Brkt-Roof, Cover, Lh, Blk

BRKT-ROOF, COVER, LH, BLK

Part #: 5267873-458 Required per assembly: 1
Currently Not Available
13

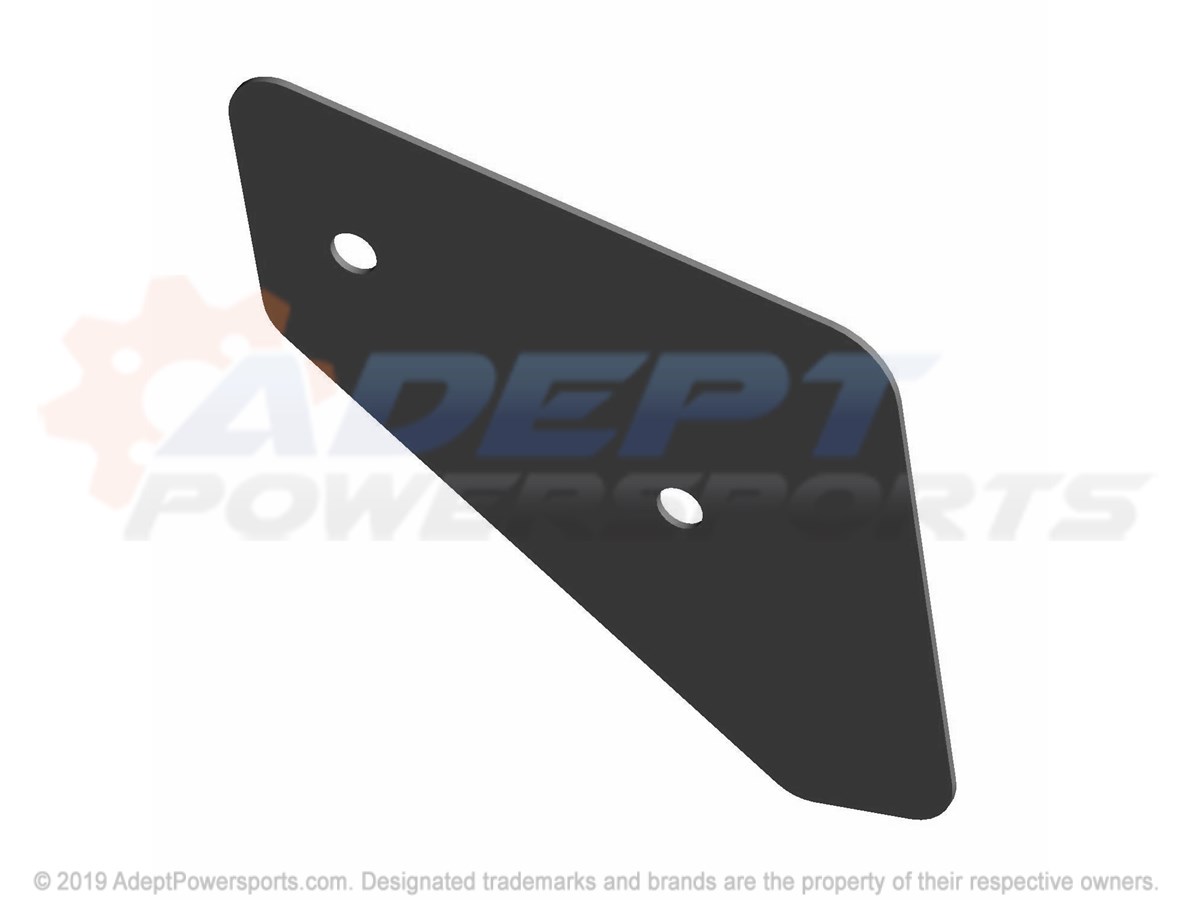

Polaris 5267874-458 Brkt-Roof, Cover, Rh, Blk

BRKT-ROOF, COVER, RH, BLK

Part #: 5267874-458 Required per assembly: 1
Currently Not Available
