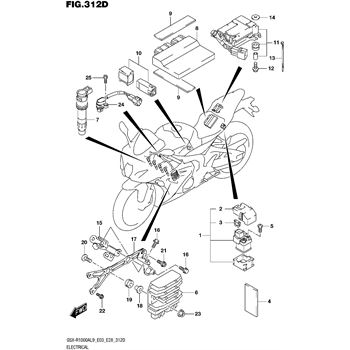

Electrical (E03,E28) replacement parts for 2019 Suzuki GSX-R1000, A, R, Z

OEM Parts Suzuki 2019 Suzuki GSX R1000, A, R, Z Electrical (E03,E28)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RELAY, STARTING, MOTOR Part #: 31800-21E30 Required per assembly: 1 Note: RELAY ASSY, STARTING MOTOR; $86.90 $74.30 - + Add to cart
2	COVER Part #: 31861-47E00 Required per assembly: 1 Note: COVER, RELAY ASSY; $17.46 $14.92 - + Add to cart
3	FUSE, 30A Part #: 09481-30101 Required per assembly: 2 $2.84 $2.56 - + Add to cart
4	PROTECTOR (30X60X3) Part #: 36920-08D00 Required per assembly: 1 Not Available
5	SCREW Part #: 09128-06013 Required per assembly: 2 Note: BOLT, STG MOT TERM; $1.56 $1.40 - + Add to cart
6	COIL, ASSEMBLY, IGNITION Part #: 33410-17K01 Required per assembly: 4 $196.01 $167.58 - + Add to cart
7	RECTIFIER ASSEMBLY Part #: 32800-26J02 Required per assembly: 1 $271.46 $244.31 - + Add to cart
8	CONTROL, UNIT, FI Part #: 32920-17KF2 Required per assembly: 1 $1,947.31 $1,752.58 - + Add to cart
9	PROTECTOR (80X80X2.0) Part #: 33652-07D00 Required per assembly: 4 Note: CUSHION, FI (20X90X2.0); CUT AS REQUIRED ((20X40)) $7.30 $6.57 - + Add to cart
10	SENSOR, ASSEMBLY, FUEL, CUT Part #: 33960-06G10 Required per assembly: 1 $116.08 $99.24 - + Add to cart
11	ACTUATOR ASSEMBLY Part #: 33970-47H03 Required per assembly: 1 $452.23 $407.01 - + Add to cart
12	BOLT, UPPER Part #: 09103-06066 Required per assembly: 2 Note: BOLT (6X23); Not Available
13	CLAMP Part #: 09407-10404 Required per assembly: 1 Note: CLAMP (L:100); $3.17 $2.85 - + Add to cart
14	WASHER Part #: 08322-0106A Required per assembly: 2 Note: WASHER, PEDAL SIDE; $2.29 $2.06 - + Add to cart
15	BRACKET, HARNESS Part #: 36670-17K00 Required per assembly: 1 Not Available
16	BOLT Part #: 01547-0612A Required per assembly: 2 $2.53 $2.28 - + Add to cart
17	BRACKET, RECT, FTG Part #: 32830-17K00 Required per assembly: 1 $60.51 $54.46 - + Add to cart
18	SPACER Part #: 09180-06331 Required per assembly: 2 $5.01 $4.51 - + Add to cart
19	CUSHION Part #: 09320-08501 Required per assembly: 2 $4.13 $3.72 - + Add to cart
20	SCREW Part #: 02142-0635A Required per assembly: 2 $2.87 $2.58 - + Add to cart
21	BOLT, INNER Part #: 07120-0620A Required per assembly: 1 Note: BOLT; $3.31 $2.98 - + Add to cart
22	BOLT (L:30) Part #: 07120-0630B Required per assembly: 2 $4.47 $4.02 - + Add to cart
23	NUT Part #: 08316-1006A Required per assembly: 2 $2.72 $2.45 - + Add to cart
25	BOLT Part #: 07130-0616B Required per assembly: 1 $2.95 $2.66 - + Add to cart
