Pedal Assembly replacement parts for 2019 Yamaha DR2E19

OEM Parts Yamaha 2019 Yamaha DR2E19 Pedal Assembly

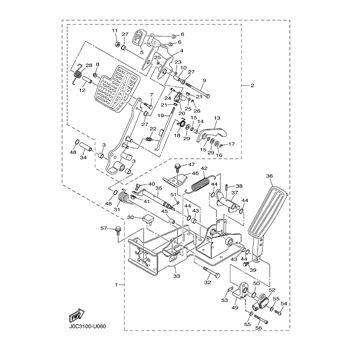

PEDAL ASSEMBLY Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PEDAL ASSEMBLY (L.H) Part #: J0H-F7850-31-00 Required per assembly: 1 $440.75 $415.68 - + Add to cart
2	PEDAL, BRAKE Part #: J0G-F7200-03-00 Required per assembly: 1 $229.50 $223.64 - + Add to cart
3	STOPPER, SIDE, STAND Part #: JW8-F7814-21-00 Required per assembly: 2 $7.49 $5.67 - + Add to cart
4	PEDAL, PARKING, BRAKE Part #: J0G-F5671-00-00 Required per assembly: 1 $72.98 $60.46 - + Add to cart
5	COVER, PEDAL Part #: J0G-F7854-00-00 Required per assembly: 1 $14.49 $11.32 - + Add to cart
6	NUT, U, FLANGE Part #: 95604-06200-00 Required per assembly: 2 $2.95 $2.31 - + Add to cart
7	BOLT, HEXAGON Part #: 97017-06020-00 Required per assembly: 1 $4.05 $2.49 - + Add to cart
8	NUT Part #: JW8-F8363-00-00 Required per assembly: 1 $1.80 $1.36 - + Add to cart
9	BOLT, FOOTREST Part #: J0G-F7416-00-00 Required per assembly: 1 $5.99 $5.13 - + Add to cart
10	COLLAR Part #: JW8-F639N-00-00 Required per assembly: 1 $3.99 $3.46 - + Add to cart
11	NUT Part #: J0G-F7218-00-00 Required per assembly: 1 $2.25 $2.10 - + Add to cart
12	COLLAR Part #: J0G-F7313-00-00 Required per assembly: 1 $6.49 $5.73 - + Add to cart
13	SECTOR, PARKING, BR Part #: JW9-F5666-00-00 Required per assembly: 1 $22.98 $19.64 - + Add to cart
14	BUSH Part #: JW8-F7121-00-00 Required per assembly: 1 $12.99 $10.57 - + Add to cart
15	SEAL, SHAFT Part #: JW9-F7221-00-00 Required per assembly: 2 $7.99 $6.35 - + Add to cart
16	WASHER Part #: JW8-F7322-00-00 Required per assembly: 1 Not Available
17	CIRCLIP Part #: JW8-F3183-00-00 Required per assembly: 1 $2.99 $1.69 - + Add to cart
18	SPRING, RETURN Part #: JW8-F7426-01-00 Required per assembly: 1 $7.99 $5.35 - + Add to cart
19	ROD, BRAKE Part #: JW9-F7231-10-00 Required per assembly: 1 $13.99 $11.32 - + Add to cart
20	END, ROD, 2 Part #: JW9-F7232-00-00 Required per assembly: 1 $6.99 $5.50 - + Add to cart
21	NUT Part #: JW8-F7318-00-00 Required per assembly: 2 $2.04 $1.51 - + Add to cart
22	SPRING Part #: JW8-F6314-00-00 Required per assembly: 1 $4.29 $3.61 - + Add to cart
23	BUSH, PEDAL Part #: J0G-F7814-00-00 Required per assembly: 1 $14.99 $11.32 - + Add to cart
24	PIN, JOINT Part #: JW9-F7228-00-00 Required per assembly: 1 $6.49 $3.84 - + Add to cart
25	WASHER, LEG, SHIELD Part #: JW8-F8323-00-00 Required per assembly: 2 $2.04 $1.51 - + Add to cart
26	CIRCLIP Part #: JW8-F5415-00-00 Required per assembly: 1 $2.14 $1.59 - + Add to cart
27	BUSH Part #: 90386-12800-00 Required per assembly: 3 $4.00 $3.24 - + Add to cart
28	SPRING, RETURN Part #: J0G-F7825-00-00 Required per assembly: 1 $7.49 $6.27 - + Add to cart
29	WASHER Part #: JW8-F7119-00-00 Required per assembly: 2 Not Available
30	PAD, BRAKE, PEDAL Part #: JW9-F7245-10-00 Required per assembly: 1 $9.49 $6.73 - + Add to cart
31	SPRING, SIDE, STAND Part #: JW8-F7316-01-00 Required per assembly: 1 $8.49 $5.88 - + Add to cart
32	BOLT Part #: JW8-F7217-00-00 Required per assembly: 1 $4.29 $3.84 - + Add to cart
33	PLATE 1 Part #: JW9-F7445-31-00 Required per assembly: 1 $124.98 $115.30 - + Add to cart
34	COLLAR Part #: JW8-F7213-20-00 Required per assembly: 1 $7.49 $4.75 - + Add to cart
35	SHAFT, PEDAL, 1 Part #: J0H-F7853-11-00 Required per assembly: 1 $47.99 $46.84 - + Add to cart
36	PEDAL, ACCELERATOR Part #: J0G-F7871-01-00 Required per assembly: 1 $53.99 $51.39 - + Add to cart
37	ARM, ACCELERATOR, P Part #: JW9-F7872-20-00 Required per assembly: 1 $36.99 $27.19 - + Add to cart
38	PIN, CLEVIS Part #: JW8-F7438-00-00 Required per assembly: 1 $2.14 $1.51 - + Add to cart
39	BOLT Part #: JW8-F7434-00-00 Required per assembly: 1 $2.00 $1.66 - + Add to cart
40	BOLT Part #: JW8-F7317-00-00 Required per assembly: 1 $4.25 $3.46 - + Add to cart
41	NUT Part #: JW8-F7118-00-00 Required per assembly: 1 $1.99 $1.16 - + Add to cart
43	STOPPER, SIDE, STAND Part #: JW8-F7814-21-00 Required per assembly: 2 $7.49 $5.67 - + Add to cart
44	O-RING Part #: JW8-F4486-00-00 Required per assembly: 4 $3.85 $2.80 - + Add to cart
45	DAMPER, BRAKE Part #: JW9-F5673-00-00 Required per assembly: 1 $4.15 $3.33 - + Add to cart
46	NAIL, BRAKE Part #: JW9-F7246-20-00 Required per assembly: 1 $17.48 $12.84 - + Add to cart
47	BOLT, LEG, SHIELD Part #: JW8-F8331-00-00 Required per assembly: 2 $2.10 $1.59 - + Add to cart
48	O-RING Part #: JW8-F4486-00-00 Required per assembly: 2 $3.85 $2.80 - + Add to cart
49	BRACKET 1 Part #: JW9-F7263-00-00 Required per assembly: 1 $19.98 $17.37 - + Add to cart
50	O-RING Part #: JW9-F4648-20-00 Required per assembly: 1 $6.99 $4.78 - + Add to cart
51	O-RING Part #: JW8-F41B8-00-00 Required per assembly: 1 $3.10 $2.48 - + Add to cart
52	THROTTLE SENSOR ASSEMBLY Part #: JW9-H5885-00-00 Required per assembly: 1 $105.98 $81.63 - + Add to cart
53	SHIM, CALIPER Part #: JW9-F5827-00-00 Required per assembly: 1 $1.99 $1.66 - + Add to cart
53	SHIM, CALIPER Part #: JW9-F5827-10-00 Required per assembly: 1 $2.10 $1.72 - + Add to cart
54	SCREW Part #: JW9-F632G-00-00 Required per assembly: 2 $5.49 $4.22 - + Add to cart
55	WASHER, PLATE Part #: 90201-05824-00 Required per assembly: 4 $2.95 $2.10 - + Add to cart
56	BOLT Part #: JW8-F7435-00-00 Required per assembly: 2 $3.14 $1.97 - + Add to cart
57	BOLT, FLANGE Part #: 95812-08020-00 Required per assembly: 6 $2.79 $1.66 - + Add to cart
