Electrical 1 replacement parts for 2019 Yamaha DR2E19 SUP

OEM Parts Yamaha 2019 Yamaha DR2E19 SUP Electrical 1

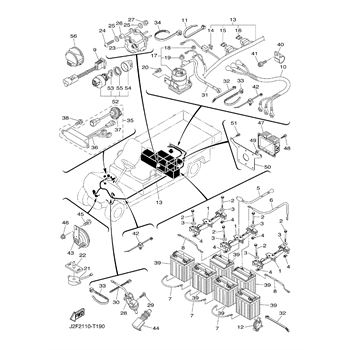

ELECTRICAL 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PLATE, BATTERY, FITTING Part #: JW9-H2136-00-00 Required per assembly: 3 $30.10 - + Add to cart
2	BOLT, SPECIAL Part #: JW9-H1892-00-00 Required per assembly: 6 $3.70 $2.10 - + Add to cart
3	WASHER, PLATE Part #: 90201-08310-00 Required per assembly: 6 $10.49 $6.29 - + Add to cart
4	NUT, TRIM, FITTING Part #: JW9-K811K-00-00 Required per assembly: 6 $2.04 $1.36 - + Add to cart
5	WIRE, PLUS, LEAD Part #: JC1-H2115-00-00 Required per assembly: 1 $29.98 $24.18 - + Add to cart
6	WIRE, MINUS, LEAD Part #: JC1-H2116-00-00 Required per assembly: 1 $26.98 $21.15 - + Add to cart
7	WIRE, LEAD, 2 Part #: JC1-H2127-00-00 Required per assembly: 3 $12.49 $10.57 - + Add to cart
8	WIRE, LEAD, 3 Part #: JC1-H2149-00-00 Required per assembly: 2 $24.98 $19.64 - + Add to cart
9	SWITCH Part #: JU2-H2917-00-00 Required per assembly: 1 $48.99 $46.84 - + Add to cart
10	LEAD WIRE ASSEMBLY Part #: JC1-H1441-00-00 Required per assembly: 1 $126.98 $100.64 - + Add to cart
11	CLAMP Part #: 90464-76800-00 Required per assembly: 1 Note: (YMUS) $6.49 $4.72 - + Add to cart
12	CLAMP Part #: 90464-25826-00 Required per assembly: 3 Note: (YMUS) $3.04 $2.04 - + Add to cart
13	WIRE HARNESS ASSEMBLY Part #: J2D-H2590-00-00 Required per assembly: 1 $541.99 $486.75 - + Add to cart
14	FUSE 10A-FKS Part #: J0E-H2151-00-00 Required per assembly: 1 Note: Sold in multiples of 20 only $7.49 $6.73 - + Add to cart
15	FUSE 3A-BL Part #: JR1-H2151-00-00 Required per assembly: 1 $2.14 $1.66 - + Add to cart
16	FUSE 1A-TAC Part #: J0E-H2151-10-00 Required per assembly: 1 Note: Sold in multiples of 20 only Not Available
17	RELAY ASSEMBLY (48V) Part #: JU6-H1950-00-00 Required per assembly: 1 $118.98 $105.81 - + Add to cart
18	NUT Part #: 90179-05807-00 Required per assembly: 2 $3.99 $2.15 - + Add to cart
19	NUT Part #: 90179-08824-00 Required per assembly: 2 $1.20 $0.83 - + Add to cart
20	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 2 $2.29 $1.72 - + Add to cart
21	BUZZER Part #: JR1-H3383-02-00 Required per assembly: 1 $23.98 $15.10 - + Add to cart
22	STAY, BUZZER Part #: JN6-H3386-01-00 Required per assembly: 1 $3.79 $2.48 - + Add to cart
24	SCREW Part #: JD7-G5282-00-00 Required per assembly: 3 $2.04 $1.51 - + Add to cart
25	WASHER Part #: JD7-G7359-00-00 Required per assembly: 6 $1.05 $0.83 - + Add to cart
26	SPACER, DAMPER Part #: JD7-G6254-00-00 Required per assembly: 3 $0.99 $0.39 - + Add to cart
27	NUT Part #: JD7-G621L-00-00 Required per assembly: 3 $1.70 $1.29 - + Add to cart
28	SWITCH Part #: JF7-82817-22-00 Required per assembly: 1 $132.99 $125.47 - + Add to cart
29	SCREW, PAN, HEAD, WITH, WASHER Part #: 97602-05225-00 Required per assembly: 2 $6.49 $4.31 - + Add to cart
30	CLAMP Part #: 90464-40825-00 Required per assembly: 2 $3.04 $1.72 - + Add to cart
31	WIRE 7 Part #: J0E-H6527-00-00 Required per assembly: 1 $20.98 $16.62 - + Add to cart
32	CLAMP Part #: 90464-20005-00 Required per assembly: 6 $2.49 $2.22 - + Add to cart
33	CLAMP Part #: 90464-48800-00 Required per assembly: 3 Note: Sold in multiples of 100 only $4.90 $3.46 - + Add to cart
34	CLAMP Part #: 90464-51800-00 Required per assembly: 2 $16.48 $11.66 - + Add to cart
35	USB ASSEMBLY Part #: J0E-H21E0-04-00 Required per assembly: 1 $120.98 $114.88 - + Add to cart
36	PLUG, USB Part #: J0E-H21E1-03-00 Required per assembly: 1 $88.98 $84.66 - + Add to cart
37	CABLE, USB Part #: J0D-H21E2-02-00 Required per assembly: 2 $25.98 $24.18 - + Add to cart
38	BOLT, SPECIAL, 1 Part #: JW1-K6179-01-00 Required per assembly: 2 $1.75 $1.21 - + Add to cart
40	CLAMP(72X) Part #: 90461-14108-00 Required per assembly: 1 $97.98 $93.73 - + Add to cart
41	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 1 $1.95 $1.47 - + Add to cart
42	CLAMP Part #: 1NS-F1338-00-00 Required per assembly: 3 $3.60 $3.14 - + Add to cart
43	HORN Part #: 4LR-83371-11-00 Required per assembly: 1 $53.99 $45.92 - + Add to cart
44	SWITCH HORN COMP. Part #: JR6-H270X-00-00 Required per assembly: 1 $38.99 $25.67 - + Add to cart
45	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 1 $1.95 $1.47 - + Add to cart
46	NUT, FLANGE, (7NB) Part #: 95780-06500-00 Required per assembly: 1 $2.95 $1.87 - + Add to cart
47	VOLTAGE REGULATOR ASSEMBLY Part #: J0E-81910-01-00 Required per assembly: 1 $1,265.68 $1,150.62 - + Add to cart
48	SCREW, SPECIAL Part #: JC1-H252V-00-00 Required per assembly: 6 $1.00 $0.68 - + Add to cart
49	NUT, INSERT Part #: JC1-H397K-10-00 Required per assembly: 6 $0.40 $0.32 - + Add to cart
50	BRKT., SWITCH Part #: JC1-F7876-40-00 Required per assembly: 1 $14.99 $12.11 - + Add to cart
51	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 2 $2.29 $1.72 - + Add to cart
52	MAIN SWITCH ASSY Part #: JW6-H2510-21-00 Required per assembly: 1 $28.98 $24.92 - + Add to cart
53	KEY, MAIN, SWITCH, (CODE, #8002) Part #: JU6-H2511-10-00 Required per assembly: 2 $9.13 $8.30 - + Add to cart
54	CAP, KEY Part #: 5UG-H2579-00-00 Required per assembly: 1 $10.99 $8.42 - + Add to cart
55	NUT, MAIN, SWITCH Part #: JU6-H2569-20-00 Required per assembly: 1 $1.55 $1.51 - + Add to cart
56	GAUGE, BATTERY Part #: JC1-H351B-01-00 Required per assembly: 1 $74.98 $60.46 - + Add to cart
