Seat Cushion replacement parts for 2019 Yamaha 275E

OEM Parts Yamaha 2019 Yamaha 275E Seat Cushion

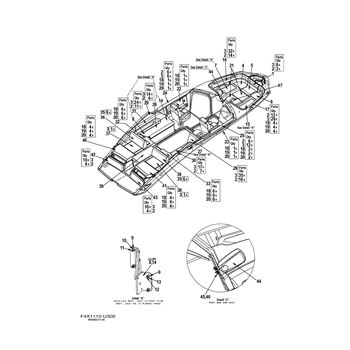

SEAT CUSHION Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BACKREST, FORE, 3 Part #: F4X-U35B3-00-00 Required per assembly: 1 $456.78 - + Add to cart
2	CLIP, 1 Part #: F1C-U5195-00-00 Required per assembly: 1 ~~$8.15~~ $3.84 - + Add to cart
3	SCREW, TAPPING Part #: 90167-08SA8-00 Required per assembly: 1 ~~$6.11~~ $1.13 - + Add to cart
4	CUSHION, FORE, 5 Part #: F4X-U35A5-00-00 Required per assembly: 1 $408.40 - + Add to cart
5	CUSHION, FORE, 3 Part #: F4X-U35A3-00-00 Required per assembly: 1 ~~$443.69~~ $439.74 - + Add to cart
6	CUSHION, FORE, 6 Part #: F4X-U35A6-00-00 Required per assembly: 1 $461.32 - + Add to cart
7	CUSHION, FORE, 1 Part #: F4X-U35A1-00-00 Required per assembly: 1 $901.97 - + Add to cart
8	BRACKET, SEAT Part #: F3F-U3714-21-00 Required per assembly: 4 ~~$32.63~~ $25.67 - + Add to cart
9	WASHER, #10, FLAT Part #: 90201-10S00-00 Required per assembly: 1 ~~$4.99~~ $0.56 - + Add to cart
10	WASHER, LOCK, (#10) Part #: 90204-10S00-00 Required per assembly: 1 ~~$7.12~~ $2.57 - + Add to cart
11	NUT Part #: 90170-10S00-00 Required per assembly: 1 ~~$6.11~~ $1.51 - + Add to cart
12	SCREW, COUNTERSUNK Part #: 90151-10S16-00 Required per assembly: 1 ~~$6.11~~ $1.36 - + Add to cart
13	NUT, SELF-LOCKING Part #: 90185-10S00-00 Required per assembly: 1 ~~$5.08~~ $1.06 - + Add to cart
14	BRACKET, SEAT Part #: F3F-U3714-31-00 Required per assembly: 4 ~~$26.51~~ $20.40 - + Add to cart
15	CUSHION, SEAT, FRONT, RIGHT Part #: F4X-U35A2-00-00 Required per assembly: 1 $1,254.26 - + Add to cart
16	BACK REST 3 Part #: F4X-U3796-00-00 Required per assembly: 1 $2,149.89 - + Add to cart
17	BACK, REST, 4 Part #: F4X-U3798-00-00 Required per assembly: 1 $2,390.30 - + Add to cart
18	NUT, 1/4-20 Part #: 90170-14S00-00 Required per assembly: 1 ~~$5.08~~ $0.60 - + Add to cart
19	WASHER, 1/4", LOCK Part #: 90204-14S00-00 Required per assembly: 1 ~~$6.11~~ $1.13 - + Add to cart
20	WASHER, FENDER Part #: 90209-14SA3-00 Required per assembly: 1 ~~$6.11~~ $1.29 - + Add to cart
21	CUSHION 5 Part #: F4X-U372F-00-00 Required per assembly: 2 ~~$673.58~~ $659.34 - + Add to cart
22	BACKREST, MAIN, 1 Part #: F4X-U35E1-00-00 Required per assembly: 1 ~~$276.41~~ $261.86 - + Add to cart
23	BACKREST, MAIN, 2 Part #: F4X-U35E2-00-00 Required per assembly: 1 ~~$276.41~~ $261.86 - + Add to cart
24	CUSHION, MAIN, 7 Part #: F4X-U35C7-00-00 Required per assembly: 1 $304.00 - + Add to cart
25	CUSHION, MAIN, 8 Part #: F4X-U35C8-00-00 Required per assembly: 1 ~~$358.00~~ $353.90 - + Add to cart
26	CUSHION 1 Part #: F4X-U371D-00-00 Required per assembly: 1 $1,113.65 - + Add to cart
27	CUSHION 2 Part #: F4X-U371E-00-00 Required per assembly: 1 ~~$878.15~~ $848.32 - + Add to cart
28	BACKREST Part #: F4X-U3566-00-00 Required per assembly: 1 Not Available
29	PAD 1 Part #: F4X-U36A1-00-00 Required per assembly: 1 $728.09 - + Add to cart
30	PAD 2 Part #: F4X-U36A2-00-00 Required per assembly: 1 ~~$388.61~~ $378.09 - + Add to cart
31	BACK REST LH. Part #: F4X-U3556-00-00 Required per assembly: 1 ~~$1,139.28~~ $1,085.70 - + Add to cart
32	CUSHION, 3 Part #: F4X-U372D-00-00 Required per assembly: 1 $941.28 - + Add to cart
33	CUSHION 4 Part #: F4X-U372E-00-00 Required per assembly: 1 $941.28 - + Add to cart
34	BACK, REST, 6 Part #: F4X-U379A-00-00 Required per assembly: 1 $1,803.12 - + Add to cart
35	SCREW, COUNTERSUNK Part #: 90151-14S24-00 Required per assembly: 1 ~~$0.46~~ $0.38 - + Add to cart
36	BACK, REST, 7 Part #: F4X-U379B-00-00 Required per assembly: 1 $1,806.14 - + Add to cart
37	CUSHION, MAIN, 5 Part #: F4X-U35C5-00-00 Required per assembly: 1 $706.92 - + Add to cart
38	CUSHION, MAIN, 6 Part #: F4X-U35C6-00-00 Required per assembly: 1 $655.51 - + Add to cart
39	CUSHION, SEAT, REAR Part #: F4X-U3724-00-00 Required per assembly: 1 $586.74 - + Add to cart
40	CUSHION 1 Part #: F4X-U828B-00-00 Required per assembly: 1 $791.59 - + Add to cart
41	CUSHION 2 Part #: F4X-U828C-00-00 Required per assembly: 1 $791.59 - + Add to cart
42	PAD 3 Part #: F4X-U521E-00-00 Required per assembly: 1 $281.39 - + Add to cart
43	PAD 4 Part #: F4X-U521F-00-00 Required per assembly: 1 ~~$280.49~~ $266.39 - + Add to cart
44	ARM REST 1 Part #: F4X-U379G-00-00 Required per assembly: 1 ~~$455.93~~ $432.83 - + Add to cart
45	SCREW Part #: 90149-14SE8-00 Required per assembly: 4 ~~$6.11~~ $1.89 - + Add to cart
46	WASHER, 1/4", LOCK Part #: 90204-14S00-00 Required per assembly: 4 ~~$6.11~~ $1.13 - + Add to cart
47	PAD, ARM Part #: F4X-U3618-00-00 Required per assembly: 1 $352.38 - + Add to cart
