Windshield replacement parts for 2019 Yamaha Tracer 900

OEM Parts Yamaha 2019 Yamaha Tracer 900 Windshield

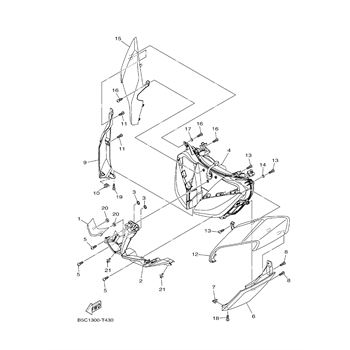

WINDSHIELD Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WINDSHIELD Part #: B5C-28381-00-00 Required per assembly: 1 $362.99 $360.32 - + Add to cart
2	SCREW, ROUND, HEAD Part #: 90150-05024-00 Required per assembly: 4 $3.35 $2.80 - + Add to cart
3	NUT Part #: 90179-05003-00 Required per assembly: 4 $6.49 $4.81 - + Add to cart
4	STAY, MAIN, 1 Part #: B5U-2831R-00-00 Required per assembly: 1 $92.98 $79.33 - + Add to cart
5	STAY, SUPPORT, 1 Part #: B5C-2831T-00-00 Required per assembly: 1 $50.99 $43.06 - + Add to cart
6	WASHER Part #: B5C-28319-00-00 Required per assembly: 3 $5.49 $3.18 - + Add to cart
7	BOLT, BUTTON, HEAD Part #: 92017-05016-00 Required per assembly: 3 $8.49 $5.10 - + Add to cart
8	O-RING Part #: 93210-14MF4-00 Required per assembly: 3 $8.49 $5.76 - + Add to cart
9	KNOB, 1 Part #: B5C-2836X-00-00 Required per assembly: 1 $25.98 $19.93 - + Add to cart
10	PLUG Part #: 90338-07010-00 Required per assembly: 1 $5.49 $4.45 - + Add to cart
11	SHAFT, 1 Part #: B5C-2835B-00-00 Required per assembly: 1 $36.99 $28.49 - + Add to cart
12	CIRCLIP Part #: 99009-09800-00 Required per assembly: 2 $1.20 $0.48 - + Add to cart
13	SPRING Part #: B5C-28388-00-00 Required per assembly: 1 $5.49 $4.31 - + Add to cart
14	DAMPER, LOCATING, 1 Part #: B5C-2836T-00-00 Required per assembly: 1 $6.49 $4.81 - + Add to cart
15	COLLAR Part #: B5C-28373-00-00 Required per assembly: 3 $17.48 $13.47 - + Add to cart
16	BOLT Part #: 90111-06029-00 Required per assembly: 3 $6.49 $4.63 - + Add to cart
17	STAY 1 Part #: B5C-28356-00-00 Required per assembly: 1 $177.99 $166.00 - + Add to cart
18	PLUG Part #: 90338-06007-00 Required per assembly: 2 $10.49 $8.18 - + Add to cart
19	PLATE, FRONT Part #: B5C-28361-00-00 Required per assembly: 1 $26.98 $20.90 - + Add to cart
20	BOLT, BUTTON, HEAD Part #: 92017-06010-00 Required per assembly: 4 $5.49 $3.01 - + Add to cart
21	BOLT, WITH, WASHER Part #: 90119-08179-00 Required per assembly: 2 $1.35 $1.18 - + Add to cart
22	BOLT, FLANGE Part #: 95817-06025-00 Required per assembly: 4 $1.75 $1.44 - + Add to cart
23	COLLAR 437216330000 Part #: 90387-07391-00 Required per assembly: 4 $10.49 $7.61 - + Add to cart
24	DAMPER Part #: 3C3-83513-00-00 Required per assembly: 4 $8.49 $6.31 - + Add to cart
25	CLAMP Part #: 90464-09026-00 Required per assembly: 1 $4.65 $3.84 - + Add to cart
26	PANEL, INNER, 3 Part #: B5C-2836M-00-00 Required per assembly: 1 $31.81 - + Add to cart
27	RIVET Part #: 90269-07007-00 Required per assembly: 6 $4.40 $3.30 - + Add to cart
28	LABEL, NOTICE, WINDSHIELD, 1 Part #: 4B5-2815K-00-00 Required per assembly: 1 $8.49 $7.12 - + Add to cart
