Front Fork replacement parts for 2019 Yamaha VMAX

OEM Parts Yamaha 2019 Yamaha VMAX Front Fork

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT FORK ASSEMBLY (L.H) Part #: 2CE-23102-10-00 Required per assembly: 1 $1,439.85 $1,318.95 - + Add to cart
2	OUTER TUBE COMP. Part #: 2CE-23106-10-00 Required per assembly: 1 $652.49 $605.17 - + Add to cart
3	INNER TUBE COMP.1 Part #: 2CE-23110-00-00 Required per assembly: 1 $426.99 $419.61 - + Add to cart
4	METAL, SLIDE, 2 Part #: 2S3-23135-00-00 Required per assembly: 1 $37.99 $27.19 - + Add to cart
5	METAL, SLIDE, 1 Part #: 2S3-23125-00-00 Required per assembly: 1 $55.99 $46.01 - + Add to cart
6	SEAT 1 Part #: 2S3-23115-00-00 Required per assembly: 1 $17.98 $14.91 - + Add to cart

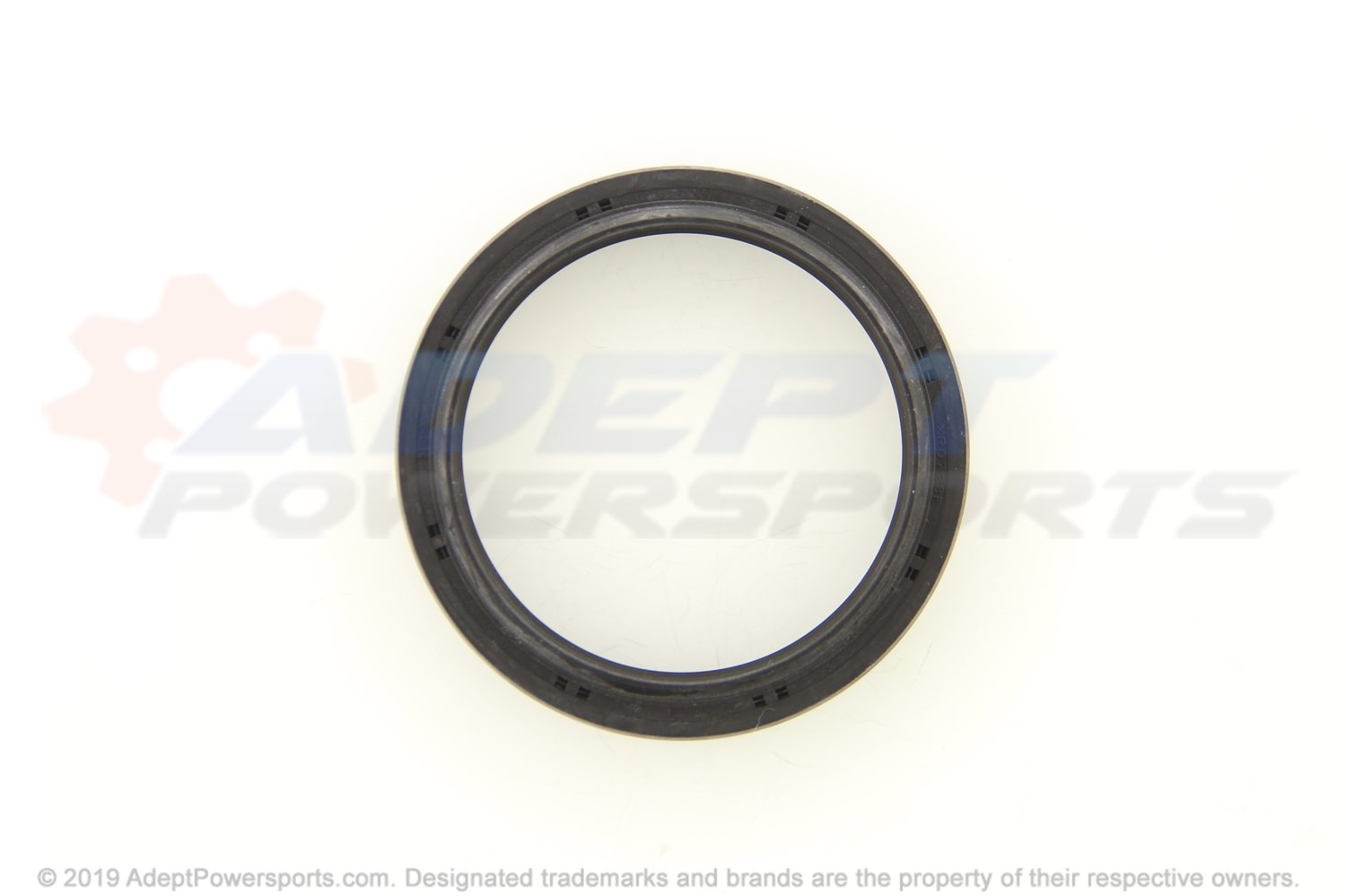

7	OIL SEAL Part #: 2S3-23145-00-00 Required per assembly: 1 $17.98 $13.47 - + Add to cart
8	RING, SNAP Part #: 2CE-23156-00-00 Required per assembly: 1 $5.99 $5.13 - + Add to cart
9	SEAL, DUST Part #: 2S3-23144-00-00 Required per assembly: 1 $19.98 $15.83 - + Add to cart
10	CYLINDER, COMP., FRONT, FORK Part #: 2CE-23170-00-00 Required per assembly: 1 $458.99 $449.53 - + Add to cart
11	SPINDLE, TAPER Part #: 5UX-23173-00-00 Required per assembly: 1 $34.99 $30.10 - + Add to cart
12	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
13	BOLT, HEXAGON, SOCKET, HEAD Part #: 5UX-23181-00-00 Required per assembly: 1 $24.98 $19.16 - + Add to cart
14	SPRING, FRONT, FORK Part #: 2CE-23141-00-00 Required per assembly: 1 $47.99 $42.00 - + Add to cart
15	SEAT, SPRING, UPPER Part #: 2CE-23142-00-00 Required per assembly: 1 $21.98 $17.92 - + Add to cart
16	REINF. COMP. Part #: 2CE-23104-00-00 Required per assembly: 1 $32.99 $28.46 - + Add to cart
17	SPACER Part #: 2CE-23118-00-00 Required per assembly: 1 $14.49 $11.91 - + Add to cart
18	NUT Part #: 5UX-23778-00-00 Required per assembly: 1 $4.00 $3.30 - + Add to cart
19	BOLT, CAP Part #: 2CE-23111-00-00 Required per assembly: 1 $245.99 $229.91 - + Add to cart
20	O-RING Part #: CS4-43862-40-00 Required per assembly: 1 $8.49 $4.51 - + Add to cart
21	KNOB (TEN) Part #: 5JW-2319W-00-00 Required per assembly: 1 $11.99 $9.13 - + Add to cart
22	SCREW Part #: 1MC-23119-10-00 Required per assembly: 1 $2.60 $1.27 - + Add to cart
23	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08045-00 Required per assembly: 2 $9.49 $6.68 - + Add to cart
24	FRONT FORK ASSY (R.H) Part #: 2CE-23103-11-00 Required per assembly: 1 $1,295.85 $1,193.04 - + Add to cart
25	OUTER TUBE COMP. Part #: 2CE-23107-10-00 Required per assembly: 1 $652.49 $593.17 - + Add to cart
26	INNER TUBE COMP.1 Part #: 2CE-23110-00-00 Required per assembly: 1 $426.99 $419.61 - + Add to cart
27	METAL, SLIDE, 2 Part #: 2S3-23135-00-00 Required per assembly: 1 $37.99 $27.19 - + Add to cart
28	METAL, SLIDE, 1 Part #: 2S3-23125-00-00 Required per assembly: 1 $55.99 $46.01 - + Add to cart
29	SEAT 1 Part #: 2S3-23115-00-00 Required per assembly: 1 $17.98 $14.91 - + Add to cart
30	OIL SEAL Part #: 2S3-23145-00-00 Required per assembly: 1 $17.98 $13.47 - + Add to cart
31	RING, SNAP Part #: 2CE-23156-00-00 Required per assembly: 1 $5.99 $5.13 - + Add to cart
32	SEAL, DUST Part #: 2S3-23144-00-00 Required per assembly: 1 $19.98 $15.83 - + Add to cart
33	CYLINDER, COMP., FRONT, FORK Part #: 2CE-23170-00-00 Required per assembly: 1 $458.99 $449.53 - + Add to cart
34	SPINDLE, TAPER Part #: 5UX-23173-00-00 Required per assembly: 1 $34.99 $30.10 - + Add to cart
35	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
36	BOLT, HEXAGON, SOCKET, HEAD Part #: 5UX-23181-00-00 Required per assembly: 1 $24.98 $19.16 - + Add to cart
37	SPRING, FRONT, FORK Part #: 2CE-23141-00-00 Required per assembly: 1 $47.99 $42.00 - + Add to cart
38	SEAT, SPRING, UPPER Part #: 2CE-23142-00-00 Required per assembly: 1 $21.98 $17.92 - + Add to cart
39	REINF. COMP. Part #: 2CE-23104-00-00 Required per assembly: 1 $32.99 $28.46 - + Add to cart
40	SPACER Part #: 2CE-23118-00-00 Required per assembly: 1 $14.49 $11.91 - + Add to cart
41	NUT Part #: 5UX-23778-00-00 Required per assembly: 1 $4.00 $3.30 - + Add to cart
42	BOLT, CAP Part #: 2CE-23111-00-00 Required per assembly: 1 $245.99 $229.91 - + Add to cart
43	O-RING Part #: CS4-43862-40-00 Required per assembly: 1 $8.49 $4.51 - + Add to cart
44	KNOB (TEN) Part #: 5JW-2319W-00-00 Required per assembly: 1 $11.99 $9.13 - + Add to cart
45	SCREW Part #: 1MC-23119-10-00 Required per assembly: 1 $2.60 $1.27 - + Add to cart
46	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08045-00 Required per assembly: 2 $9.49 $6.68 - + Add to cart
47	UNDER BRACKET COMP. Part #: 2CE-23340-00-00 Required per assembly: 1 $457.99 $455.25 - + Add to cart
48	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08025-00 Required per assembly: 4 $9.49 $6.05 - + Add to cart
