Electrical 2 replacement parts for 2019 Yamaha Wolverine X2

OEM Parts Yamaha 2019 Yamaha Wolverine X2 Electrical 2

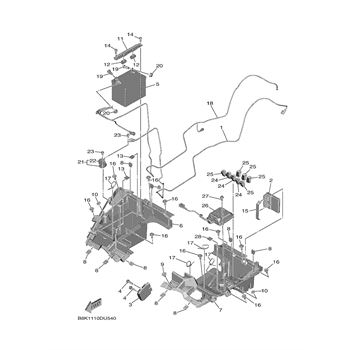

ELECTRICAL 2 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CORD, STARTER, MOTOR Part #: BG4-81815-00-00 Required per assembly: 1 $116.98 $105.67 - + Add to cart
2	ENGINE CONTROL UNIT ASSEMBLY Part #: B8K-8591A-00-00 Required per assembly: 1 $1,572.99 $1,544.33 - + Add to cart
3	RECTIFIER & REGULATOR ASSEMBLY Part #: 1D7-81960-01-00 Required per assembly: 1 $349.99 $320.95 - + Add to cart
4	BOLT, FLANGE Part #: 90105-06833-00 Required per assembly: 2 $2.29 $1.72 - + Add to cart
5	11-U1LD GS BATTERY (GS U1L-11) Part #: 11U-1LD00-00-00 Required per assembly: 1 Not Available
6	BOX, BATTERY, 1 Part #: BG4-H212B-00-00 Required per assembly: 1 $102.40 - + Add to cart
7	PANEL, SWITCH Part #: BG4-H2565-00-00 Required per assembly: 1 $100.98 $97.60 - + Add to cart
8	NUT, SPRING Part #: 90183-060A6-00 Required per assembly: 9 $5.99 $4.10 - + Add to cart
9	BOLT, WITH, WASHER Part #: 90119-06226-00 Required per assembly: 1 $2.79 $2.10 - + Add to cart
10	GROMMET(4DN) Part #: 90480-01558-00 Required per assembly: 2 $4.65 $3.87 - + Add to cart
11	BRACKET, BATTERY Part #: 2HC-H2128-00-00 Required per assembly: 1 $11.49 $9.21 - + Add to cart
12	PAD, SEAT Part #: 3C3-24741-00-00 Required per assembly: 2 $10.99 $8.18 - + Add to cart
13	NUT, SPRING Part #: 90183-060A6-00 Required per assembly: 2 $5.99 $4.10 - + Add to cart
14	BOLT, FLANGE Part #: 95022-06014-00 Required per assembly: 2 $3.39 $2.59 - + Add to cart
15	BAND, BATTERY Part #: 5JJ-82131-00-00 Required per assembly: 1 $14.49 $12.04 - + Add to cart
16	BOLT, SPECIAL, 1 Part #: JW1-K6179-01-00 Required per assembly: 10 $1.75 $1.21 - + Add to cart
17	CLAMP Part #: 1NS-F1338-00-00 Required per assembly: 4 $3.60 $3.14 - + Add to cart
18	WIRE, MINUS, LEAD Part #: BG4-82116-00-00 Required per assembly: 1 $141.99 $132.69 - + Add to cart
19	BOLT Part #: 97080-08020-00 Required per assembly: 2 $2.91 $2.40 - + Add to cart
20	NUT Part #: 90179-08015-00 Required per assembly: 2 $10.49 $7.74 - + Add to cart
21	STARTER RELAY ASSEMBLY (RC19-080A) Part #: 5B4-81940-00-00 Required per assembly: 1 $110.98 $95.57 - + Add to cart
22	FUSE (10A-BL) Part #: 42X-82151-00-00 Required per assembly: 2 $4.32 $2.18 - + Add to cart
23	BOLT, FLANGE Part #: 95022-06008-00 Required per assembly: 2 $9.49 $6.15 - + Add to cart
24	RELAY ASSEMBLY (G8HN-1C4T-DJ-Y52) Part #: 5DM-81950-01-00 Required per assembly: 3 $31.98 $24.30 - + Add to cart
25	RELAY ASSEMBLY (8DM-11) Part #: 8DM-81950-11-00 Required per assembly: 5 $33.99 $23.45 - + Add to cart
26	POWER STRG. CONT. UNIT ASSEMBLY Part #: B8K-859A0-00-00 Required per assembly: 1 $1,059.36 $963.05 - + Add to cart
27	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 1 $1.95 $1.47 - + Add to cart
28	NUT, SPRING Part #: 90183-060A6-00 Required per assembly: 1 $5.99 $4.10 - + Add to cart
