Abs Modulator replacement parts for 2020 Honda GL1800D

OEM Parts Honda 2020 Honda GL1800D Abs Modulator

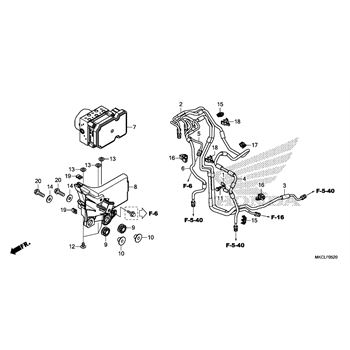

ABS MODULATOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 0520
001	CLAMP, C, BRAKE, SUB Part #: 43165-MKC-A00 Required per assembly: 1 $3.15 - + Add to cart
002	PIPE, A, RR., BRAKE Part #: 43311-MKC-A00 Required per assembly: 1 $52.13 $42.20 - + Add to cart
003	PIPE, B, RR., BRAKE Part #: 43312-MKC-A00 Required per assembly: 1 $69.00 $55.85 - + Add to cart
004	PIPE, B, SUB-BRAKE Part #: 43321-MKC-A00 Required per assembly: 1 $67.80 $54.88 - + Add to cart
005	PIPE, A, FR., BRAKE Part #: 45124-MKC-A00 Required per assembly: 1 $17.42 $14.09 - + Add to cart
006	PIPE, B, FR., BRAKE Part #: 45125-MKC-A00 Required per assembly: 1 $28.68 $23.21 - + Add to cart
007	MODULATOR ASSEMBLY Part #: 57110-MKC-A01 Required per assembly: 1 $2,386.56 $1,931.84 - + Add to cart
008	STAY, ABS, MODULATOR Part #: 57150-MKC-A00 Required per assembly: 1 $29.60 $25.51 - + Add to cart
009	CUSHION, RUBBER Part #: 57156-MGE-000 Required per assembly: 2 $4.55 - + Add to cart
010	COLLAR, SEAT, MOUNTING Part #: 77216-KG1-920 Required per assembly: 2 $3.44 $3.13 - + Add to cart
011	BOLT, FLANGE, (6X12) Part #: 90013-GHB-610 Required per assembly: 1 $3.29 $3.06 - + Add to cart
012	SCREW, PAN, (6X12) Part #: 90106-MAV-000 Required per assembly: 3 $3.15 $2.93 - + Add to cart
013	COLLAR Part #: 90522-170-700 Required per assembly: 3 $2.92 $2.71 - + Add to cart
014	WASHER A Part #: 90524-030-000 Required per assembly: 2 $2.40 $2.22 - + Add to cart
015	CLAMP (6.8X2) Part #: 90661-MCA-003 Required per assembly: 2 $3.11 $2.90 - + Add to cart
016	CLAMP (7.0) Part #: 90661-MGS-D71 Required per assembly: 2 $6.03 $5.39 - + Add to cart
017	CLAMP (6.8) Part #: 90663-MCA-971 Required per assembly: 1 $3.68 - + Add to cart
018	CLAMP (7.0X2) Part #: 90664-MCA-003 Required per assembly: 2 $4.29 $3.90 - + Add to cart
019	NUT, CLIP, (5MM) Part #: 90677-KAN-961 Required per assembly: 2 $5.46 $4.96 - + Add to cart
020	BOLT, FLANGE, (8X25) Part #: 95701-08025-00 Required per assembly: 2 $2.78 $2.58 - + Add to cart
