OEM Parts Honda 2020 Honda PCX150 Speedometer

2020 Honda PCX150 - Speedometer

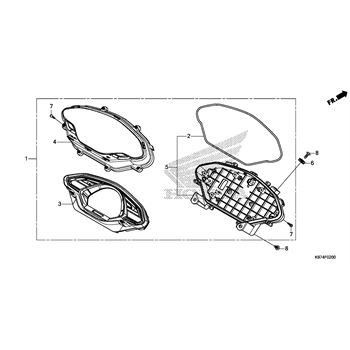

SPEEDOMETER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 02
001

SPEEDOMETER ASSY.

Part #: 37200-K97-A04 Required per assembly: 1
$325.13
$259.29
-
+
Add to cart
002

GASKET

Part #: 37205-K97-T01 Required per assembly: 1
$8.47
$7.26
-
+
Add to cart
003

METER, LCD, (MPH/KPH)

Part #: 37210-K97-A03 Required per assembly: 1
$164.20
$150.55
-
+
Add to cart
004

LENS ASSEMBLY

Part #: 37211-K97-T01 Required per assembly: 1
$36.69
$29.26
-
+
Add to cart
005

CASE ASSEMBLY

Part #: 37212-K97-T01 Required per assembly: 1
$61.48
$49.04
-
+
Add to cart
006

NUT, SPRING, (4MM)

Part #: 90302-KWW-A00 Required per assembly: 2
$2.04
$1.88
-
+
Add to cart
007

SCREW, TAP, (3X14)

Part #: 90314-KVS-F22 Required per assembly: 12
$3.70
-
+
Add to cart
008

SCREW, TAP, (4X12)

Part #: 93903-34320 Required per assembly: 4
$1.95
$1.80
-
+
Add to cart

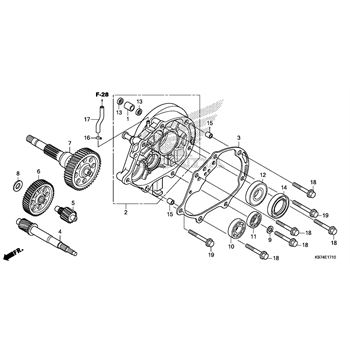

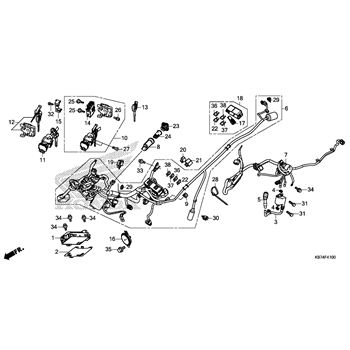

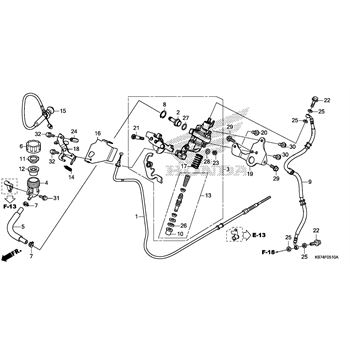

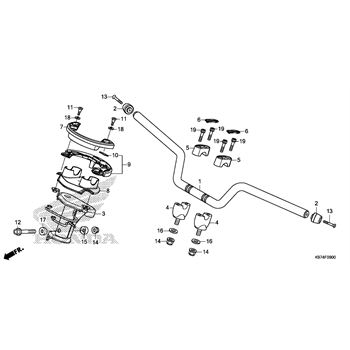

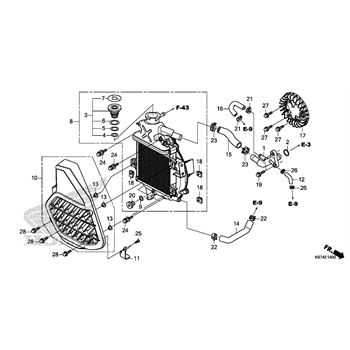

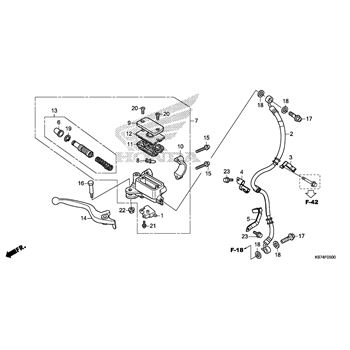

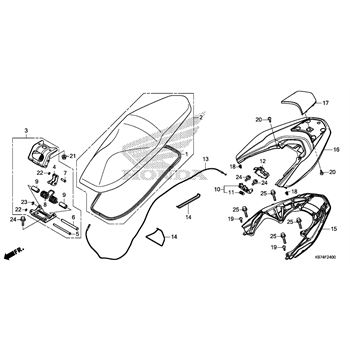

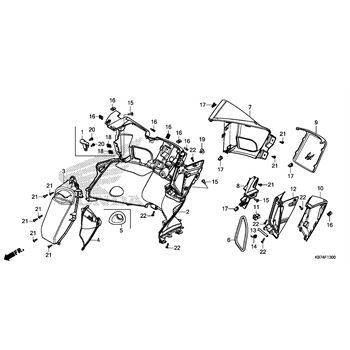

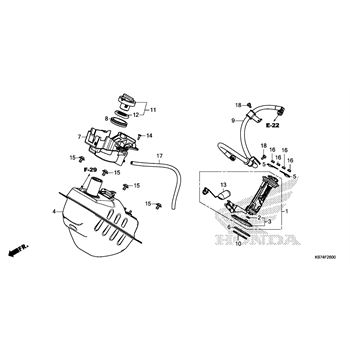

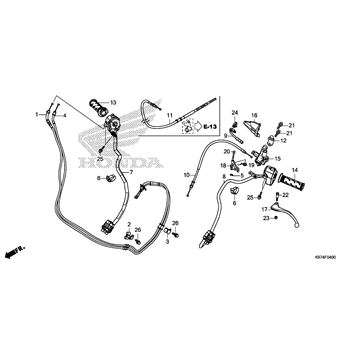

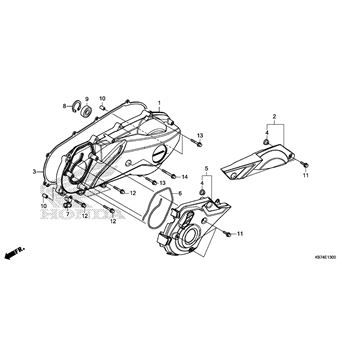

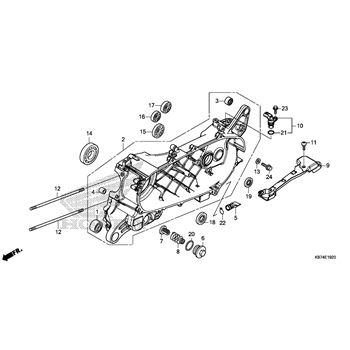

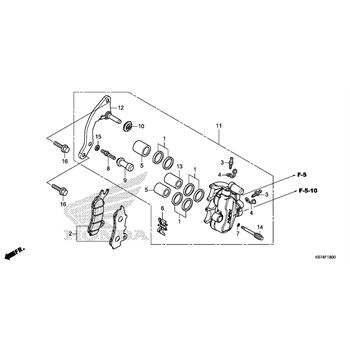

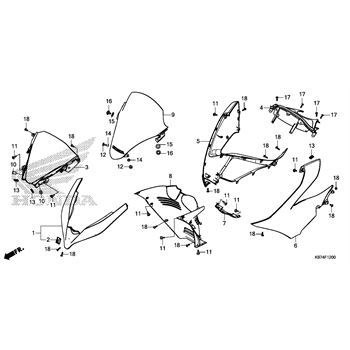

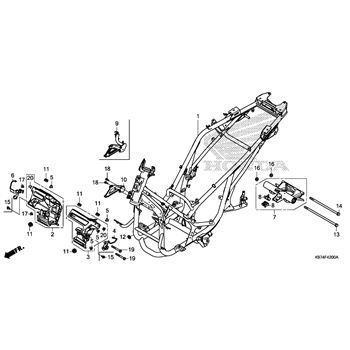

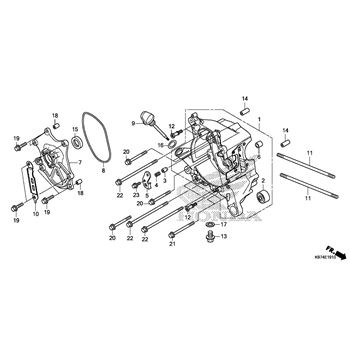

Other assembly diagrams for this model
