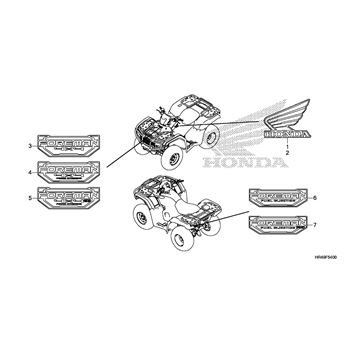

OEM Parts Honda 2020 Honda TRX520FE2 Mark

2020 Honda TRX520FE2 - Mark

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 54
001

MARK, R., WING, (105MM), (TYPE1)

Part #: 86201-HR3-WA0ZB Required per assembly: 1 Note: Color: R232-(PATRIOT RED), Area: A AC
$5.16
-
+
Add to cart
001

MARK, R., WING, (105MM), (TYPE4)

Part #: 86201-HR3-WA0ZD Required per assembly: 1 Note: Color: B232-(REACTOR BLUE R), Area: A AC
$4.70
-
+
Add to cart
001

MARK, R., WING, (105MM), (TYPE1)

Part #: 86201-HR3-650ZA Required per assembly: 1 Note: Color: YRA05-(CLOSE RANGE CAMO), Area: 2A 2AC
$4.84
-
+
Add to cart
002

MARK, L., WING, (105MM), (TYPE1)

Part #: 86202-HR3-650ZA Required per assembly: 1 Note: Color: YRA05-(CLOSE RANGE CAMO), Area: 2A 2AC
$3.48
-
+
Add to cart
002

MARK, L., WING, (105MM), (TYPE4)

Part #: 86202-HR3-WA0ZD Required per assembly: 1 Note: Color: B232-(REACTOR BLUE R), Area: A AC
$4.70
-
+
Add to cart
002

MARK, L., WING, (105MM), (TYPE1)

Part #: 86202-HR3-WA0ZB Required per assembly: 1 Note: Color: R232-(PATRIOT RED), Area: A AC
$5.16
-
+
Add to cart
005

MARK, FR., CENTER, COVER, (TYPE1)

Part #: 86611-HR4-A90ZA Required per assembly: 1 Note: Color: B232-(REACTOR BLUE R) R232-(PATRIOT RED), Area: A AC
$3.80
-
+
Add to cart
005

MARK, FR., CENTER, COVER, (TYPE1)

Part #: 86611-HR4-B90ZA Required per assembly: 1 Note: Color: YRA05-(CLOSE RANGE CAMO), Area: 2A 2AC
$4.70
-
+
Add to cart
007

MARK, RR., FENDER, (TYPE1)

Part #: 86801-HR4-A90ZA Required per assembly: 1 Note: Color: B232-(REACTOR BLUE R) R232-(PATRIOT RED), Area: A AC
$2.27
$2.10
-
+
Add to cart
007

MARK, RR., FENDER, (TYPE1)

Part #: 86801-HR4-B90ZA Required per assembly: 1 Note: Color: YRA05-(CLOSE RANGE CAMO), Area: 2A 2AC
$2.81
$2.61
-
+
Add to cart
