Frame replacement parts for 2020 Honda VT750C2B

OEM Parts Honda 2020 Honda VT750C2B Frame

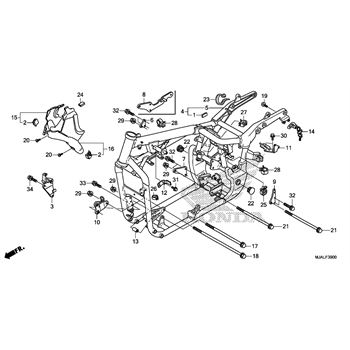

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 39
001	FILM, PROTECTOR Part #: 17503-MY1-300 Required per assembly: 1 $4.05 - + Add to cart
002	REFLECTOR, FR. Part #: 33740-MEG-671 Required per assembly: 2 $16.98 $14.15 - + Add to cart
003	BRACKET, RR. Part #: 46505-MEG-000 Required per assembly: 1 $47.20 $38.58 - + Add to cart
004	FRAME SET Part #: 50010-MEG-A60 Required per assembly: 1 $2,808.96 - + Add to cart
006	BRAKET, R., RR., ENG, HGR Part #: 50171-MEG-000 Required per assembly: 1 $5.45 $4.97 - + Add to cart
007	BRACKET, R., RR., ENGINE, HANGER, (LOWER) Part #: 50172-MEG-000 Required per assembly: 1 Note: Area: A $6.22 $5.59 - + Add to cart
008	BRACKET, R., RR., ENGINE, HANGER, (LOWER) Part #: 50172-MEG-L90 Required per assembly: 1 Note: Area: AC $50.77 $41.09 - + Add to cart
009	BRAKET, L., RR., ENG, HGR Part #: 50173-MEG-670 Required per assembly: 1 $6.90 $6.16 - + Add to cart
010	PLATE, FR., ENGINE, HANGER, (UPPER) Part #: 50176-MFE-671 Required per assembly: 1 $22.00 $17.81 - + Add to cart
011	STAY, P.C.V. Part #: 50182-MEG-L90 Required per assembly: 1 Note: Area: AC $8.47 $8.07 - + Add to cart
013	COLLAR, ENG, HGR Part #: 50363-KT7-000 Required per assembly: 1 $15.56 $12.60 - + Add to cart
014	HOLDER, ASSEMBLY, HELMET, (COO) Part #: 50710-GCN-305 Required per assembly: 1 $33.46 $27.90 - + Add to cart
015	COVER, R., FR., SIDE Part #: 63550-MEG-A60 Required per assembly: 1 $24.80 $20.68 - + Add to cart
016	COVER, L., FR., SIDE Part #: 63650-MEG-A60 Required per assembly: 1 $24.80 $20.68 - + Add to cart
017	BOLT, ENGINE, HANGER Part #: 90103-GC2-920 Required per assembly: 1 $12.96 $10.50 - + Add to cart
018	BOLT, FLG, (10X208) Part #: 90104-MBS-000 Required per assembly: 1 $9.50 $8.64 - + Add to cart
019	SCREW, PAN, (6X12) Part #: 90106-MAV-000 Required per assembly: 1 $3.15 $2.93 - + Add to cart
020	SCREW (5X12) Part #: 90106-MBY-000 Required per assembly: 2 $3.70 $3.36 - + Add to cart
021	BOLT, UBS, (10X141) Part #: 90154-KE7-000 Required per assembly: 2 $5.92 $5.30 - + Add to cart
022	CAP, R., LOCK, NUT Part #: 90312-MB0-700 Required per assembly: 2 $21.11 $17.59 - + Add to cart
024	CLAMP, COVER Part #: 90655-MEG-000 Required per assembly: 1 $2.52 $2.33 - + Add to cart
025	CLIP, HARNESS Part #: 90684-ZA0-601 Required per assembly: 1 $4.51 $4.10 - + Add to cart
026	CLIP, CABLE, (8MM) Part #: 90690-GHB-631 Required per assembly: 1 $3.15 $2.93 - + Add to cart
028	CLIP, CABLE, (25MM) Part #: 90690-GHB-671 Required per assembly: 2 $3.15 $2.93 - + Add to cart
029	NUT, FLANGE, (10MM) Part #: 90303-428-900 Required per assembly: 4 $4.68 $4.25 - + Add to cart
030	BOLT, FLANGE, (6X10) Part #: 95701-06010-07 Required per assembly: 2 Note: Area: AC $2.63 $2.44 - + Add to cart
032	BOLT, FLANGE, (8X16) Part #: 95701-08016-07 Required per assembly: 6 $2.79 $2.60 - + Add to cart
033	BOLT, FLANGE, (8X20) Part #: 95701-08020-07 Required per assembly: 2 $2.86 $2.65 - + Add to cart
034	BOLT, FLANGE, (10X25) Part #: 95701-10025-07 Required per assembly: 1 $2.42 $2.25 - + Add to cart
