OEM Parts Polaris 2020 Polaris Ranger 150 EFI (R04) Dash

2020 Polaris Ranger 150 EFI (R04) A20HZB15A1/A2/B1/B2 - Dash

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

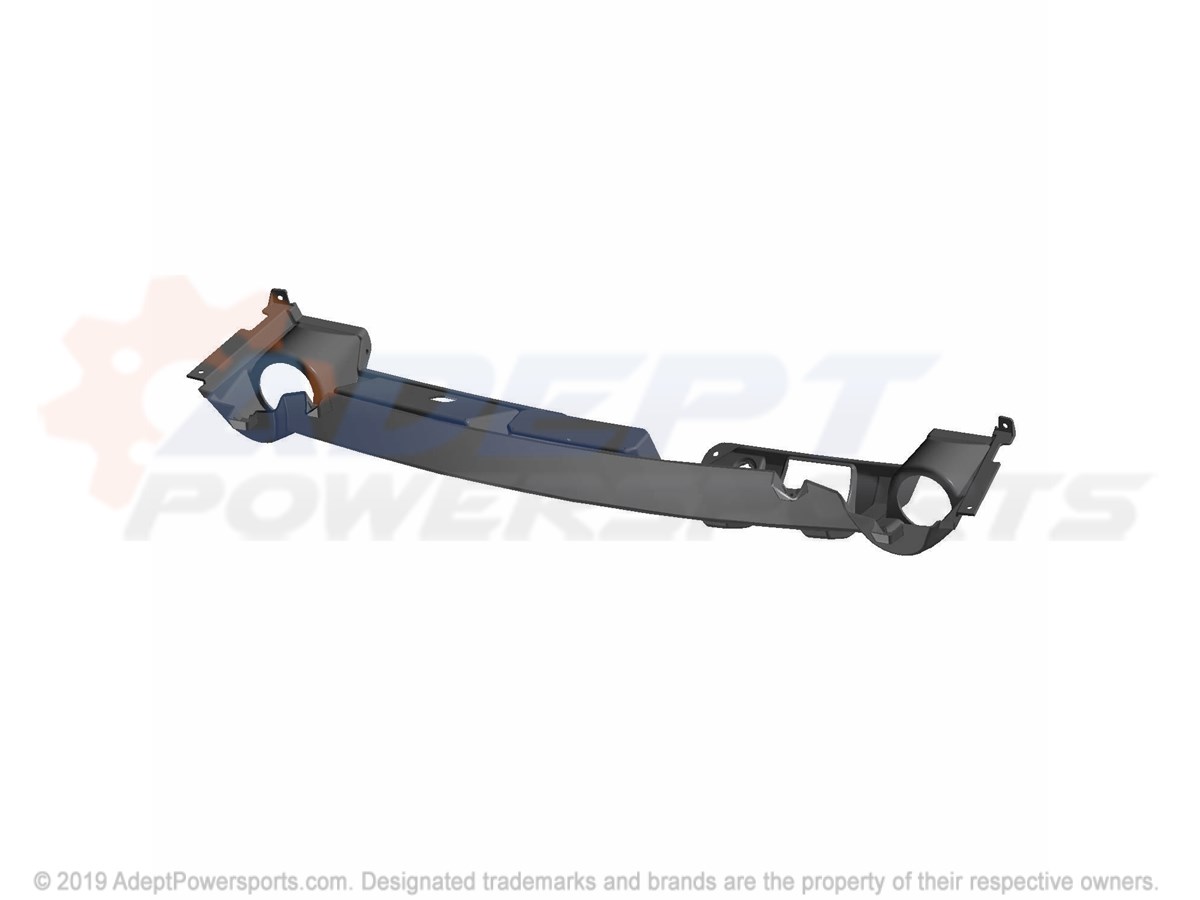

Polaris 5454503-070 Dash-Main, Mz, Blk

DASH-MAIN, MZ, BLK

Part #: 5454503-070 Required per assembly: 1
Currently Not Available
2
Polaris 5454546-070 Dash-Upper, Mz, Blk

DASH-UPPER, MZ, BLK

Part #: 5454546-070 Required per assembly: 1
Currently Not Available
3
Polaris 5436836 Holder, Cup

HOLDER, CUP

Part #: 5436836 Required per assembly: 2
Currently Not Available
4
Polaris 7547674 Nut, U-Type

NUT, U-TYPE

Part #: 7547674 Required per assembly: 6 Note: QTY 4 NOT SHOWN
$2.99
$1.73
-
+
Add to cart
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 12
$2.99
$1.73
-
+
Add to cart
6
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
7
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 6 Note: QTY 4 NOT SHOWN
Currently Not Available
8

CLIP, DASH, TRIM, METAL

Part #: 7519806 Required per assembly: 2
Currently Not Available
9
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 4 Note: Nut, Flange
Currently Not Available
10
Polaris 7557157 Washer-M6, Closeoff

WASHER-M6, CLOSEOFF

Part #: 7557157 Required per assembly: 4
Currently Not Available
11
Polaris 5814794 Closeoff-Upper, Steering

CLOSEOFF-UPPER, STEERING

Part #: 5814794 Required per assembly: 1
Currently Not Available
12
Polaris 5814795 Closeoff-Lower

CLOSEOFF-LOWER

Part #: 5814795 Required per assembly: 1
Currently Not Available
