Storage Box, Rear - A20sej57b1/B4/B7/B9 replacement parts for 2020 Polaris Sportsman 570 EPS UTILITY PACKAGE (R04)

OEM Parts Polaris 2020 Polaris Sportsman 570 EPS UTILITY PACKAGE (R04) Storage Box, Rear - A20sej57b1/B4/B7/B9

STORAGE BOX, REAR - A20SEJ57B1/B4/B7/B9 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
2	PLUG Part #: 5412981 Required per assembly: 1 Currently Not Available

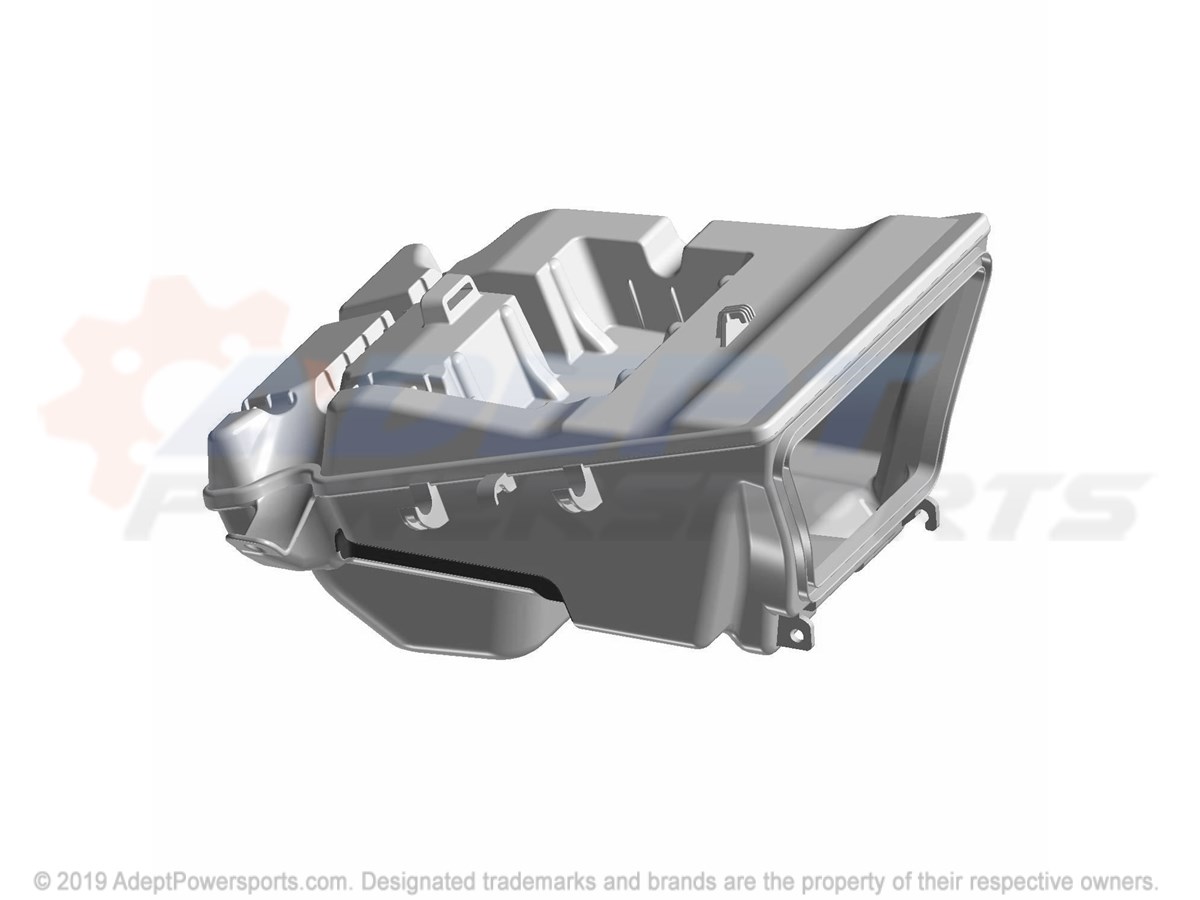

3	ASM-BOX, REAR, SUB, EVAP Part #: 2637664 Required per assembly: 1 Note: B1 Currently Not Available
4	SEAL-REAR BOX Part #: 5815299 Required per assembly: 1 Currently Not Available
5	COVER Part #: 5436349 Required per assembly: 1 Currently Not Available
6	LATCH Part #: 7081425 Required per assembly: 1 Note: Latch Currently Not Available
7	STRAP-EVAP[B4][B7][B9] Part #: 5416230 Required per assembly: 1 Note: B1 Currently Not Available
