OEM Parts Polaris 2020 Polaris Sportsman 570 PREMIUM/PREMIUM LE (R05) Headlight Pod

2020 Polaris Sportsman 570 PREMIUM/PREMIUM LE (R05) A20SHE57AN/AF/BN/BF/Z57AX/BX - Headlight Pod

HEADLIGHT POD Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 5411092 O-Ring

O-RING

Part #: 5411092 Required per assembly: 1 Note: NOT ILLUSTRATED
$3.99
$2.33
-
+
Add to cart
1

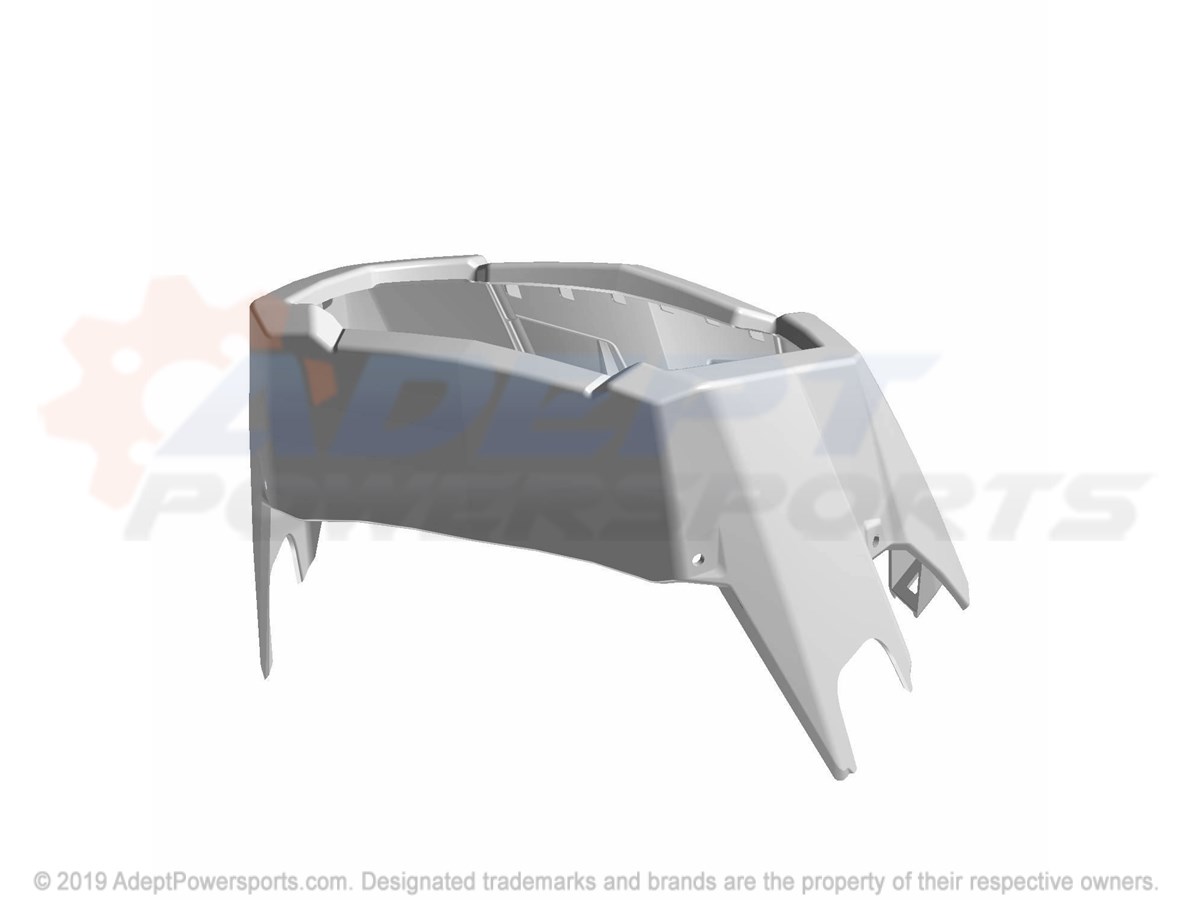

Polaris 5451313-724 Pod-Hdlt, Front, Pntd, Radar, Blue

POD-HDLT, FRONT, PNTD, RADAR, BLUE

Part #: 5451313-724 Required per assembly: 1 Note: AN
Currently Not Available
1
Polaris 5451313-750 Pod-Hdlt, Front, Pntd, Org.Rust

POD-HDLT, FRONT, PNTD, ORG.RUST

Part #: 5451313-750 Required per assembly: 1 Note: AF
Currently Not Available
1

POD-HDLT, FRONT, PNTD, NARA, BRNZ, [BX]

Part #: 5451313-731 Required per assembly: 1 Note: AX
Currently Not Available
2
Polaris 5451947-070 Pod-Mach, Kystn, Smxp/Sph, Blk

POD-MACH, KYSTN, SMXP/SPH, BLK

Part #: 5451947-070 Required per assembly: 1
Currently Not Available
3
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 4
$3.79
$1.73
-
+
Add to cart
4

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 4
Currently Not Available
5
Polaris 7517441 Screw

SCREW

Part #: 7517441 Required per assembly: 2
Currently Not Available
6
Polaris 7512024 Screw

SCREW

Part #: 7512024 Required per assembly: 1
Currently Not Available
7
Polaris 7541925 Nut

NUT

Part #: 7541925 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
