OEM Parts Polaris 2020 Polaris Sportsman 570 EPS HD UTILITY AUS/NZ (R02) Debris Shields

2020 Polaris Sportsman 570 EPS HD UTILITY AUS/NZ (R02) A20SUE57D5 - Debris Shields

DEBRIS SHIELDS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-DEBRIS, SHIELDS, SPMN, LH

Part #: 2637085 Required per assembly: 1 Note: INCL. 2, 3
Currently Not Available
2

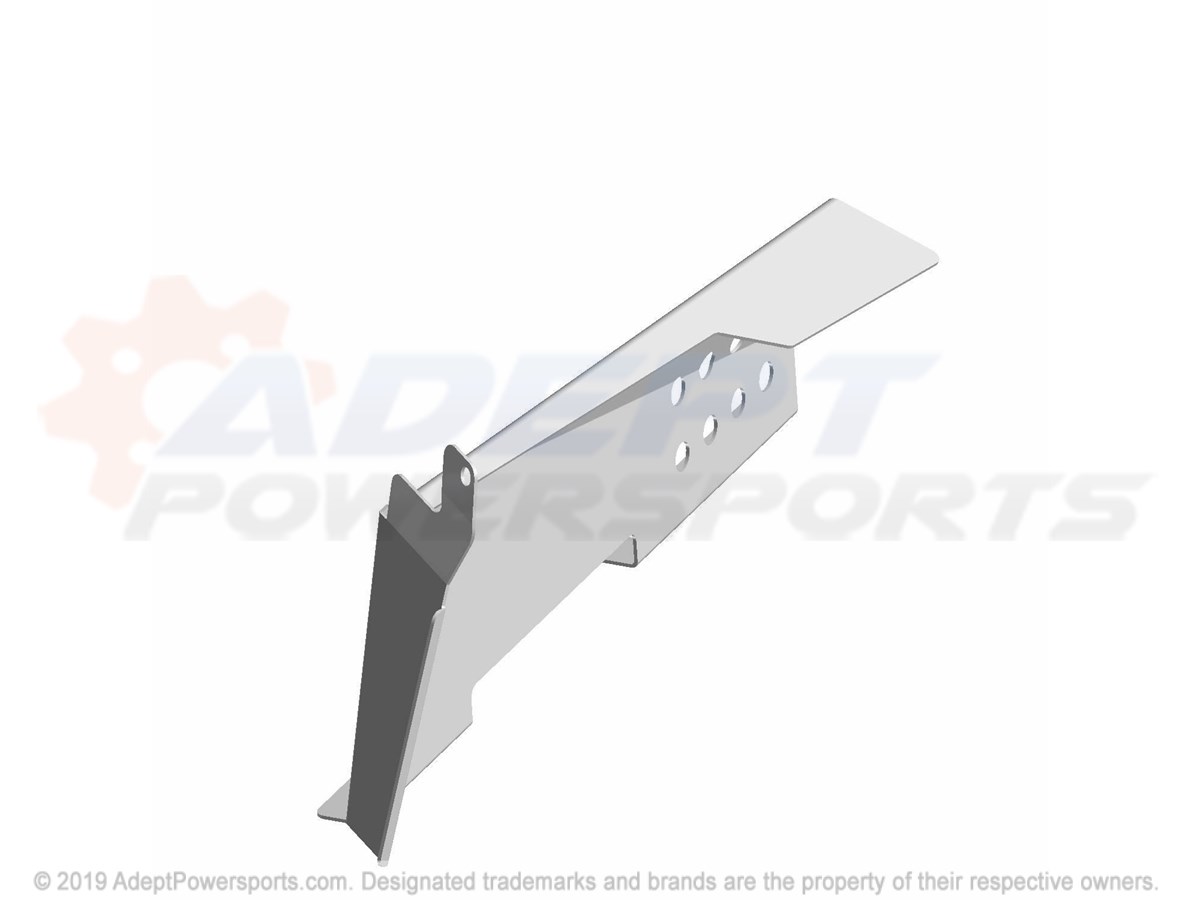

Polaris 5265269 Panel-Shield, Debris, Lh

PANEL-SHIELD, DEBRIS, LH

Part #: 5265269 Required per assembly: 1
Currently Not Available
3
Polaris 7517386 Screw

SCREW

Part #: 7517386 Required per assembly: 2 Note: Screw
$2.99
$1.73
-
+
Add to cart
4

ASM-DEBRIS, SHIELDS, SPMN, RH

Part #: 2637086 Required per assembly: 1 Note: INCL. 4-9
Currently Not Available
5

PANEL-SHIELD, DEBRIS, FRONT, RH

Part #: 5265268 Required per assembly: 1
Currently Not Available
6

PANEL-SHIELD, DEBRIS, REAR, RH

Part #: 5265270 Required per assembly: 1
Currently Not Available
7
Polaris 7517386 Screw

SCREW

Part #: 7517386 Required per assembly: 1 Note: Screw
$2.99
$1.73
-
+
Add to cart
8

SCR-M5, 0.8X10, TAP-R

Part #: 7520941 Required per assembly: 1
Currently Not Available
9
Polaris 7670090 Clip, Plastic, Dart, Nylon

CLIP, PLASTIC, DART, NYLON

Part #: 7670090 Required per assembly: 1 Note: Clip, Dart
$2.99
$1.73
-
+
Add to cart
