OEM Parts Polaris 2020 Polaris Scrambler XP 1000 EU 3PC (R04) Control Modules

2020 Polaris Scrambler XP 1000 EU 3PC (R04) A20SVE95KR - Control Modules

CONTROL MODULES Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 4014125 Ecm

ECM

Part #: 4014125 Required per assembly: 1
Currently Not Available
2

HARNESS-JUMPER, REGULATOR

Part #: 2414131 Required per assembly: 1
Currently Not Available
3

NUT, IGN, SWITCH, HOBBS

Part #: 5433733 Required per assembly: 1 Note: Nut, Ignition Switch
Currently Not Available
3
Polaris 5433534 Key Cover-Keyswitch

KEY COVER-KEYSWITCH

Part #: 5433534 Required per assembly: 1
Currently Not Available
3
Polaris 4012166 Switch, Key, 4, Position

SWITCH, KEY, 4, POSITION

Part #: 4012166 Required per assembly: 1 Note: Switch, Key, 4 Position [Incl. Key]
Currently Not Available
4
Polaris 4010638 Receptacle, Pod, Mount, 12V

RECEPTACLE, POD, MOUNT, 12V

Part #: 4010638 Required per assembly: 1
Currently Not Available
5
Polaris 2414671 Harness-Jumper, Fuelpump

HARNESS-JUMPER, FUELPUMP

Part #: 2414671 Required per assembly: 1
Currently Not Available
6

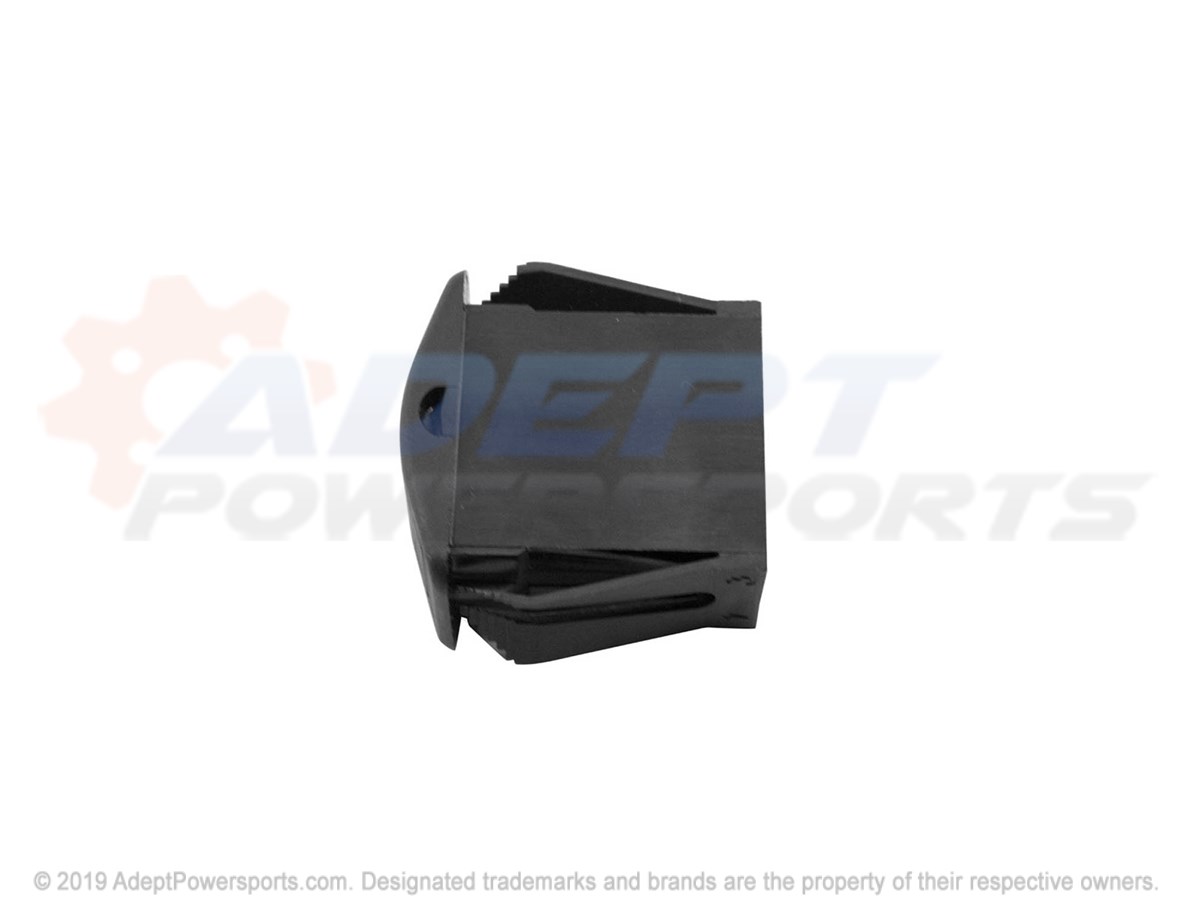

Polaris 4011402 Plug-Switch, K1

PLUG-SWITCH, K1

Part #: 4011402 Required per assembly: 2
Currently Not Available
