Harness replacement parts for 2020 Polaris Sportsman XP 1000/XP 1000 HUNTER EDITION 48" (R05)

OEM Parts Polaris 2020 Polaris Sportsman XP 1000/XP 1000 HUNTER EDITION 48" (R05) Harness

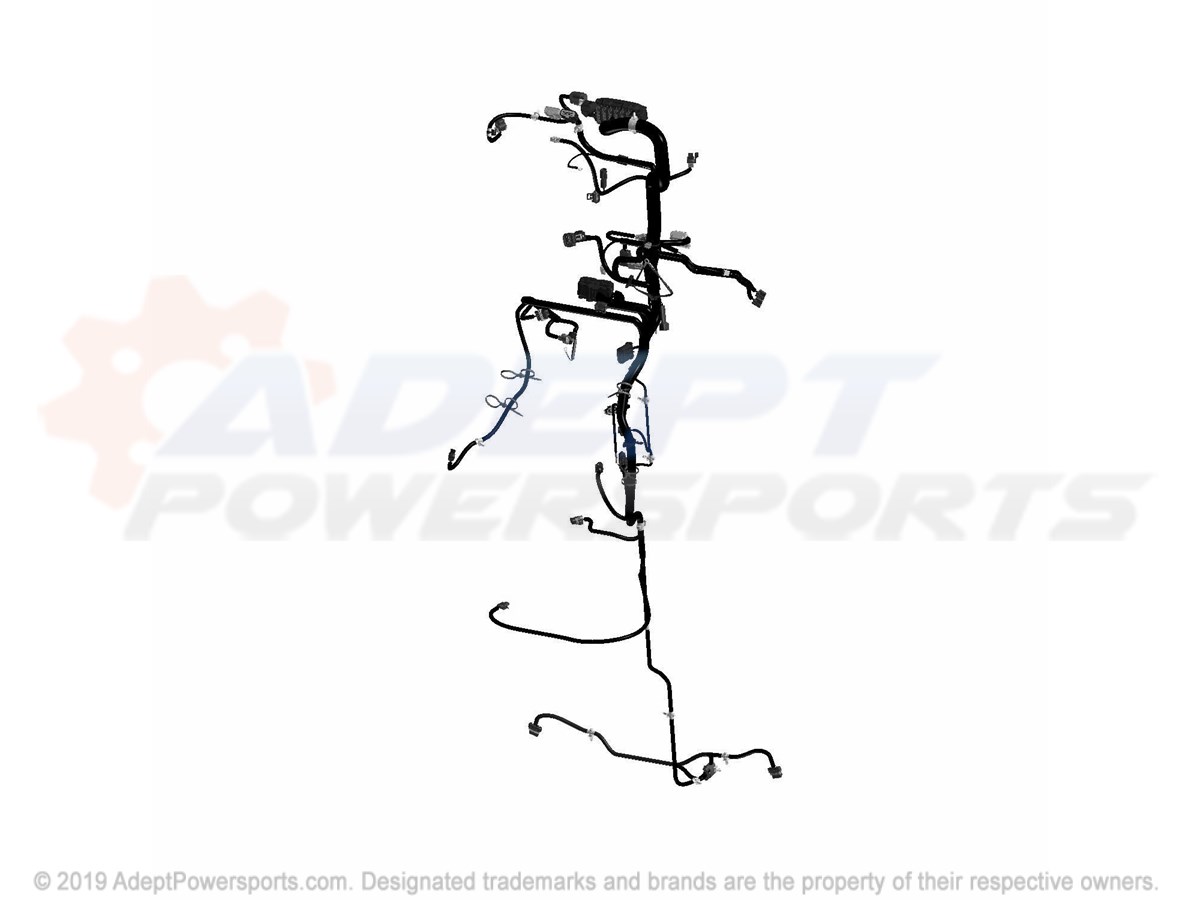

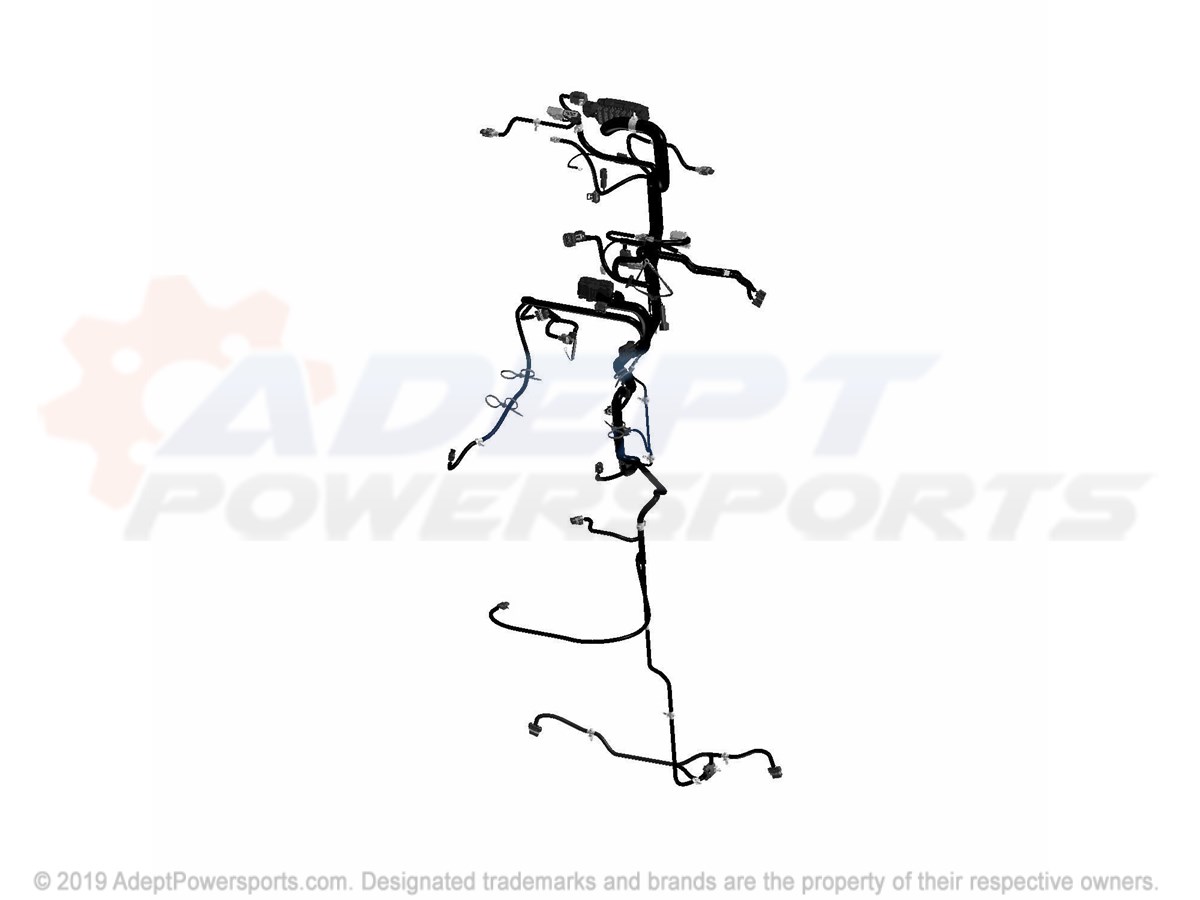

HARNESS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-MAIN, SPXP, ETC, LED Part #: 2415099 Required per assembly: 1 Note: D95A9 Currently Not Available
1	HARNESS-MAIN, SPXP, ETC Part #: 2415157 Required per assembly: 1 Note: E95AG Currently Not Available
2	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 7 Currently Not Available
3	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 4 Currently Not Available
4	FUSE, 10AMP Part #: 2434016 Required per assembly: 2 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
5	DIODE, 6, AMP Part #: 2411035 Required per assembly: 2 Currently Not Available
6	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
7	STRAP PANDUIT Part #: 7080138 Required per assembly: 7 ~~$1.99~~ $1.15 - + Add to cart
8	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 6 Note: Cable Tie Currently Not Available
9	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
10	COVER-TAILLIGHT, LED, W/CLIP Part #: 4016259 Required per assembly: 1 Currently Not Available
11	CONNECTOR-CAP, WINCH, CONTACTOR Part #: 4014891 Required per assembly: 1 Currently Not Available
12	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 1 Currently Not Available
13	LABEL, FUSE, BOX Part #: 7192266 Required per assembly: 1 Currently Not Available
14	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
15	CLIP-ROUTING Part #: 7081496 Required per assembly: 16 Currently Not Available
16	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
17	SCREW Part #: 7518914 Required per assembly: 2 Currently Not Available
18	CONNECTOR-CAP, WINCH, SWITCH Part #: 4014890 Required per assembly: 1 Currently Not Available
