OEM Parts Polaris 2020 Polaris Sportsman 850 48" TRAIL PACKAGE (R04) Seat

2020 Polaris Sportsman 850 48" TRAIL PACKAGE (R04) A20SXZ85AF/AP/CAF/CAP - Seat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

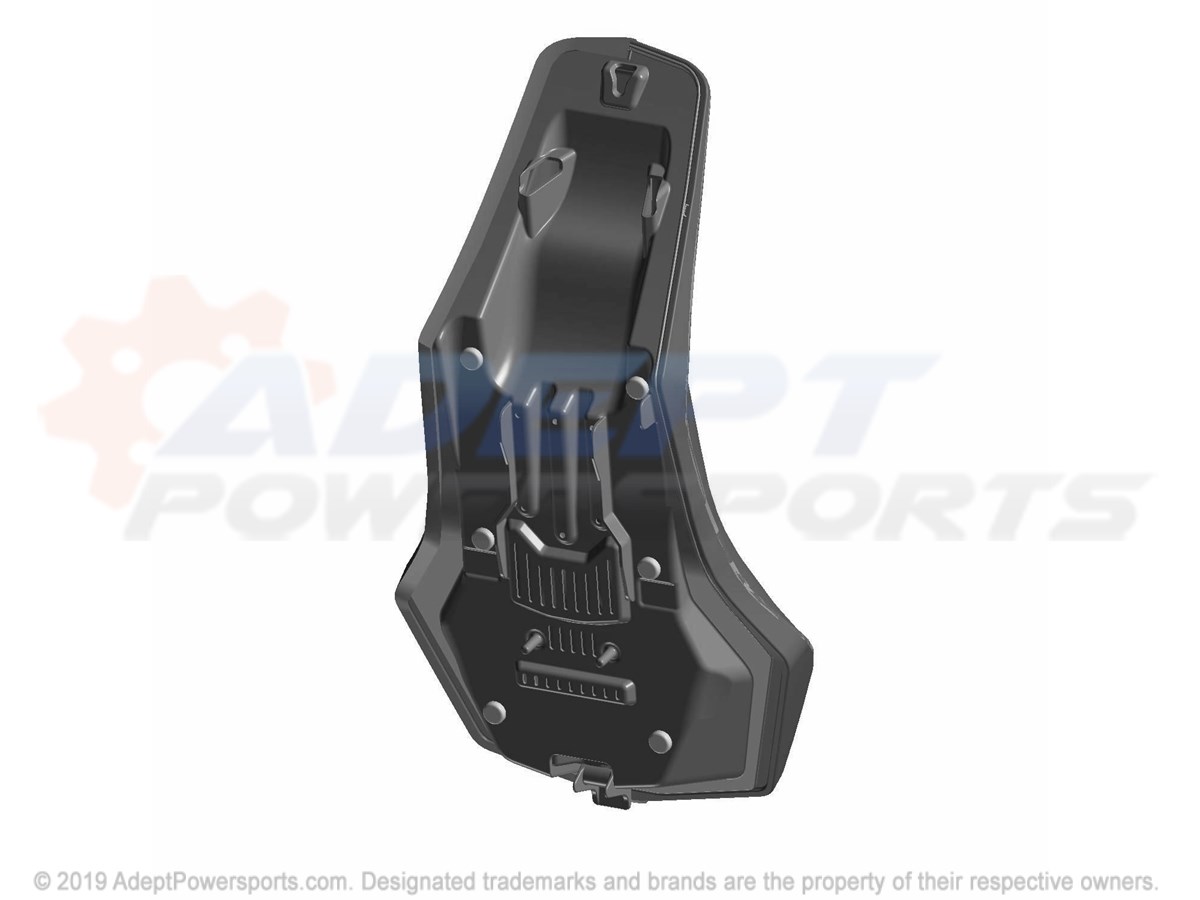

Polaris 2689237 Asm-Seat, Blk/Titanium, Wht, St

ASM-SEAT, BLK/TITANIUM, WHT, ST

Part #: 2689237 Required per assembly: 1 Note: INCL. 2, COVERING
Currently Not Available
1

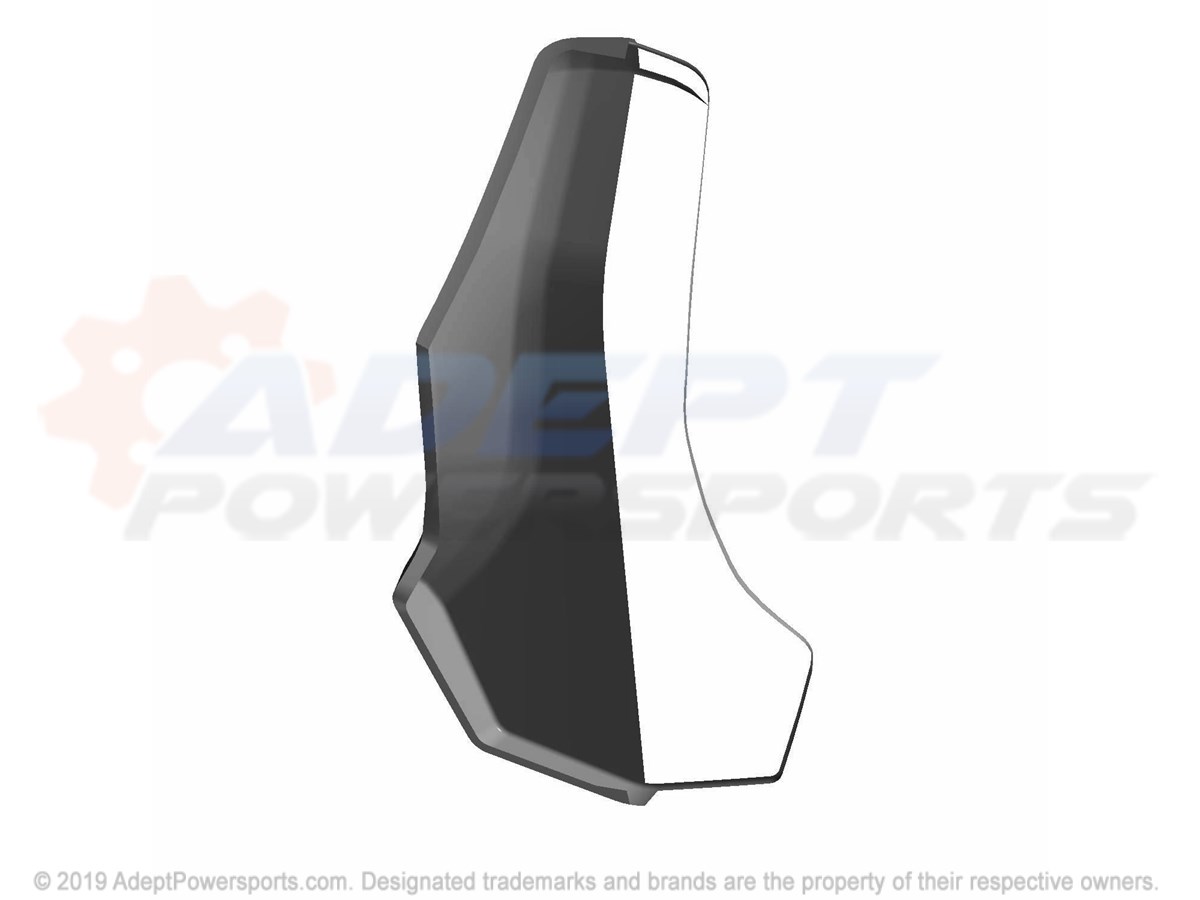

Polaris 2688601 Cover-Seat, Blk/Titanium, Wht, St

COVER-SEAT, BLK/TITANIUM, WHT, ST

Part #: 2688601 Required per assembly: 1
Currently Not Available
2
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
3
Polaris 5418181 Grommet-Seat Latch

GROMMET-SEAT LATCH

Part #: 5418181 Required per assembly: 2 Note: FROM 11/20/2019
Currently Not Available
3
Polaris 5415539 Grommet-Seat Latch

GROMMET-SEAT LATCH

Part #: 5415539 Required per assembly: 2 Note: TO 11/20/2019
Currently Not Available
4
Polaris 1022751-067 Weld-Seat, Latch, Blk

WELD-SEAT, LATCH, BLK

Part #: 1022751-067 Required per assembly: 1
Currently Not Available
5
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
6
Polaris 5451185 Mount-Seat Front

MOUNT-SEAT FRONT

Part #: 5451185 Required per assembly: 1
Currently Not Available
7
Polaris 5250682 Bracket, Seat, Base

BRACKET, SEAT, BASE

Part #: 5250682 Required per assembly: 2
Currently Not Available
8
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
9
Polaris 7517441 Screw

SCREW

Part #: 7517441 Required per assembly: 1
Currently Not Available
