Shift Lever And Cable replacement parts for 2020 Polaris Pro XD Crew (R02)

OEM Parts Polaris 2020 Polaris Pro XD Crew (R02) Shift Lever And Cable

SHIFT LEVER AND CABLE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GROMMET-SHIFTER Part #: 5416371 Required per assembly: 1 Currently Not Available
2	BUSHING, PEDAL, PIVOT Part #: 5439274 Required per assembly: 2 Currently Not Available

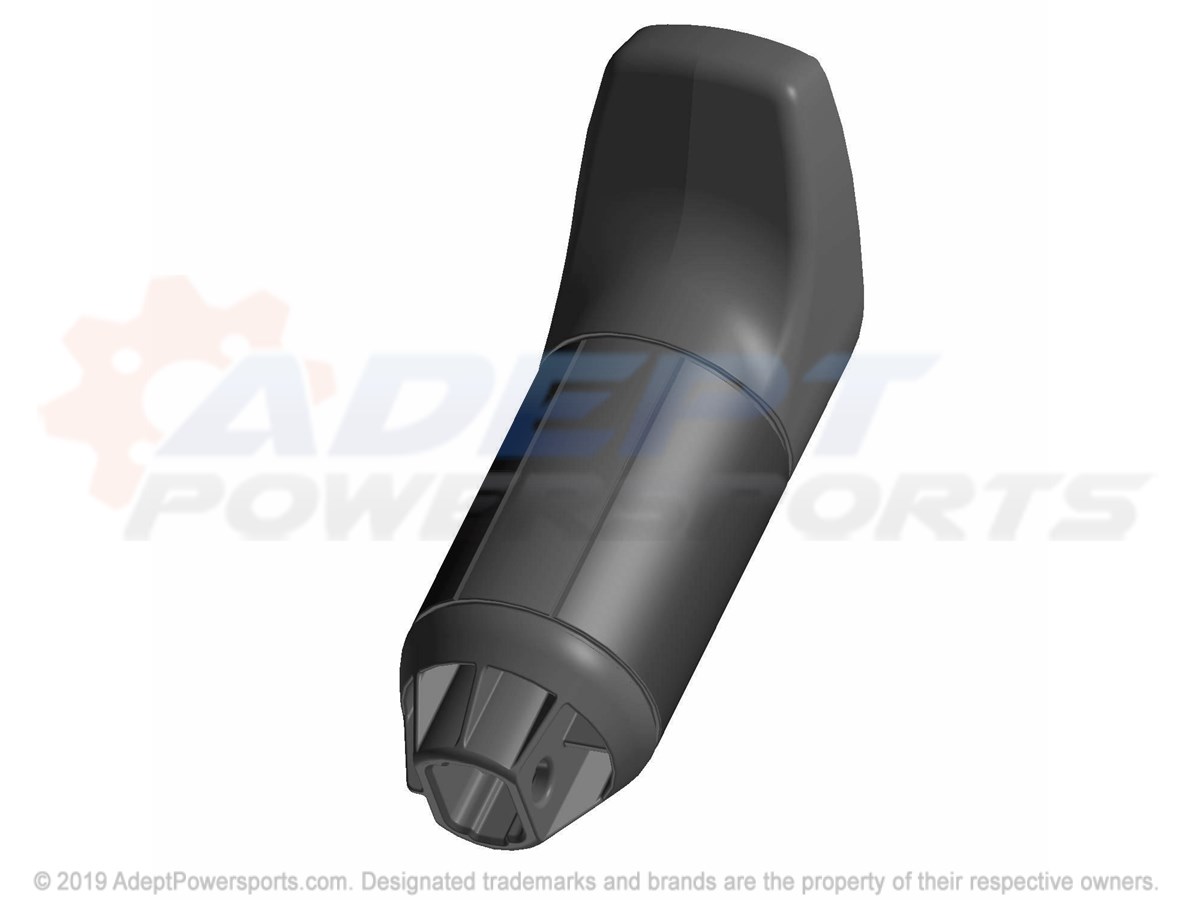

3	KNOB-SHIFTER, BLK Part #: 5457934-070 Required per assembly: 1 Currently Not Available
4	COVER-SHIFTER, KNOB, BLK Part #: 5455972-070 Required per assembly: 1 Currently Not Available
5	SHIFT-LEVER, CAST, M.BLK Part #: 5639439-458 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7512024 Required per assembly: 1 Currently Not Available
7	NUT, NYLOK Part #: 7547144 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
8	CABLE-SHIFTER, CREW, GAS Part #: 7082515 Required per assembly: 1 Currently Not Available
9	RING, RETAINING Part #: 7710901 Required per assembly: 1 Currently Not Available
