OEM Parts Polaris 2020 Polaris Pro XD 4000D (R02) (R01) Front Prop Shaft

2020 Polaris Pro XD 4000D (R02) (R01) D20BEPD4B4 - Front Prop Shaft

FRONT PROP SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

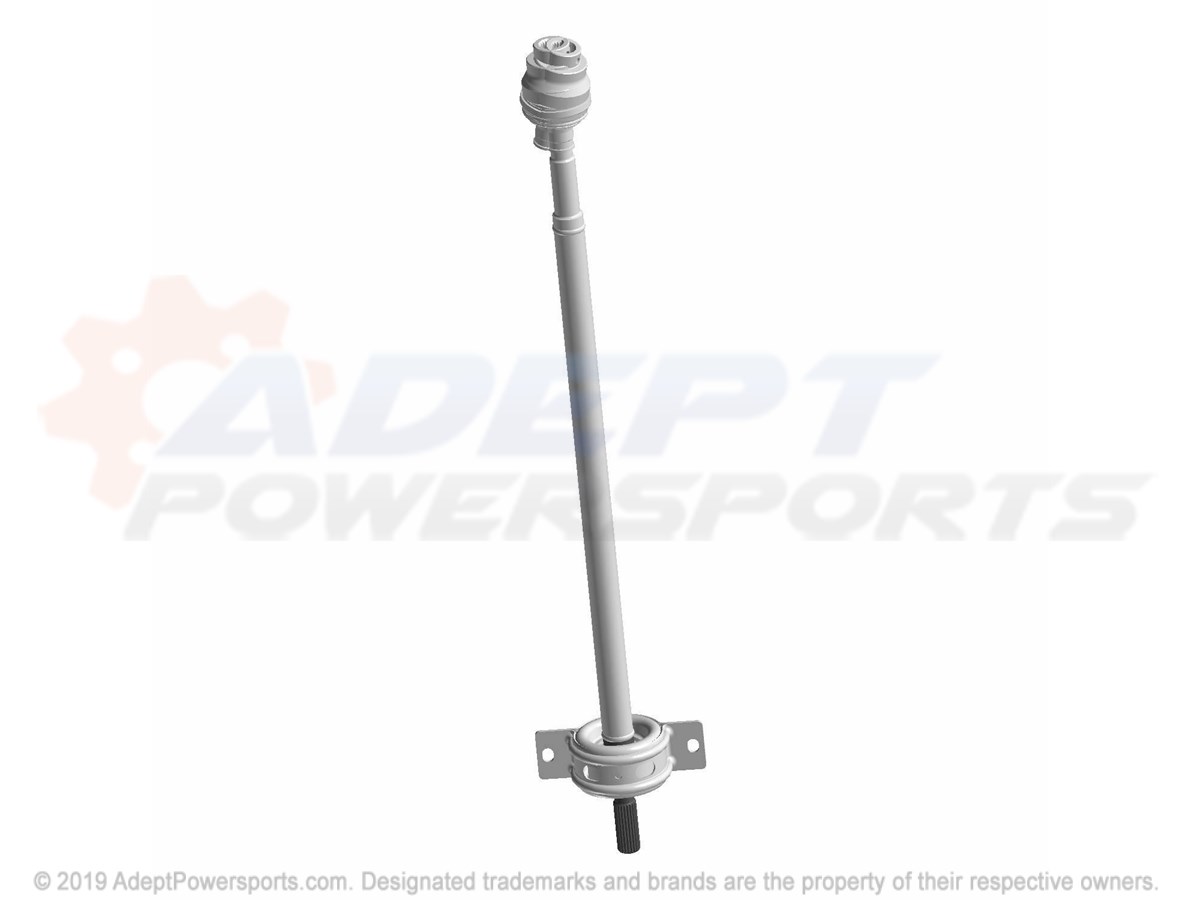

Polaris 1334251 Asm-Propshaft, Front

ASM-PROPSHAFT, FRONT

Part #: 1334251 Required per assembly: 1 Note: FROM 2/3/2020
Currently Not Available
1
Polaris 1334251 Asm-Propshaft, Front

ASM-PROPSHAFT, FRONT

Part #: 1334251 Required per assembly: 1 Note: TO 2/3/2020
Currently Not Available
2

ASM-PROPSHAFT, REAR

Part #: 1334583 Required per assembly: 1
Currently Not Available
3
Polaris 7518460 Screw

SCREW

Part #: 7518460 Required per assembly: 4 Note: Screw, Flange
Currently Not Available
4
Polaris 7519267 Scr-Hxfl-M8x1.25X40 8.8 Zodp30

SCR-HXFL-M8X1.25X40 8.8 ZODP30

Part #: 7519267 Required per assembly: 2
Currently Not Available
5
Polaris 7661913 Pin, Spring

PIN, SPRING

Part #: 7661913 Required per assembly: 1 Note: Sold in multiples of 10 only
Currently Not Available
6
Polaris 3235500 U-Joint

U-JOINT

Part #: 3235500 Required per assembly: 1
Currently Not Available
6

ASM-PROPSHAFT, MID

Part #: 1334584 Required per assembly: 1
Currently Not Available
7
Polaris 3515075 Asm-Bearing, Flex

ASM-BEARING, FLEX

Part #: 3515075 Required per assembly: 2
Currently Not Available
8
Polaris 7080424 Fitting, Lube.

FITTING, LUBE.

Part #: 7080424 Required per assembly: 2 Note: Fitting, Lubrication
Currently Not Available
