Clutch Cover And Ducting replacement parts for 2020 Polaris General 1000 4P EPS EU (R02)

OEM Parts Polaris 2020 Polaris General 1000 4P EPS EU (R02) Clutch Cover And Ducting

CLUTCH COVER AND DUCTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SEAL-OUTER CLUTCH COVER Part #: 5526449 Required per assembly: 1 Currently Not Available
2	ASM-BOLT/WASHER 20 MM Part #: 7519278 Required per assembly: 7 Currently Not Available
3	BRKT-BELT SCREEN Part #: 5256732 Required per assembly: 1 Currently Not Available

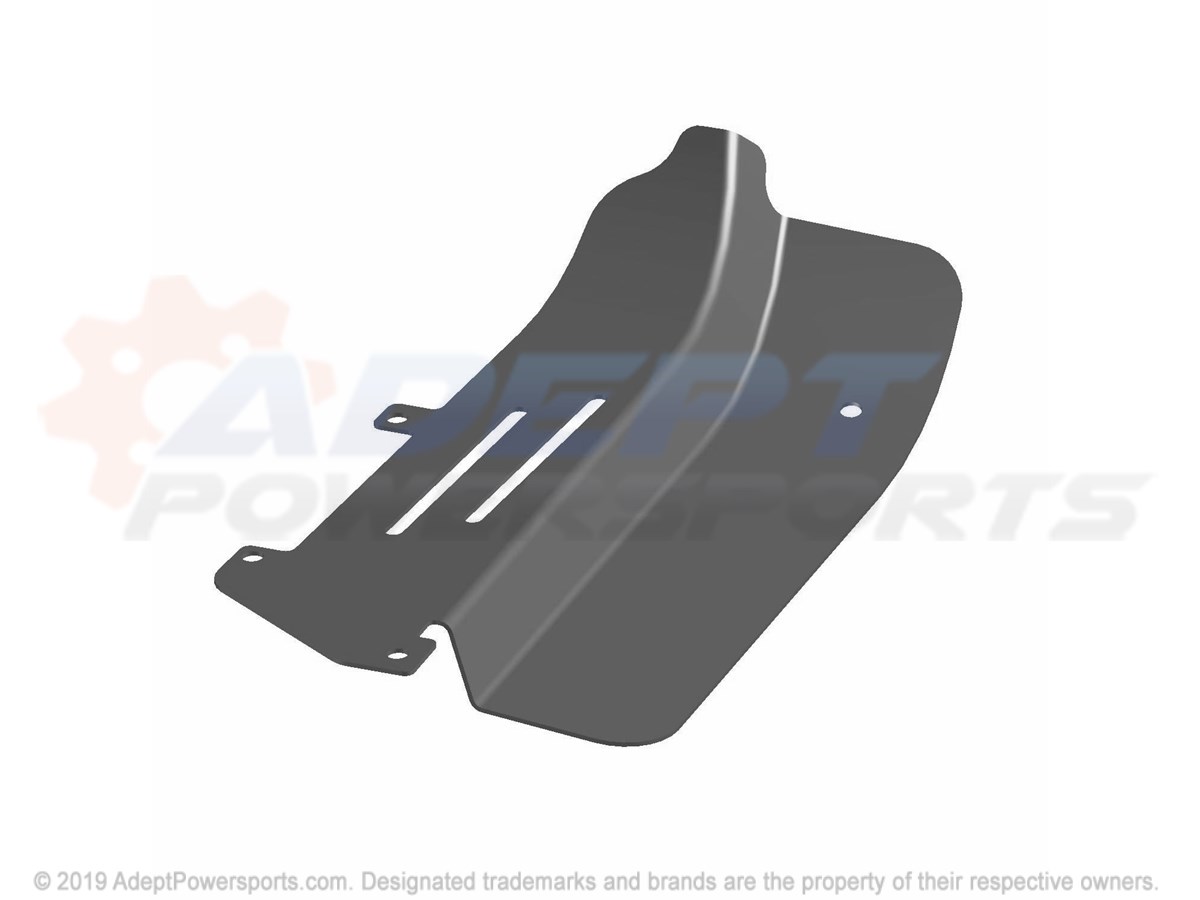

4	SHIELD, CLUTCH, COVER Part #: 5268504 Required per assembly: 1 Currently Not Available
5	DUCT, CLUTCH, AIR, INLET Part #: 5439086 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7518546 Required per assembly: 3 Currently Not Available
7	SCREW Part #: 7519205 Required per assembly: 5 ~~$2.99~~ $1.73 - + Add to cart
8	NUT, FLANGE Part #: 7547453 Required per assembly: 3 Currently Not Available
9	K-CVR, CLUTCH, GEN, EU Part #: 2207410 Required per assembly: 1 Note: INCL. 11-12,14 Currently Not Available
10	O-RING, MOLDED Part #: 5411432 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
11	PLUG-DRAIN, CLUTCH, COVER Part #: 5434264 Required per assembly: 1 Note: Plug, Drain Currently Not Available
12	SEAL-COVER PTO Part #: 5813708 Required per assembly: 1 Currently Not Available
13	CLAMP, HOSE Part #: 7080907 Required per assembly: 1 Currently Not Available
14	DECAL-WARN, CLUTCH, COVER, EU Part #: 7181427 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
16	CLAMP, FILTER Part #: 7081129 Required per assembly: 1 Currently Not Available
17	CLAMP, NARROW, BAND Part #: 7081279 Required per assembly: 5 Currently Not Available
18	CLAMP-HOSE, SLOTTED, 89-100, DIA Part #: 7081969 Required per assembly: 2 Currently Not Available
19	SCREW Part #: 7519330 Required per assembly: 8 ~~$2.50~~ $1.73 - + Add to cart
20	CLAMP, HOSE Part #: 7080451 Required per assembly: 1 ~~$6.99~~ $4.03 - + Add to cart
21	HOSE-CLUTCH, AIR, OUTLET Part #: 5451061 Required per assembly: 1 Currently Not Available
22	HOSE-CLUTCH, INLET Part #: 5415467 Required per assembly: 1 Currently Not Available
23	HOSE-INTAKE, DUCT Part #: 5415468 Required per assembly: 1 Currently Not Available
24	HOSE-CLUTCH, SCNDRY, INTK, RBR Part #: 5416058 Required per assembly: 1 Currently Not Available
25	HOSE-INTAKE, DUCT Part #: 5415811 Required per assembly: 1 Currently Not Available

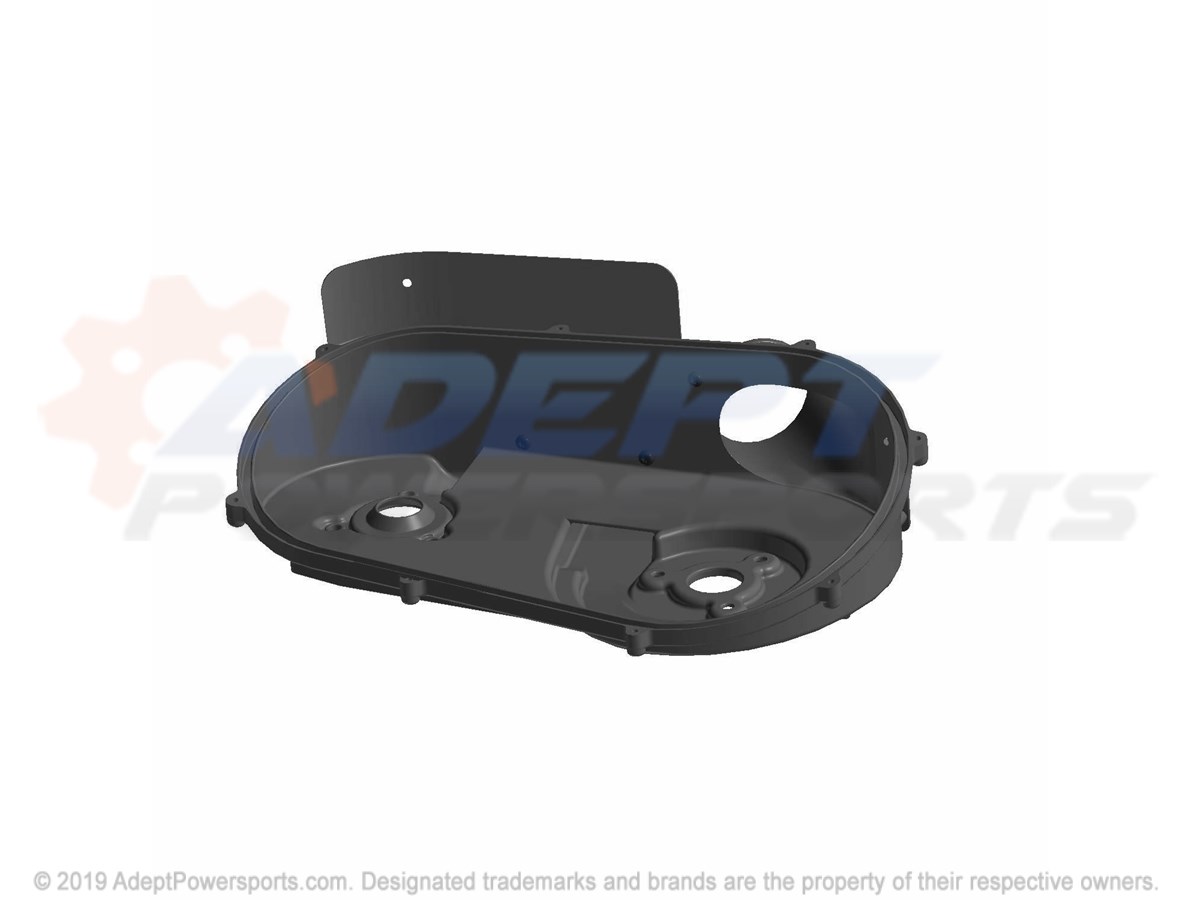

26	COVER-CLUTCH, INNER, BLK Part #: 5454487-070 Required per assembly: 1 Currently Not Available
26	ASM-COVER, CLUTCH, INNER Part #: 2637760 Required per assembly: 1 Note: INCL. 4-8 AND 26-27 Currently Not Available
27	DUCT-CLUTCH, AIR, OUTLET Part #: 5450846 Required per assembly: 1 Currently Not Available
