OEM Parts Polaris 2020 Polaris General 1000 4P DLX OPT1 (R04) Battery

2020 Polaris General 1000 4P DLX OPT1 (R04) G20G4J99AS/BS - Battery

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

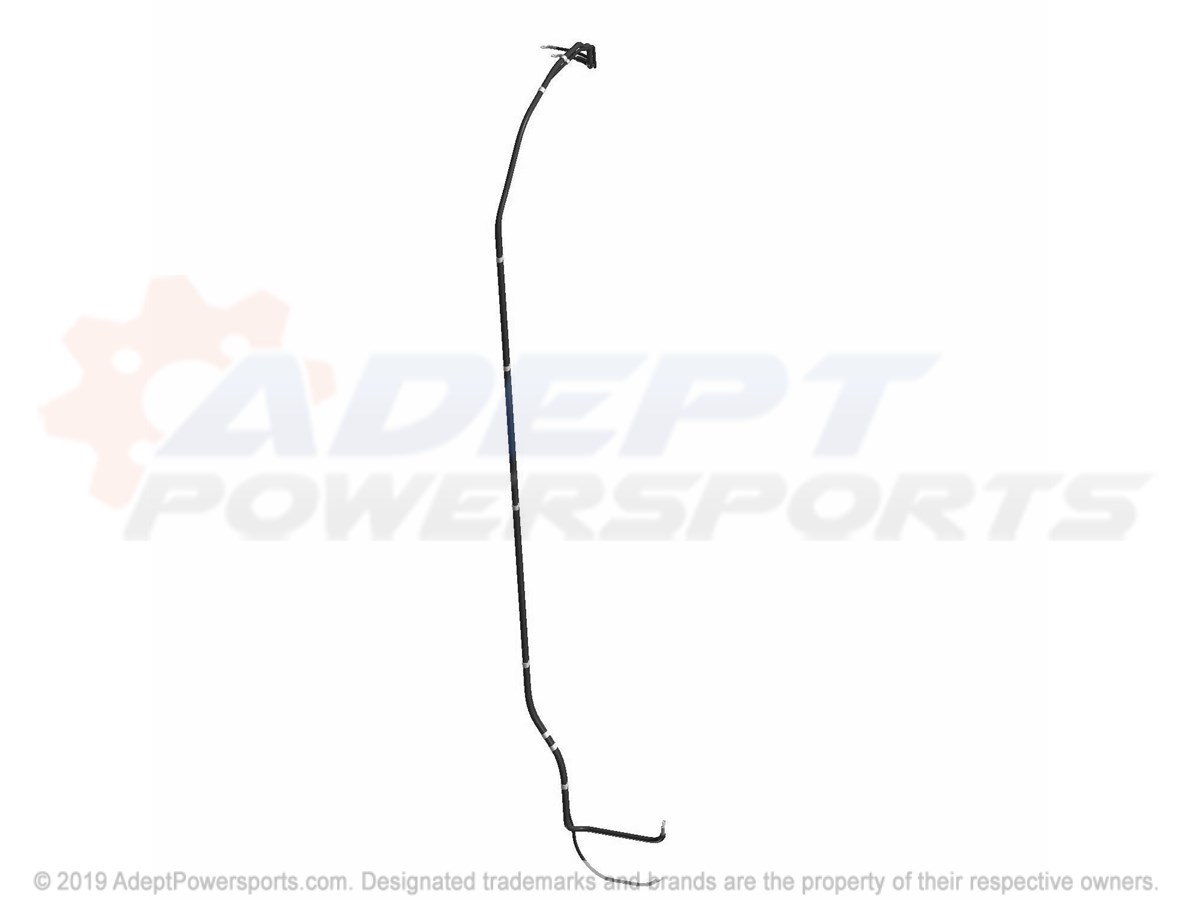

Polaris 4015897 Cable-Batt To Solenoid

CABLE-BATT TO SOLENOID

Part #: 4015897 Required per assembly: 1
Currently Not Available
2

CABLE-START TO SOLENOID

Part #: 4015426 Required per assembly: 1
Currently Not Available
3
Polaris 4015896 Cable-Ground, Eng, Bat, Chas

CABLE-GROUND, ENG, BAT, CHAS

Part #: 4015896 Required per assembly: 1
Currently Not Available
4

BATTERY

Part #: 4014132-P Required per assembly: 1
Currently Not Available
5
Polaris 5257827 Bracket, Battery, Strap

BRACKET, BATTERY, STRAP

Part #: 5257827 Required per assembly: 1
Currently Not Available
6
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 3
$2.99
$1.73
-
+
Add to cart
7

NUT, METRIC

Part #: 7546703 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
8
Polaris 7519333 Stud

STUD

Part #: 7519333 Required per assembly: 1
Currently Not Available
9
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 1 Note: Nut, Flange
Currently Not Available
10
Polaris 4014655 Solenoid-Starter, Sealed

SOLENOID-STARTER, SEALED

Part #: 4014655 Required per assembly: 1
Currently Not Available
11
Polaris 7177052 Decal-Battery Diesel Polaris

DECAL-BATTERY DIESEL POLARIS

Part #: 7177052 Required per assembly: 1
$3.52
$2.75
-
+
Add to cart
12
Polaris 4018292 Cbl-Accy, Bat, To, Term, Block

CBL-ACCY, BAT, TO, TERM, BLOCK

Part #: 4018292 Required per assembly: 1
Currently Not Available
13
Polaris 5416083 Strap-Batt, Spacer, Rubber

STRAP-BATT, SPACER, RUBBER

Part #: 5416083 Required per assembly: 1
Currently Not Available
