Engine Asm. replacement parts for 2020 Polaris P3200iE (R01)

OEM Parts Polaris 2020 Polaris P3200iE (R01) Engine Asm.

ENGINE ASM. Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-RECOIL, 3K Part #: 2208656 Required per assembly: 1 Note: INCL.11 Currently Not Available

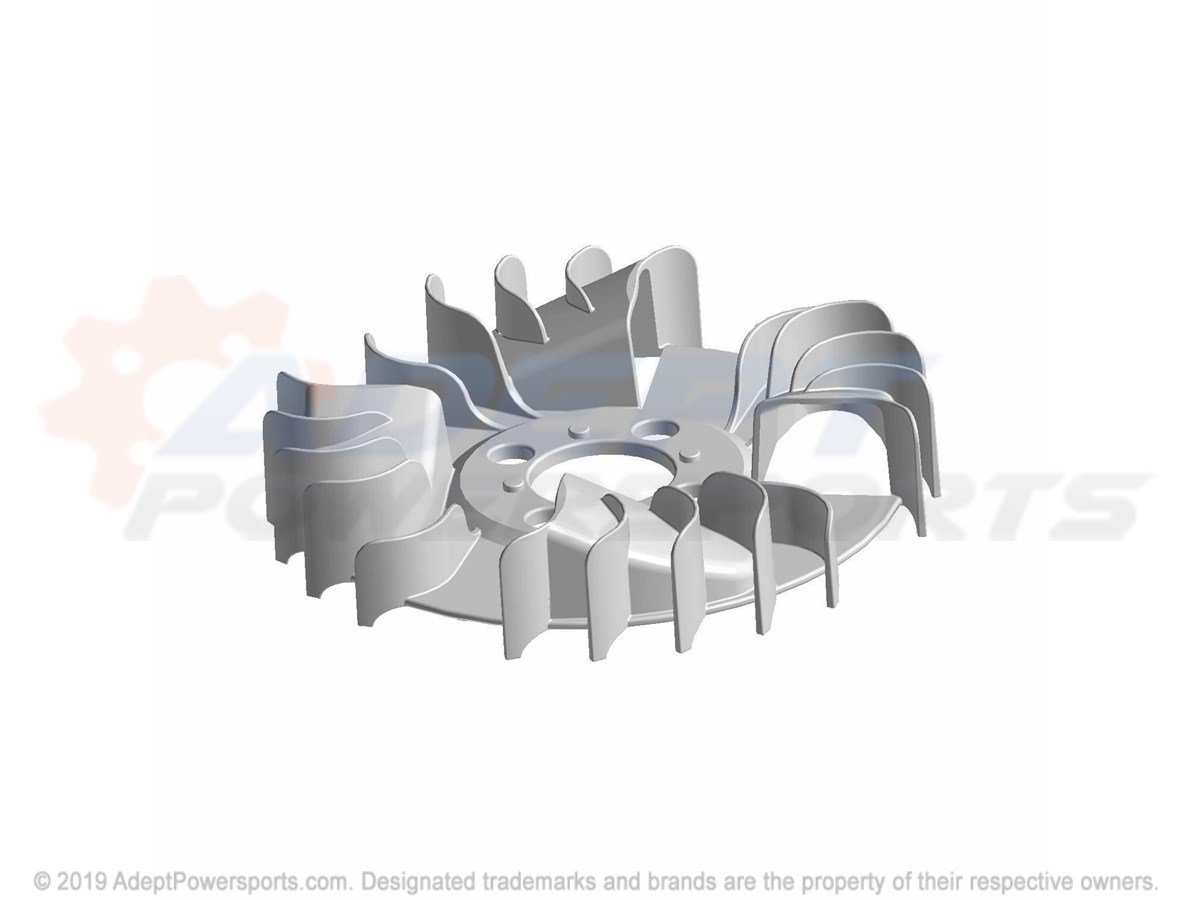

2	FAN-GENERATOR, COOLING, 3K Part #: 3410483 Required per assembly: 1 Currently Not Available
3	FLYWHEEL, 3K Part #: 3410485 Required per assembly: 1 Currently Not Available
4	ASM-STATOR, 3K Part #: 2208657 Required per assembly: 1 Currently Not Available
5	ASM-MOTOR, MOUNTS, 3K Part #: 2208660 Required per assembly: 1 Currently Not Available
6	ASM-CARB, COMPLETE, 3K Part #: 2208664 Required per assembly: 1 Currently Not Available
7	ASM-CARB, GASKET, 3K Part #: 2208658 Required per assembly: 1 Currently Not Available
8	FAN-EXHAUST, COOLING, 3K Part #: 3410484 Required per assembly: 1 Currently Not Available

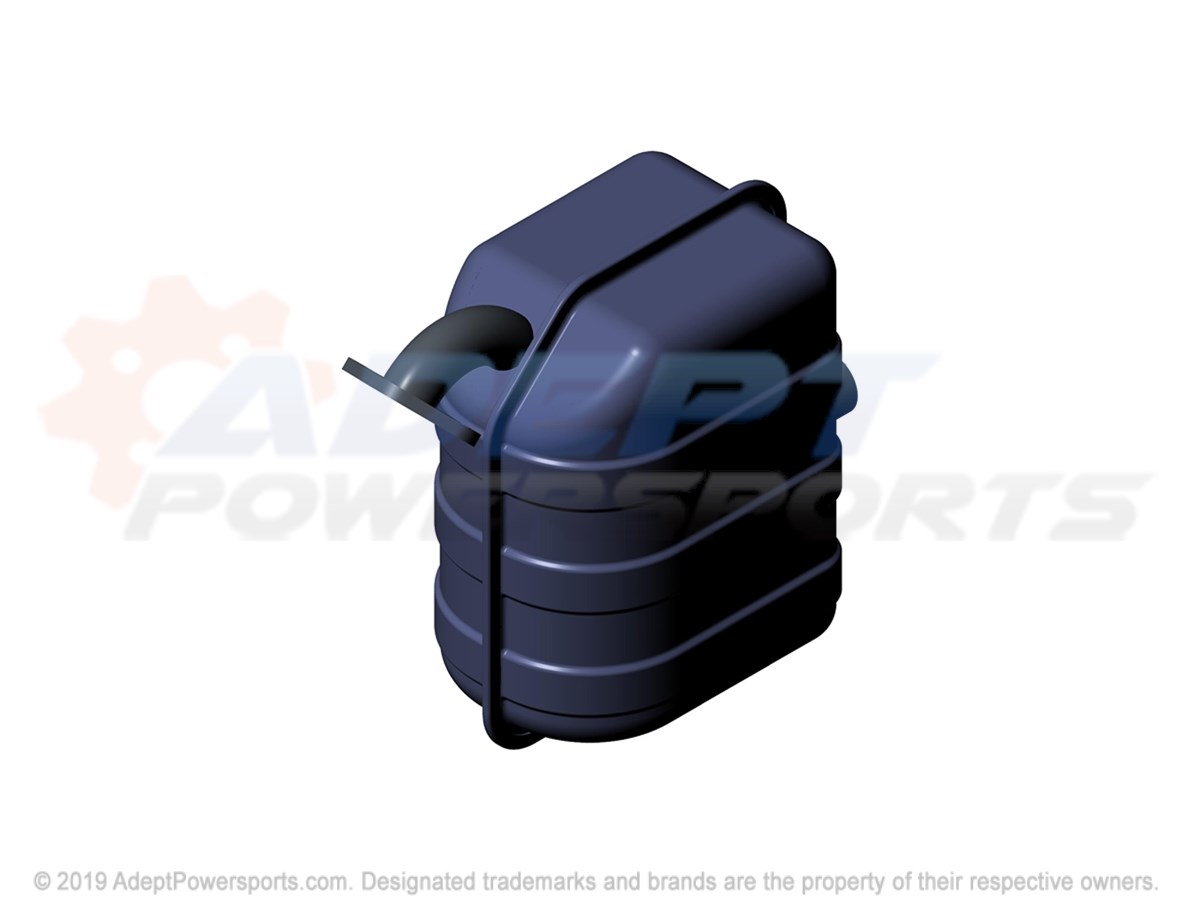

9	EXHAUST-3K Part #: 3410520 Required per assembly: 1 Currently Not Available
10	ASM-SPARK, ARRESTOR, 3K Part #: 2208666 Required per assembly: 1 Currently Not Available
11	HANDLE-RECOIL, 2K, 3K Part #: 3410486 Required per assembly: 1 Currently Not Available

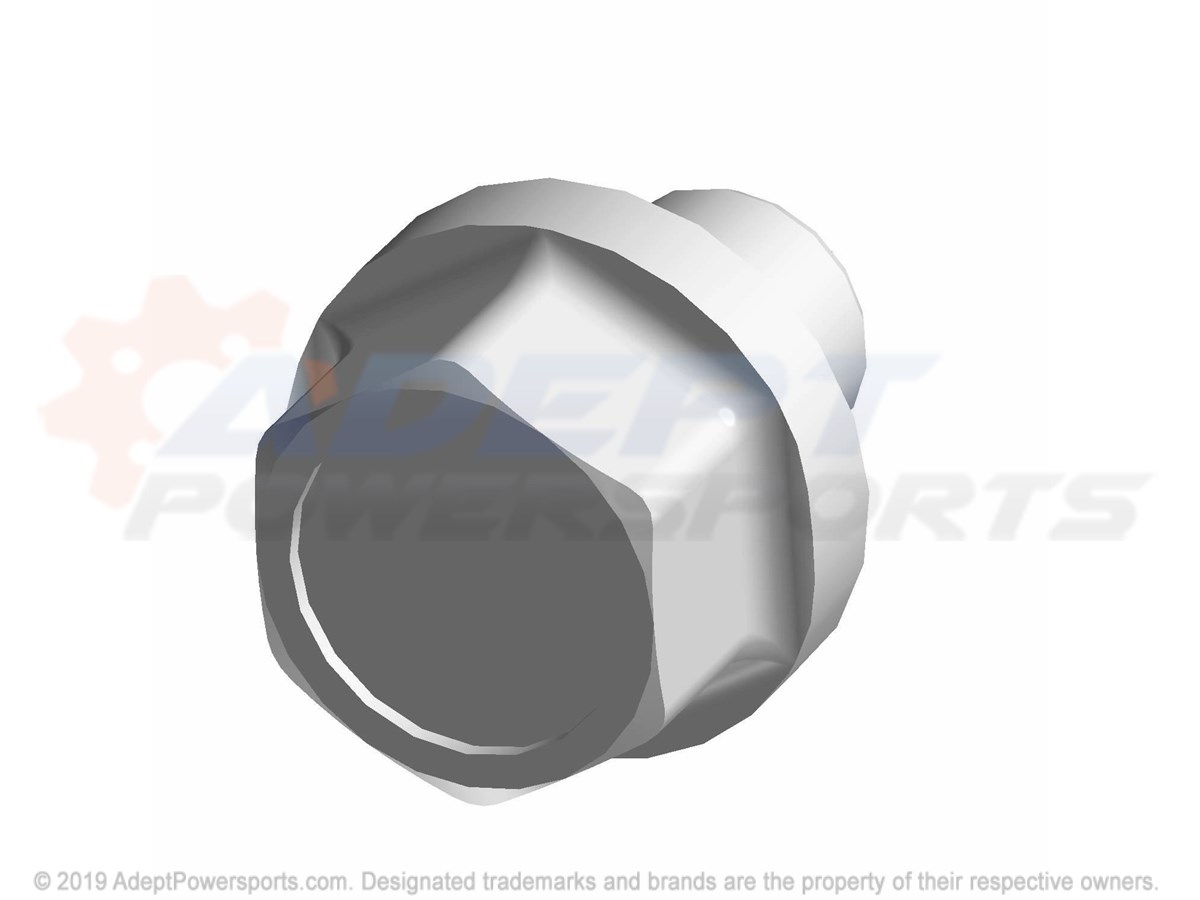

12	PLUG-OIL, DRAIN, FITTING, 3K Part #: 3410488 Required per assembly: 1 Note: INCL. BRASS WASHER Currently Not Available
13	ASM-OIL, DRAIN, 3K Part #: 2208661 Required per assembly: 1 Currently Not Available
14	ASM-DIPSTICK, W/O-RING, 3K Part #: 2208707 Required per assembly: 1 Currently Not Available
15	PLUG-SPARK, 3K Part #: 3410487 Required per assembly: 1 Currently Not Available
16	ASM-AIRBOX, 3K Part #: 2208659 Required per assembly: 1 Currently Not Available
17	ASM-MAGNETO, 3K Part #: 3410475 Required per assembly: 1 Currently Not Available
18	FILTER-AIR, 3K Part #: 3410530 Required per assembly: 1 Currently Not Available
