OEM Parts Polaris 2020 Polaris Ranger 570 Crew FULL SIZE (R02) Front Bumper

2020 Polaris Ranger 570 Crew FULL SIZE (R02) R20CDA57A1/B1 - Front Bumper

FRONT BUMPER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

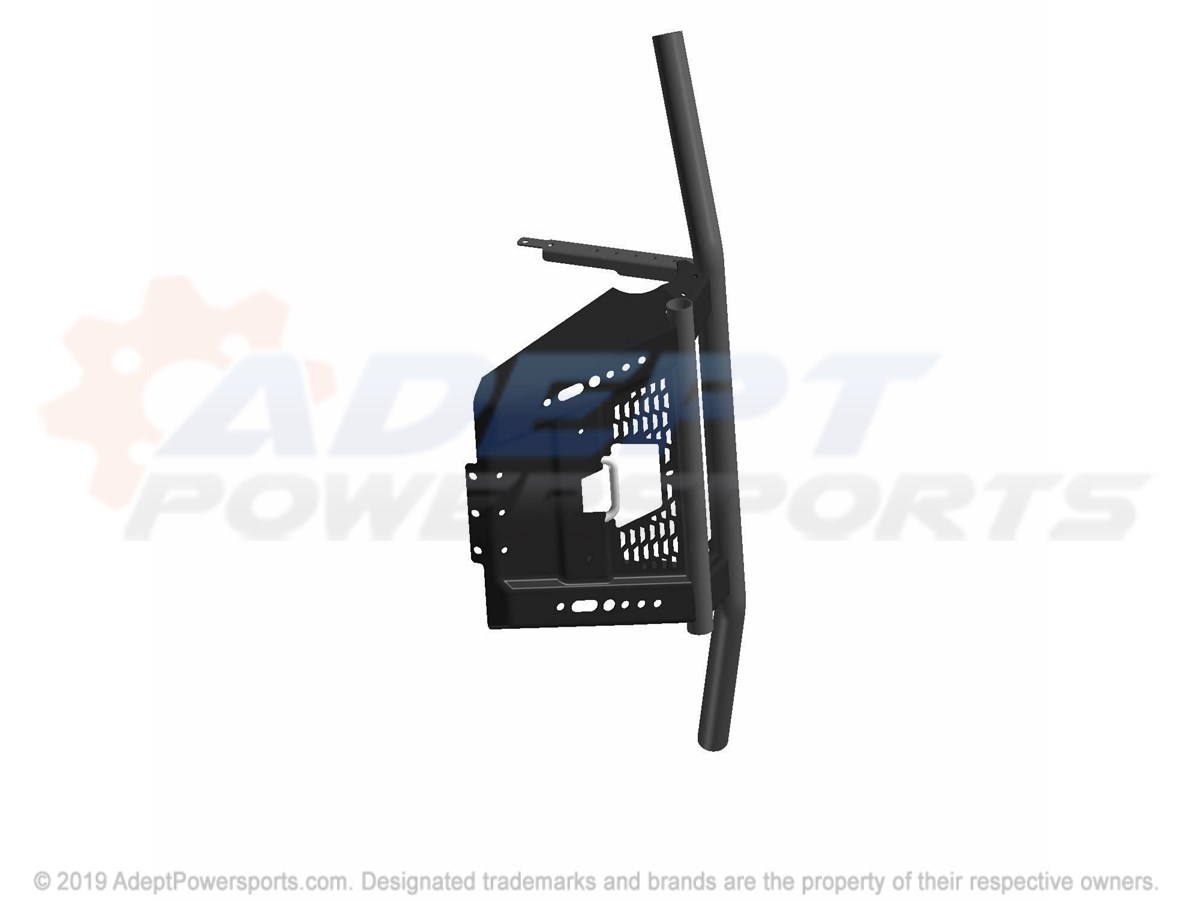

Polaris 1023525-458 Weld-Bumper, Matte, Blk

WELD-BUMPER, MATTE, BLK

Part #: 1023525-458 Required per assembly: 1
Currently Not Available
2
Polaris 5438181-070 Bracket, Bumper, Guard, Black

BRACKET, BUMPER, GUARD, BLACK

Part #: 5438181-070 Required per assembly: 1
Currently Not Available
3
Polaris 5438240-070 Screen, Bumper, Upper, Black

SCREEN, BUMPER, UPPER, BLACK

Part #: 5438240-070 Required per assembly: 1
Currently Not Available
4
Polaris 7518158 Screw

SCREW

Part #: 7518158 Required per assembly: 3
Currently Not Available
5
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 2
Currently Not Available
6
Polaris 5454785 Cap-Bumper

CAP-BUMPER

Part #: 5454785 Required per assembly: 2
Currently Not Available
7

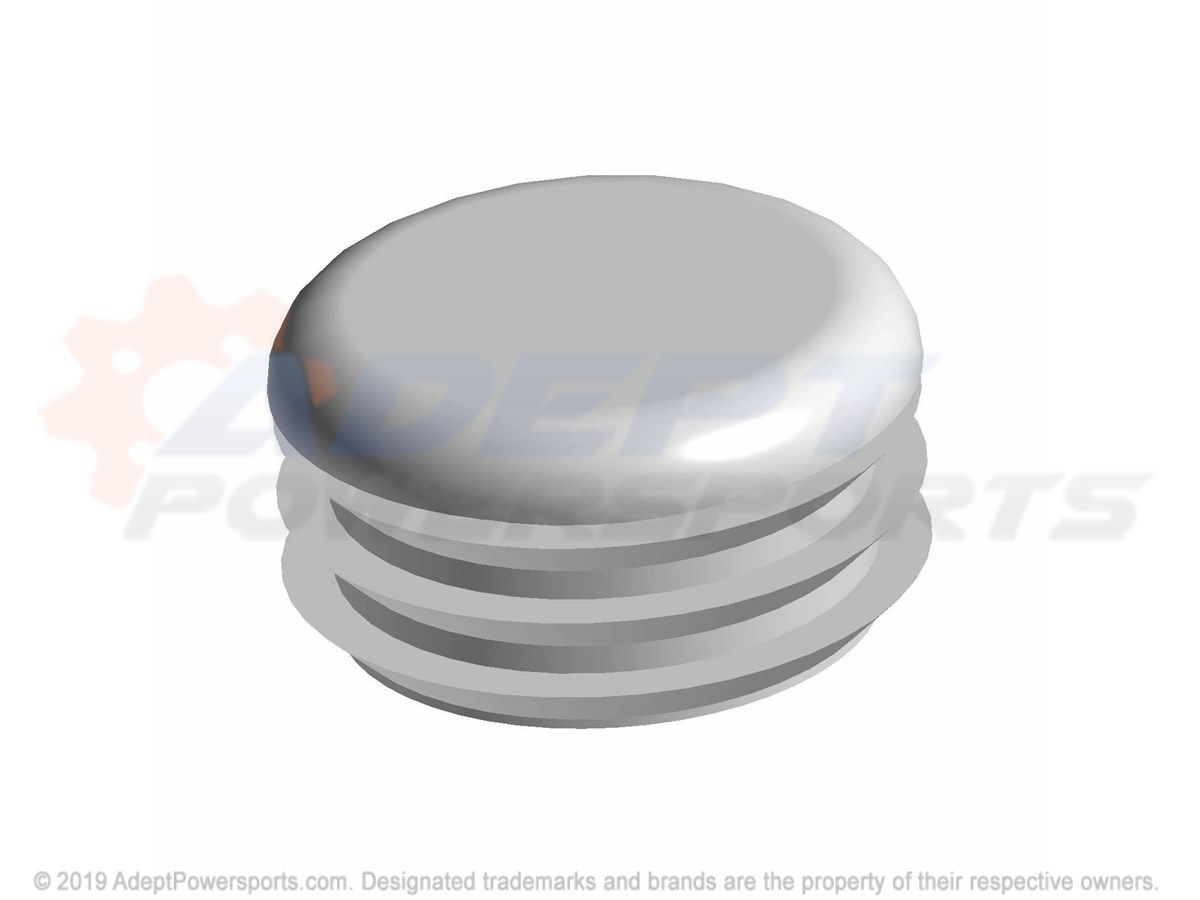

Polaris 5434191 Cap, Bumper

CAP, BUMPER

Part #: 5434191 Required per assembly: 2
$5.99
$3.81
-
+
Add to cart
8
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 7 Note: Bolt, Flange
Currently Not Available
