2020 Polaris Ranger 570 Crew (R03) R20M4A57B1/B9/EBH - Caliper, Front

CALIPER, FRONT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 1930642 Kit, Boot, F.Brake

KIT, BOOT, F.BRAKE

Part #: 1930642 Required per assembly: 1 Note: INCL. 6,7
Currently Not Available
1

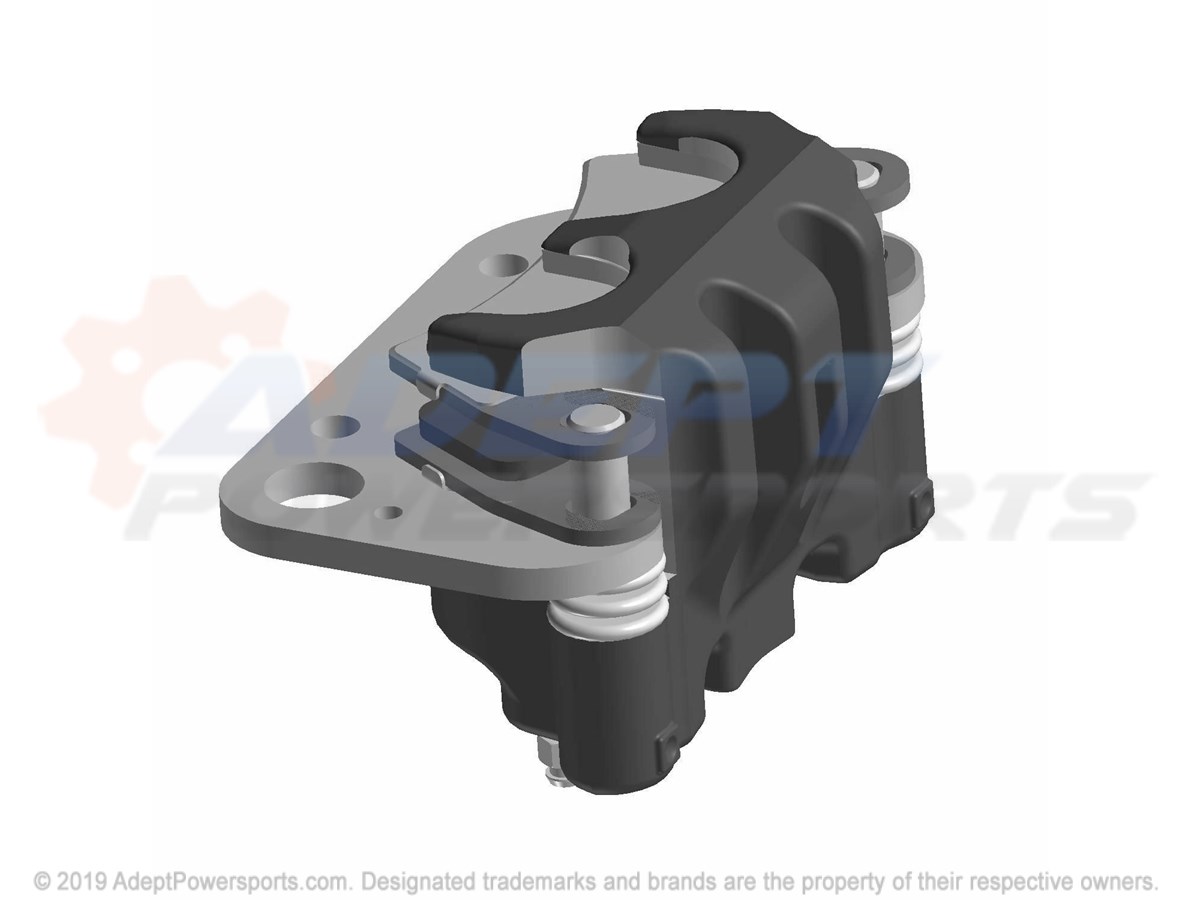

Polaris 1912124 Assembly, Caliper, Brake, Rh

ASSEMBLY, CALIPER, BRAKE, RH

Part #: 1912124 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
1
Polaris 1912123 Assembly, Caliper, Brake, Lh

ASSEMBLY, CALIPER, BRAKE, LH

Part #: 1912123 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

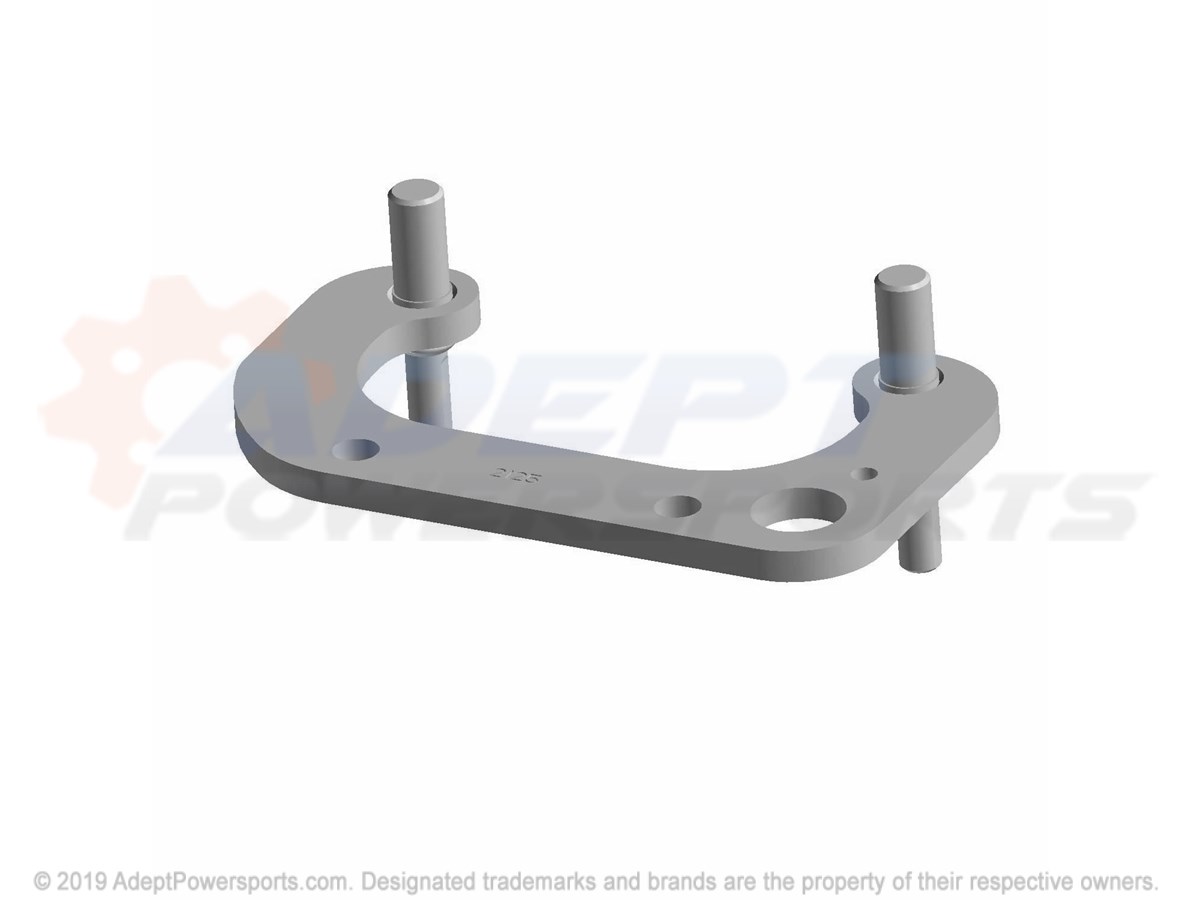

Polaris 1912125 Assembly, Caliper, Mount

ASSEMBLY, CALIPER, MOUNT

Part #: 1912125 Required per assembly: 1
Currently Not Available
3
Polaris 5135134 Piston, Caliper

PISTON, CALIPER

Part #: 5135134 Required per assembly: 2
Currently Not Available
4
Polaris 2205949 K-Asm, Pad, Brake, Db, 1.375

K-ASM, PAD, BRAKE, DB, 1.375

Part #: 2205949 Required per assembly: 1 Note: INCL 4 PADS
Currently Not Available
4

K-ASM, HD, PAD, BRK, DB, 1.375

Part #: 2208933 Required per assembly: 1 Note: OPTIONAL
Currently Not Available
5
Polaris 5412907 Seal, Caliper, Inner

SEAL, CALIPER, INNER

Part #: 5412907 Required per assembly: 4
Currently Not Available
6
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 1
Currently Not Available
7
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 1
Currently Not Available
8

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 1
Currently Not Available
9
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 1
Currently Not Available
