2020 Polaris Ranger 570 3PC (R02) R20MAA57K1 - Cam Chain And Sprocket

CAM CHAIN and SPROCKET Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

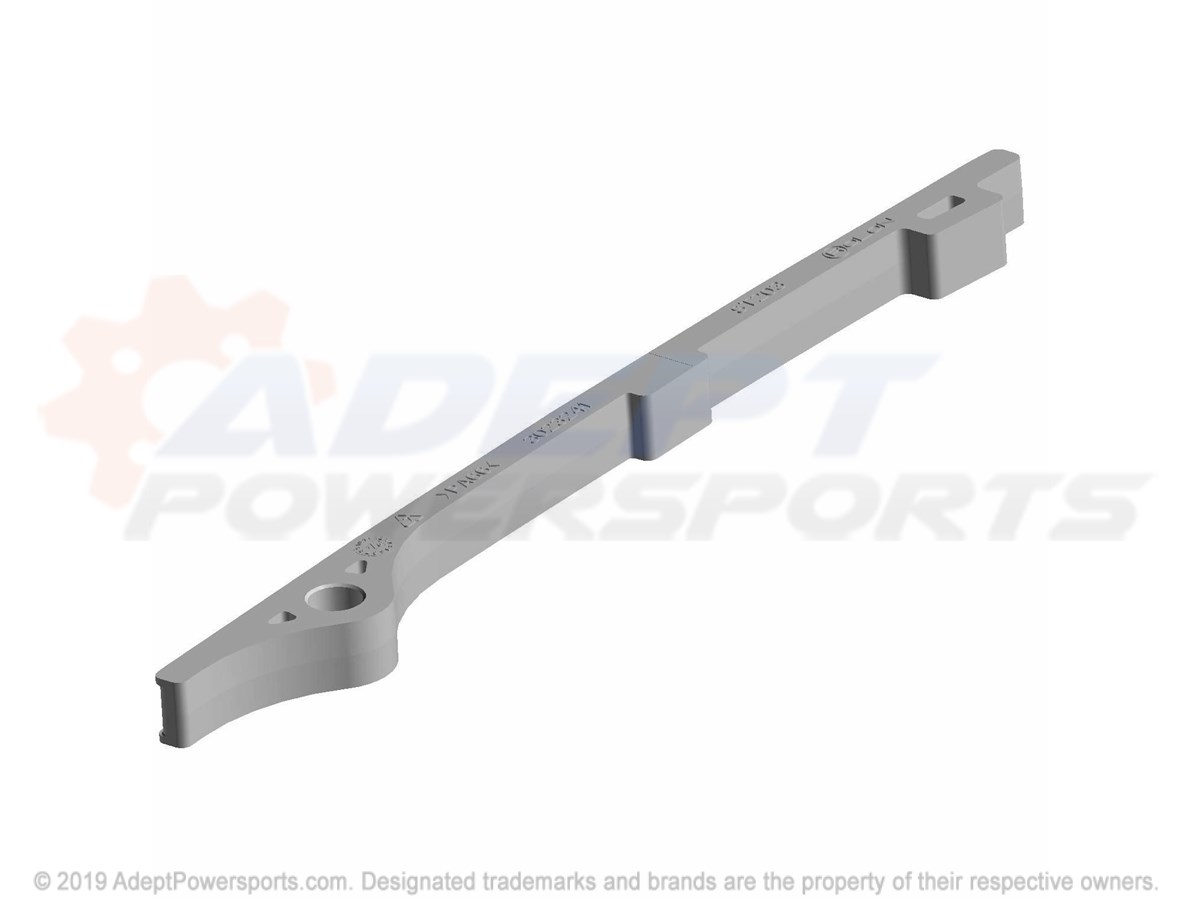

Polaris 3023241 Guide-Cam, Drive, Fixed

GUIDE-CAM, DRIVE, FIXED

Part #: 3023241 Required per assembly: 1
Currently Not Available
2

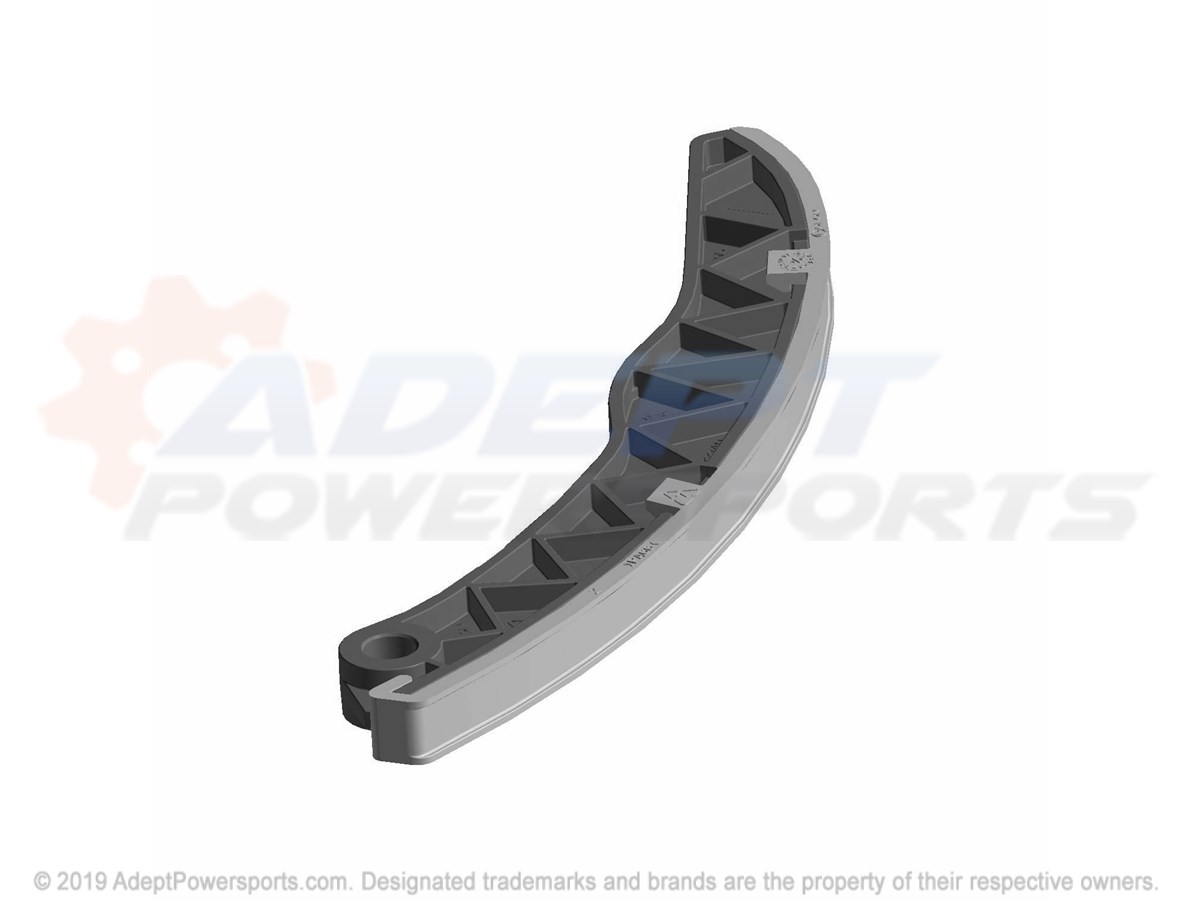

Polaris 3023240 Guide-Cam, Drive, Tensioned

GUIDE-CAM, DRIVE, TENSIONED

Part #: 3023240 Required per assembly: 1
Currently Not Available
3

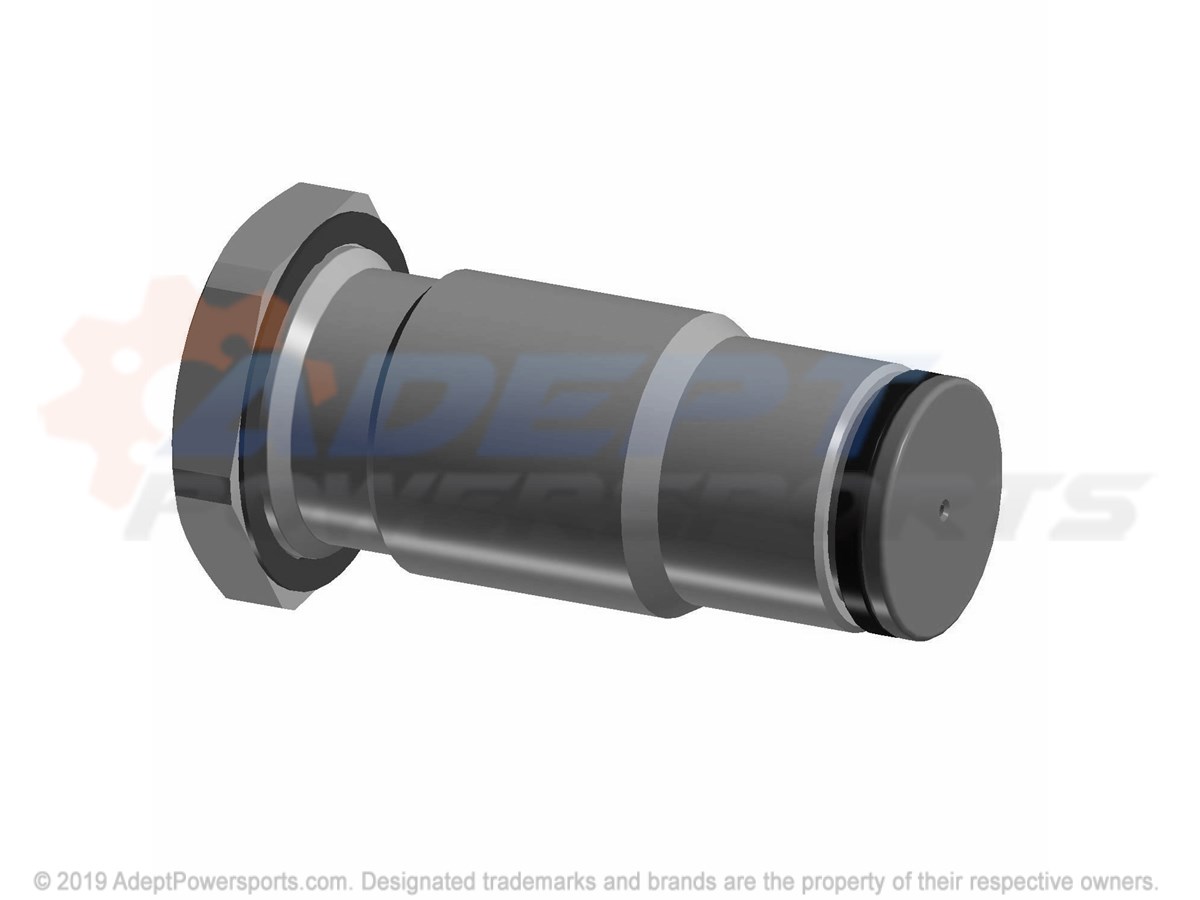

Polaris 3023501 Tensioner-Camchain, Hyd, [From, 11/1/2017]

TENSIONER-CAMCHAIN, HYD, [FROM, 11/1/2017]

Part #: 3023501 Required per assembly: 1 Note: INCL. TENSIONER GASKET
Currently Not Available
3

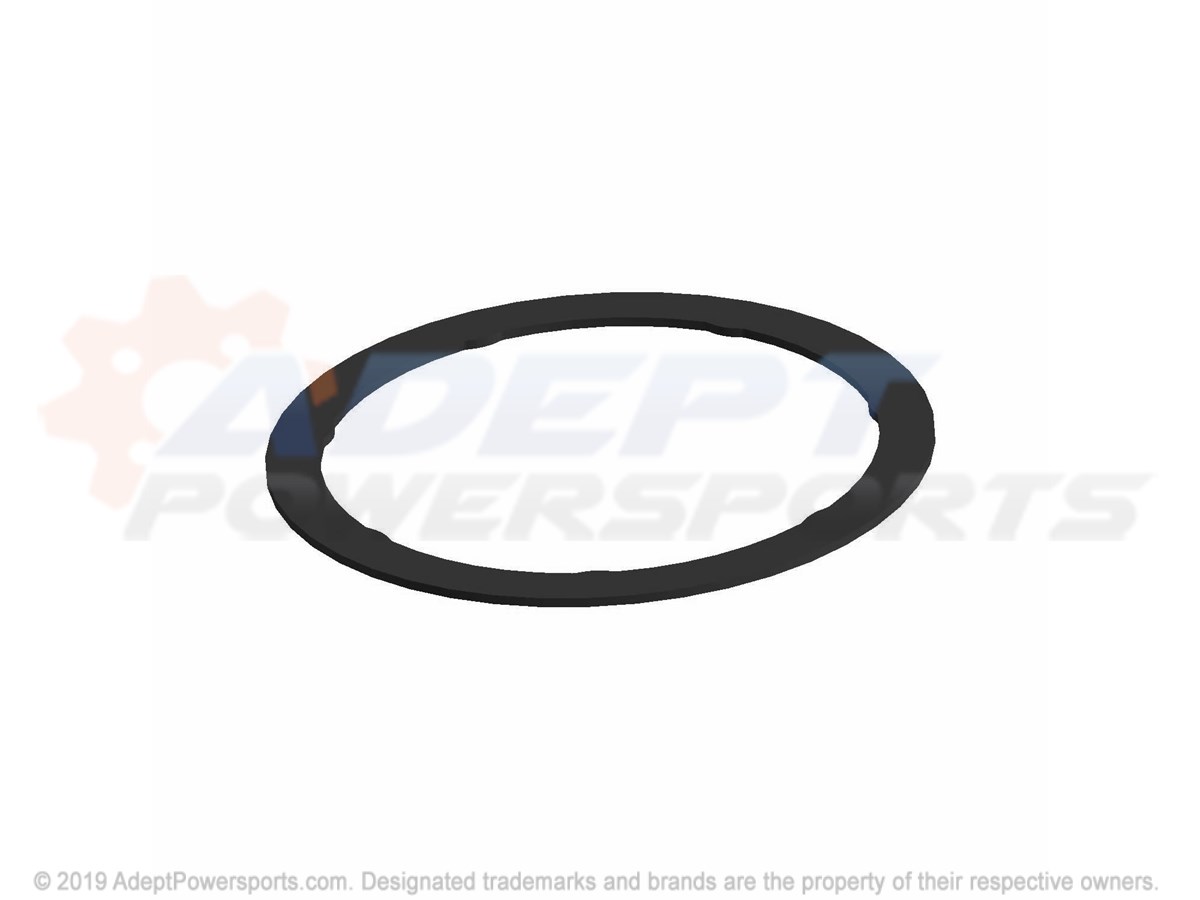

Polaris 5814753 Gasket-Tensioner

GASKET-TENSIONER

Part #: 5814753 Required per assembly: 1
Currently Not Available
4

GUIDE-CAM, DRIVE, UPPER

Part #: 3024019 Required per assembly: 1
Currently Not Available
5
Polaris 3022711 Guide-Cam, Drive, Lower

GUIDE-CAM, DRIVE, LOWER

Part #: 3022711 Required per assembly: 1
Currently Not Available
6

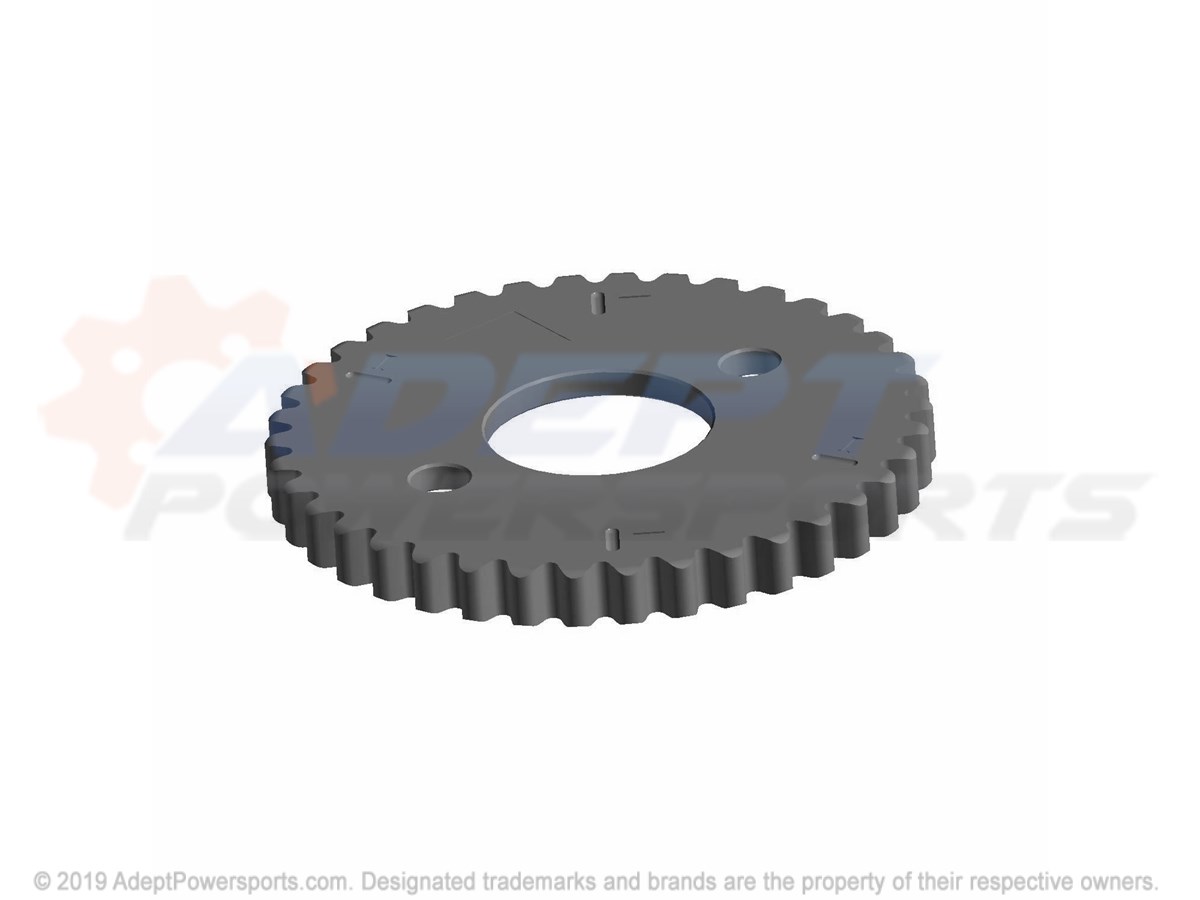

Polaris 3222265 Sprocket-Cam, Driven, Dohc

SPROCKET-CAM, DRIVEN, DOHC

Part #: 3222265 Required per assembly: 2
Currently Not Available
7

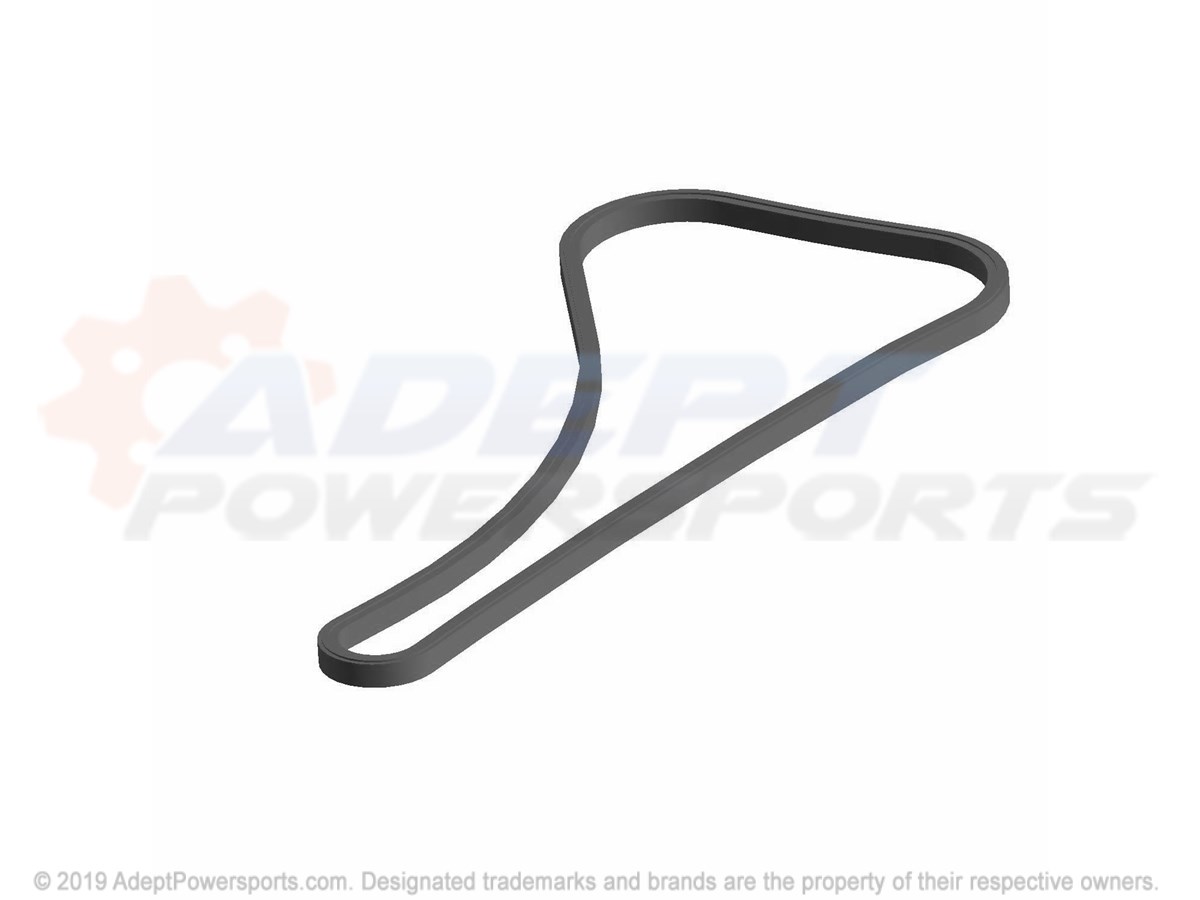

Polaris 3222264 Chain-Camshaft 144L

CHAIN-CAMSHAFT 144L

Part #: 3222264 Required per assembly: 1
Currently Not Available
8
Polaris 7518576 Screw

SCREW

Part #: 7518576 Required per assembly: 2
Currently Not Available
9
Polaris 7519164 Scr-Hxfl M6x1.0X10 10.9

SCR-HXFL M6X1.0X10 10.9

Part #: 7519164 Required per assembly: 4
Currently Not Available
10
Polaris 7519165 Bolt-Shldr M6x12x15

BOLT-SHLDR M6X12X15

Part #: 7519165 Required per assembly: 2
Currently Not Available
