OEM Parts Polaris 2020 Polaris Ranger 1000XP PS MUD (R03) Rear Prop Shaft

2020 Polaris Ranger 1000XP PS MUD (R03) R20RRM99AL - Rear Prop Shaft

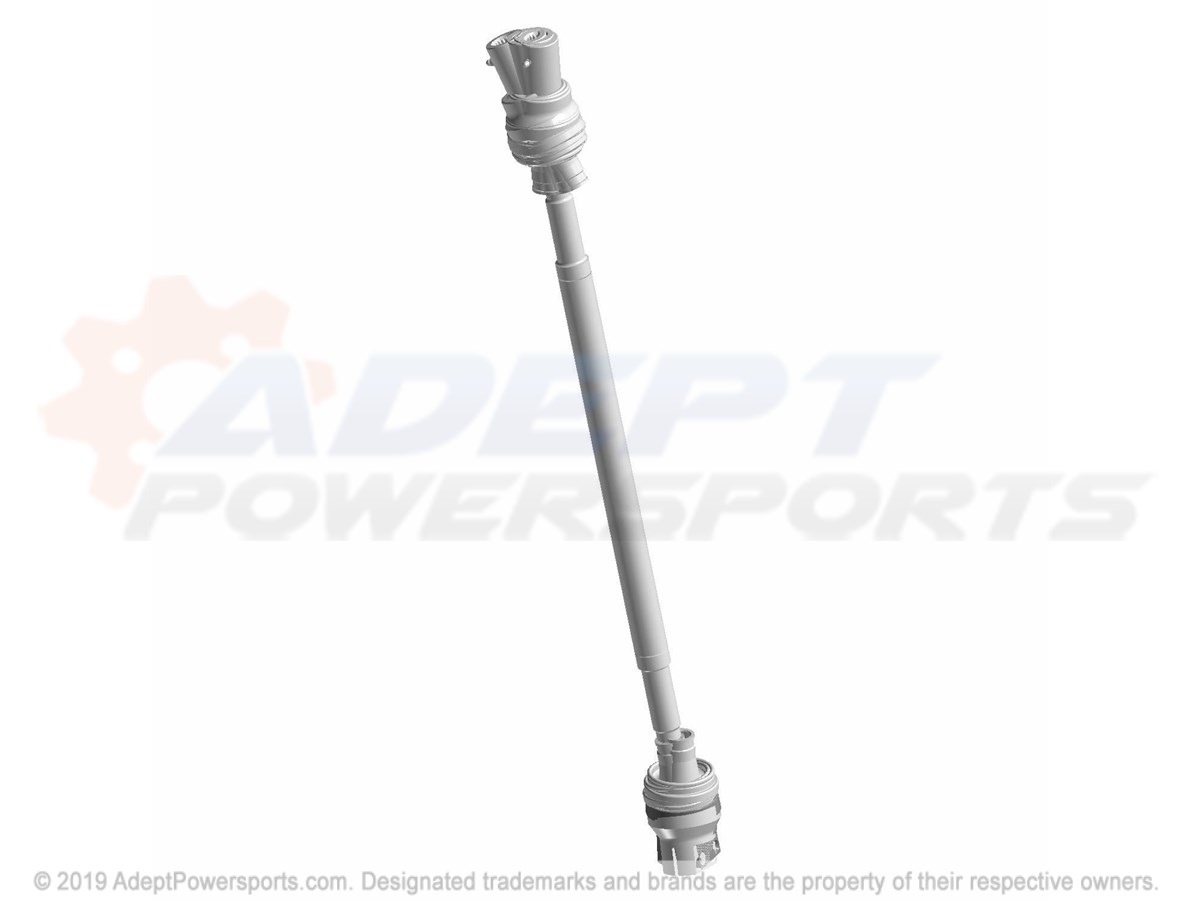

REAR PROP SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1334359 Asm-Propshaft, Rear

ASM-PROPSHAFT, REAR

Part #: 1334359 Required per assembly: 1 Note: INCL. 3-5
Currently Not Available
2
Polaris 7519267 Scr-Hxfl-M8x1.25X40 8.8 Zodp30

SCR-HXFL-M8X1.25X40 8.8 ZODP30

Part #: 7519267 Required per assembly: 2
Currently Not Available
3

YOKE-SLIP

Part #: 2206619 Required per assembly: 1
Currently Not Available
4
Polaris 7080424 Fitting, Lube.

FITTING, LUBE.

Part #: 7080424 Required per assembly: 1 Note: Fitting, Lubrication
Currently Not Available
5
Polaris 2203703 Kit, U-Joint

KIT, U-JOINT

Part #: 2203703 Required per assembly: 1
Currently Not Available
