Air Intake System replacement parts for 2020 Polaris Ranger 1000XP PS Crew INTL (R01)

OEM Parts Polaris 2020 Polaris Ranger 1000XP PS Crew INTL (R01) Air Intake System

AIR INTAKE SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-AIRBOX COVER Part #: 1241271 Required per assembly: 1 Currently Not Available
2	AIRBOX Part #: 5455271 Required per assembly: 1 Currently Not Available
3	PLUG, DRAIN Part #: 5414472 Required per assembly: 1 Currently Not Available
4	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
5	ASM-AIRBOX CLIP Part #: 7082449 Required per assembly: 5 Currently Not Available
6	SEAL-AIRBOX Part #: 5814776 Required per assembly: 1 Currently Not Available
7	FILTER-AIR Part #: 7082265 Required per assembly: 1 Currently Not Available
8	CLAMP-HOSE, SLOTTED, 60-80, DIA Part #: 7082509 Required per assembly: 3 Currently Not Available

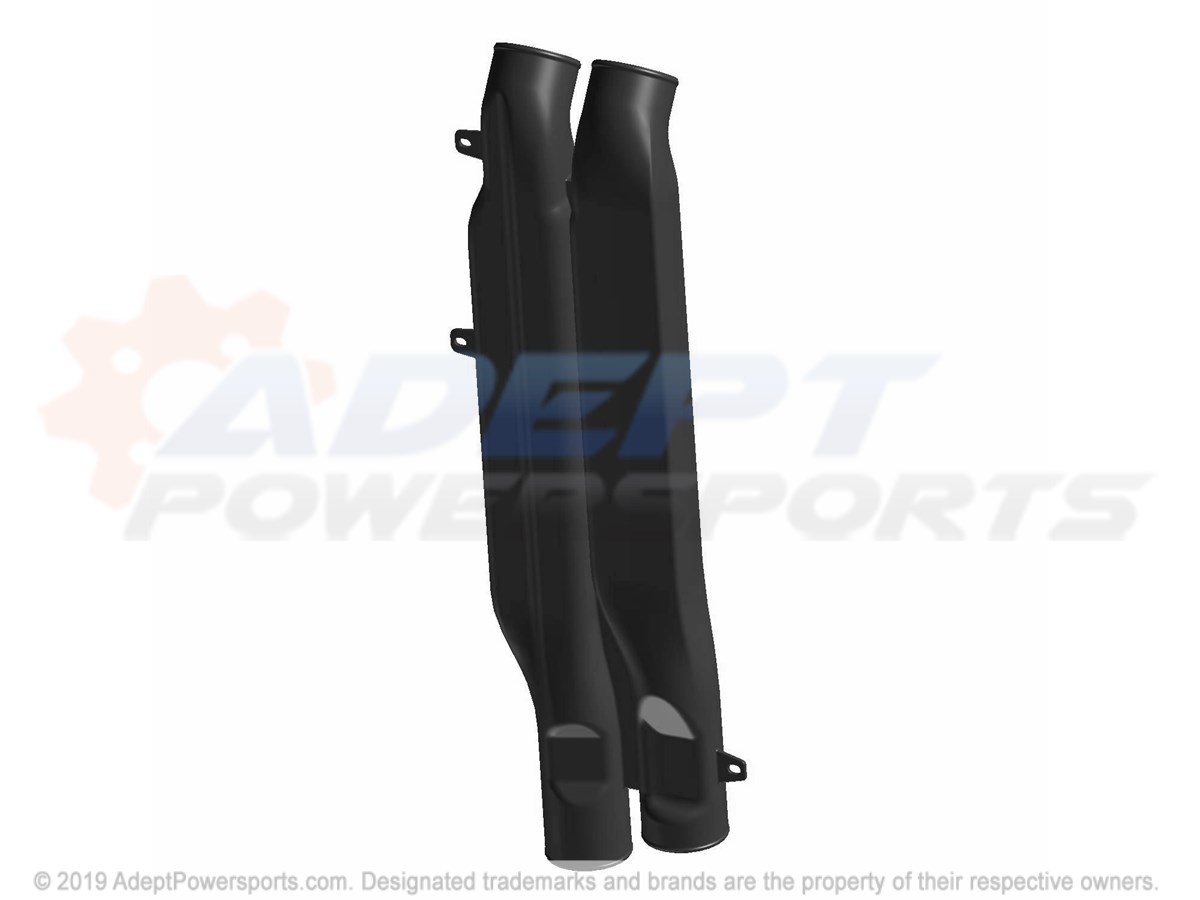

9	DUCT-TUNNEL, FRONT Part #: 5454322 Required per assembly: 1 Currently Not Available
10	DECAL-WARN, INTAKE Part #: 7185975 Required per assembly: 1 Currently Not Available

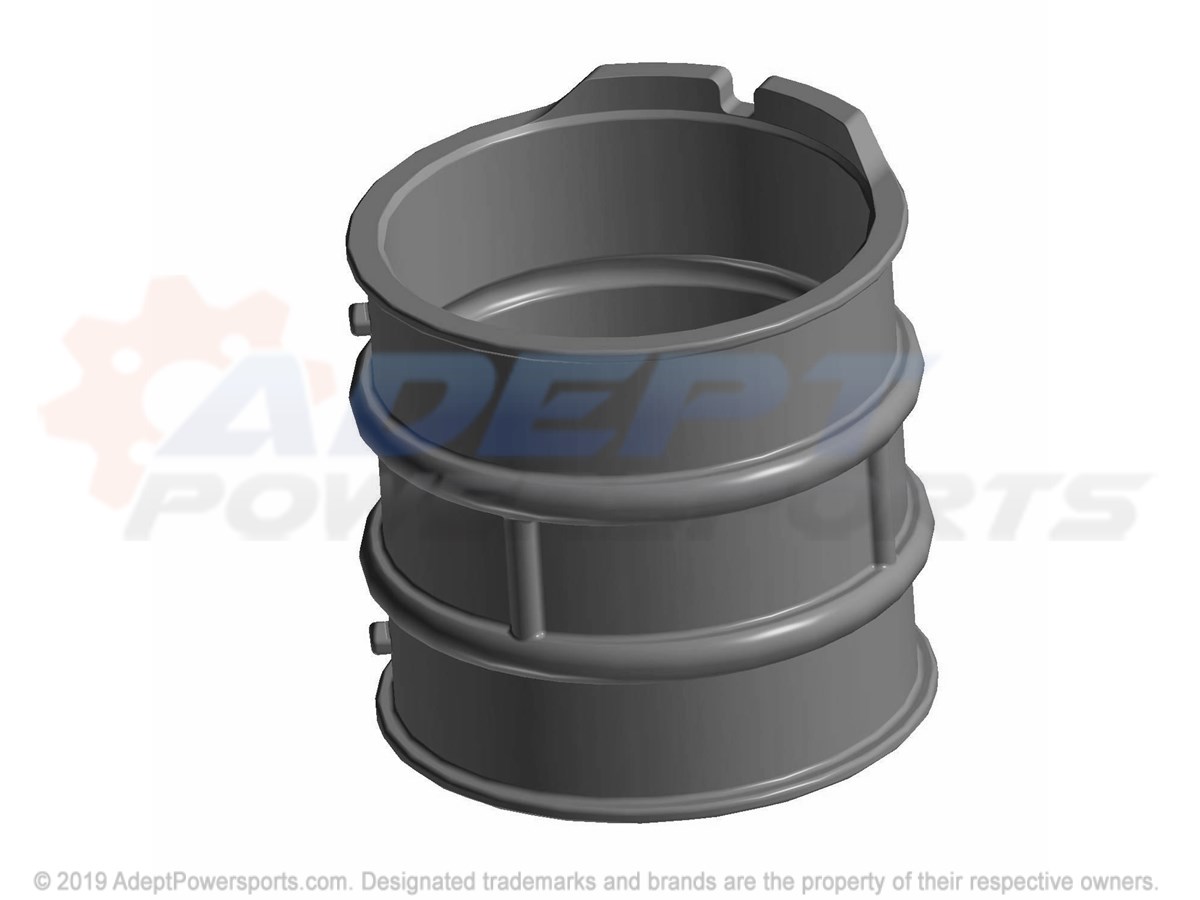

11	HOSE-JOINT Part #: 5416135 Required per assembly: 1 Currently Not Available
12	HOSE-AIRBOX TO TUNNEL Part #: 5416169 Required per assembly: 1 Currently Not Available

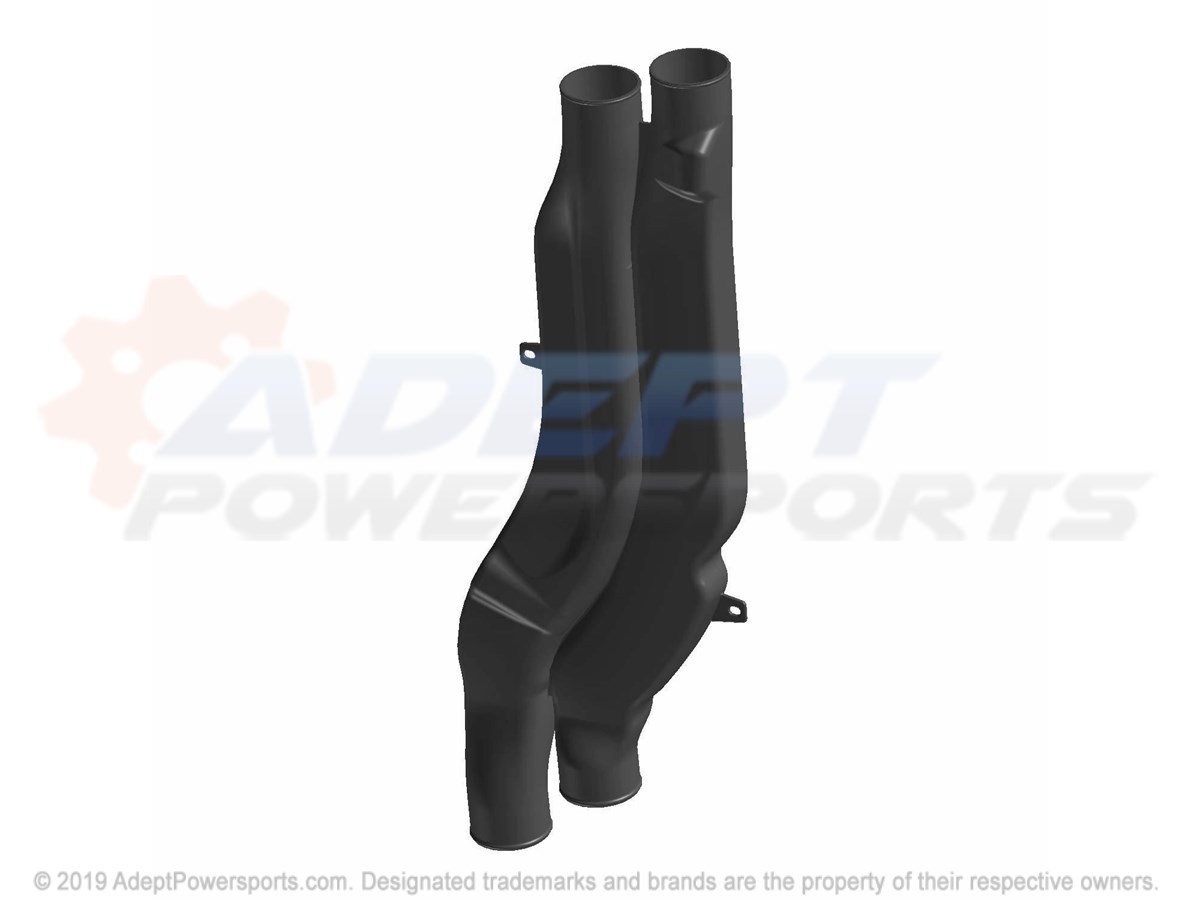

13	DUCT-TUNNEL, REAR Part #: 5454323 Required per assembly: 1 Currently Not Available
14	DUCT-INTAKE, FRONT Part #: 5453766 Required per assembly: 1 Currently Not Available
15	CLAMP, NARROW, BAND Part #: 7081279 Required per assembly: 2 Currently Not Available
16	CLAMP-HOSE, SLOTTED, 75-90, DIA Part #: 7082314 Required per assembly: 5 Currently Not Available
17	WASHER Part #: 7555935 Required per assembly: 2 Note: Washer, Flat Currently Not Available
18	RIVET Part #: 7661855 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
19	HOSE-VENT, ENGINE Part #: 5416136 Required per assembly: 1 Currently Not Available
20	ASM-AIRBOX TO PLENUM Part #: 1241155 Required per assembly: 1 Note: INCL. 21-23 Currently Not Available
21	HOSE-AIRBOX TO PLENUM Part #: 5416171 Required per assembly: 1 Currently Not Available
22	FITTING-3/4 DOUBLE BARB Part #: 7052580 Required per assembly: 1 Currently Not Available
23	CLAMP-HOSE Part #: 7081903 Required per assembly: 1 Currently Not Available
24	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
25	HOSE-INTAKE, DUCT Part #: 5416414 Required per assembly: 1 Currently Not Available
