OEM Parts Polaris 2020 Polaris RZR S 1000 60 Inch EPS Tractor (R02) Caliper Front

2020 Polaris RZR S 1000 60 Inch EPS Tractor (R02) Z20ASS99C2/CH - Caliper Front

CALIPER FRONT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

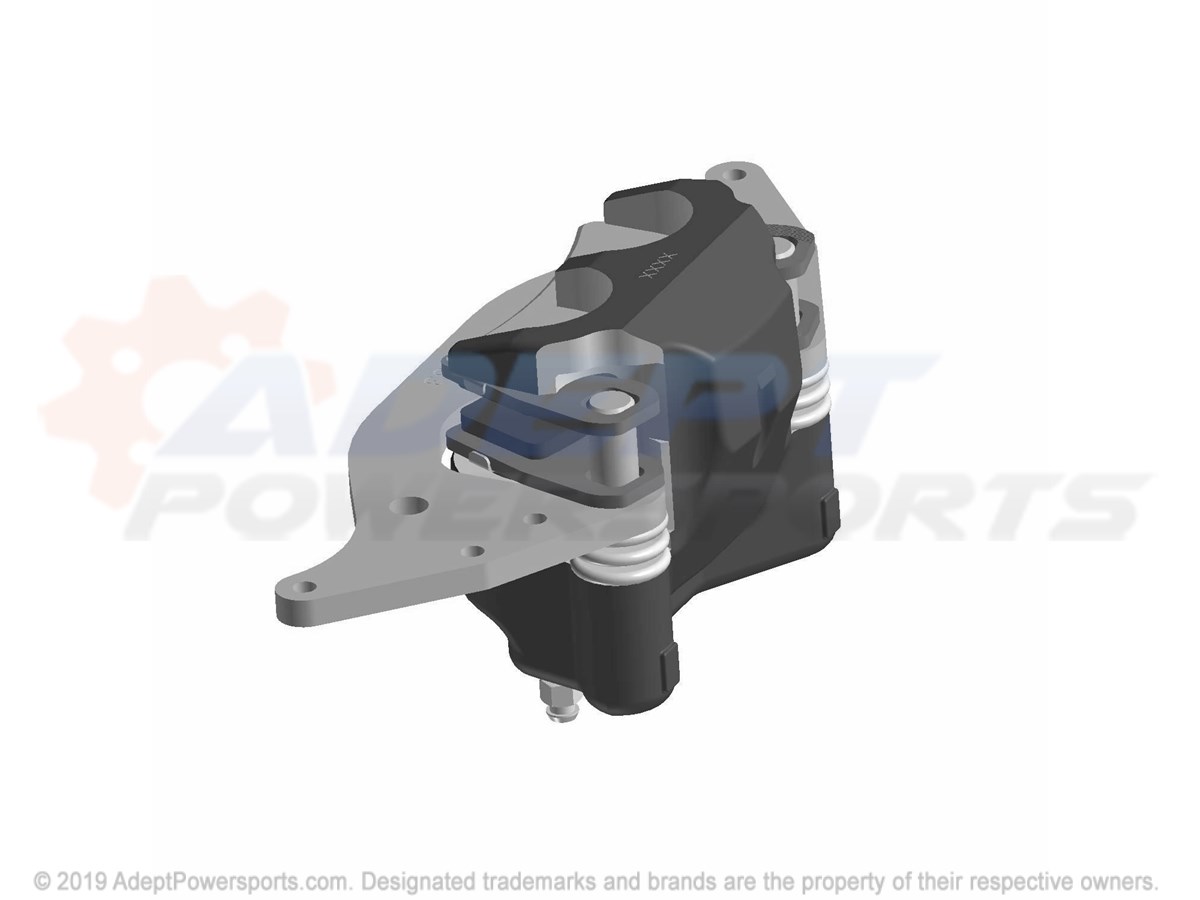

Polaris 1912245 Asm-Caliper, Frt, 1.19Db, Rh, Met

ASM-CALIPER, FRT, 1.19DB, RH, MET

Part #: 1912245 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
1

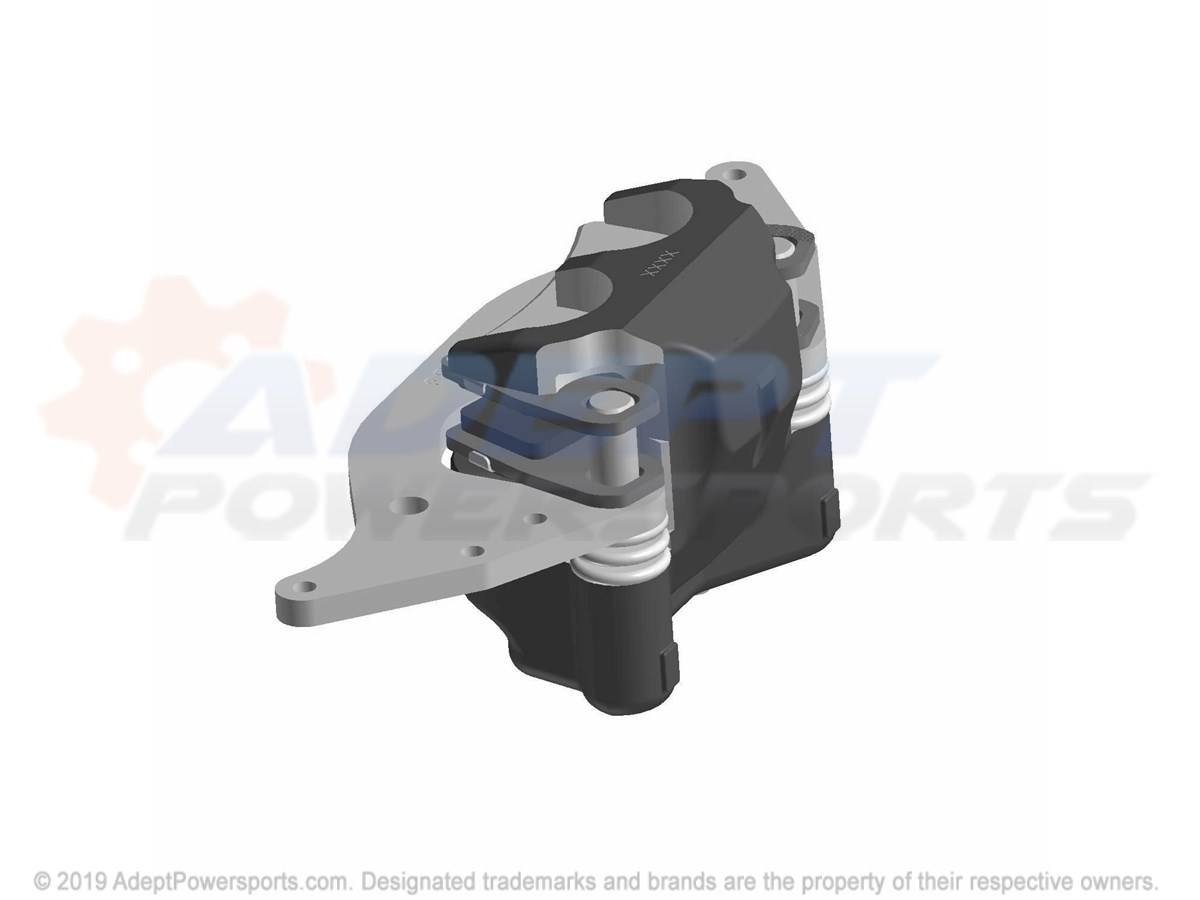

Polaris 1912244 Asm-Caliper, Frt, 1.19Db, Lh, Met

ASM-CALIPER, FRT, 1.19DB, LH, MET

Part #: 1912244 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

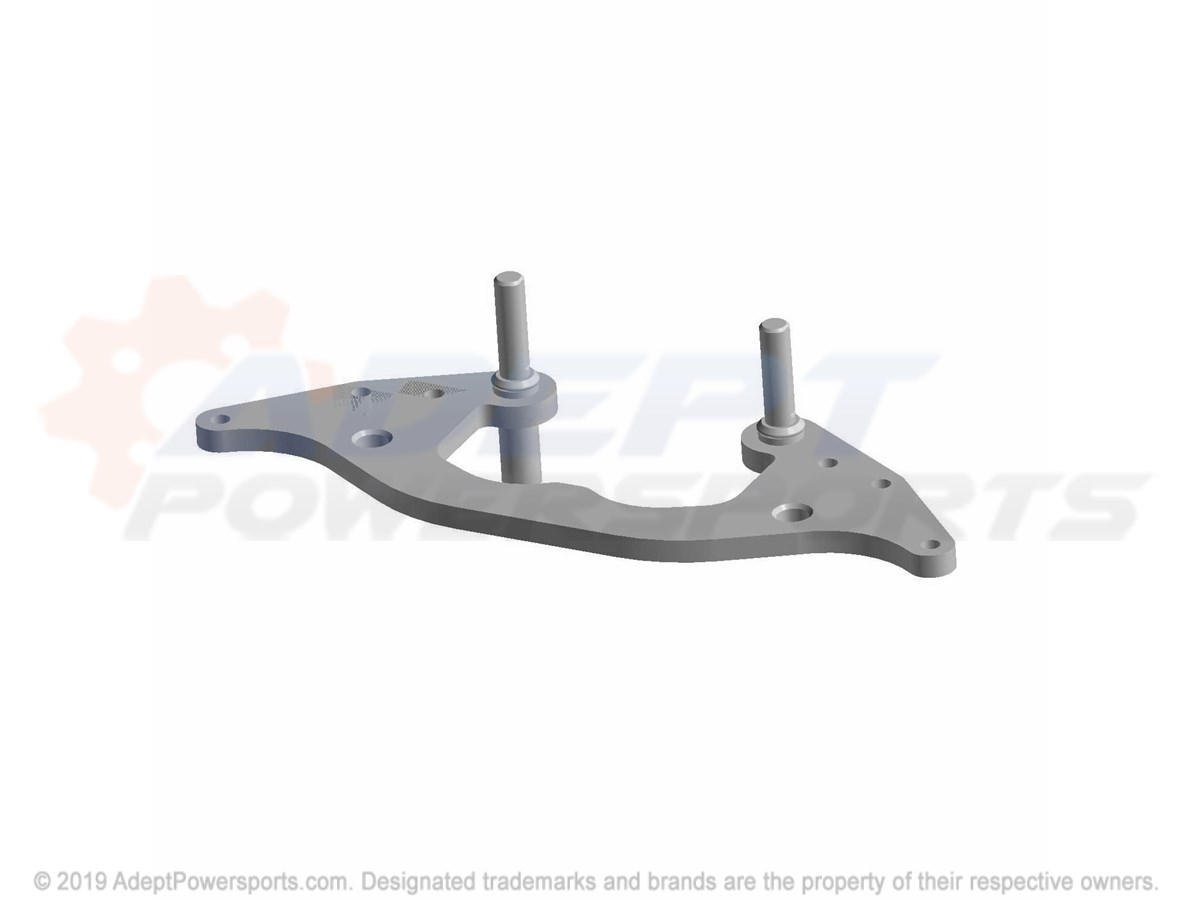

Polaris 1912253 Asm-Clpr, Mnt, Db, 3.0", Apx

ASM-CLPR, MNT, DB, 3.0", APX

Part #: 1912253 Required per assembly: 1
Currently Not Available
3

PISTON, &, SEAL, KIT

Part #: 1930665 Required per assembly: 2 Note: (Description)
Currently Not Available
4
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 1
Currently Not Available
5
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 1
Currently Not Available
6
Polaris 5410779 Ring, Square, Molded, (.099)

RING, SQUARE, MOLDED, (.099)

Part #: 5410779 Required per assembly: 2
Currently Not Available
7

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 1
Currently Not Available
8
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 1
Currently Not Available
9
Polaris 2206025 K-Brake, Pad, Db, 1.188", Compact

K-BRAKE, PAD, DB, 1.188", COMPACT

Part #: 2206025 Required per assembly: 2 Note: INCL. 4 PADS
Currently Not Available
10
Polaris 5410780 Ring, Square, Molded, (.134)

RING, SQUARE, MOLDED, (.134)

Part #: 5410780 Required per assembly: 2
$9.99
$5.75
-
+
Add to cart
