Engine Mounting replacement parts for 2020 Polaris RZR 570 (R03)

OEM Parts Polaris 2020 Polaris RZR 570 (R03) Engine Mounting

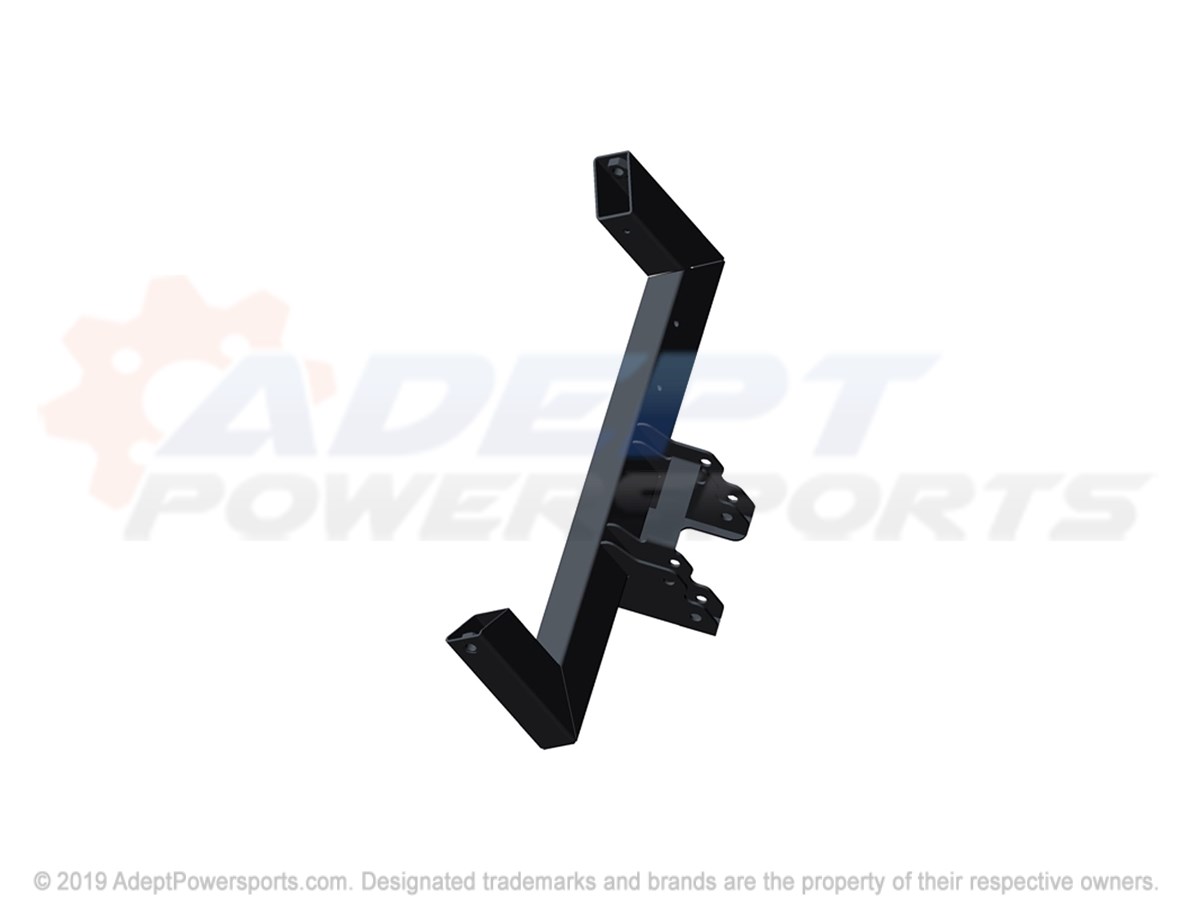

ENGINE MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	K-LONG BLOCK 570 Part #: 2207381 Required per assembly: 1 Currently Not Available
2	WELD-TRANS INNER LEFT Part #: 1018420 Required per assembly: 1 Currently Not Available
3	WELD-TRANS INNER RIGHT Part #: 1018421 Required per assembly: 1 Currently Not Available

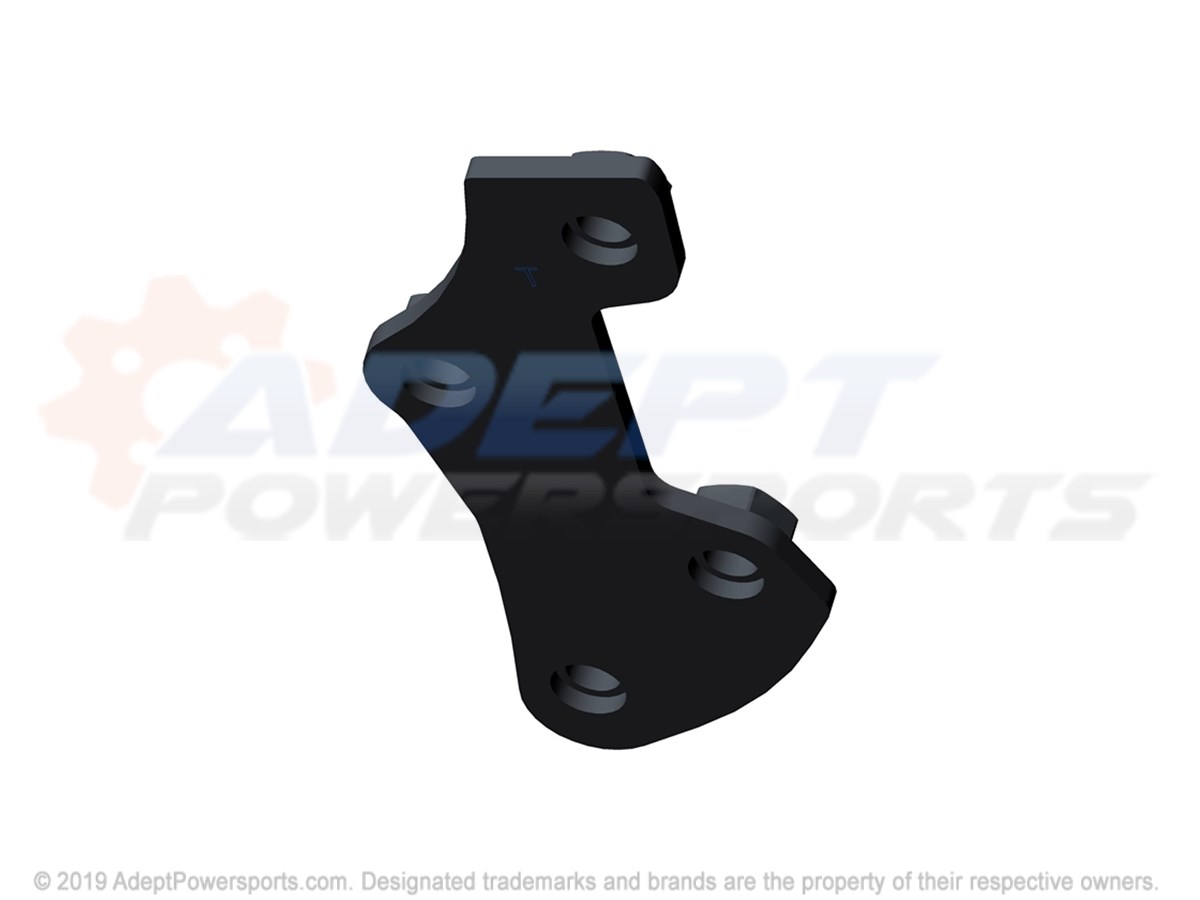

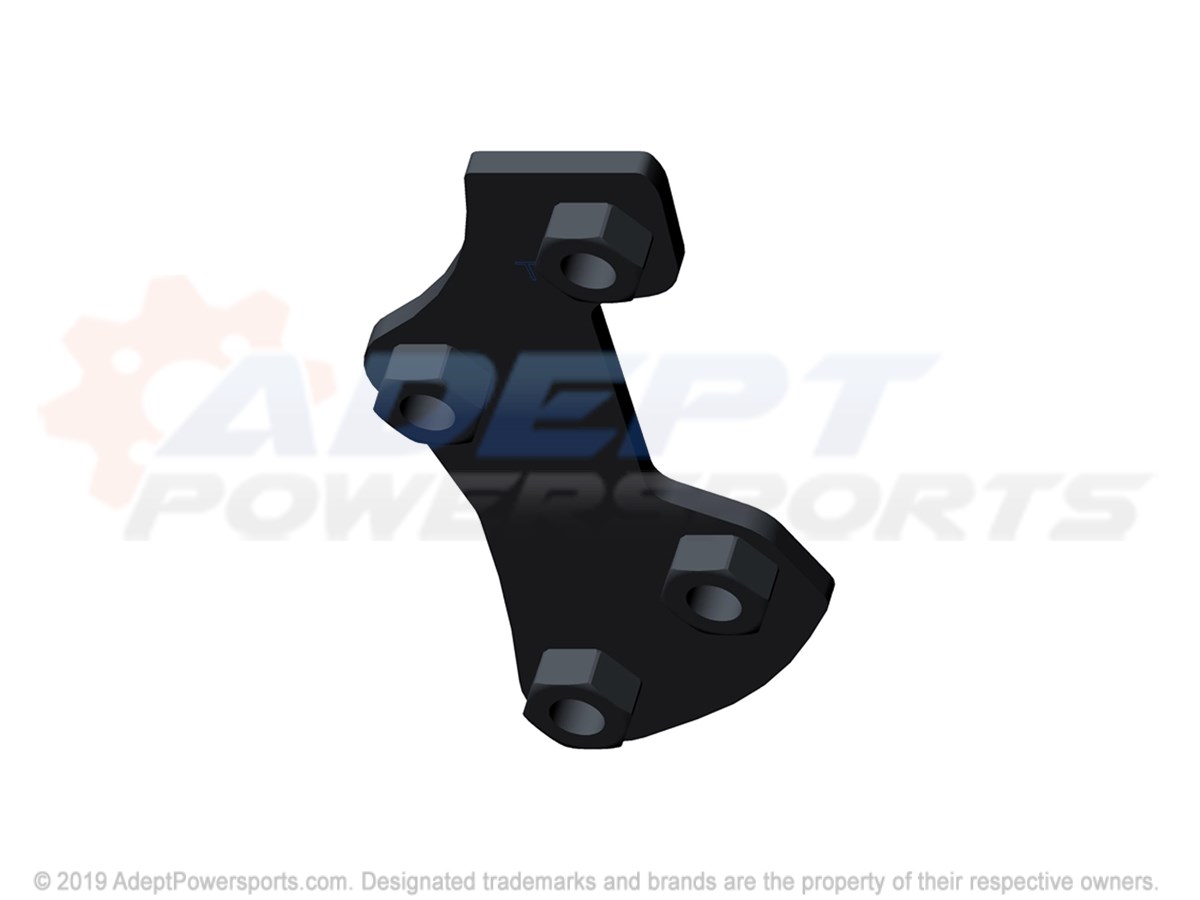

4	BRKT-COUPLER TRANS OUTER Part #: 5255321 Required per assembly: 2 Currently Not Available
5	MOUNT, ENGINE, BLACK Part #: 1018912-329 Required per assembly: 1 Currently Not Available

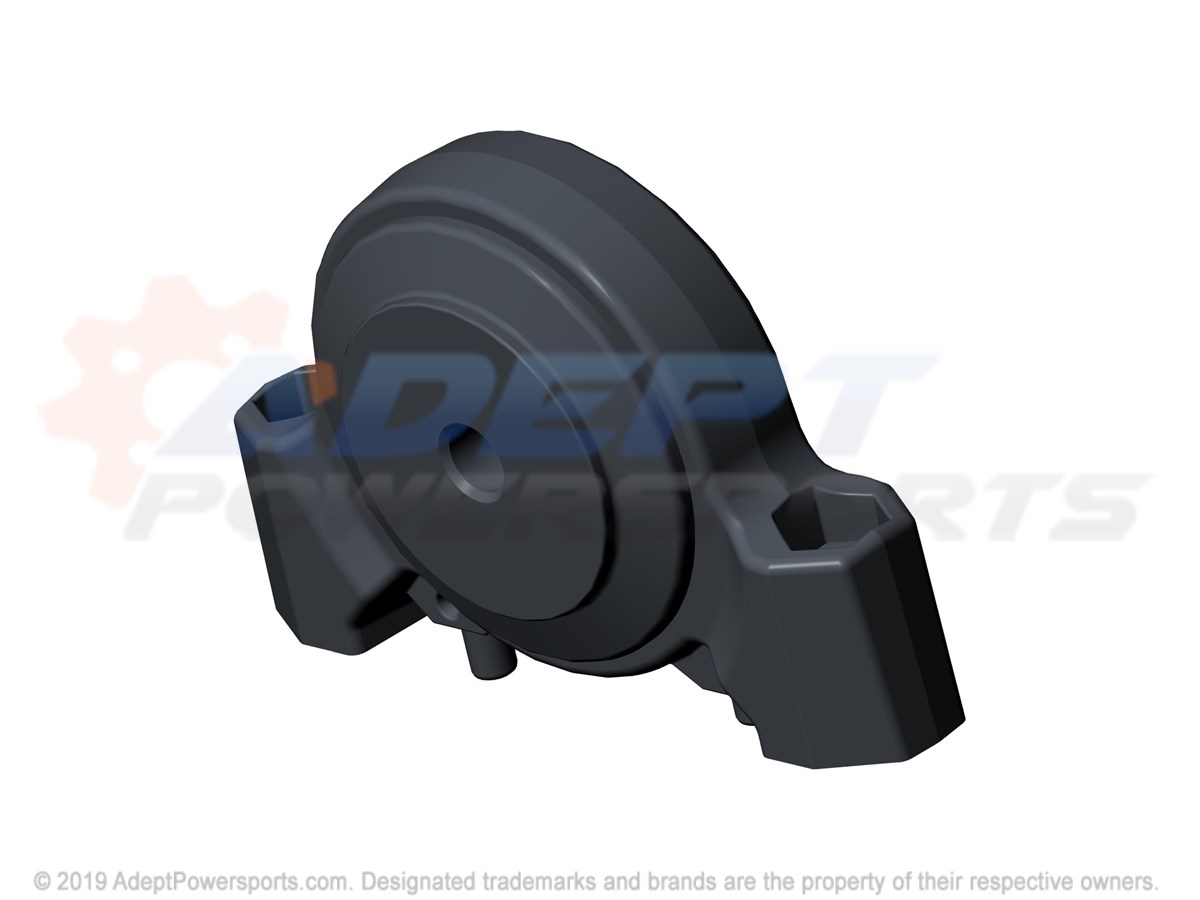

6	MOUNT-ISOLATOR DRIVELINE Part #: 1332955 Required per assembly: 2 Currently Not Available

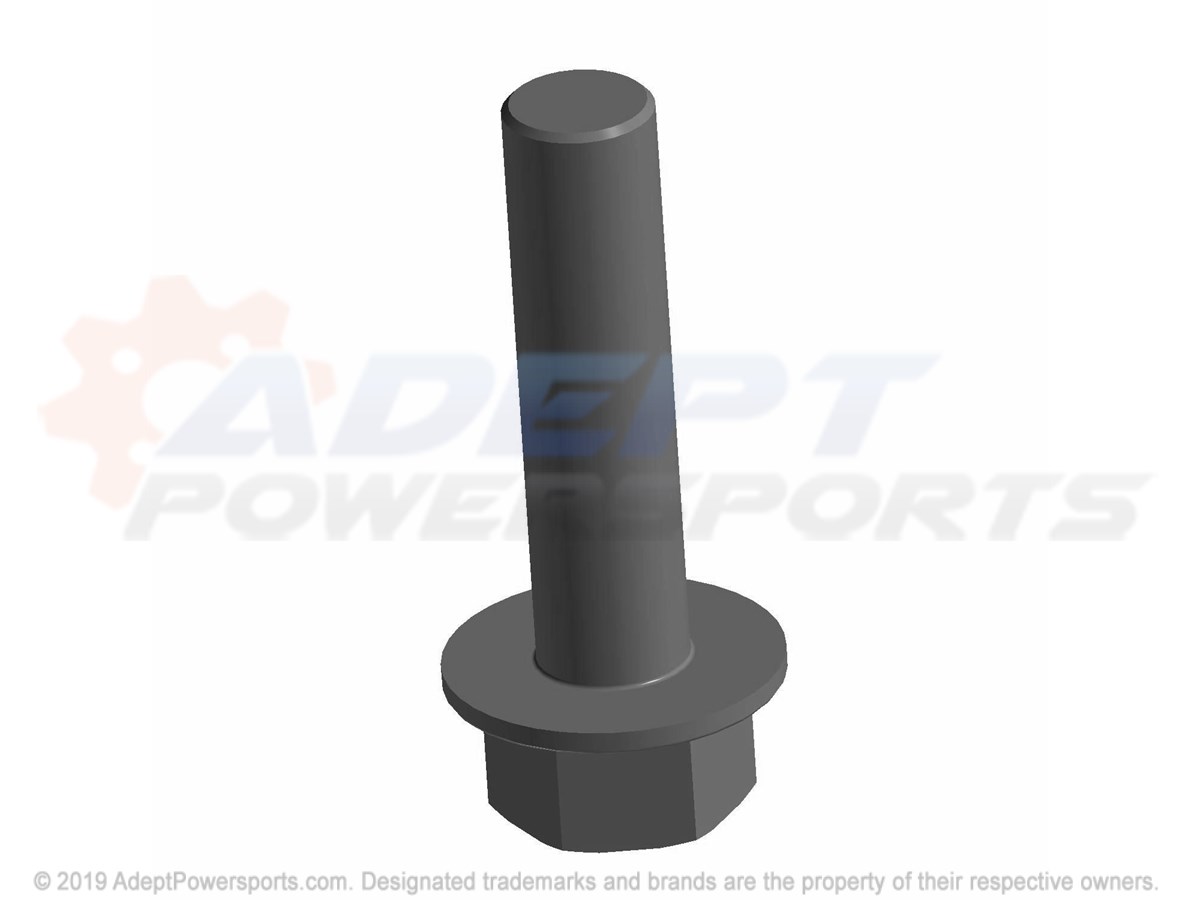

7	SCREW Part #: 7518971 Required per assembly: 8 Currently Not Available

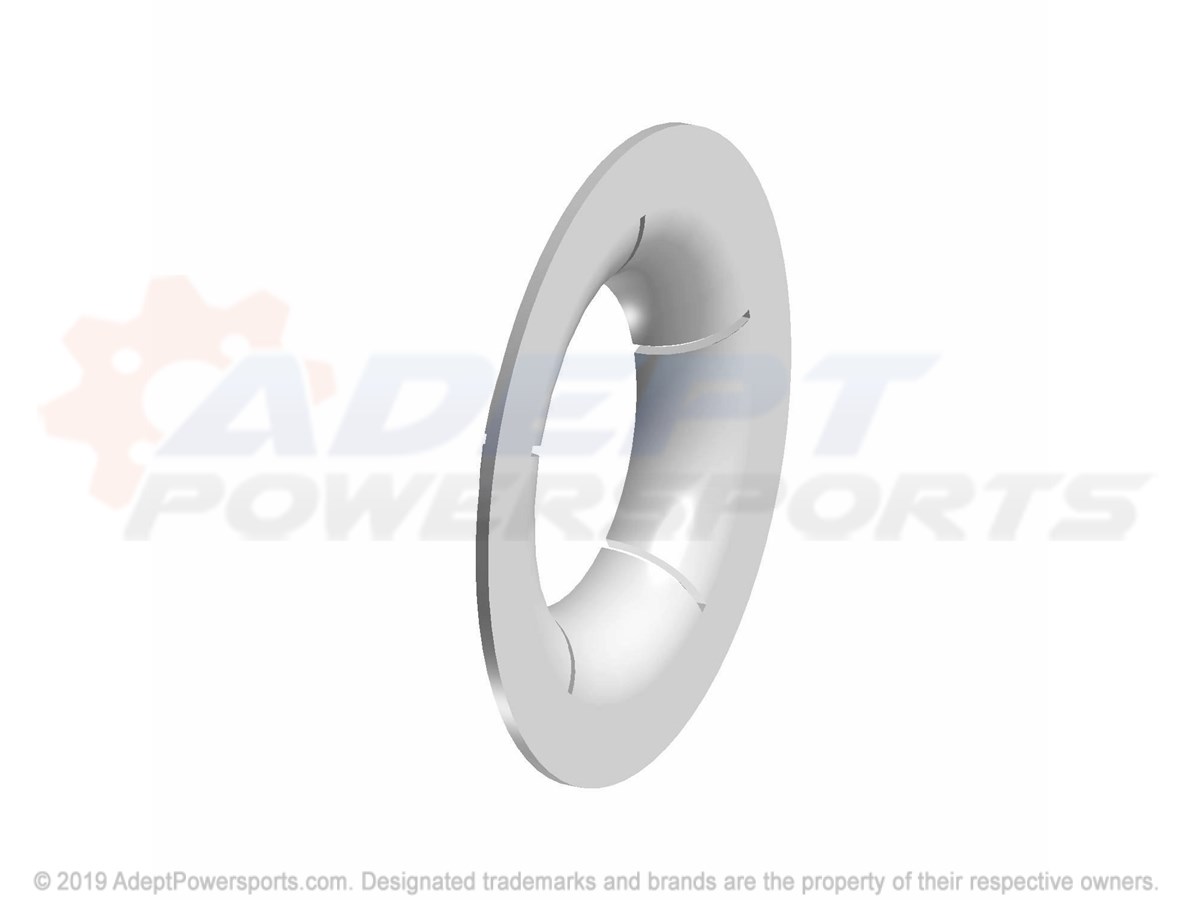

8	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer $3.99 $2.30 - + Add to cart

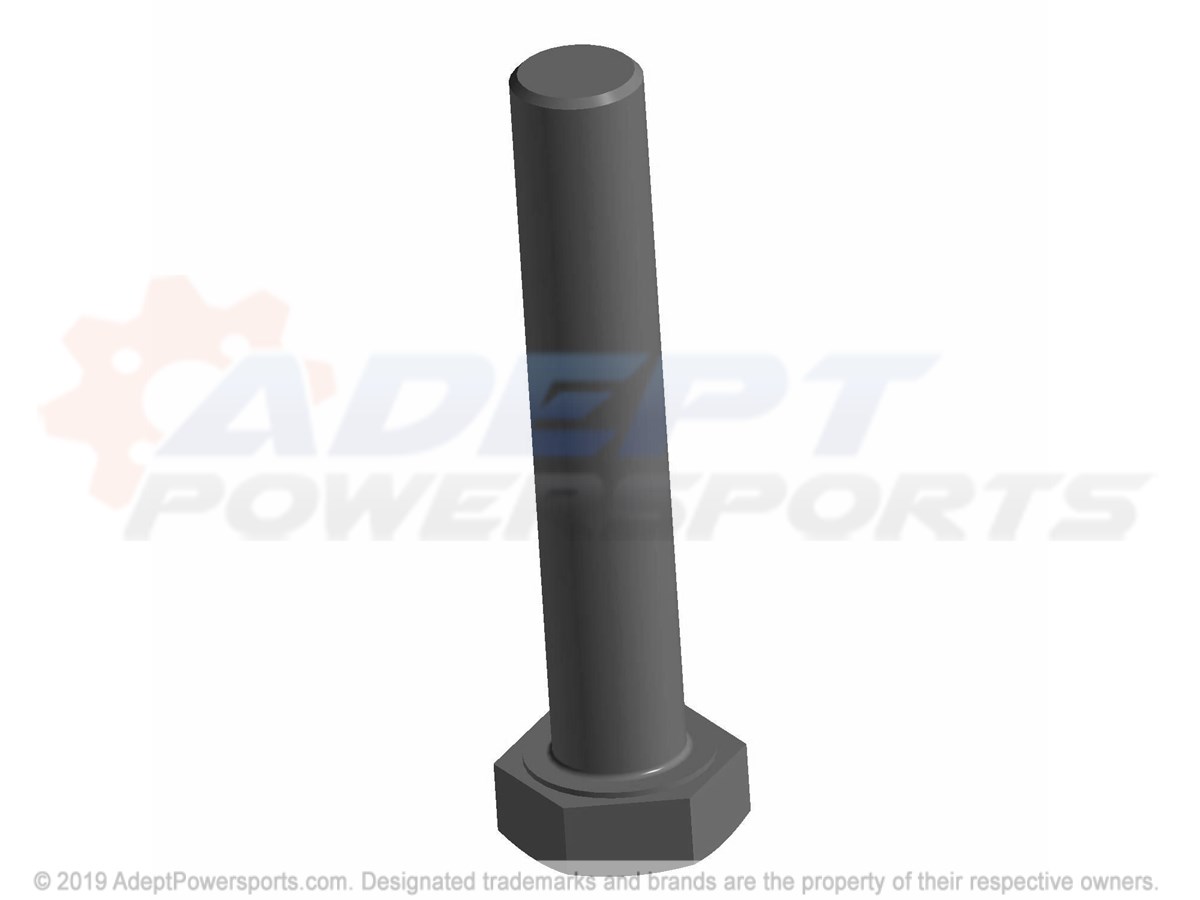

9	SCR-HXFL-M10X1.25X40 8.8 ZOD Part #: 7519332 Required per assembly: 4 Currently Not Available

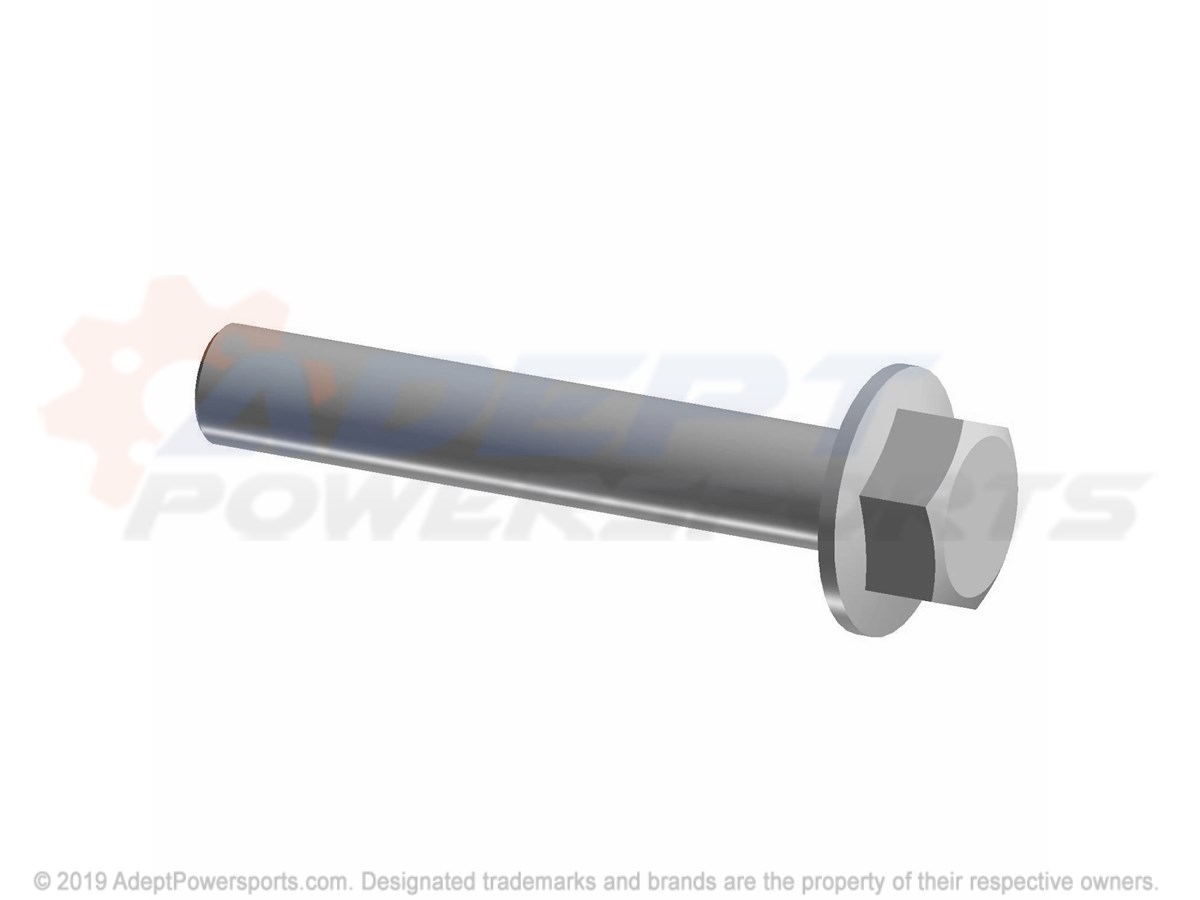

10	BOLT, FLANGE Part #: 7518826 Required per assembly: 2 Currently Not Available

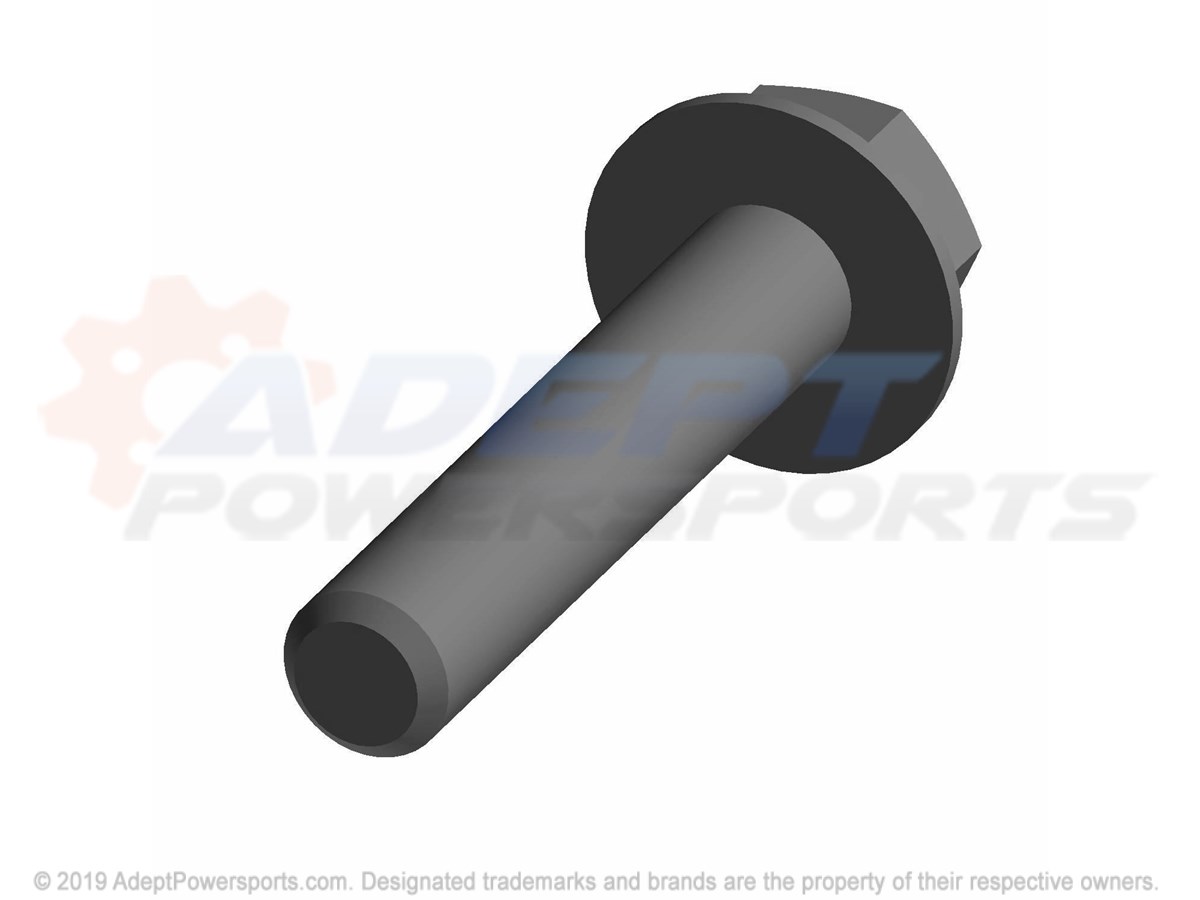

11	SCREW Part #: 7519097 Required per assembly: 4 Currently Not Available
12	PALNUT Part #: 7547030 Required per assembly: 4 Currently Not Available
13	NUT, FLANGE Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok Currently Not Available
14	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
15	NUT, METRIC Part #: 7546703 Required per assembly: 2 $1.99 $1.15 - + Add to cart
